DTG Series

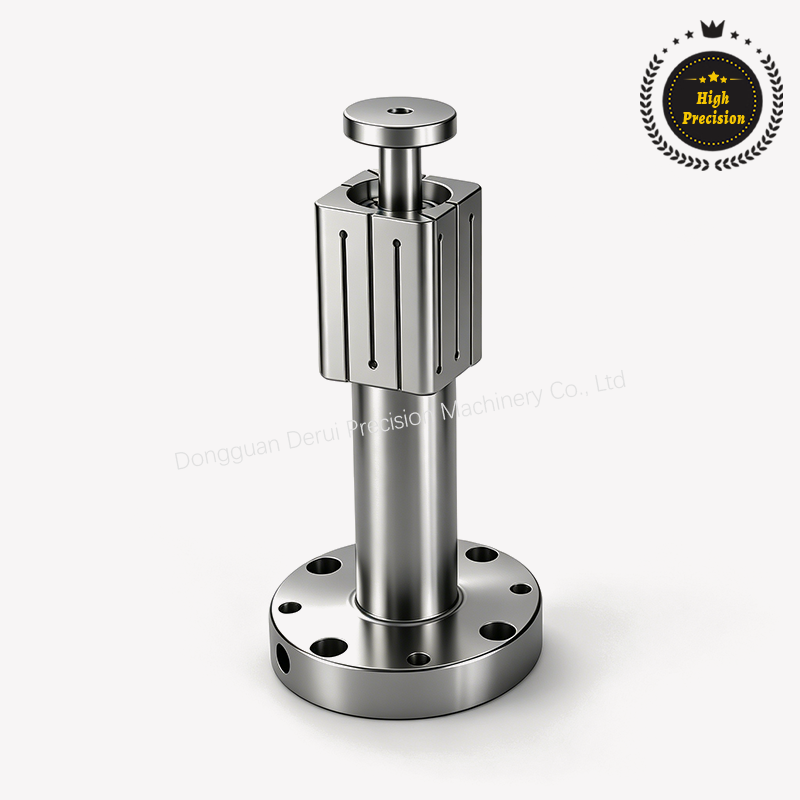

Double-Taper Internal Clamping Fixture

High Precision
$ 299 USD Customization Available

Model

    No data available


  • customized inner bore size for different workpiece clamping,

  • ISO9001 certified with stable concentricity for precision CNC machining.


  • DTG double taper internal expanding fixture is professional inner bore workholding tool, adopt double taper expansion design, available in through hole & blind hole type, precision up to 0.002~0.015mm, mainly used for motor stator, rotor and shell inner hole precision machining.

Get Your Solution

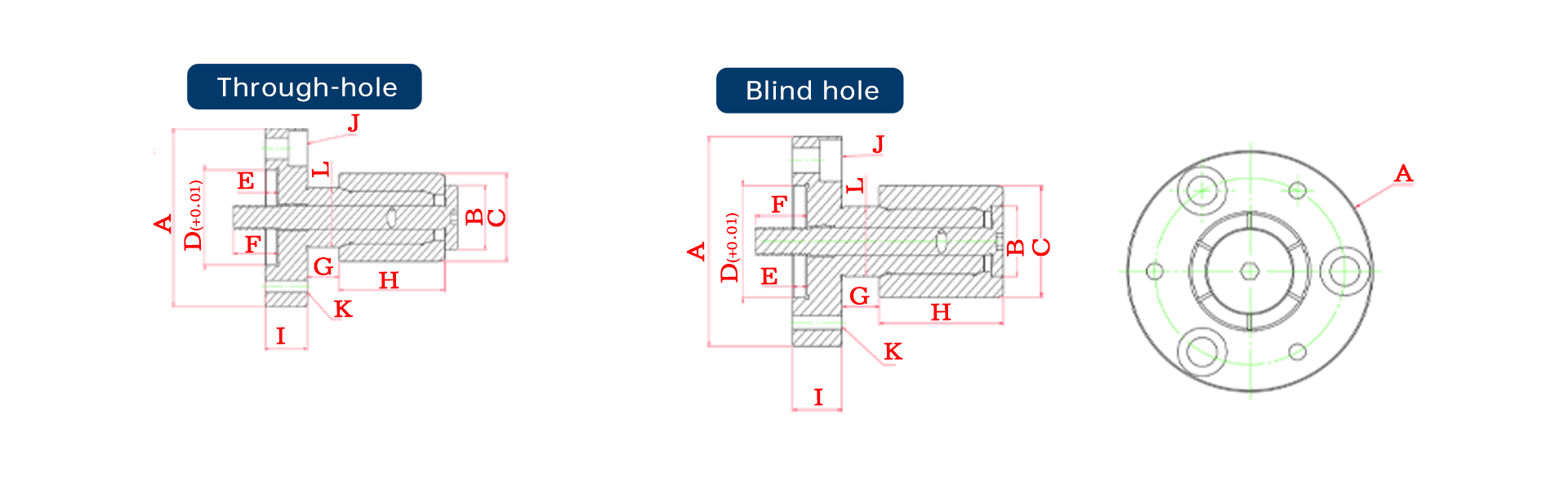

2D Drawing

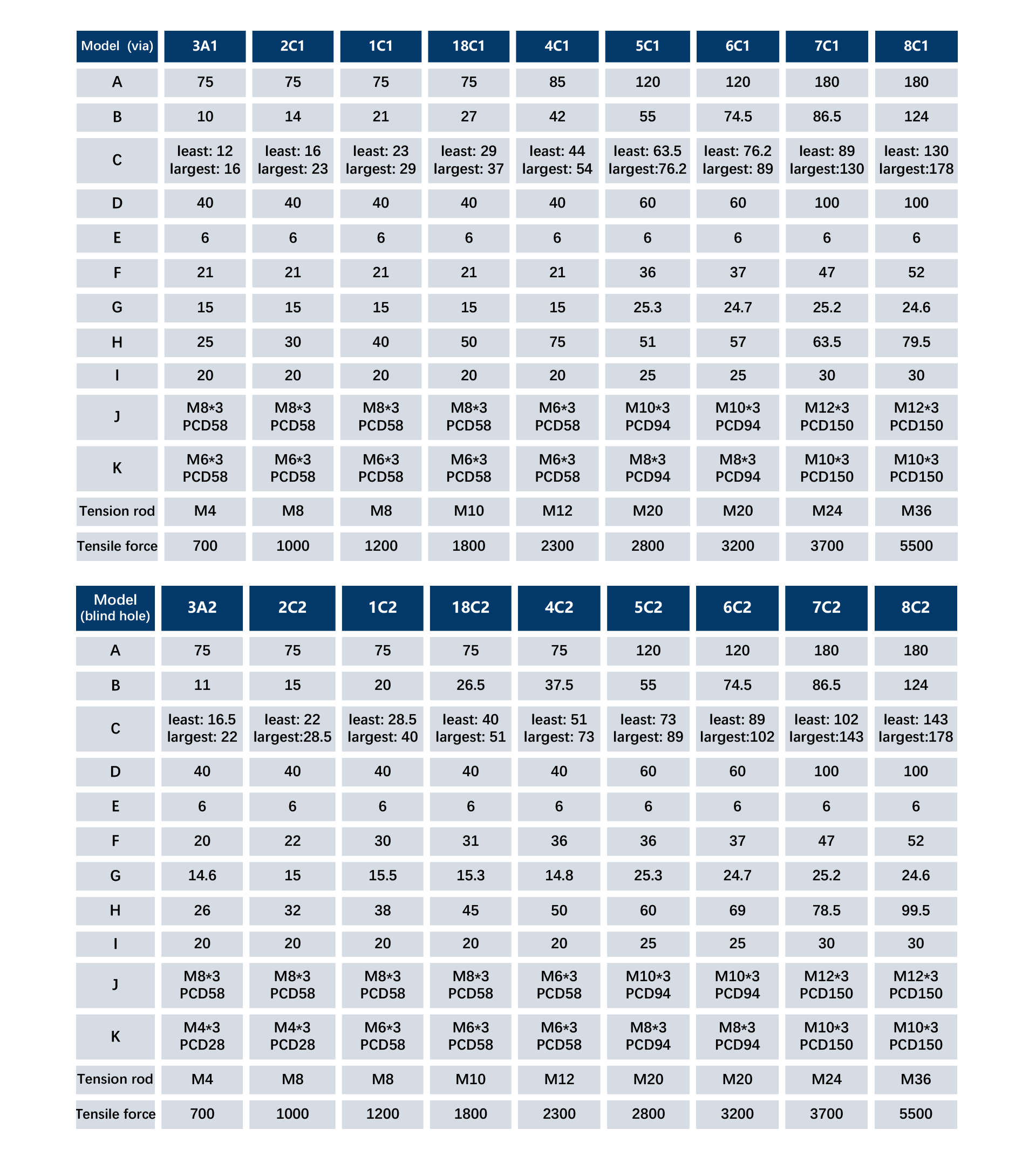

Technical Specifications (mm)


Document DownloadSTEP Format

    No data available

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
