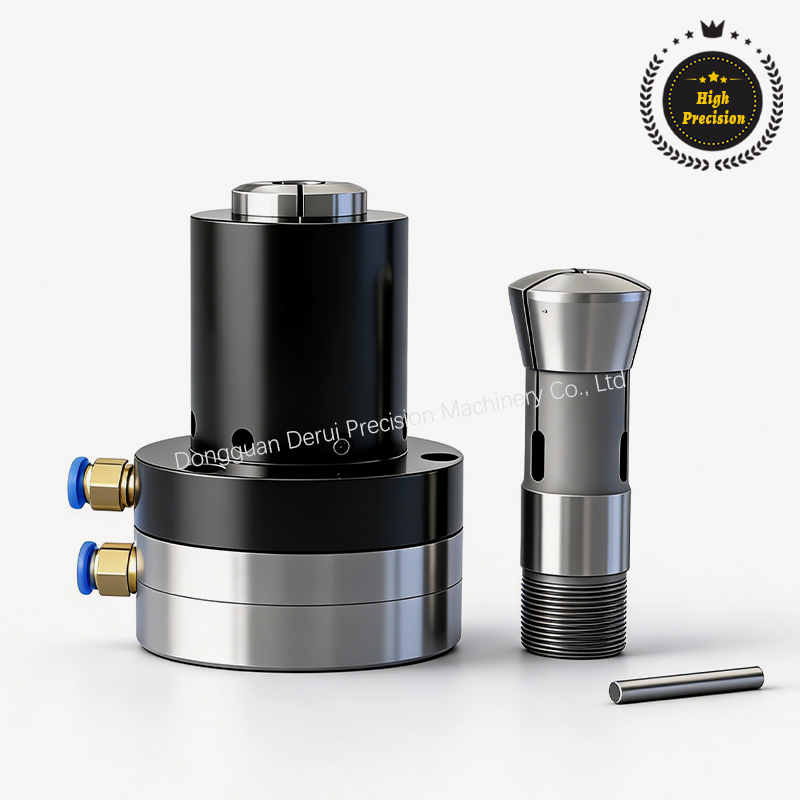

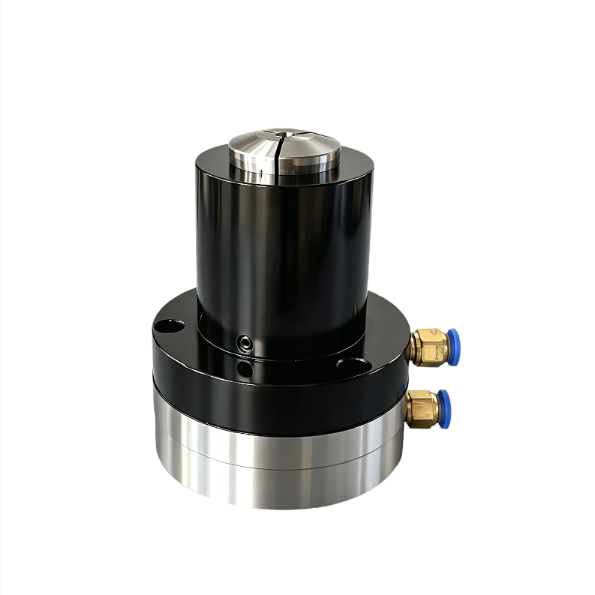

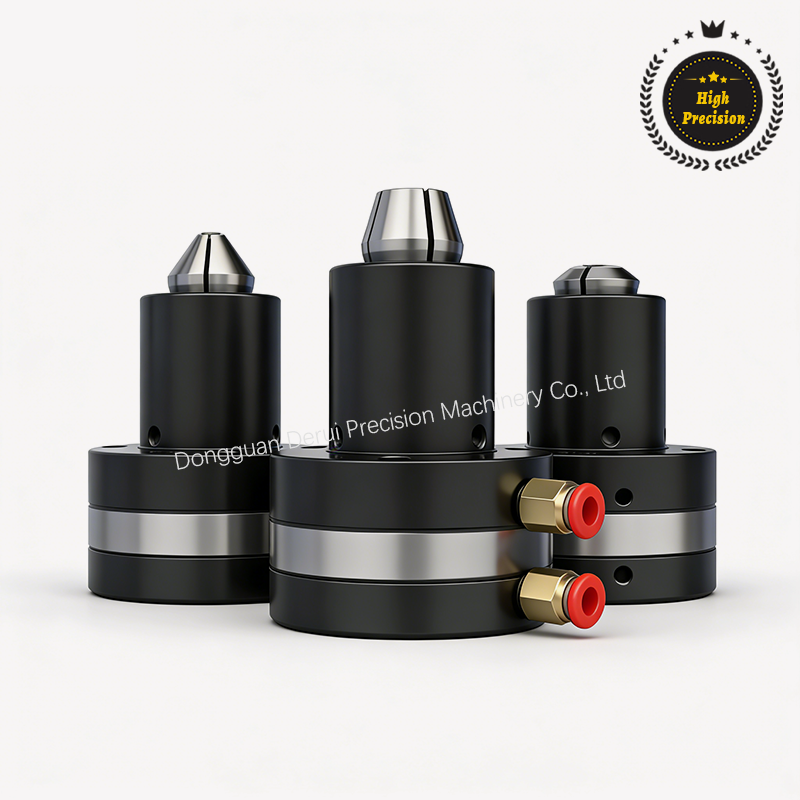

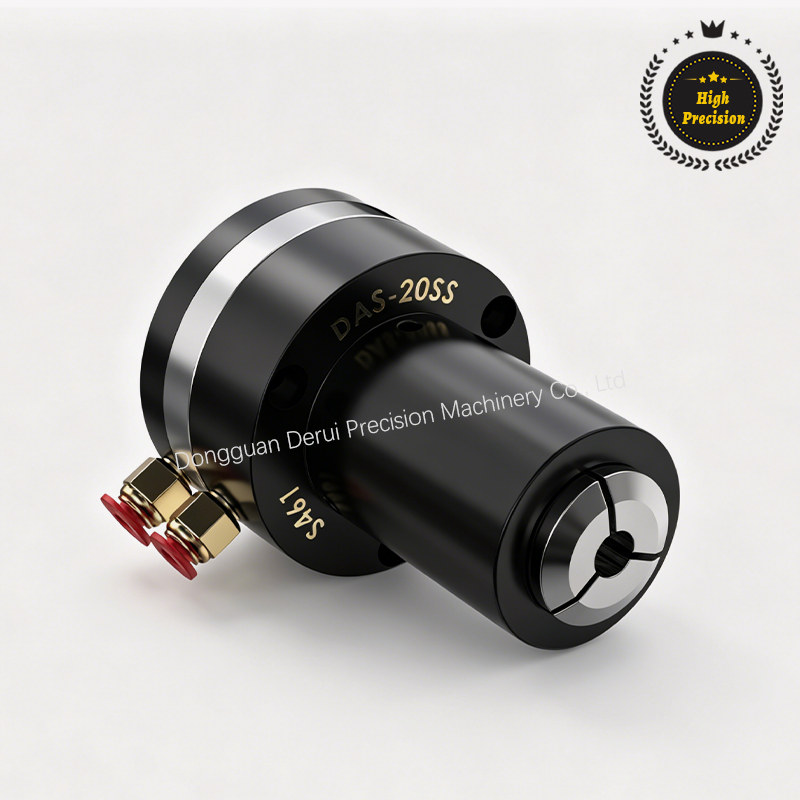

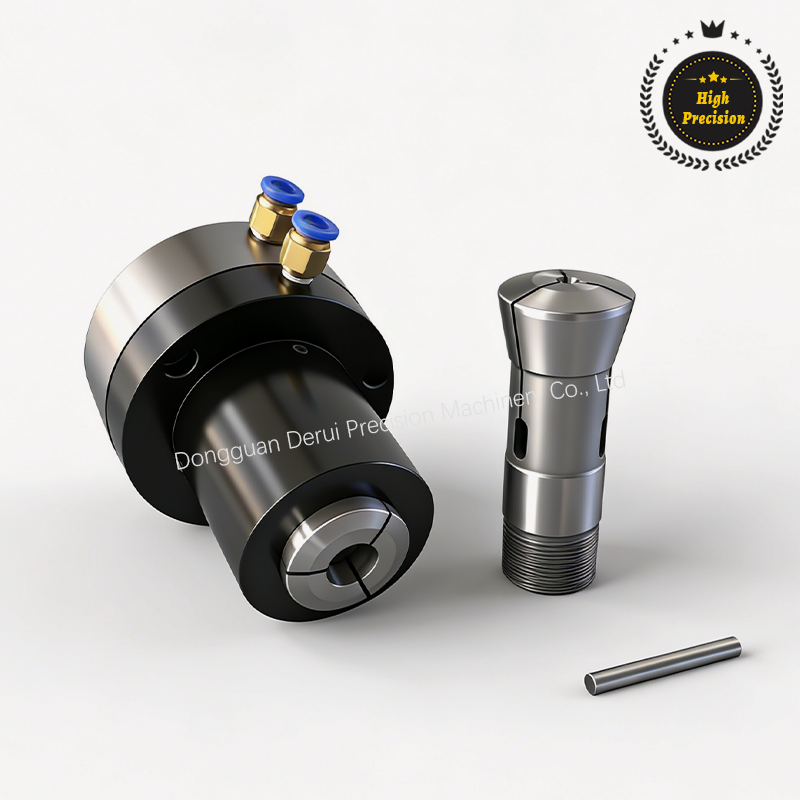

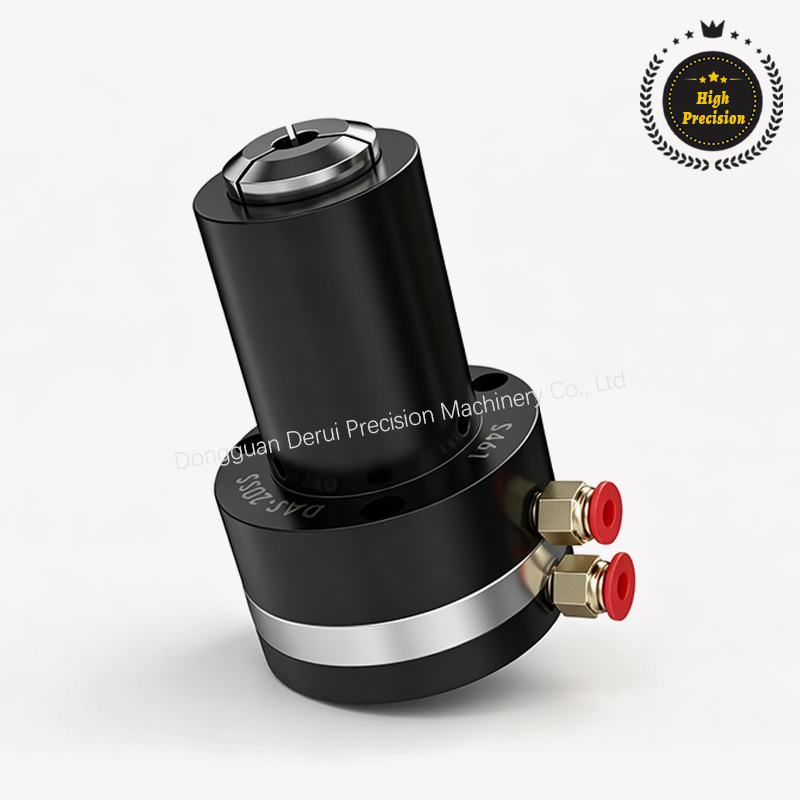

DAS-SS Series
Small fixed chuck
High Precision
$ 331 USDMotor price not included

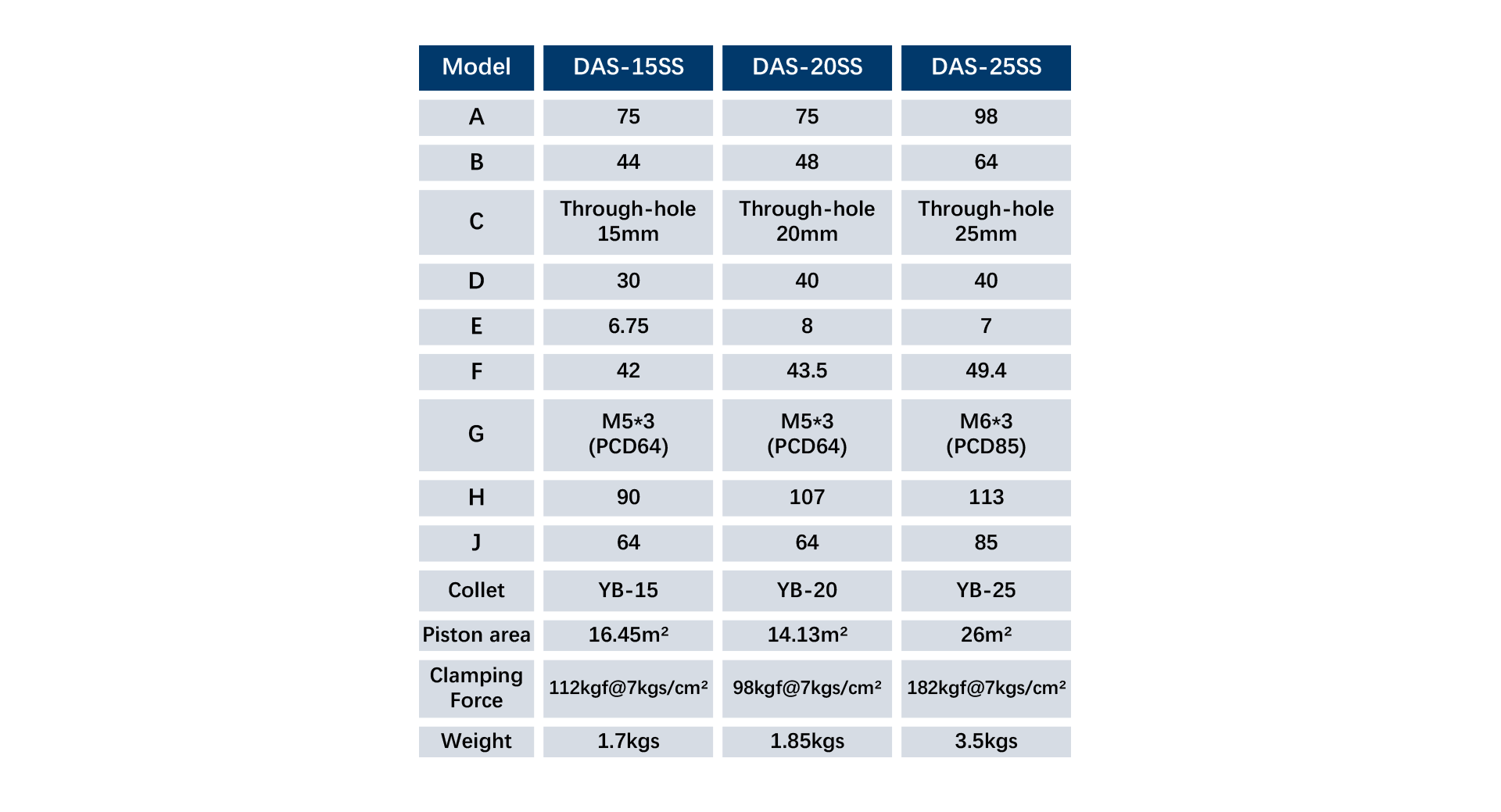

Model

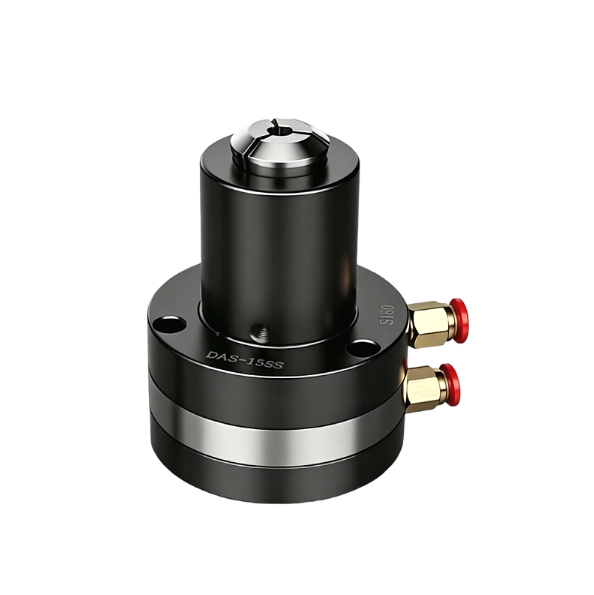

DGDR DAS-15SS

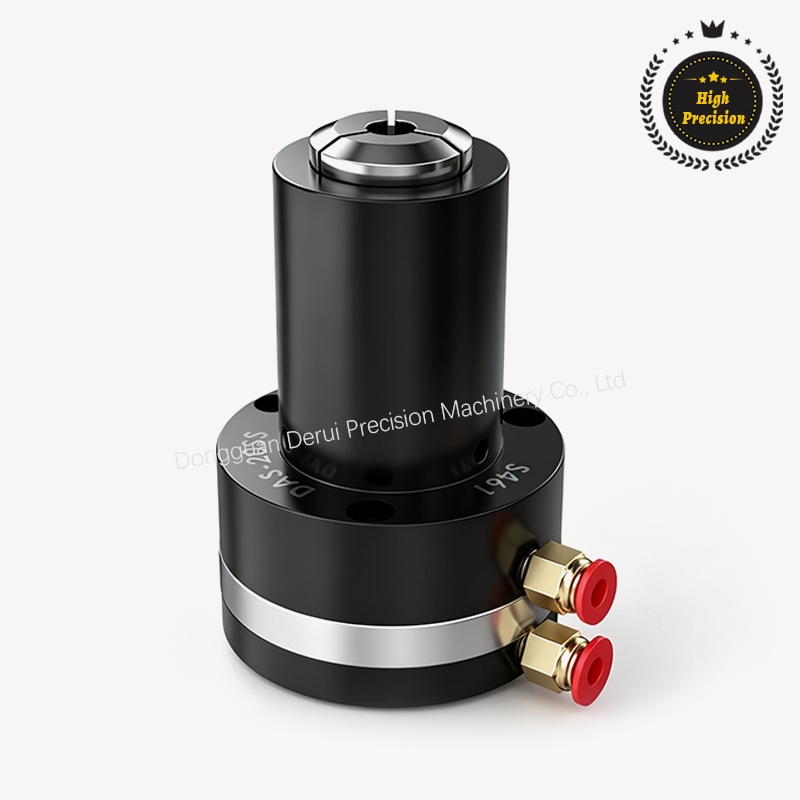

DGDR DAS-20SS

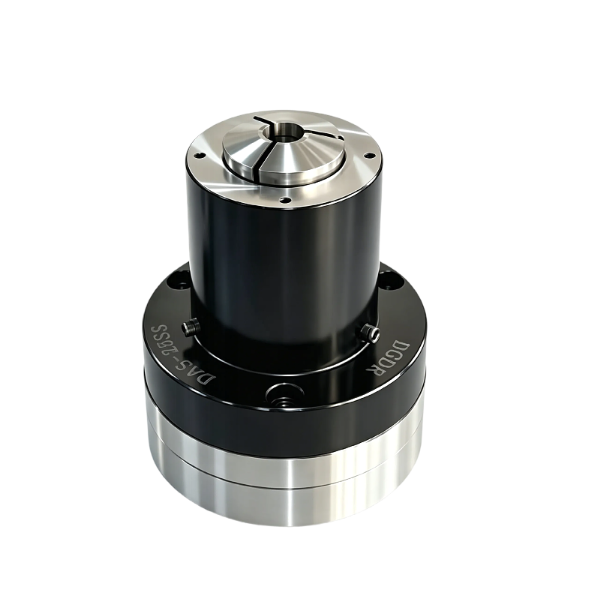

DGDR DAS-25SS
With a 20mm through hole and support for customized inner holes,
it boasts a clamping repeatability of 0.015mm and a 1mm opening stroke,
making it suitable for light machining operations such as laser cutting welding,
oxy-acetylene welding, assembly, drilling, and tapping.
The clamping force can be finely adjusted via pneumatic pressure (3-8 kgs),
making it suitable for various drilling and milling worktables and CNC machining centers
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
