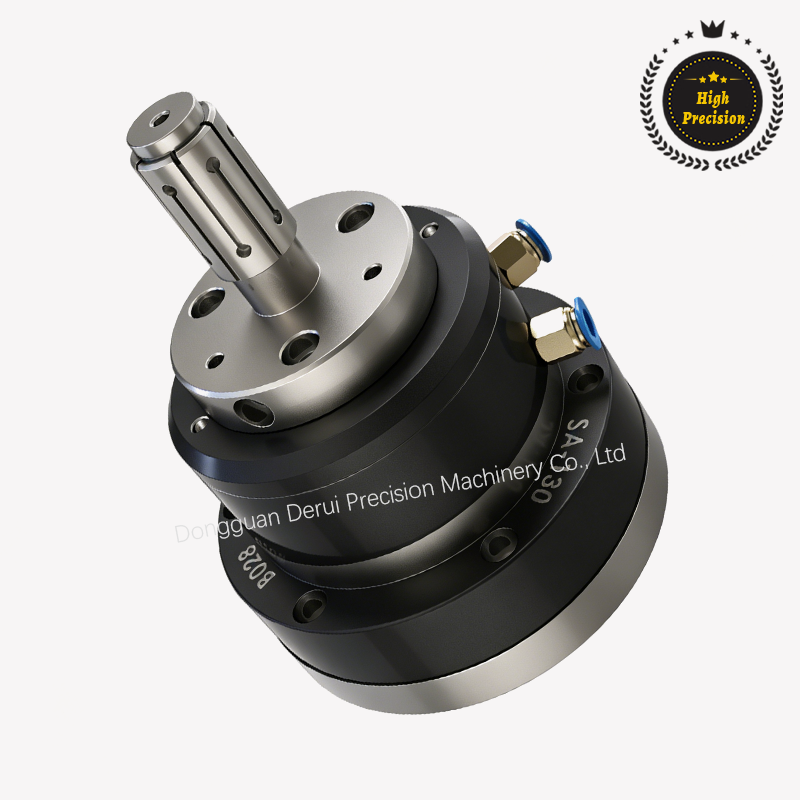

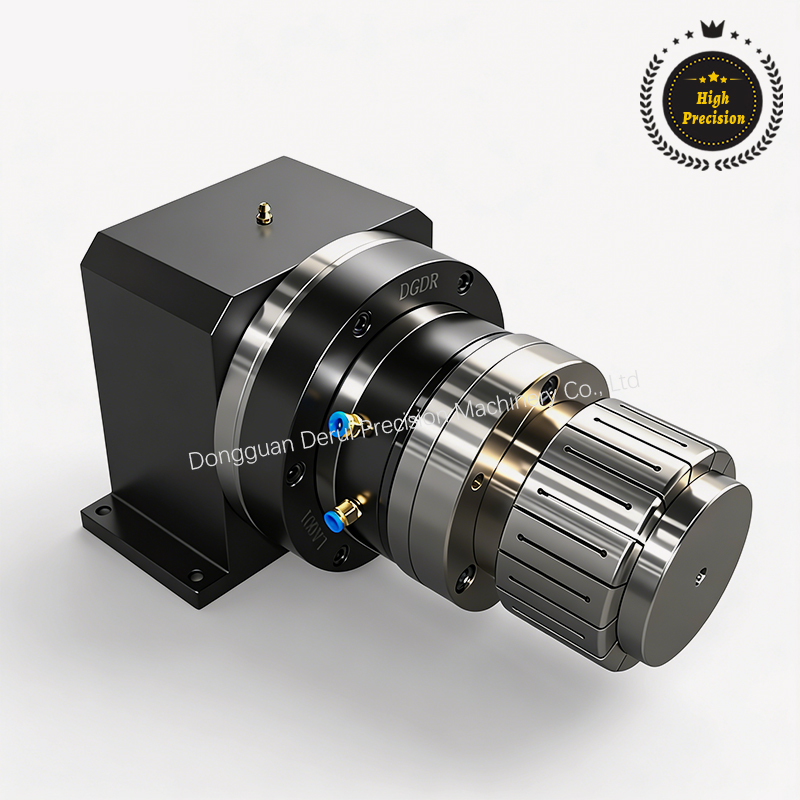

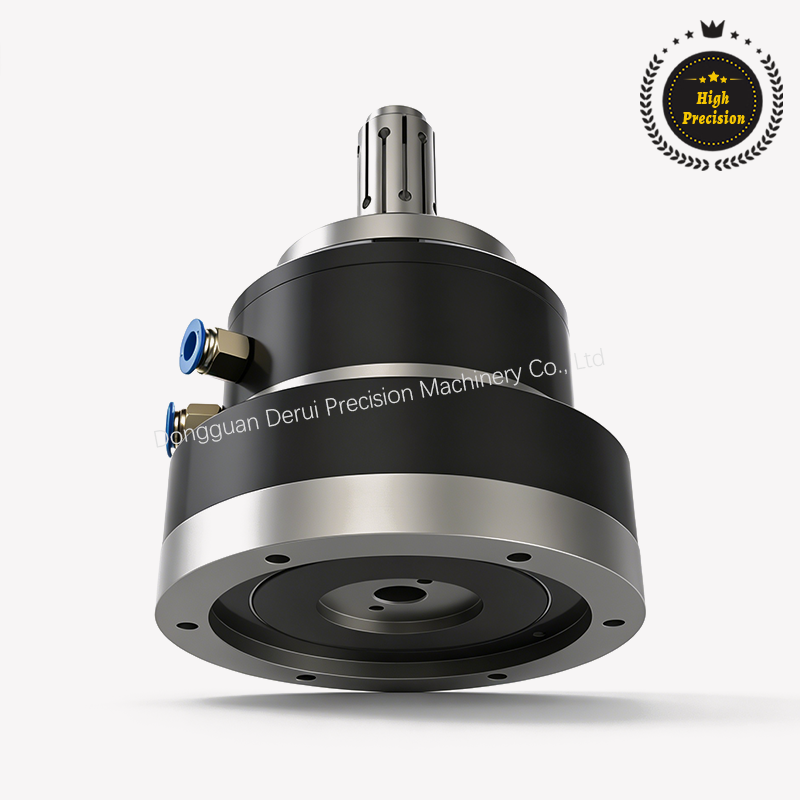

SA plus DR Series

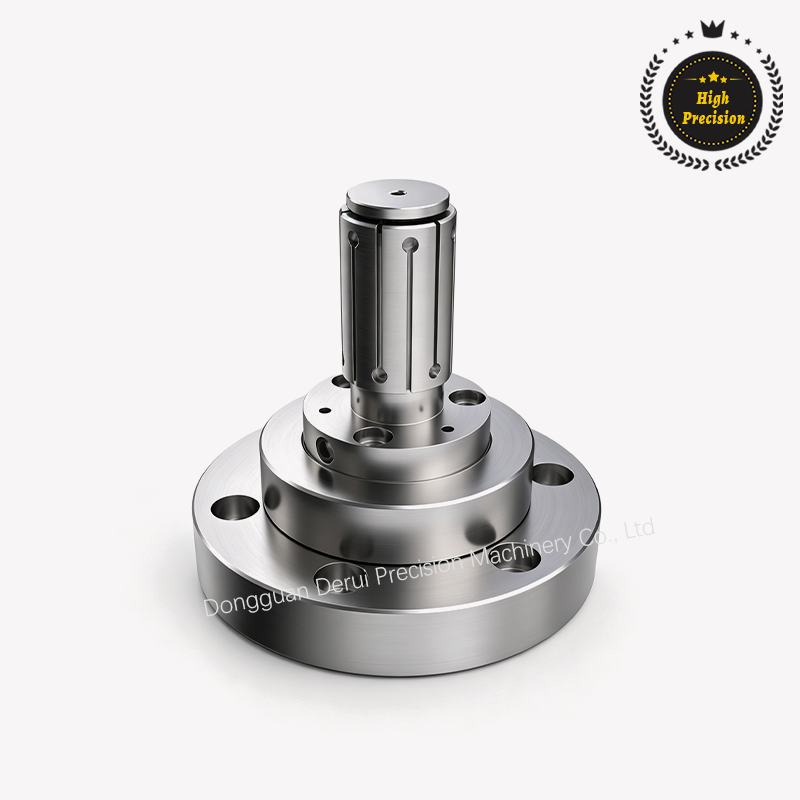

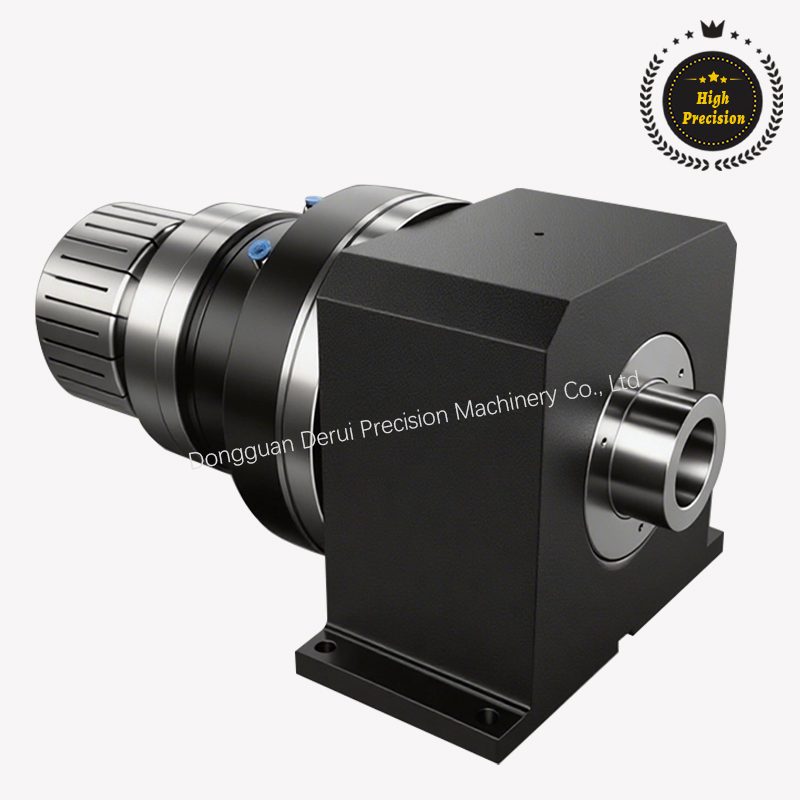

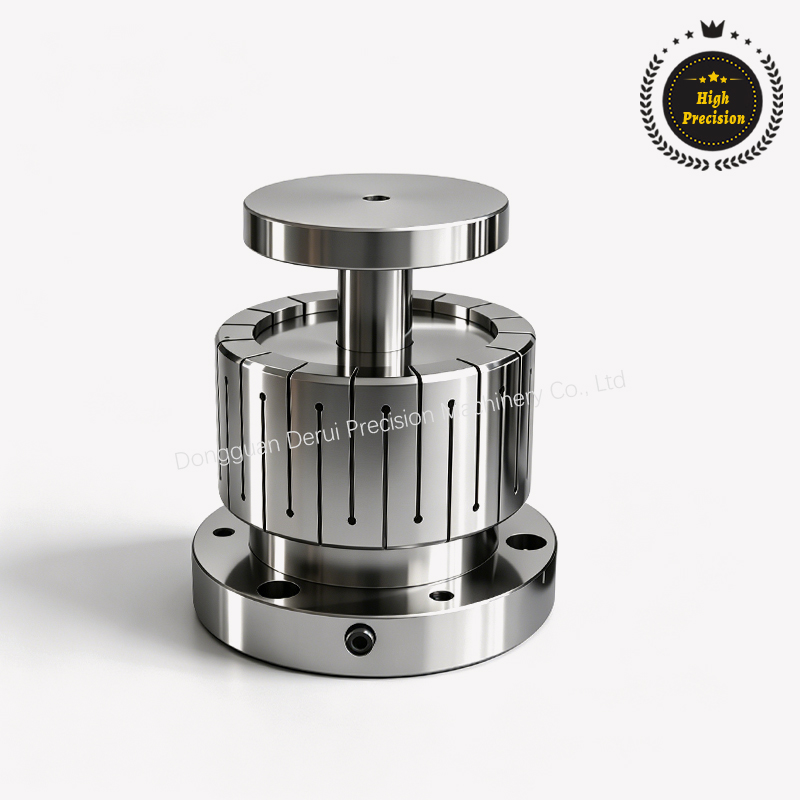

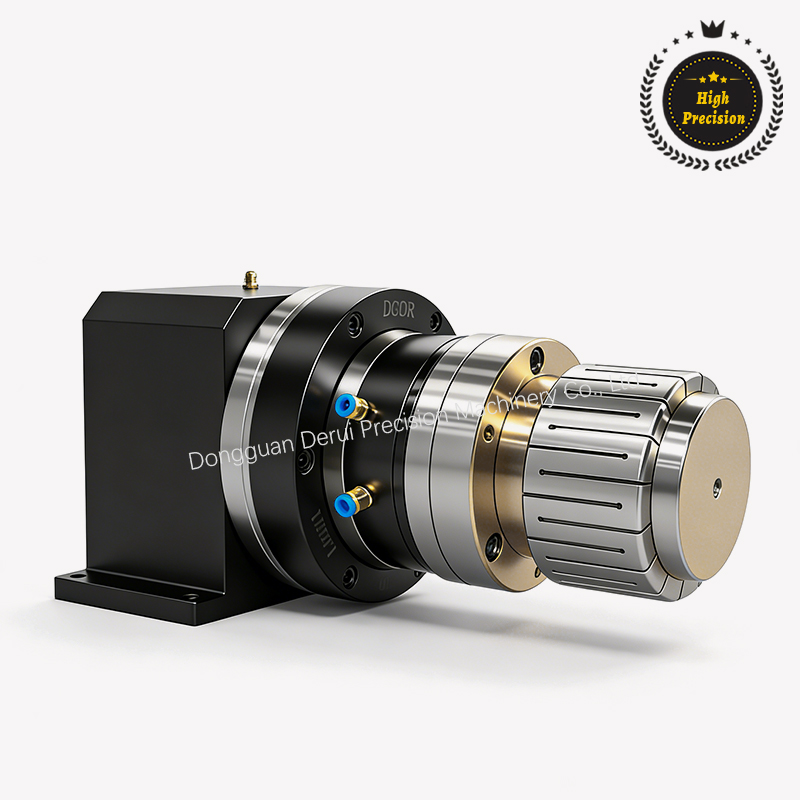

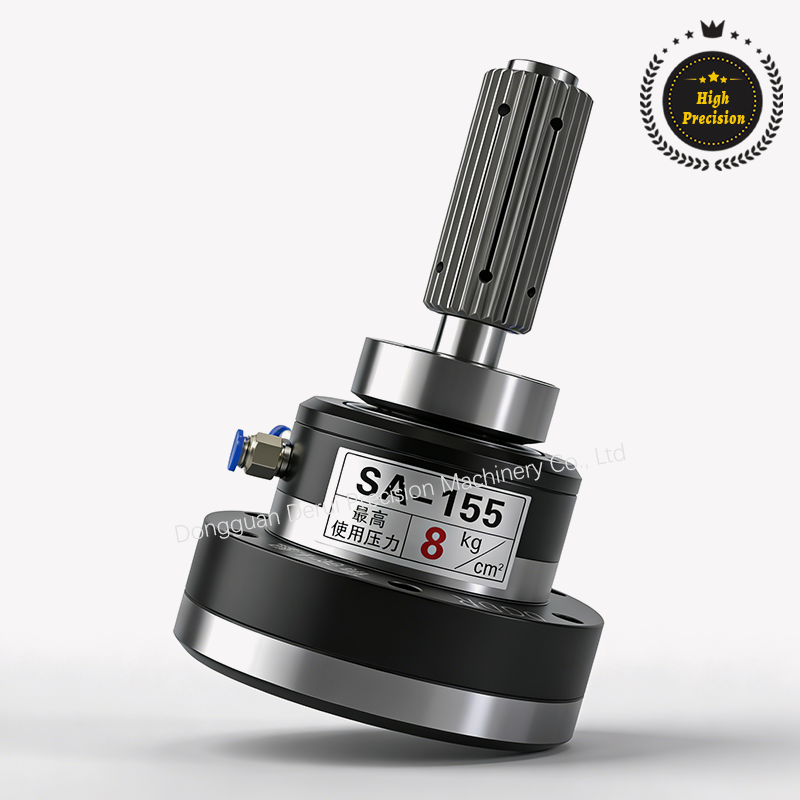

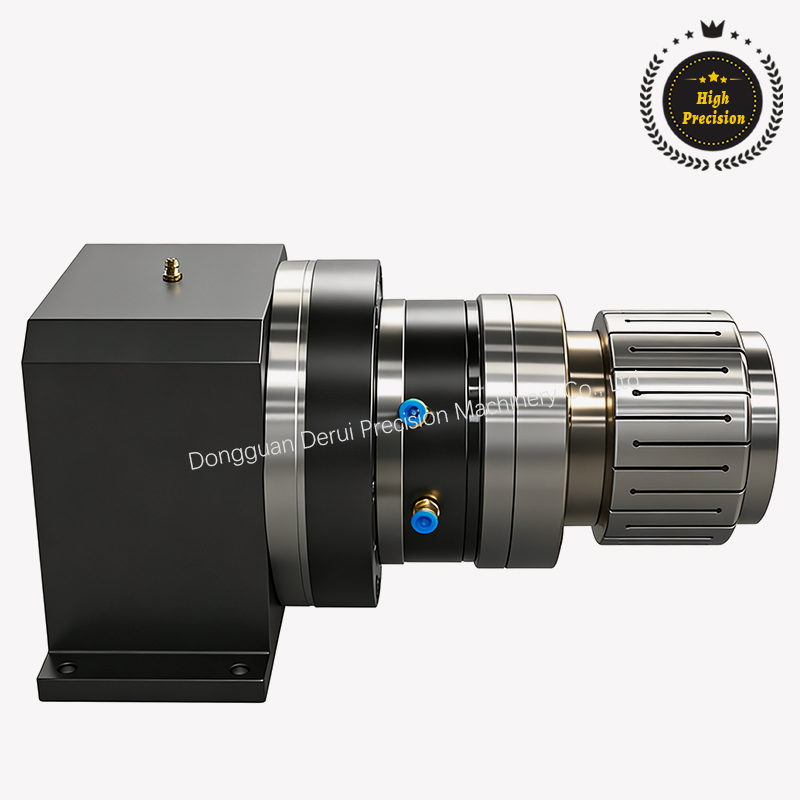

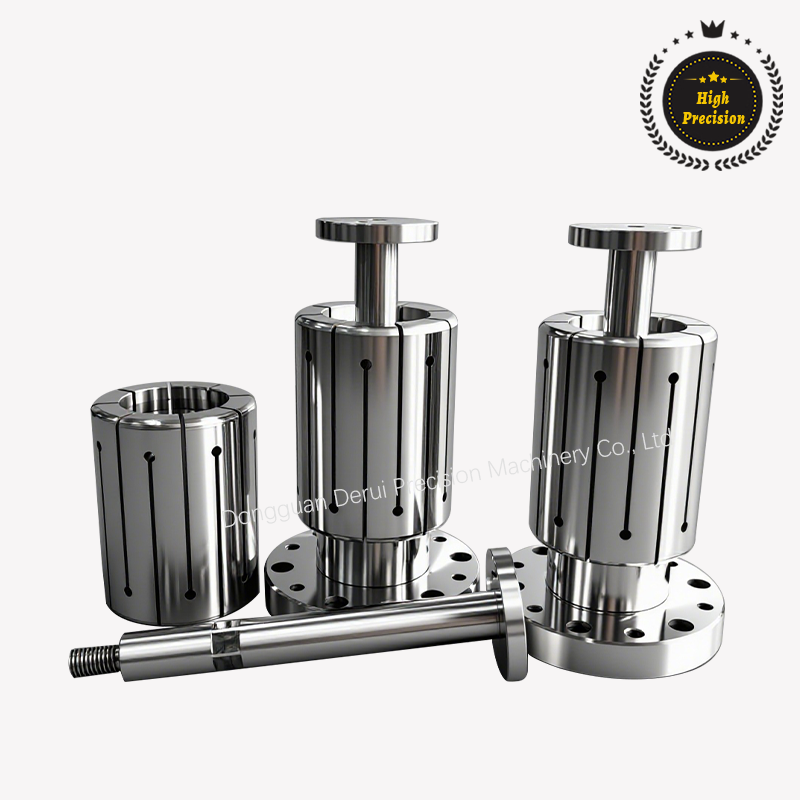

Internal Expansion Chuck Spindle

High Precision
$ 1605 USD Motor price not included

Model

    No data available

  • Installation-Free Rotary Hydraulic / Pneumatic Cylinders，Clamping Range: 6–178 mm

  • (Customizable with large through-holes up to 500 mm) Body Accuracy: 0.005 mm

  • (Customizable to 0.002 mm)Clamping Repeatability

  • Selectable range of 0.015–0.002 mm，Operating Pressure: 3–8 kg/cm²; Dustproof and

  • Waterproof Applications: CNC Machining Centers(4-axis and 5-axis), Precision Grinders,

  • Precision CNC Lathes, and other specialized automated machinery


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

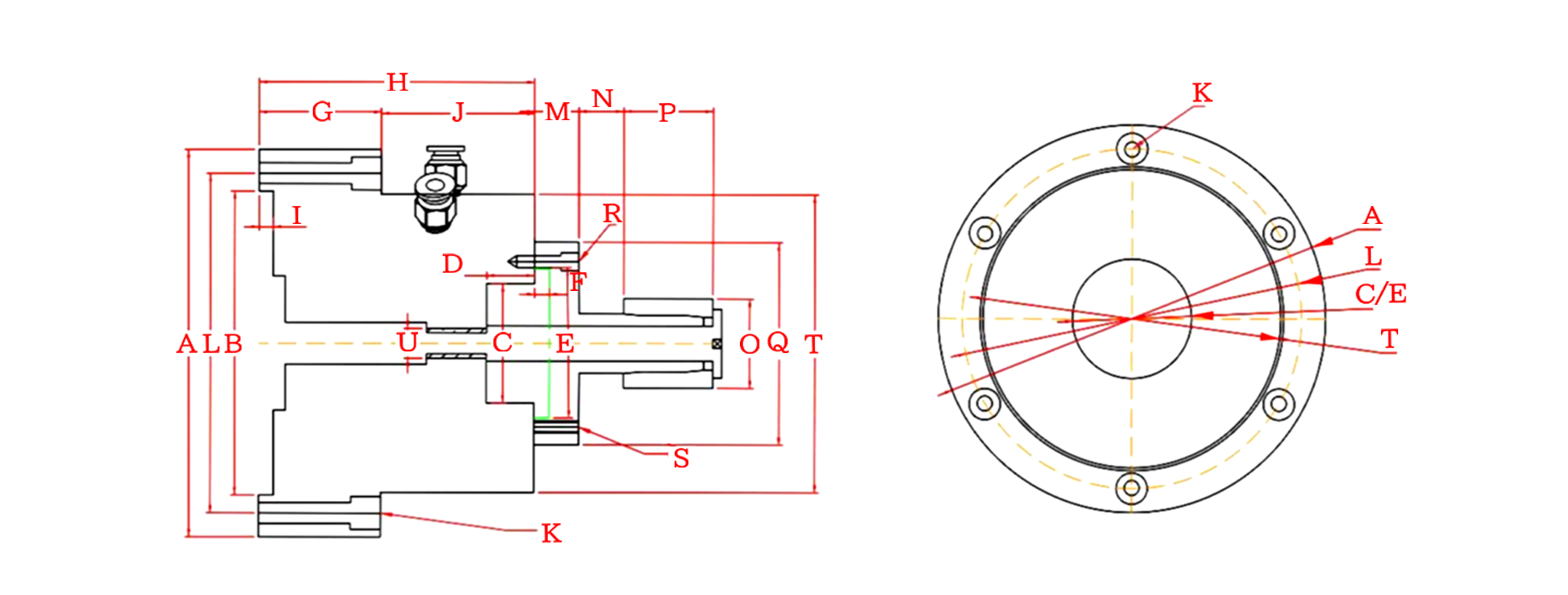

2D Drawing平面图.png

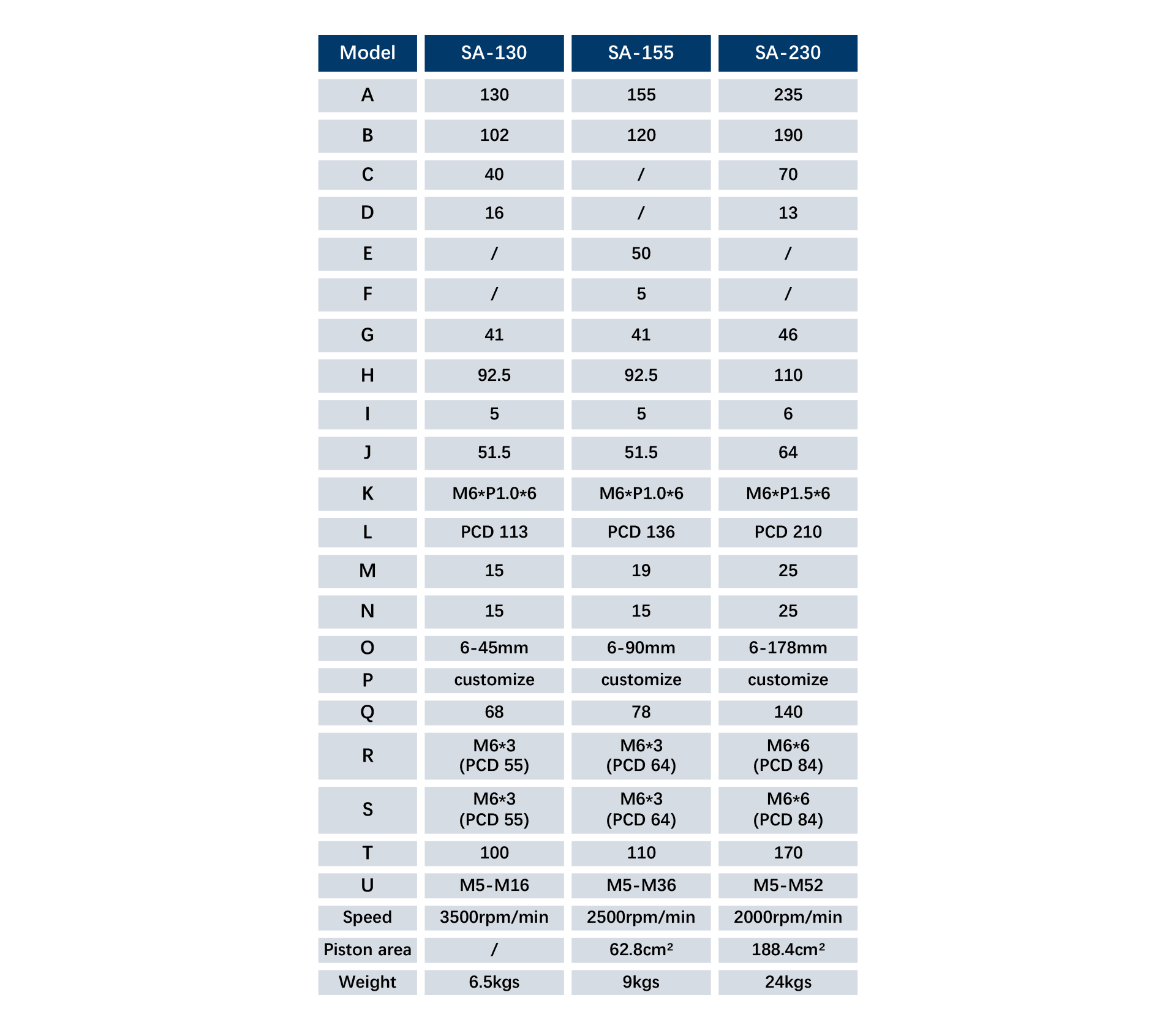

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

    No data available

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
