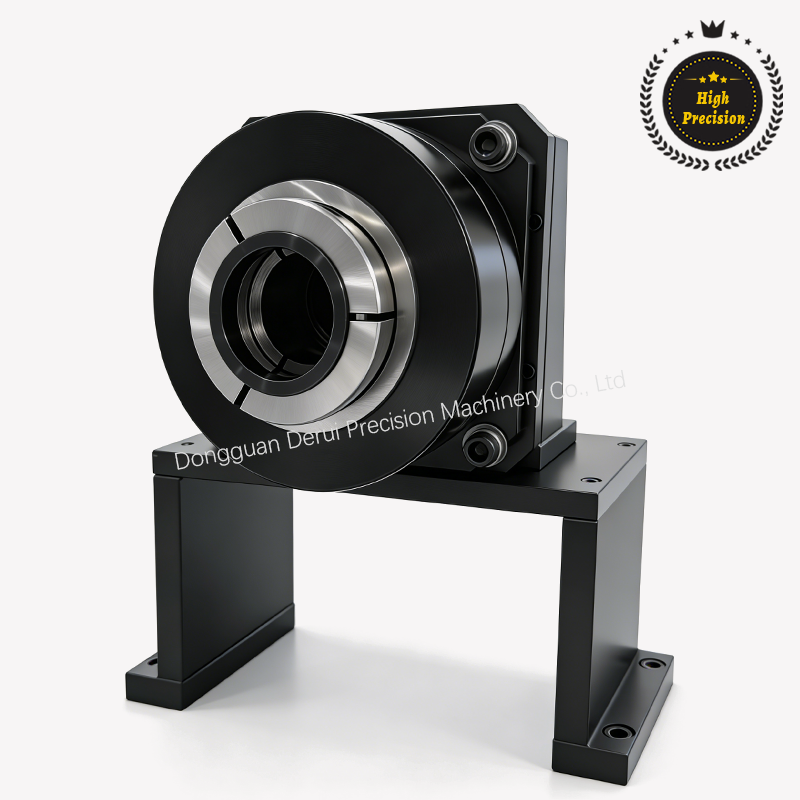

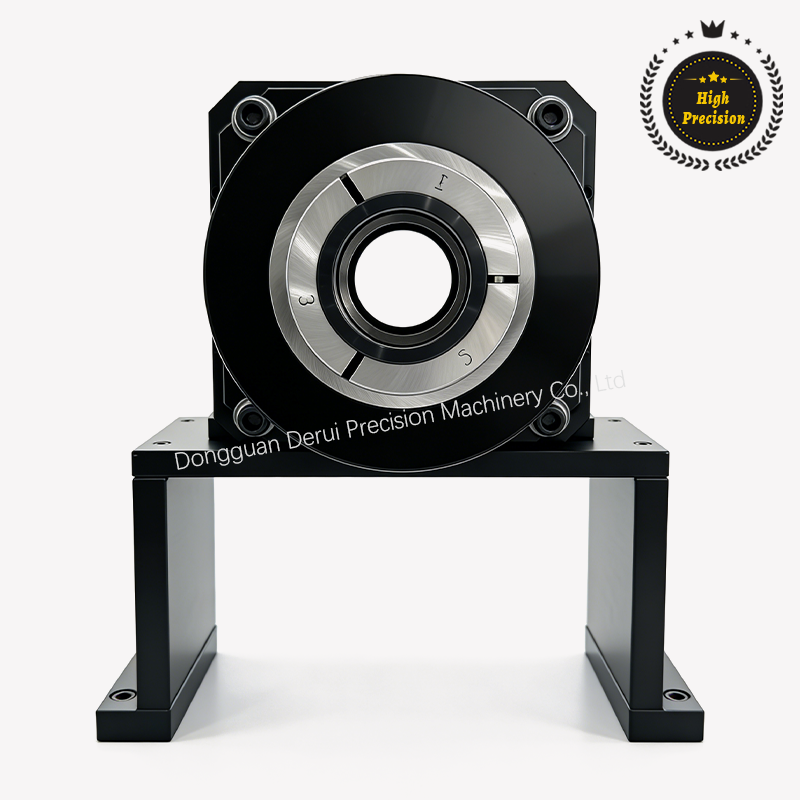

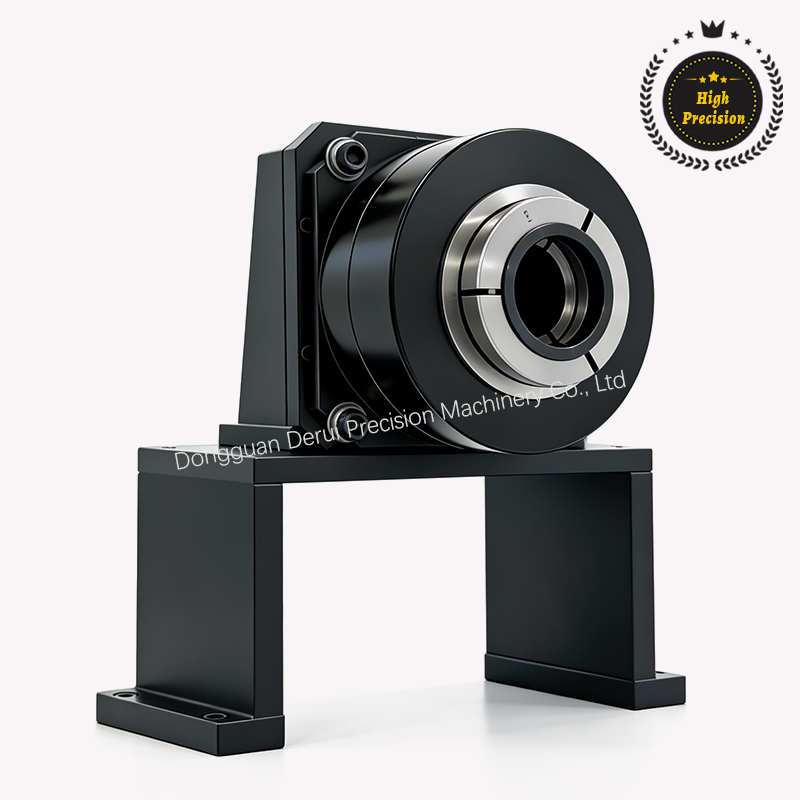

JAS/JHS

Fixed chuck (push-forward type)

High Precision
$ 529 USD Motor price not included

Model

    No data available

  • Chaoquan's hydraulic-pneumatic fixed chucks feature a compact size, allowing your work platform to

  • accommodate multiple fixed chucks simultaneously improving work efficiency.

  • The product's high quality meets your requirements for stability, high precision and waterproof/

  • dustproof operation, reducing maintenance and labor costs. Suitable for installation

  • on various drilling and milling machine tools


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

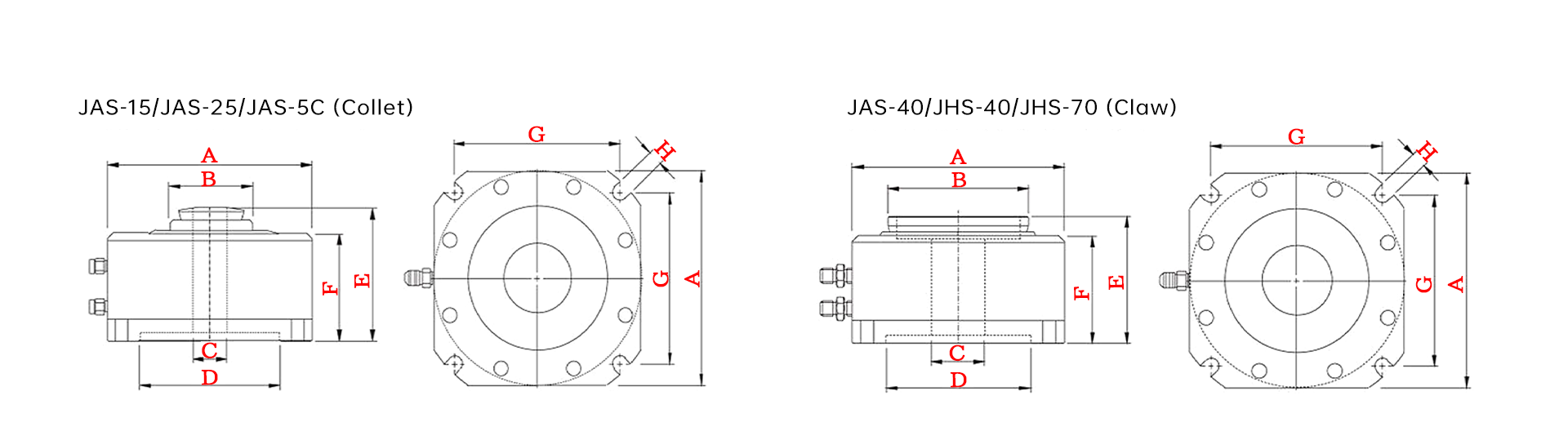

2D Drawing平面图.png

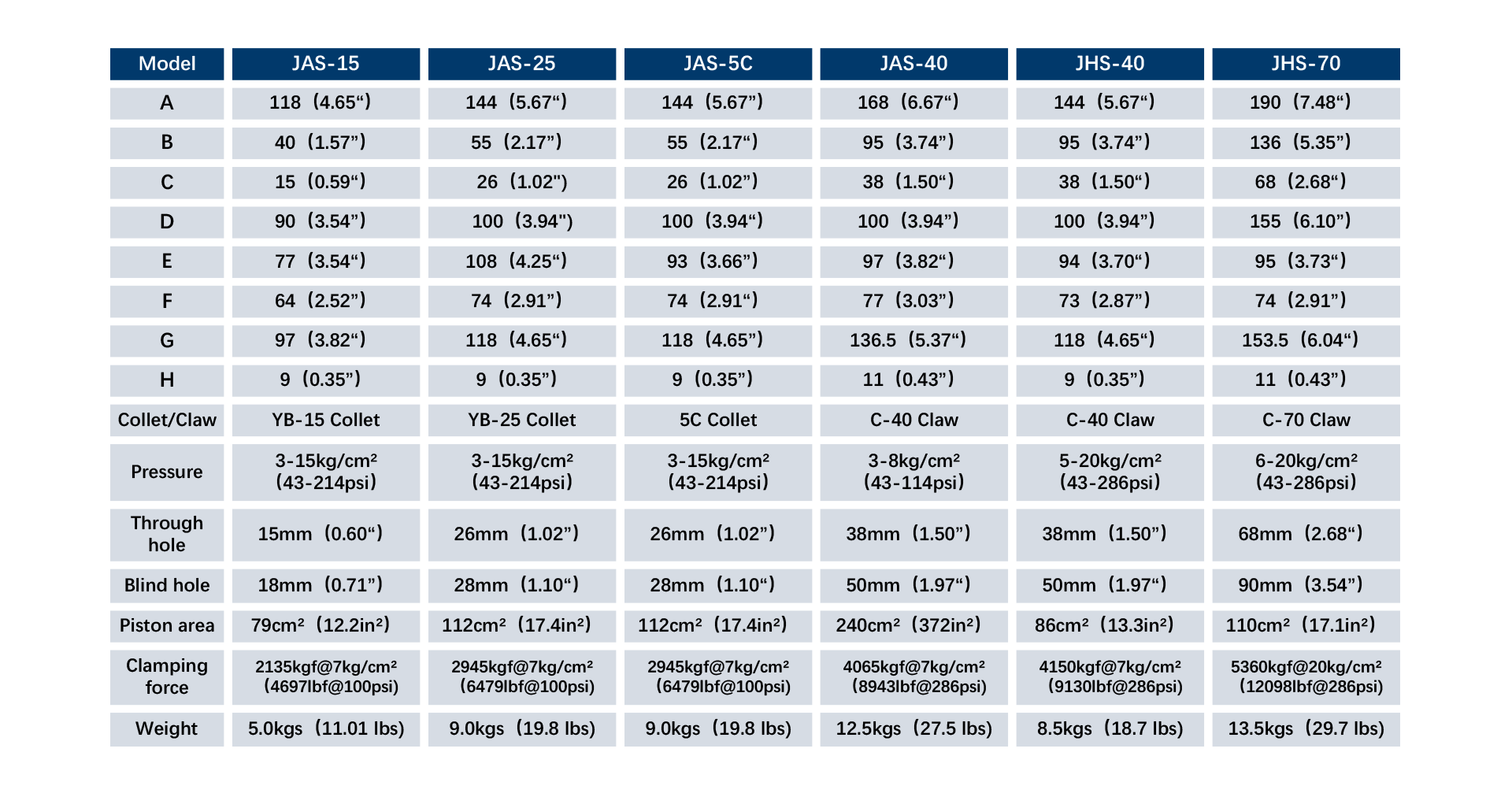

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
