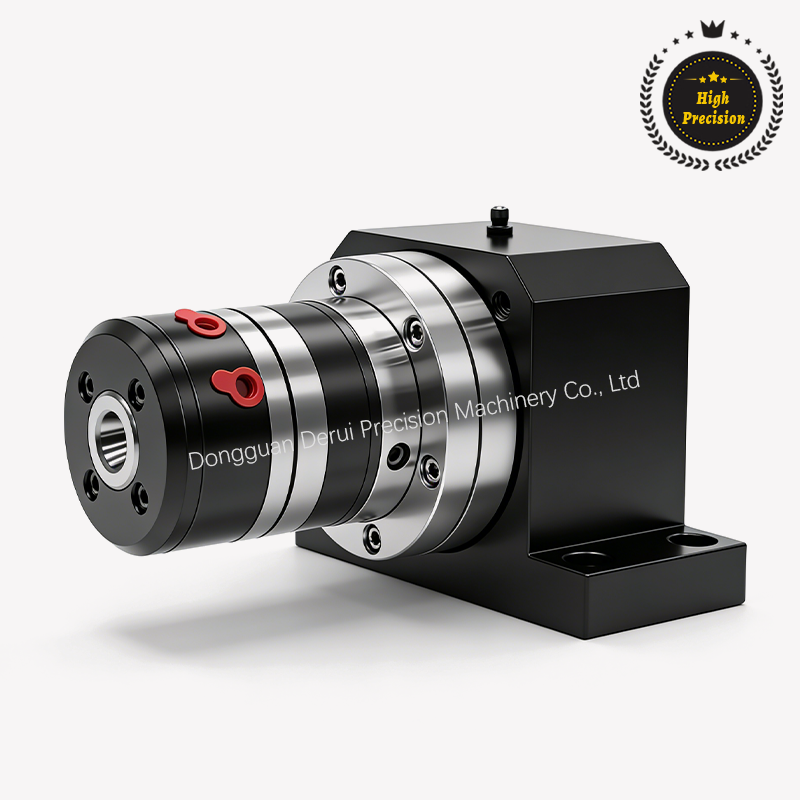

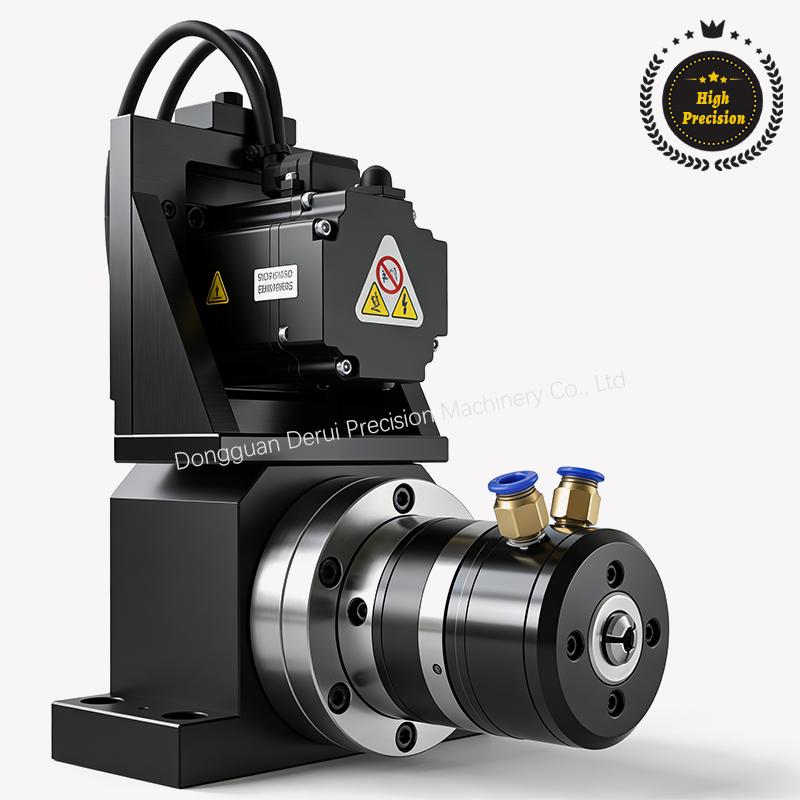

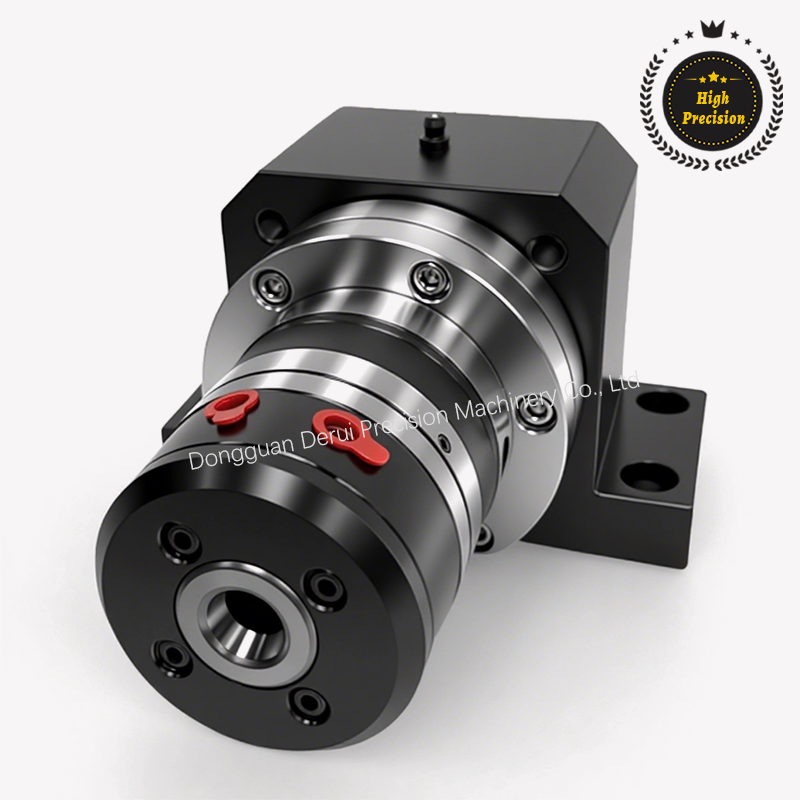

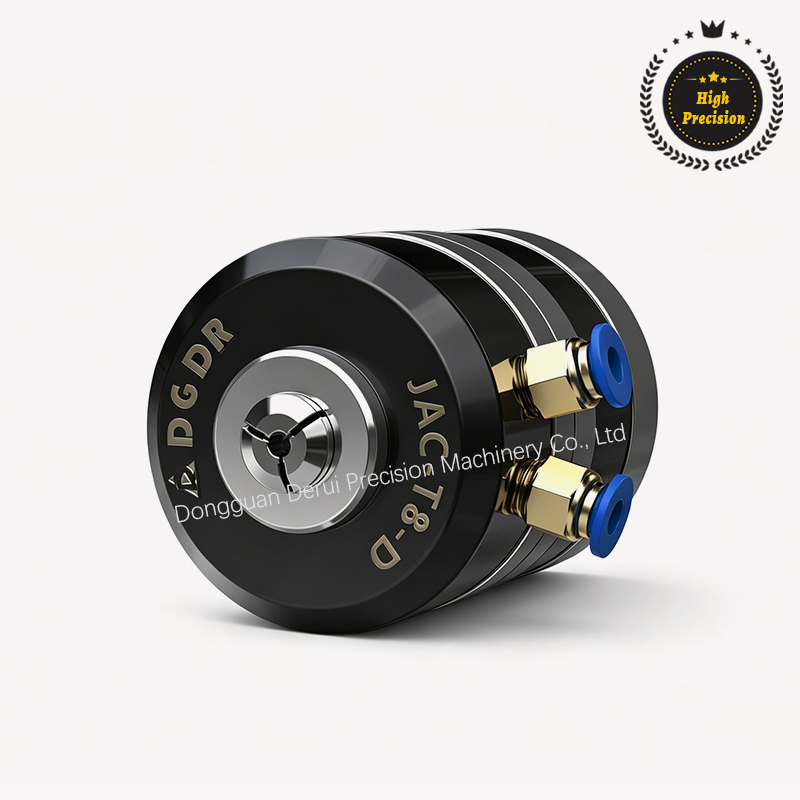

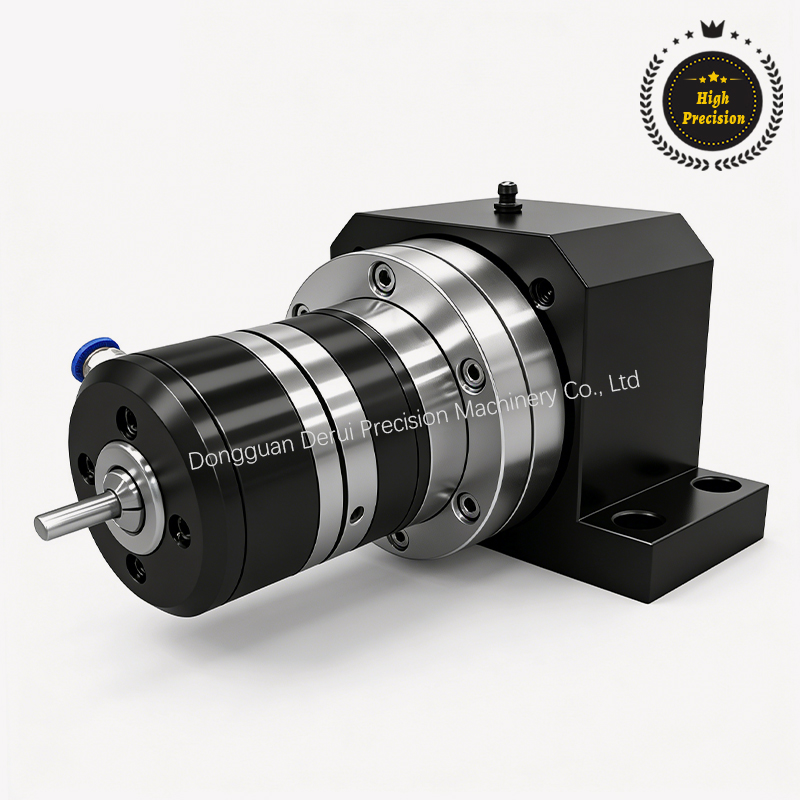

JAC-D plus DR Series

Small Rotary Chuck Spindle

High Precision
$ 1124 USD Motor price not included

Model

    No data available

  • Small installation outer diameter; steel body

  • Repeat Clamping Accuracy: 0.03 mm

  • Installation-Free - Hydraulic/Pneumatic Cylinder

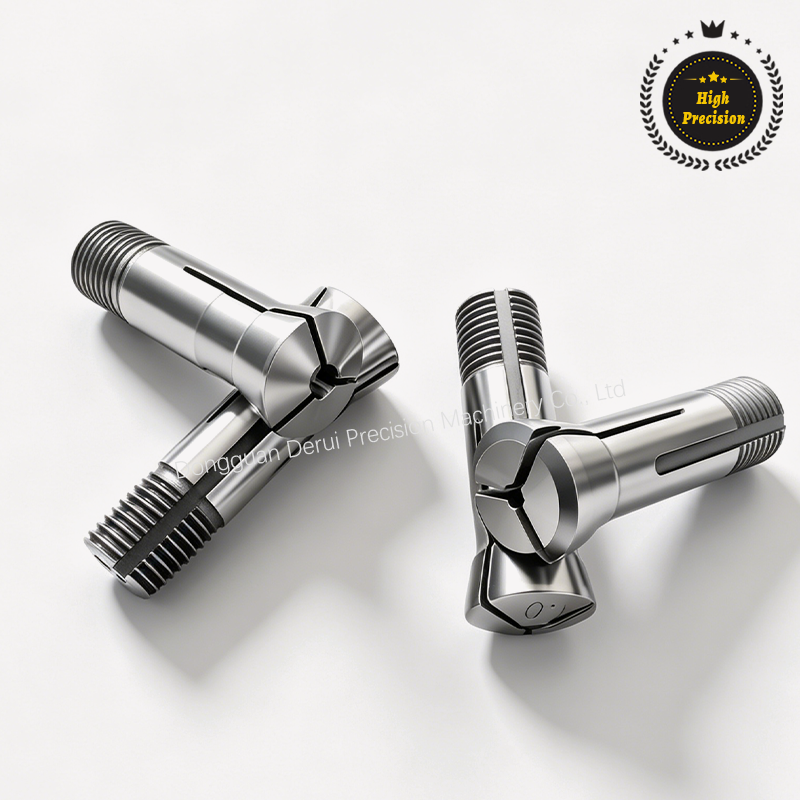

  • Changing Collets for Different Workpieces

  • Air pressure: 3–7 kg/cm²; dustproof and waterproof

  • Widely used various specialized automated machines

  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

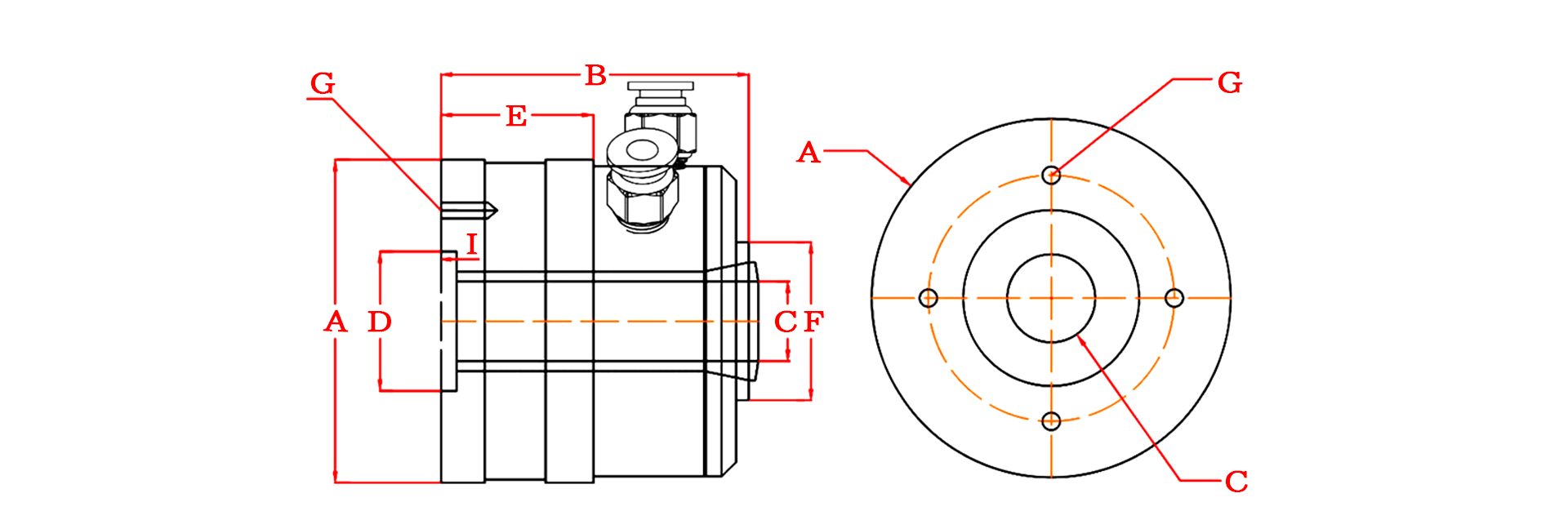

2D Drawing平面图.png

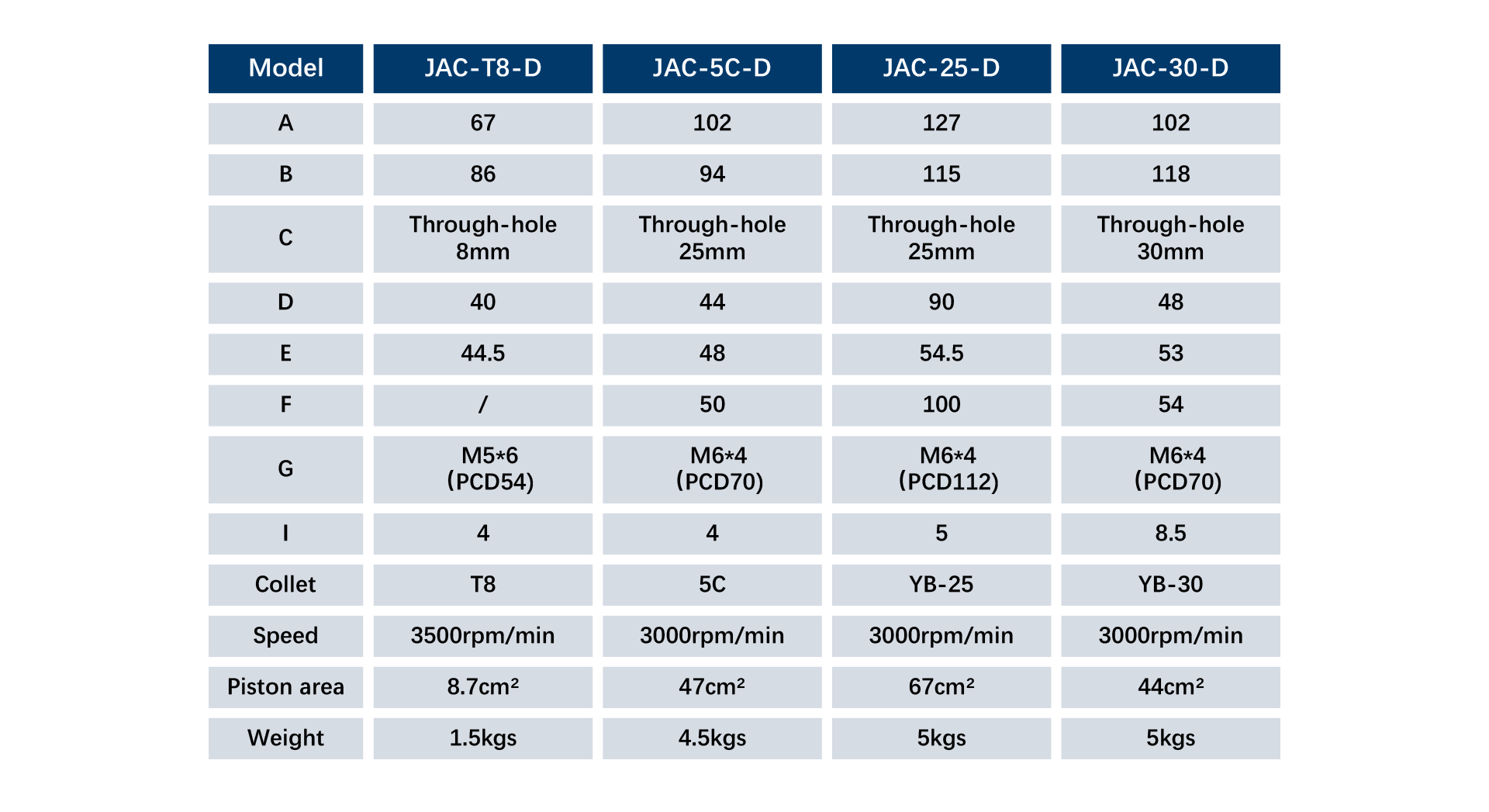

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
