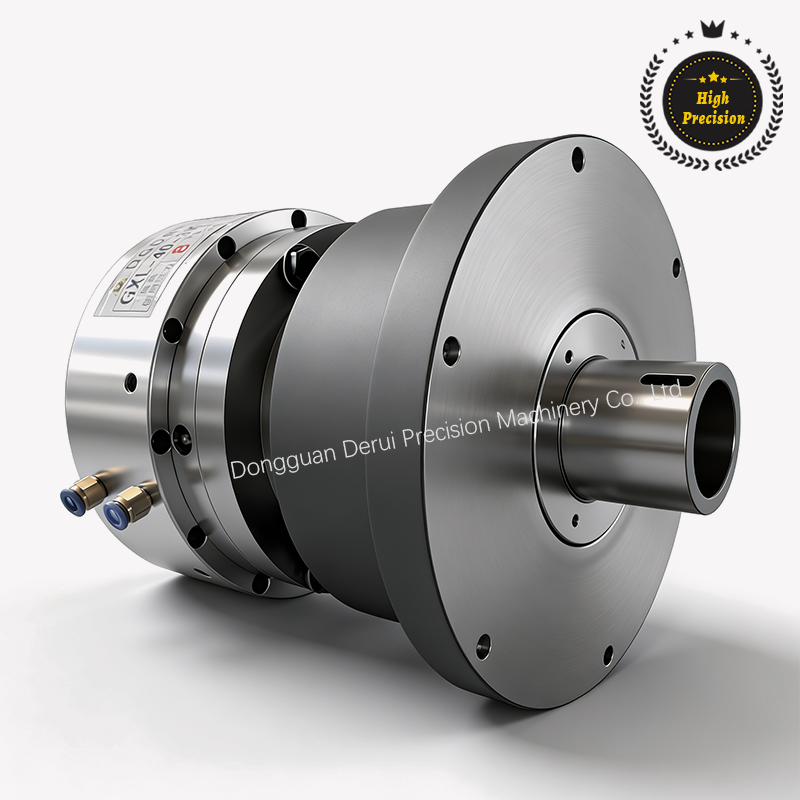

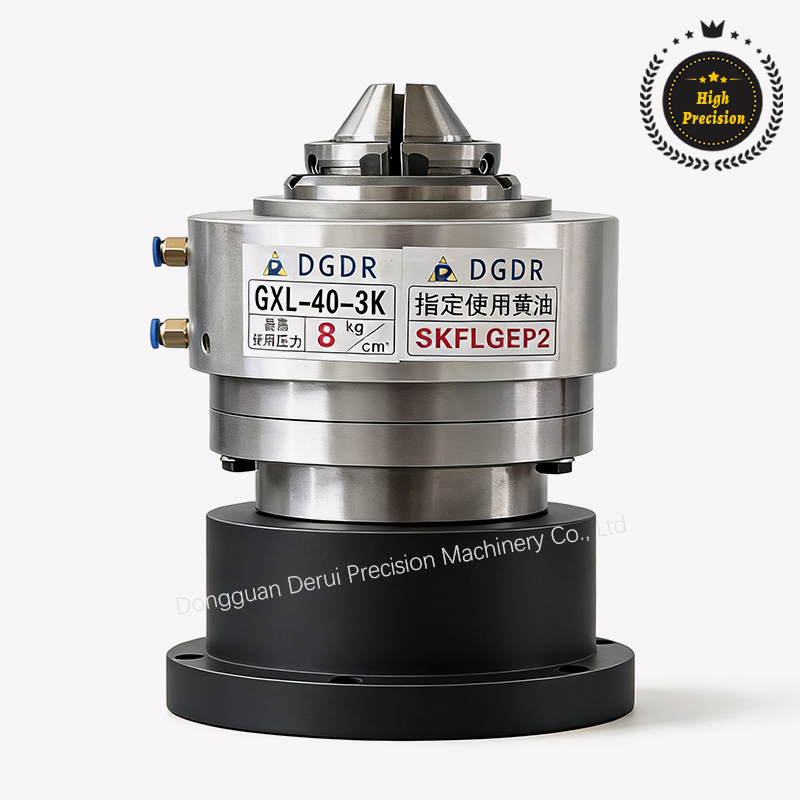

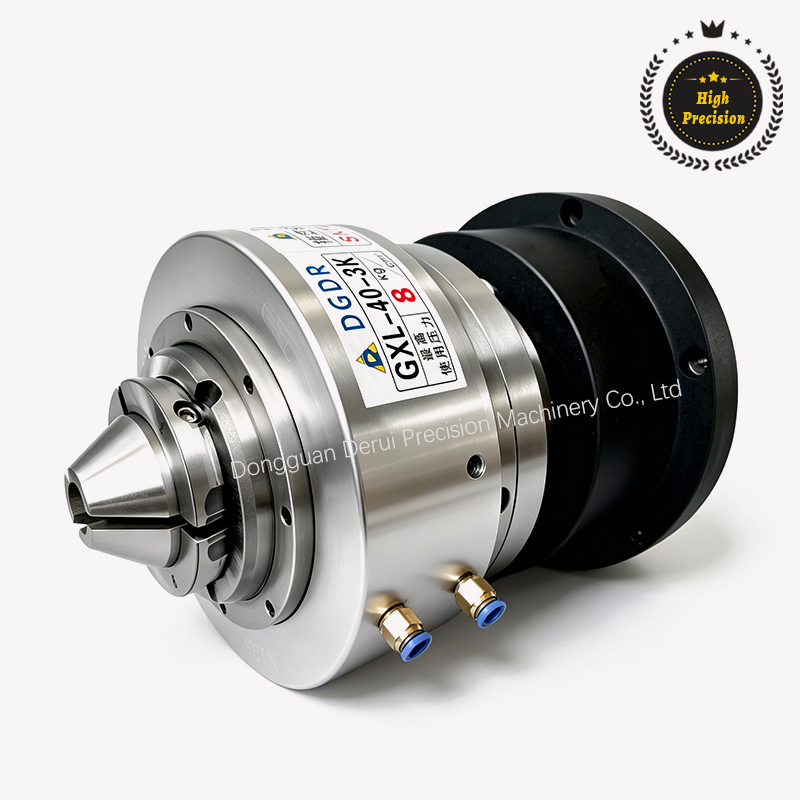

GXL plus DRS Series

Pneumatic Rotary Chuck Spindle

High Precision
$ 1681 USD Motor price not included

Model

    No data available

  • No additional cylinders required

  • Working air pressure 3-8 kgs

  • Quick Change of Auxiliary Jaws

  • Supports rear feeding without jamming

  • Clamping repeatability within 0.05 mm

  • lathes for automation or semi-automation

  • In-stock: 200mm through-hole; customization available

  • Cutting fluid must not be directed at the chuck


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

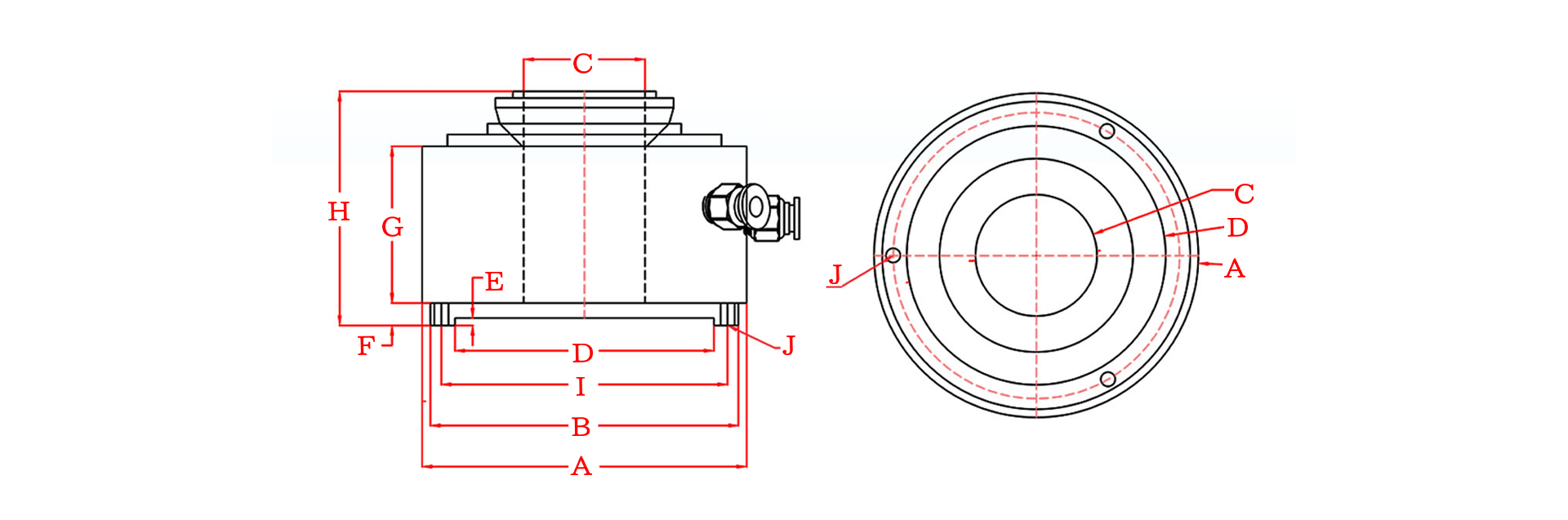

2D Drawing平面图.png

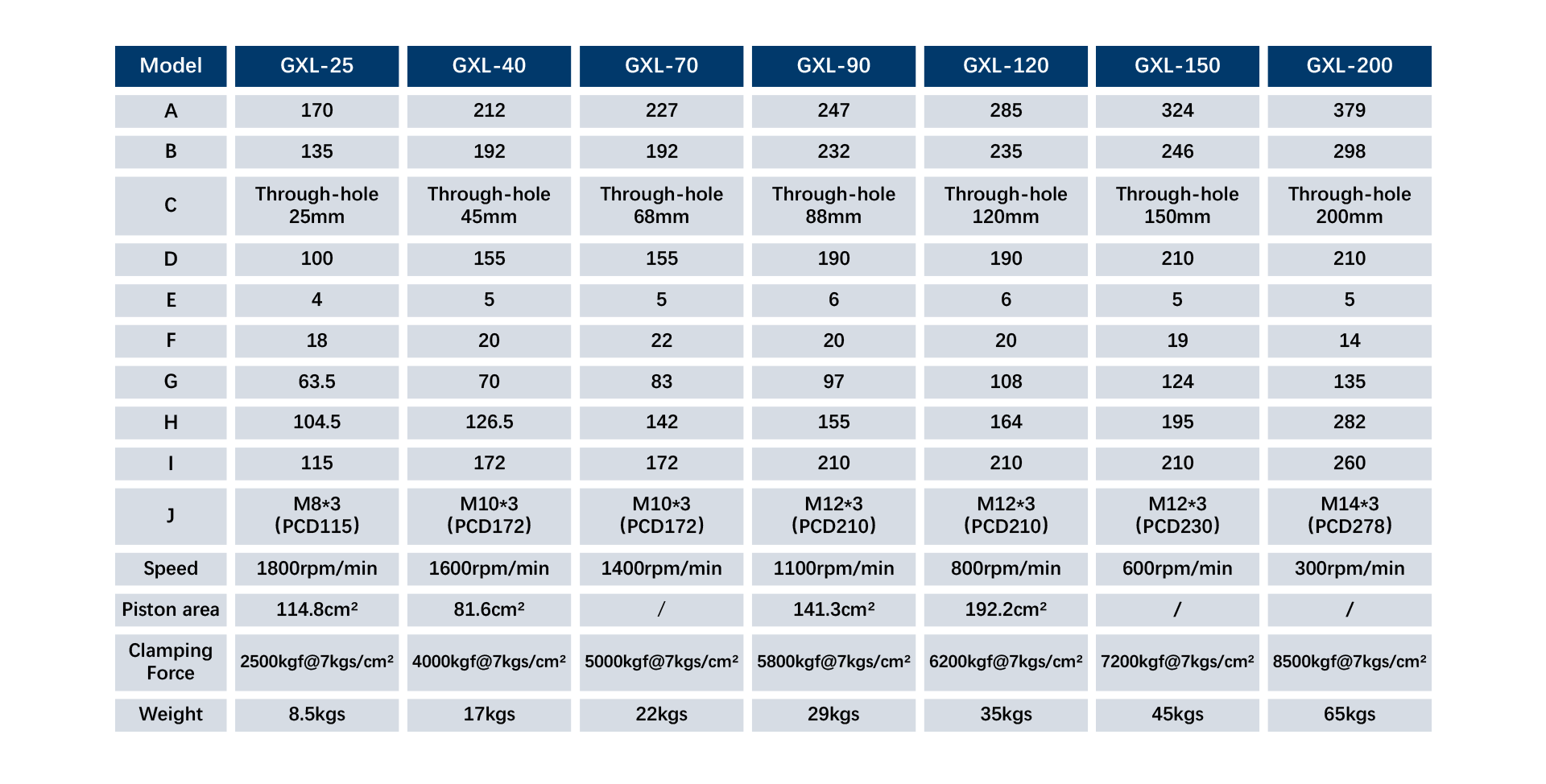

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
