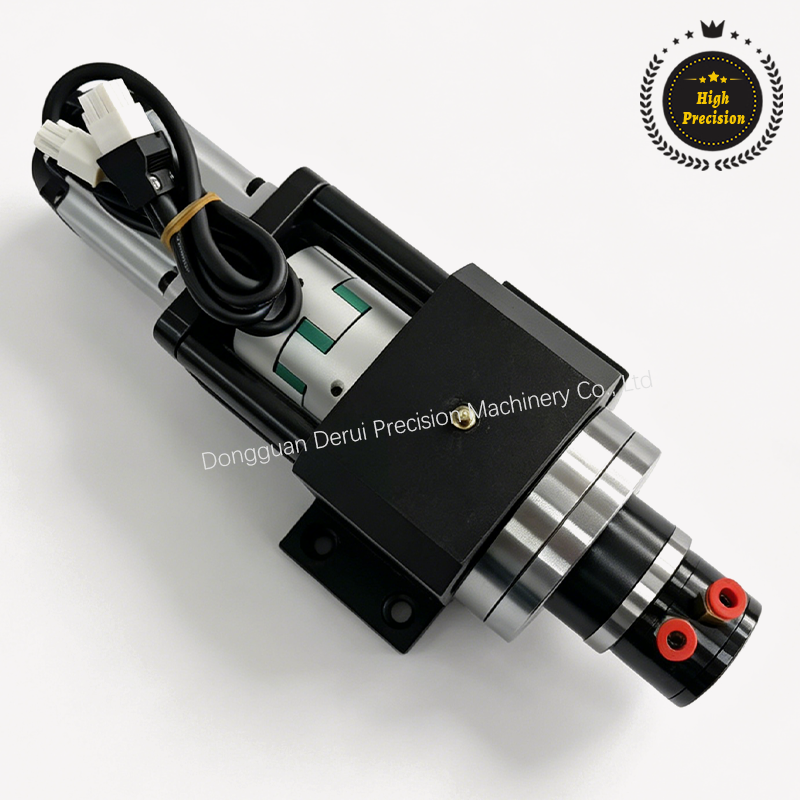

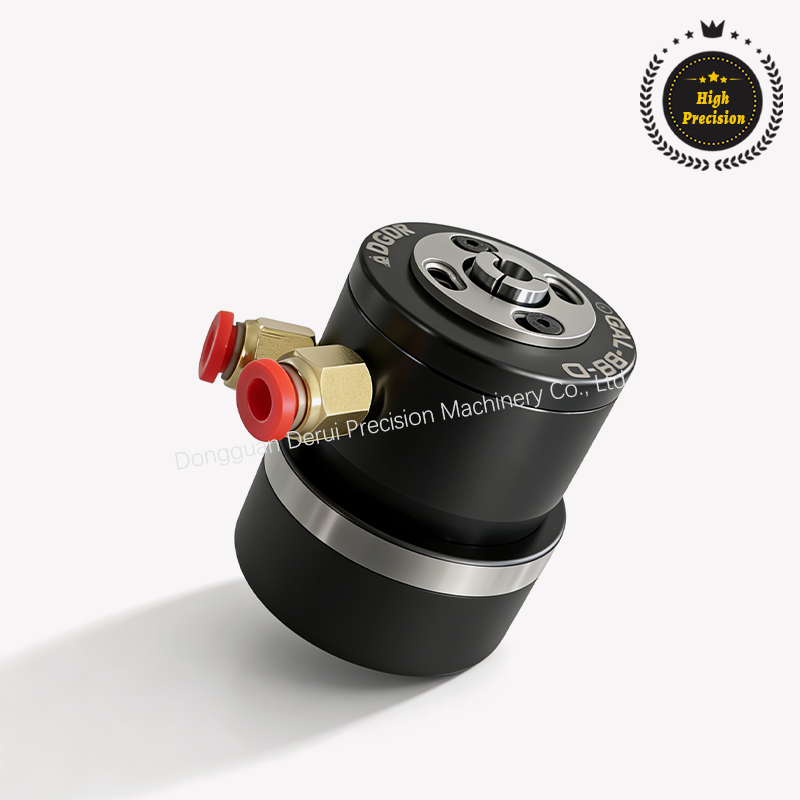

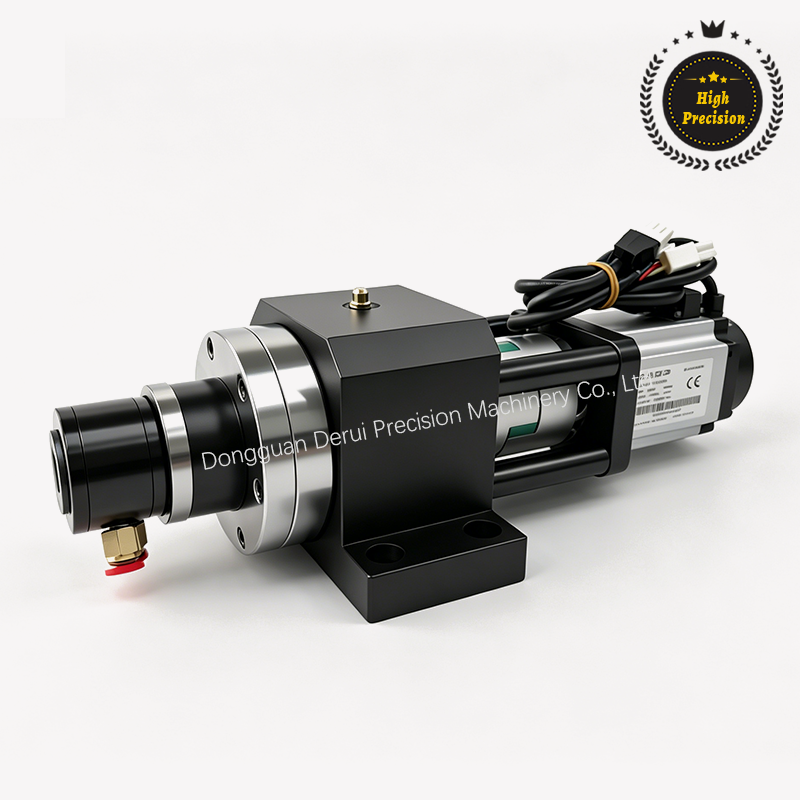

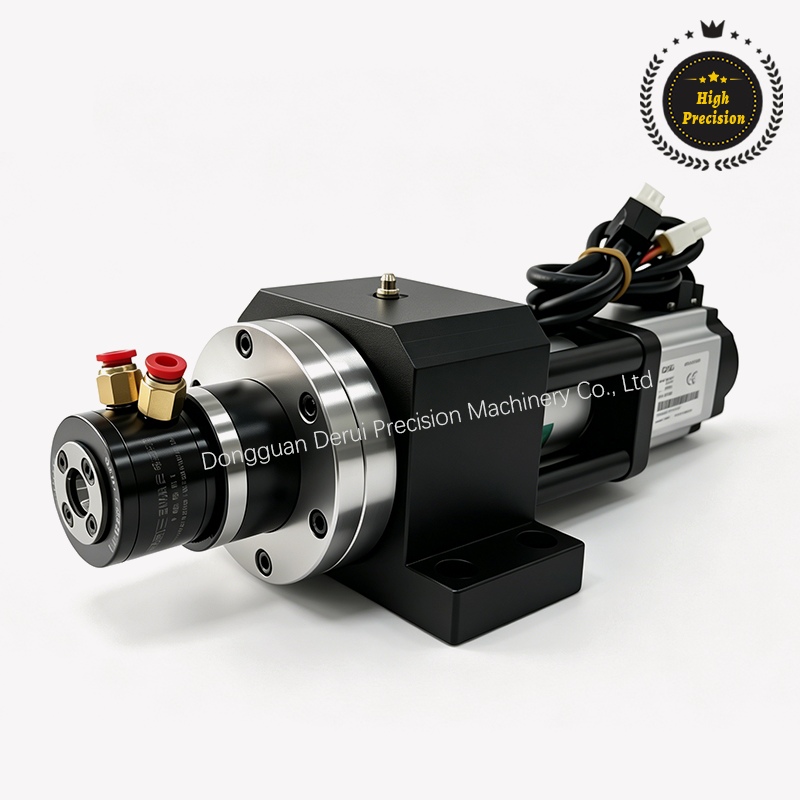

GAL-D plus DR Series

Small Pneumatic Rotary Chuck Spindle

High Precision

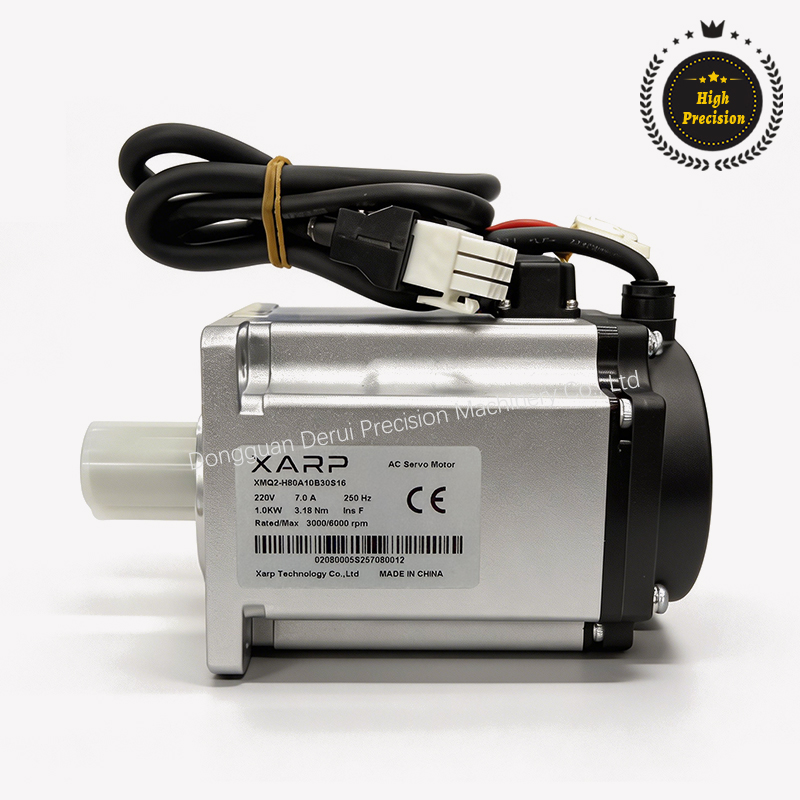

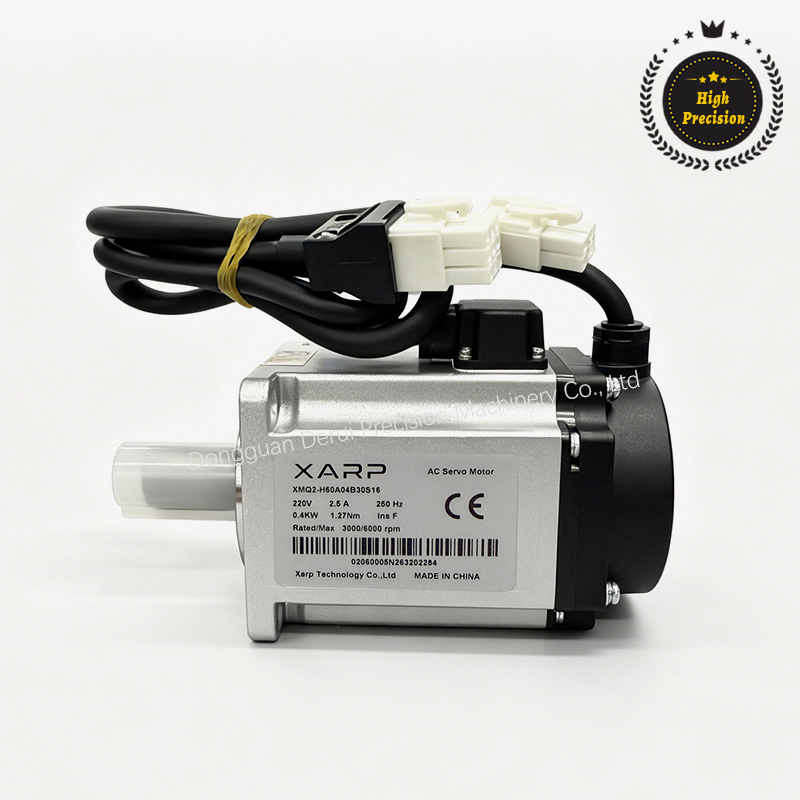

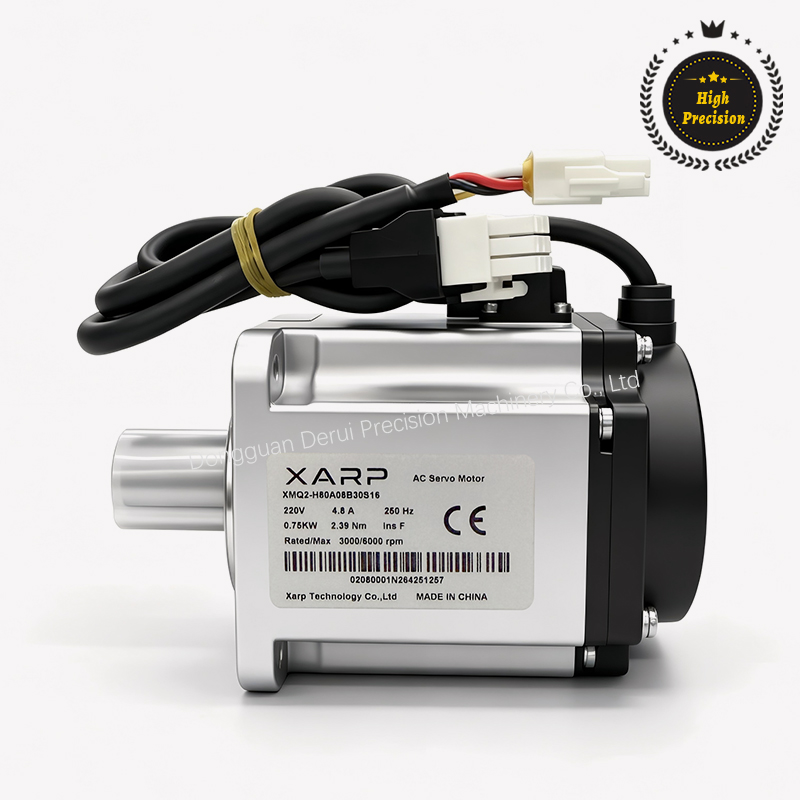

$ 1376 USD Motor price not included

Model

    No data available

  • Steel collet body, offering a long service life

  • Clamping repeatability within 0.01–0.005 mm

  • Dustproof and Waterproof (When Inflated)

  • Suitable for various high-precision machining applications, including automated 4-axis and 5-axis

    precision grinding machines


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

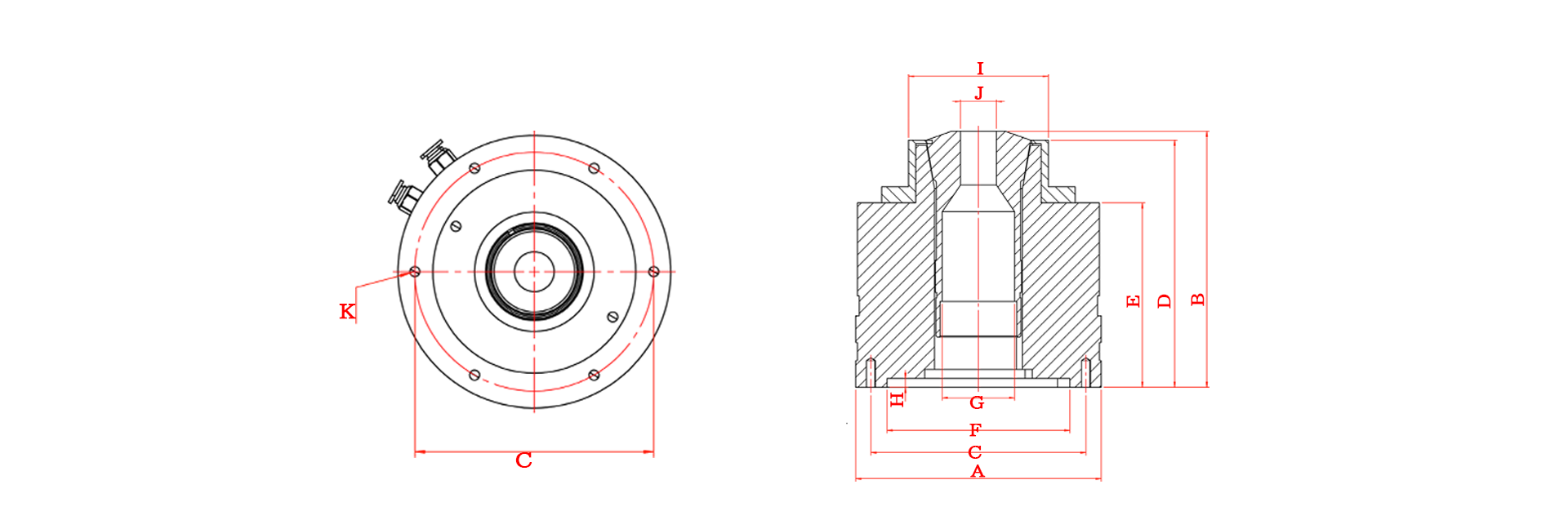

2D Drawing平面图.png

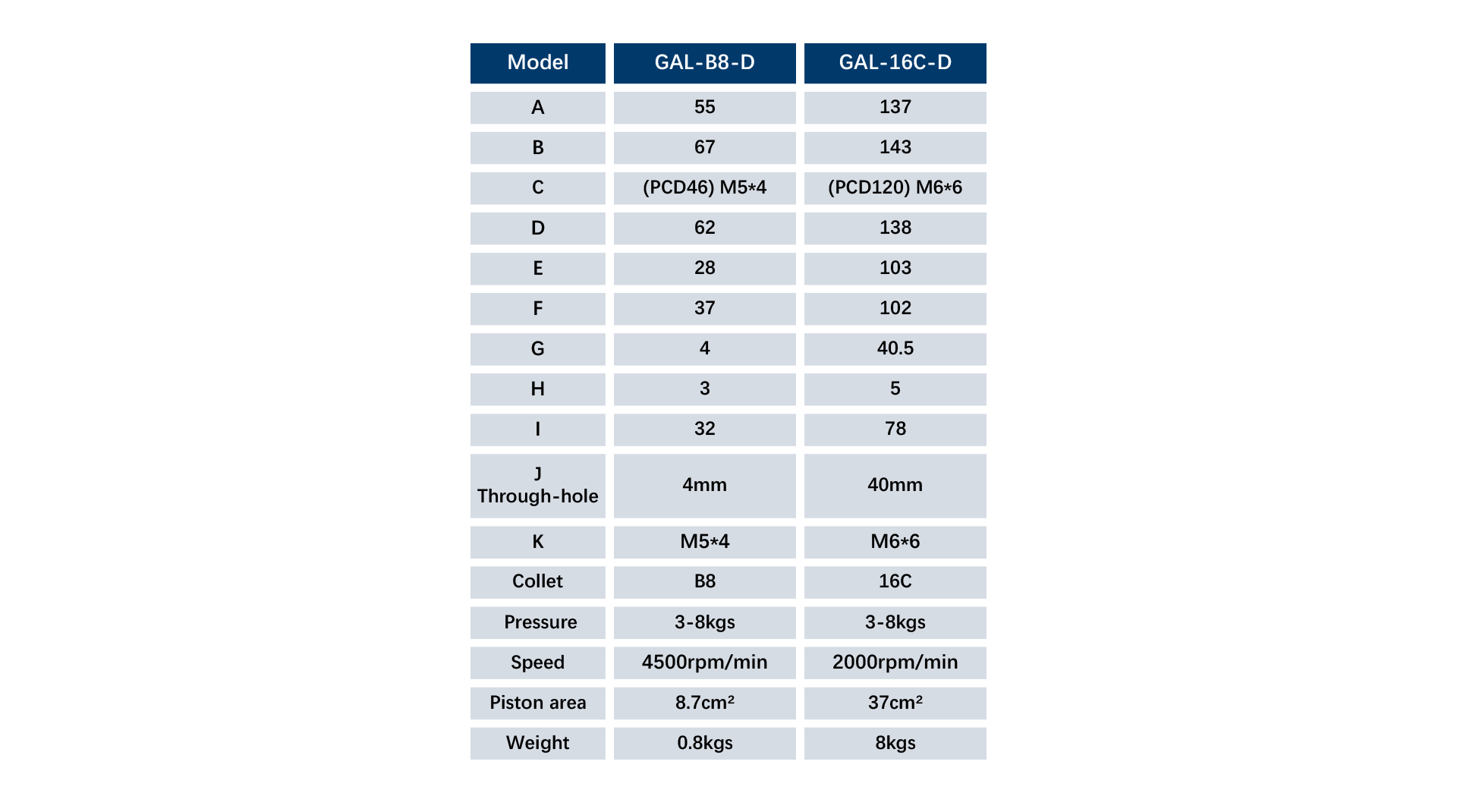

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
