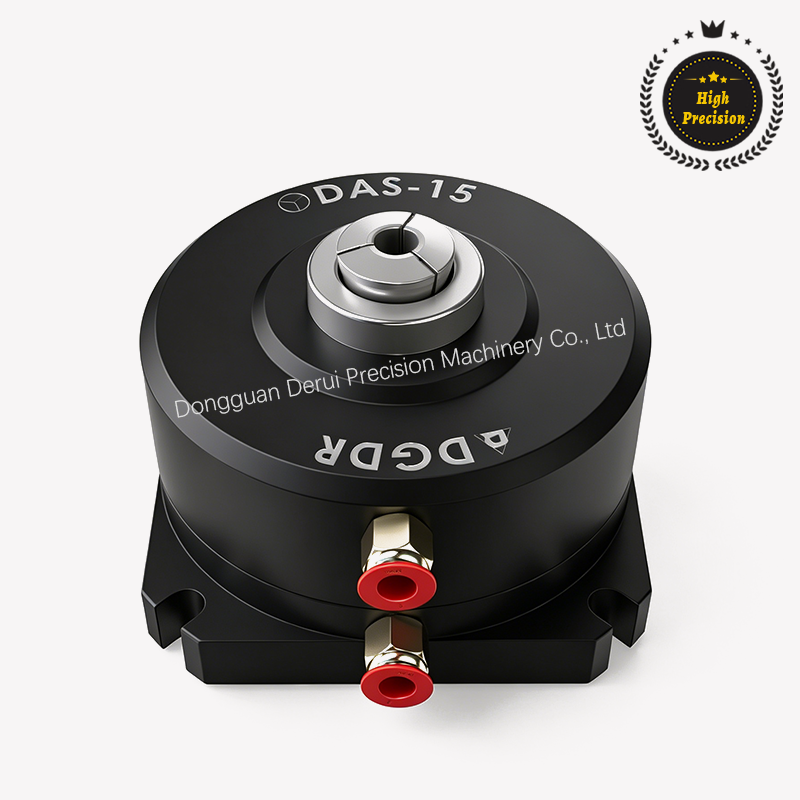

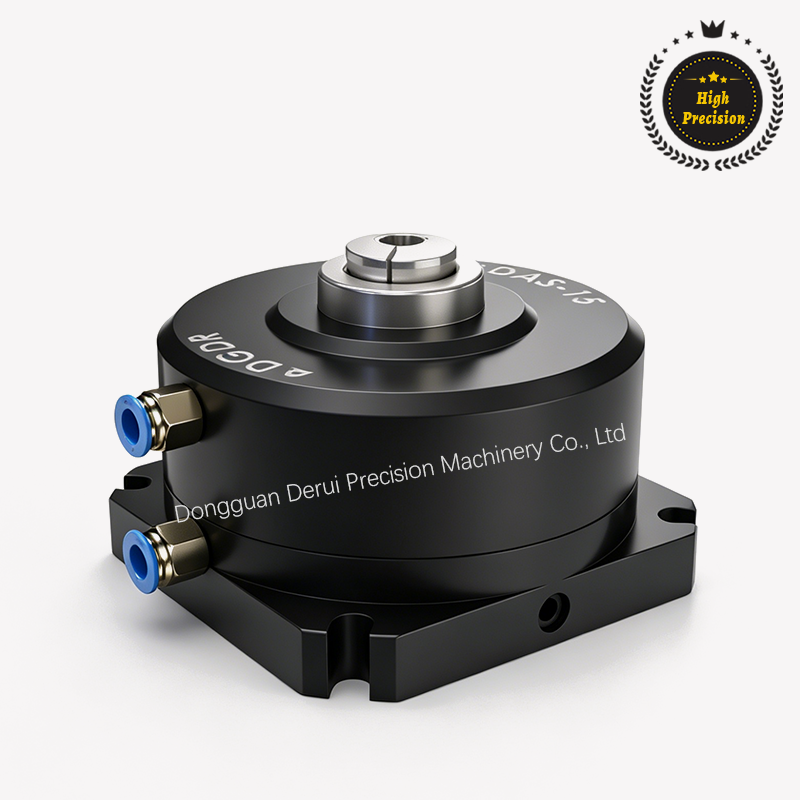

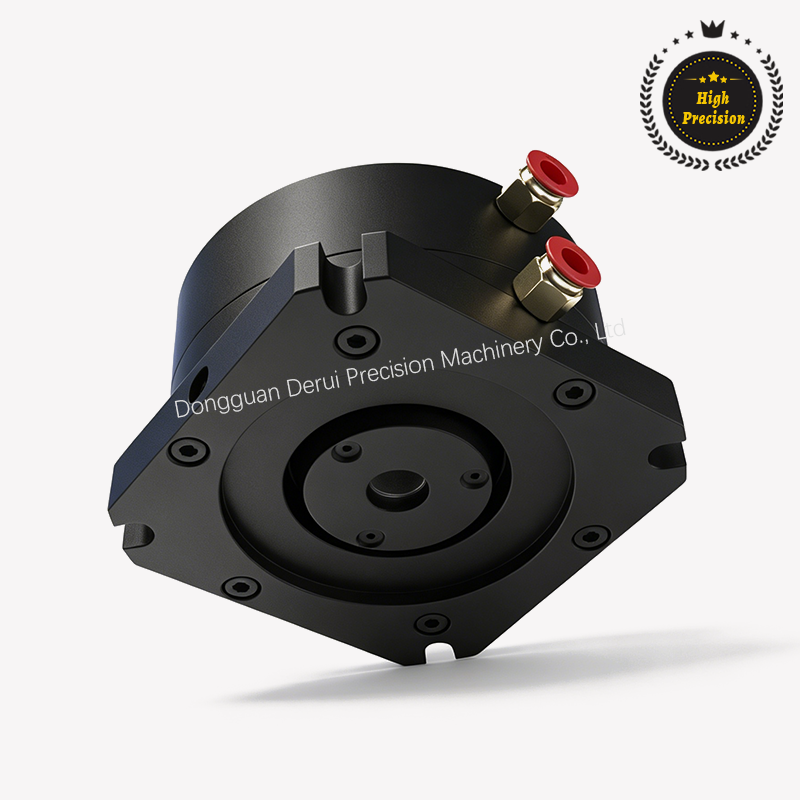

DAS Series
Fixed chuck (push-forward type)
High Precision
$ 250 USDMotor price not included

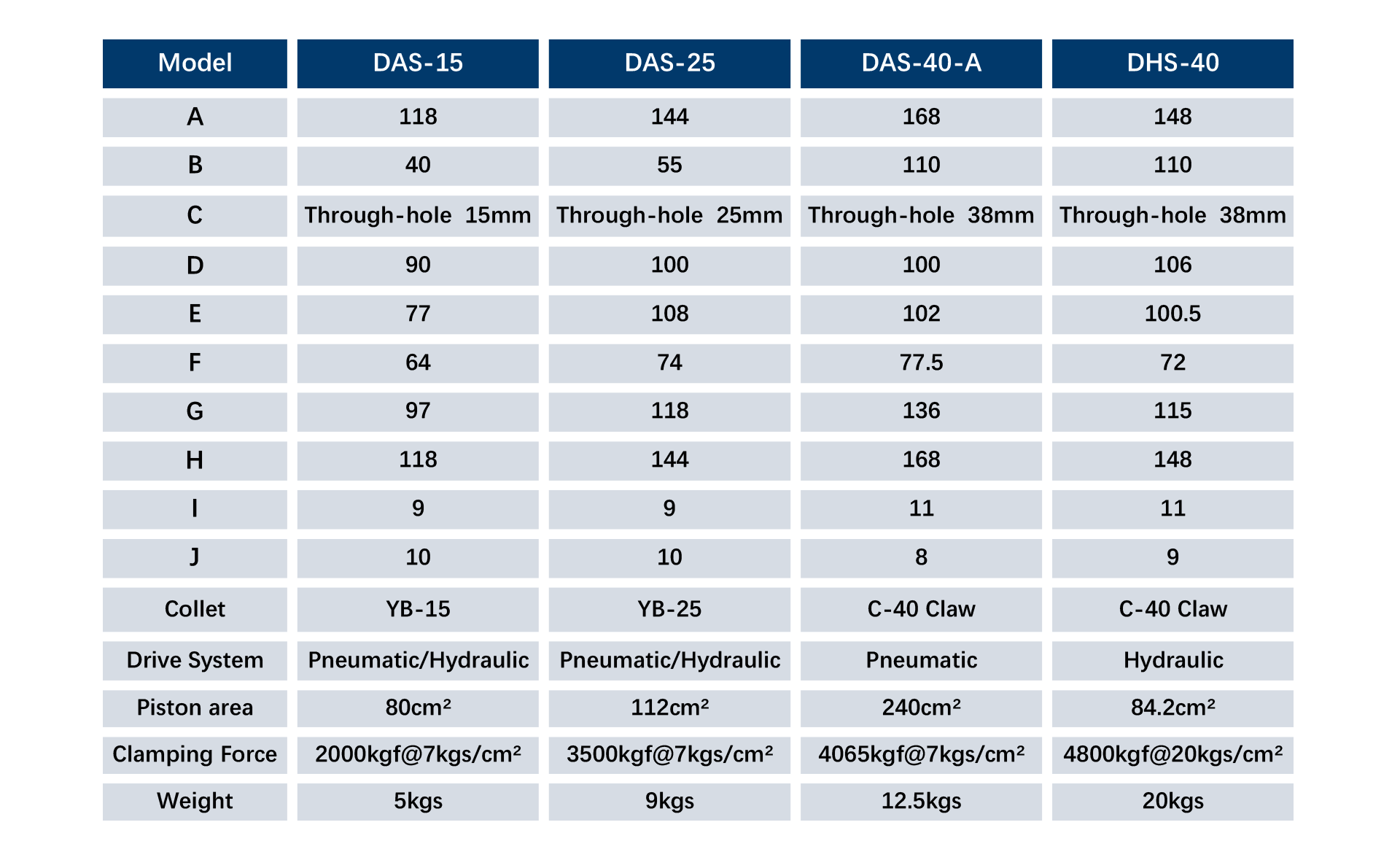

Model

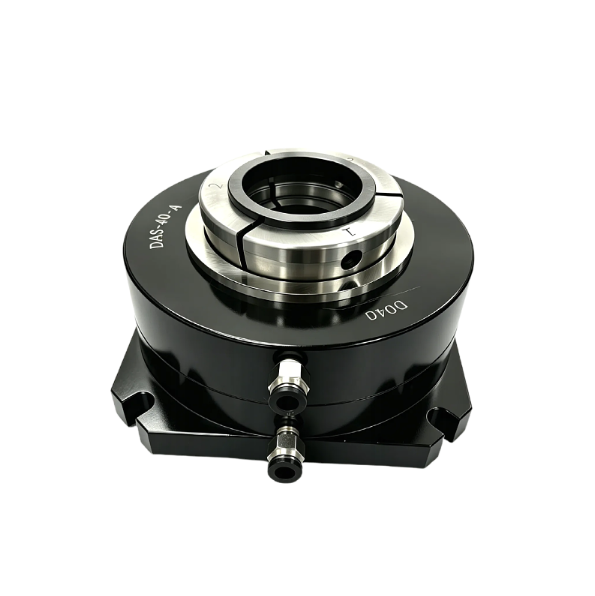

DGDR DAS-40-A

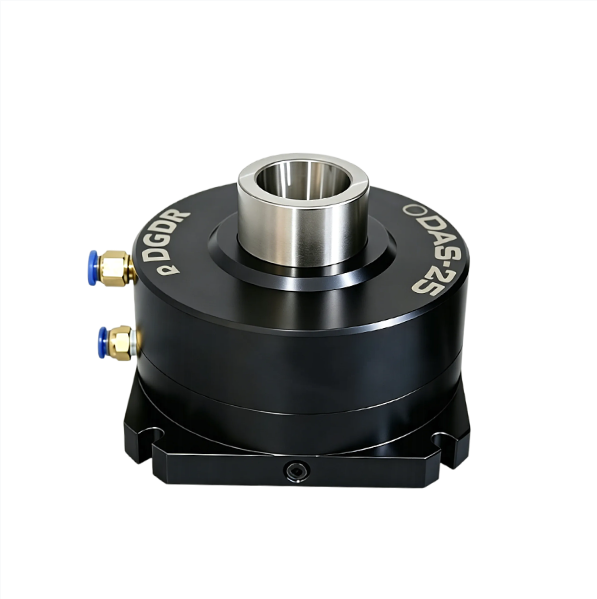

DGDR DAS-25

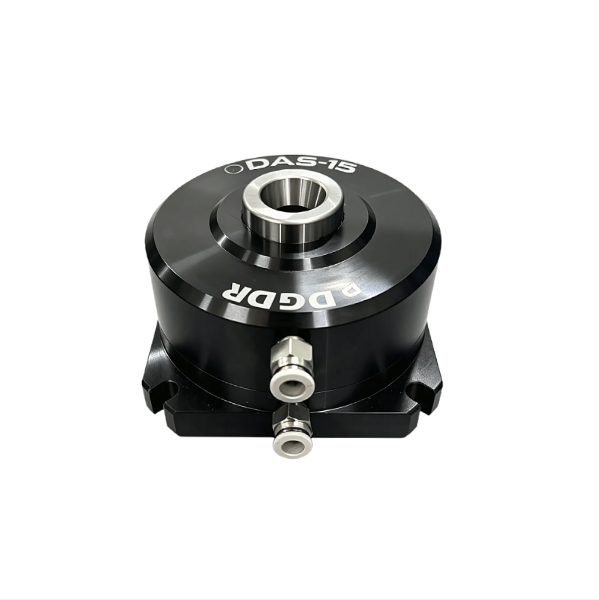

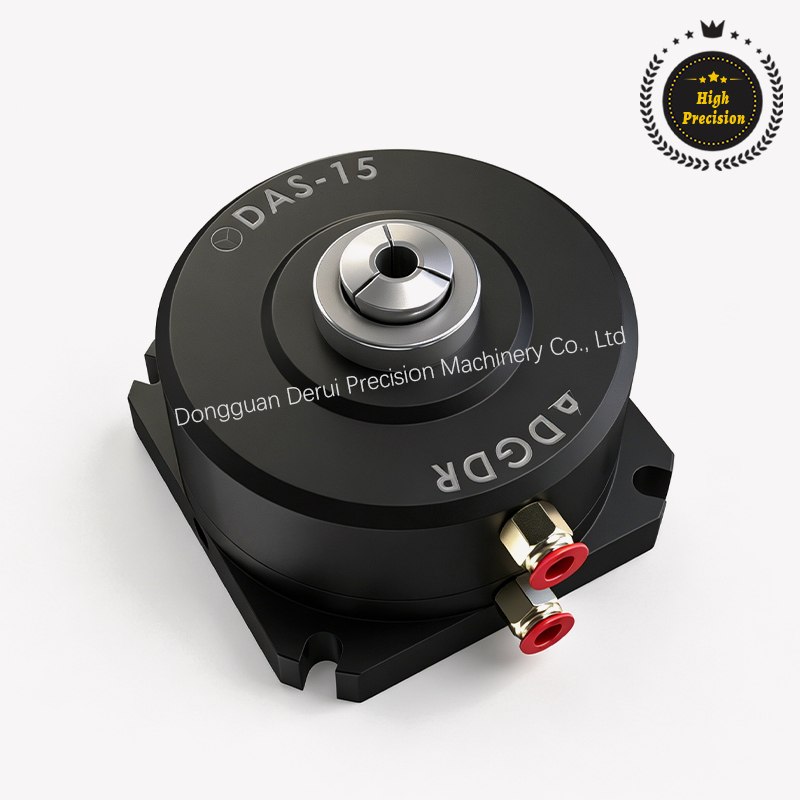

DGDR DAS-15
Hydraulic and pneumatic universal clamping with a clamping repeatability of 0.03mm.

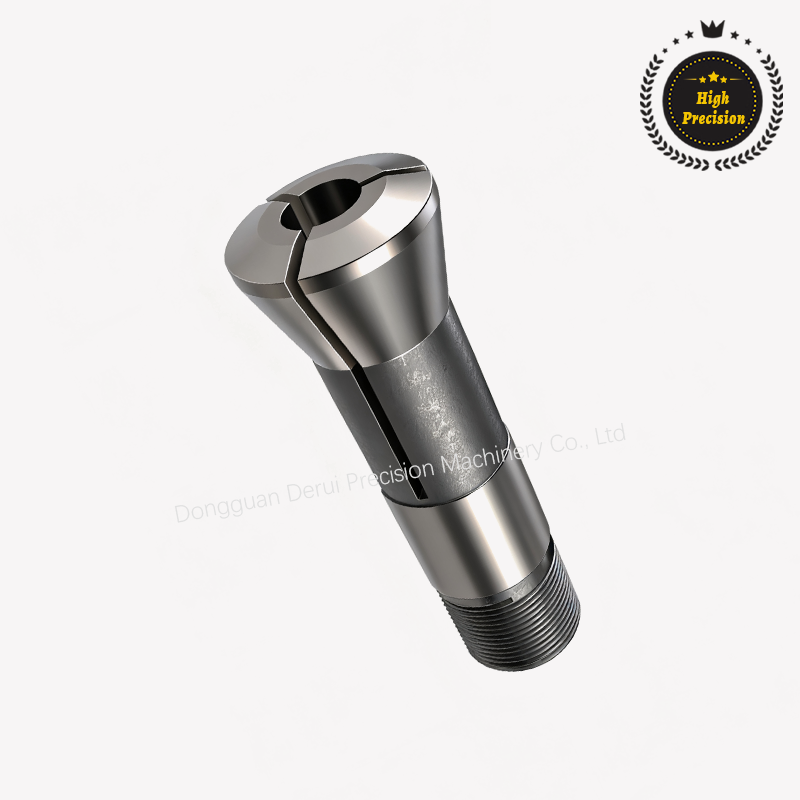

Different collet can be used for different workpieces various irregular hole shapes
can be customized, Air pressure is 3-8 kgs/cm.
Suitable for drilling and milling tables, CNC machining
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
