DAS/JAS

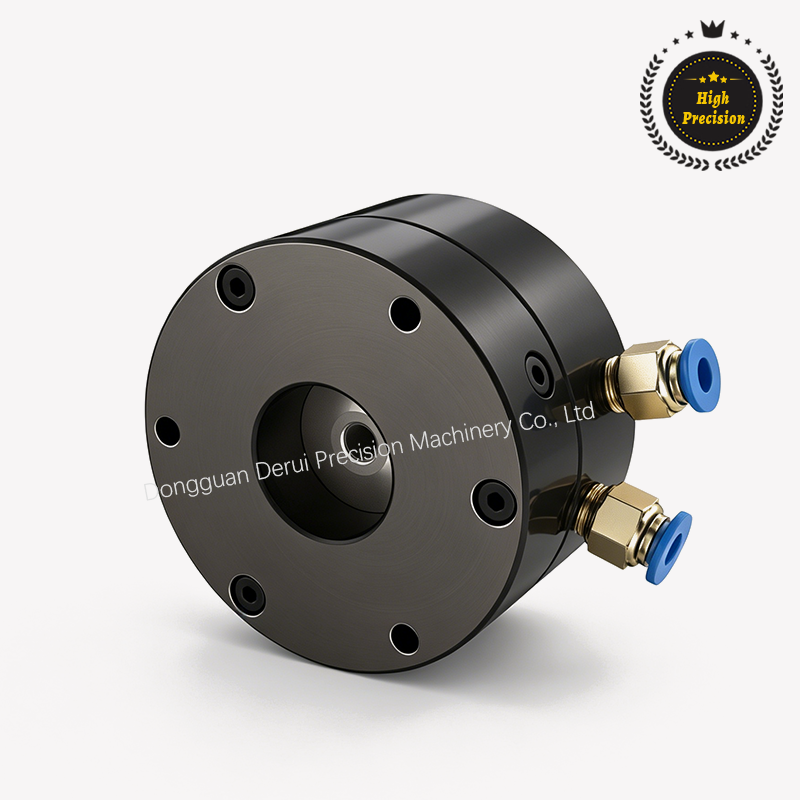

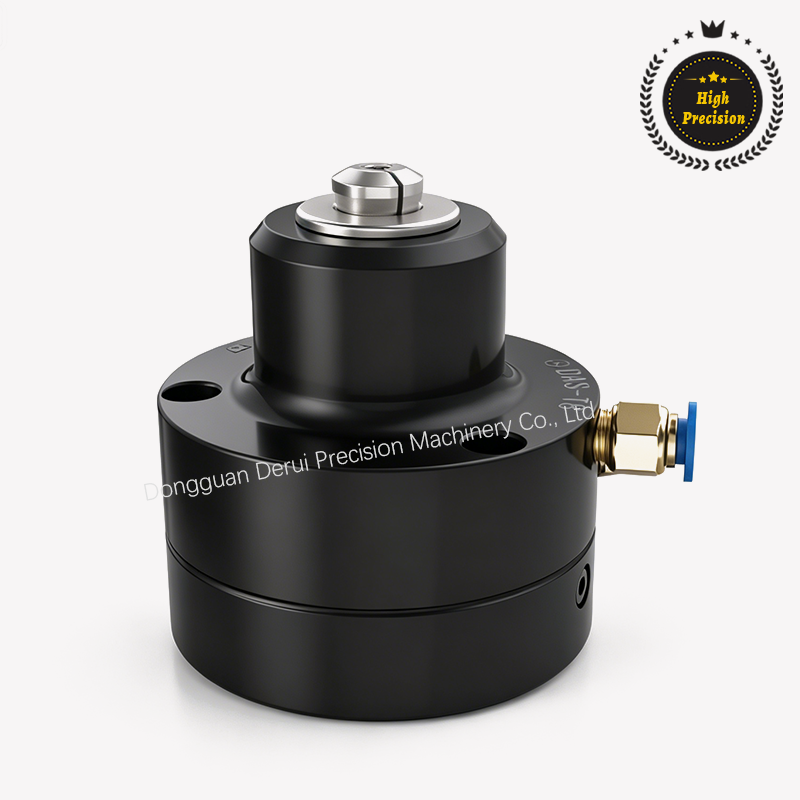

Miniature Pneumatic Chuck (fixed type)
High Precision
$ 311 USDMotor price not included

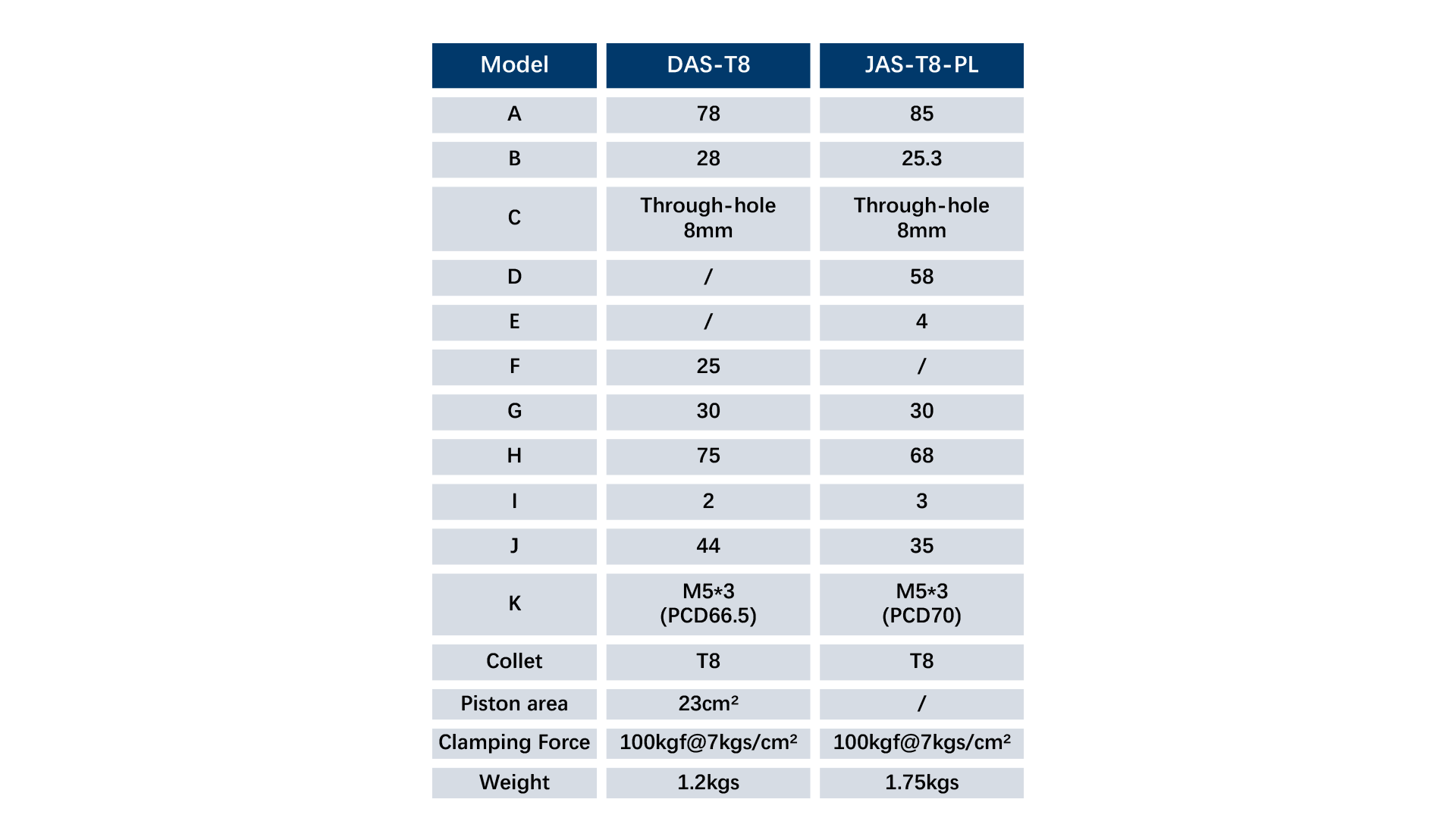

Model

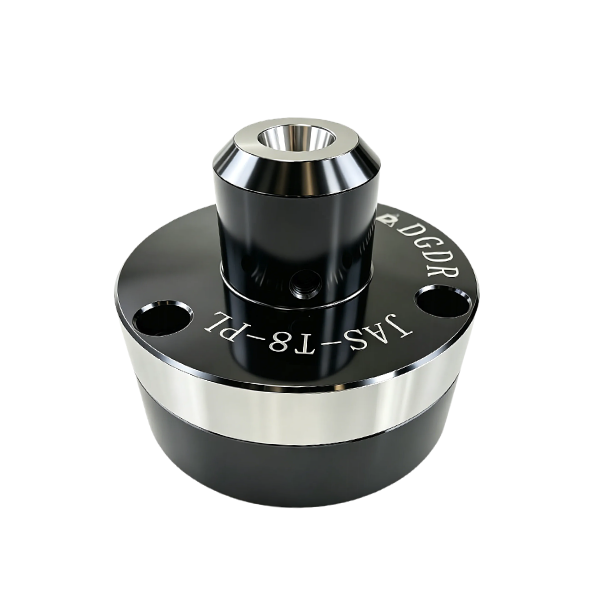

DGDR JAS-T8-PL

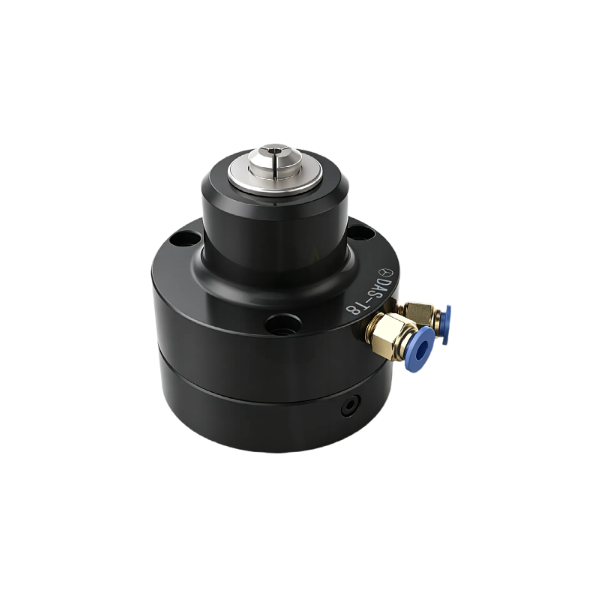

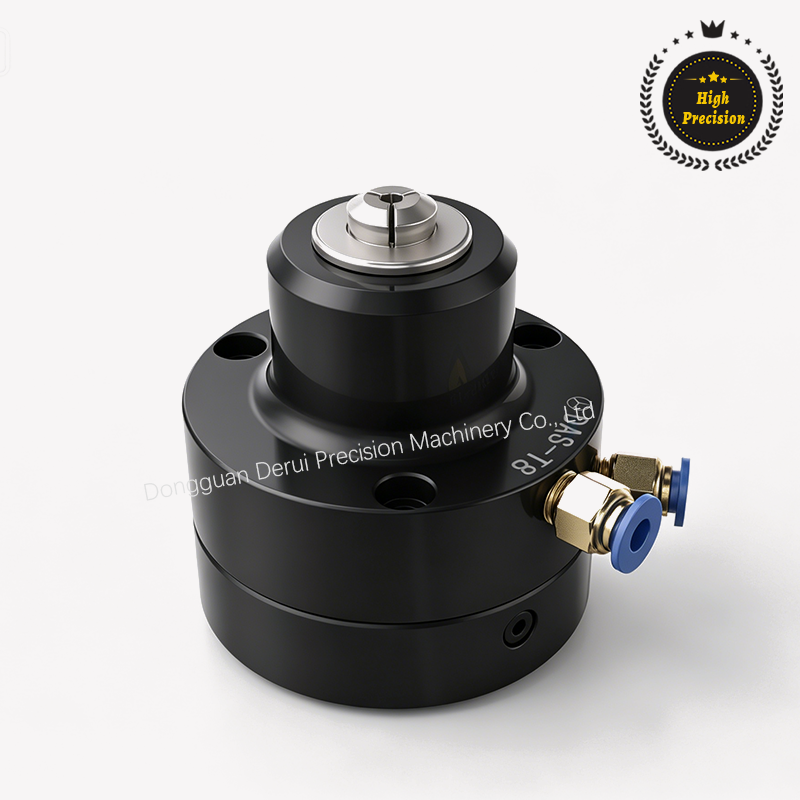

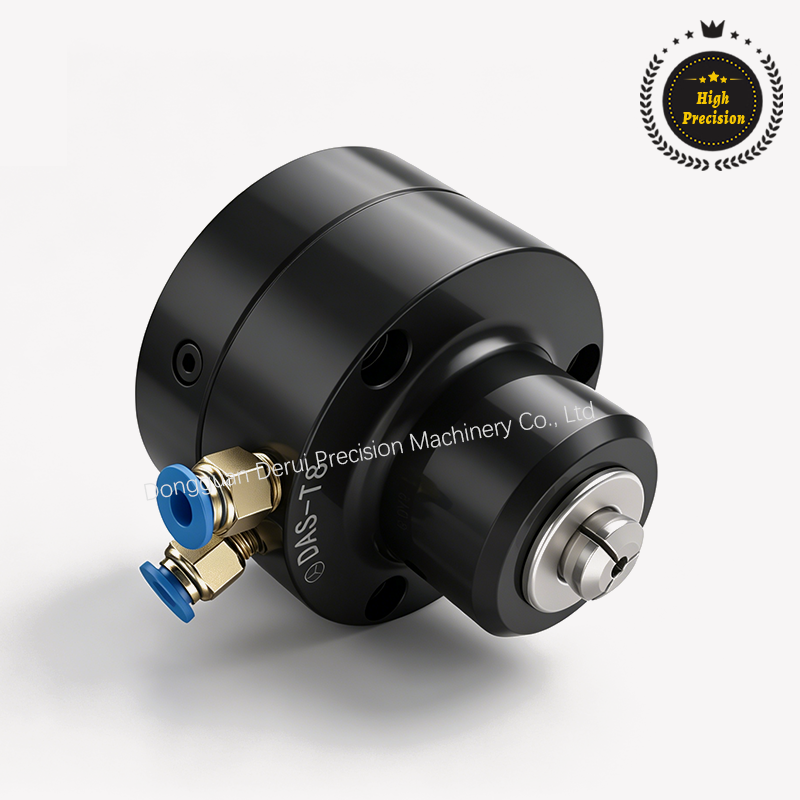

DGDR DAS-T8
One worktable can accommodate multiple small chuckimproving production efficiency.
The chucks feature a forward-pushing design, with the sliding sleeves
pushing forward to lock the workpiece. It is used with T8 collets, offering a
clamping range of 0.35-8mm and a clamping repeatability of 0.03mm.
Air pressure is 3-8 kgs/cm. Dustproof and waterproof it is suitable for various
drilling and milling worktables (CNC machining centers)
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
