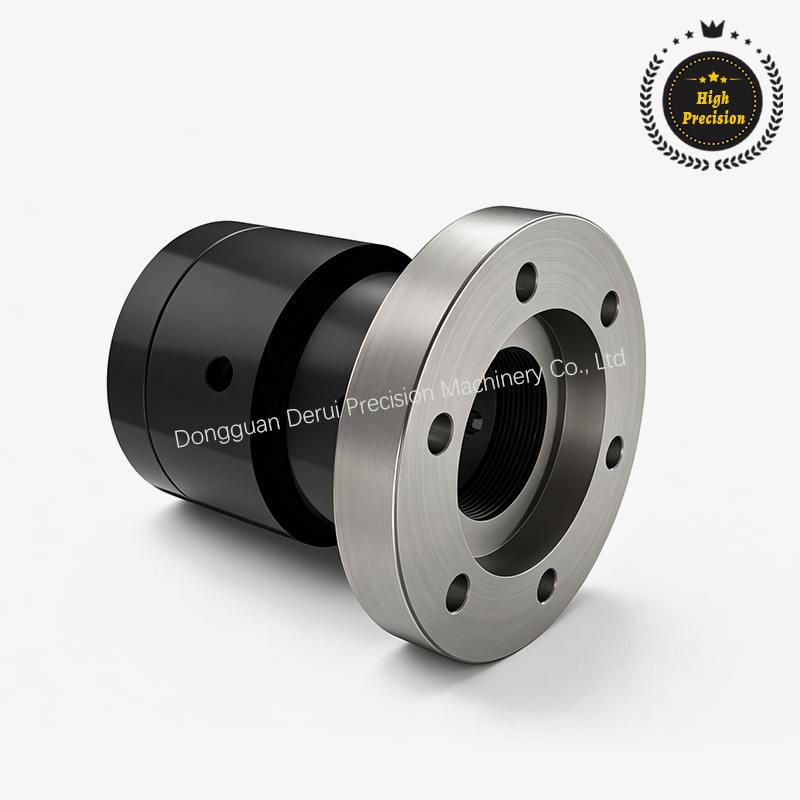

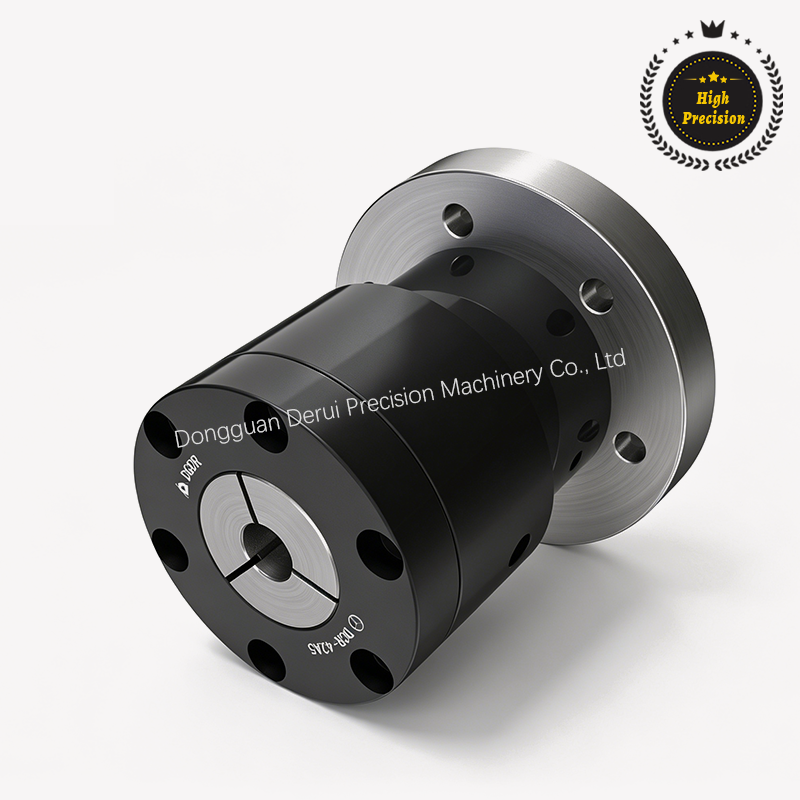

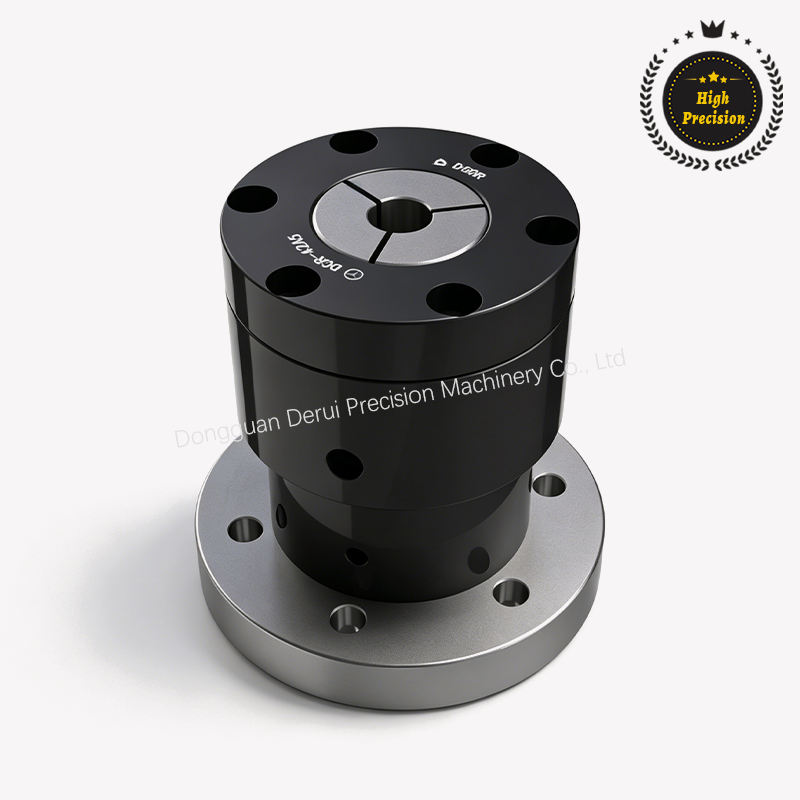

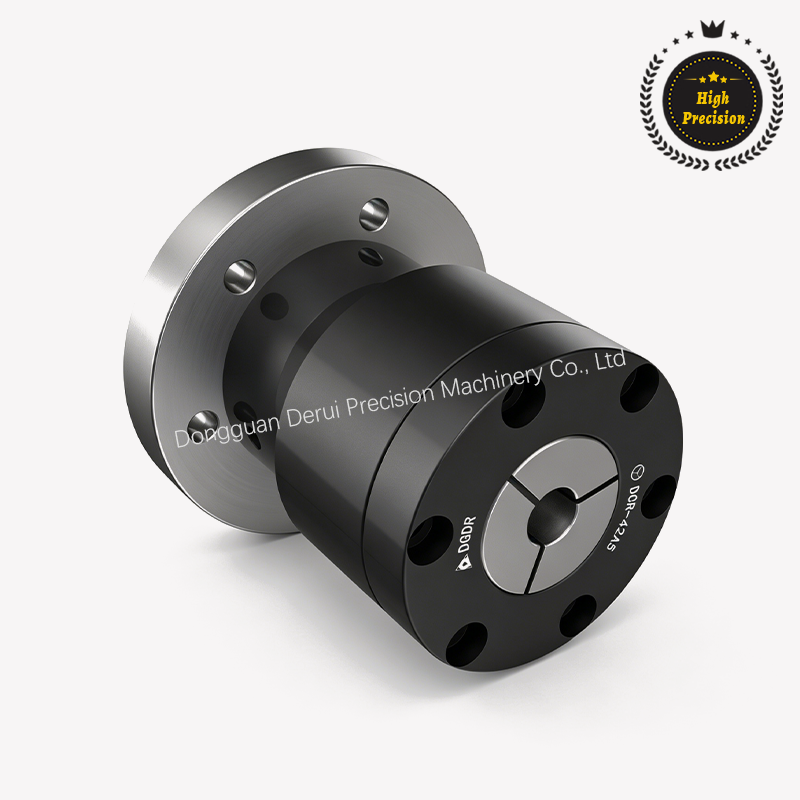

DCR Series

Front-push power collet chuck

High Precision
$ 812 USD Motor price not included

Model

    No data available

  • Clamping repeatability 0.02mm, center through hole, internal and external

    clamping options, sliding sleeve axial travel 4.5mm, rear-mounted hydraulic

    or pneumatic cylinder, air pressure 3-8kgs, suitable for

    machining on various precision lathes, can be installed on CNC lathes,

    grinding machines or various specialized machines


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

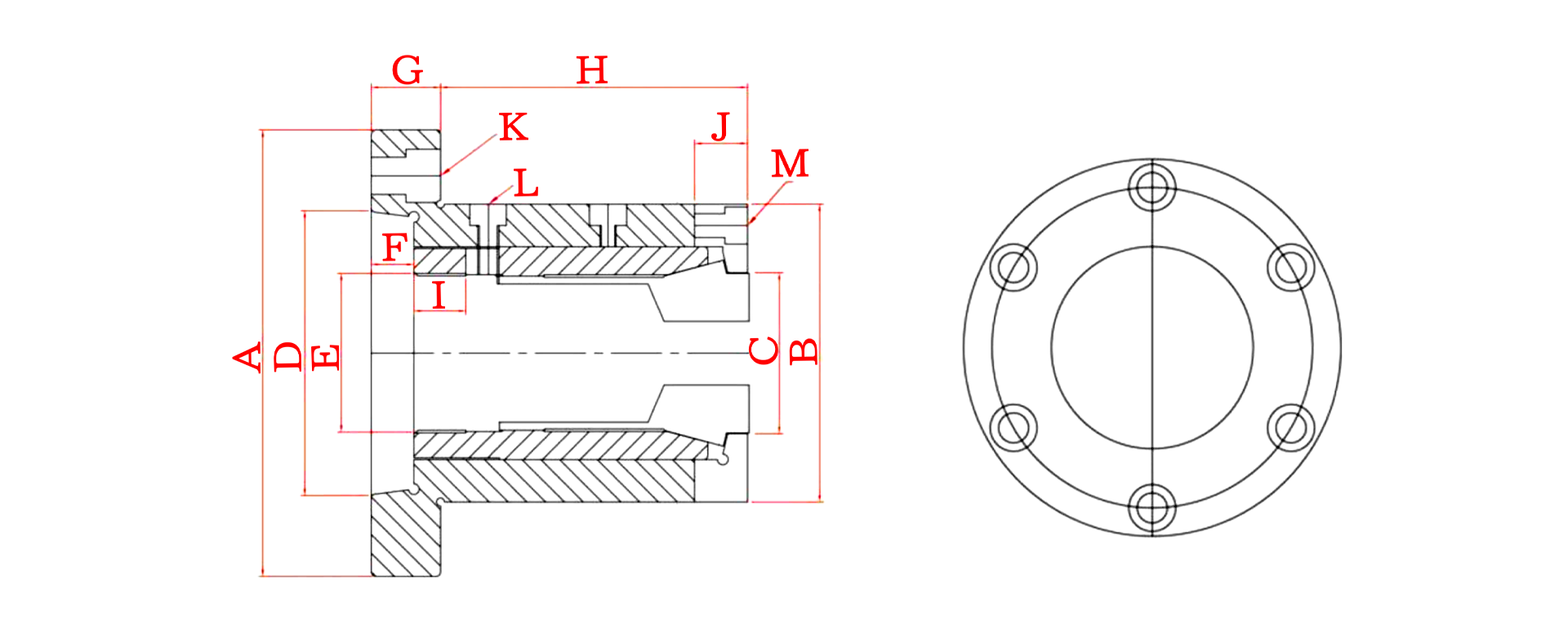

2D Drawing平面图.png

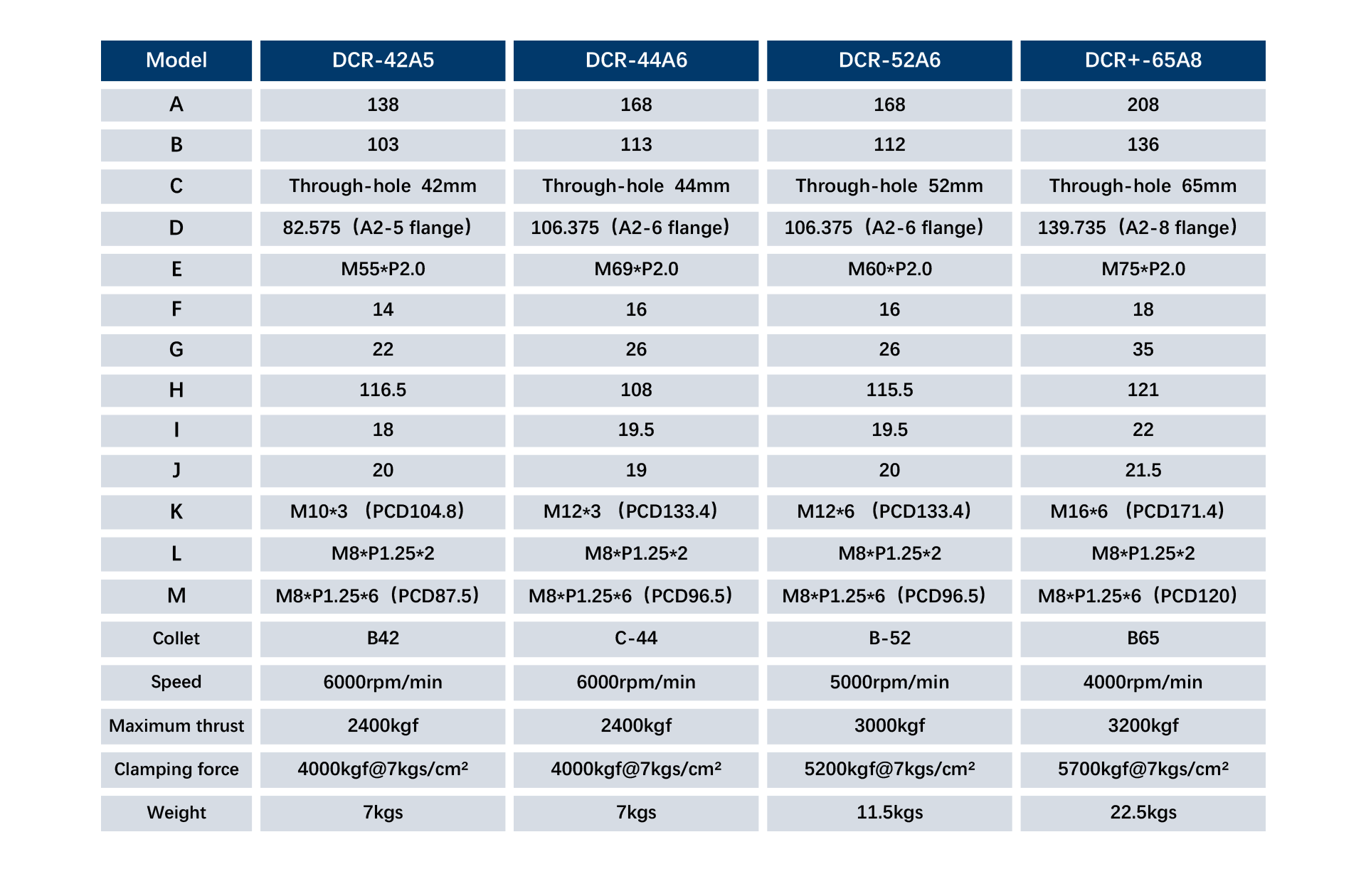

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
