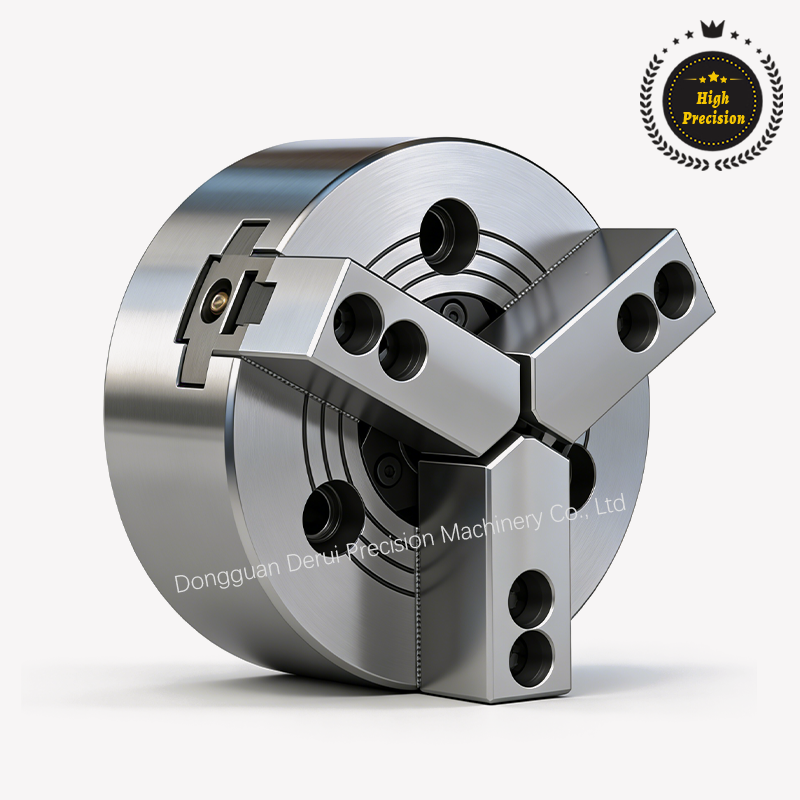

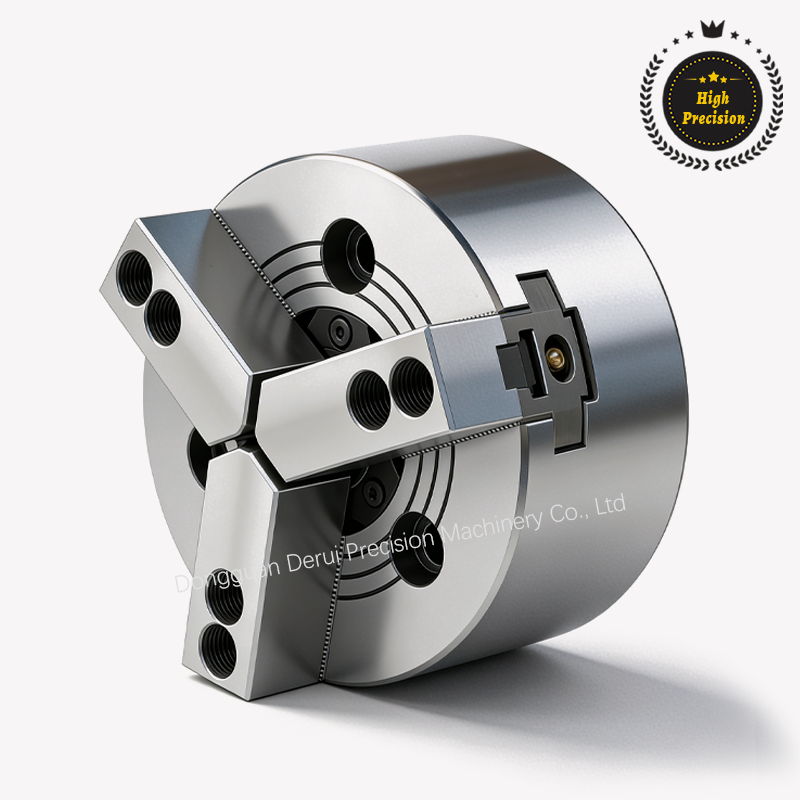

DR3H Series

Hydraulic three-jaw chuck

High Precision
$ 585 USD Motor price not included

Model

    No data available

  • All folding surfaces are hardened and precision ground, and directly lubricated.

    I value is the bore diameter of the connecting nut without thread

    machining.E value is the maximum thread specification that the connecting

    nut can be machined.Custom sizes are also available to

    meet specific clearance requirements.


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance

Get Your Solution

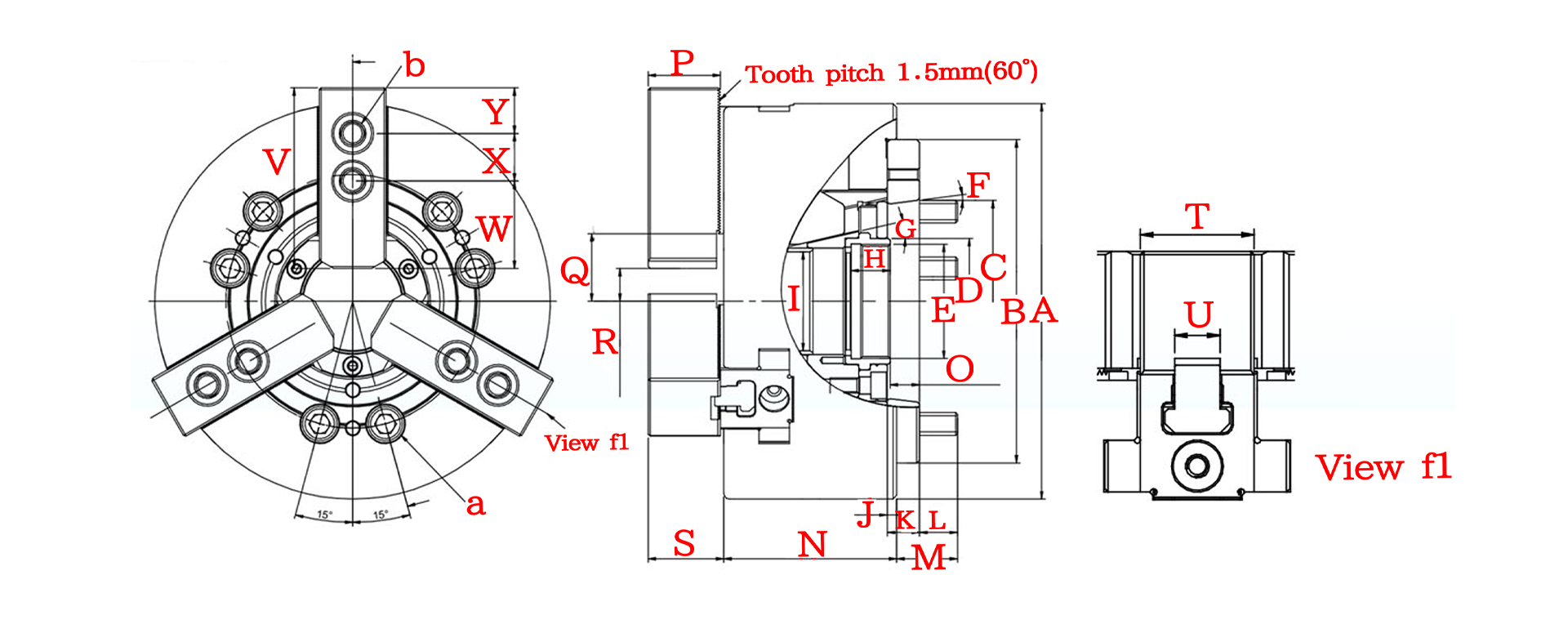

2D Drawing平面图.png

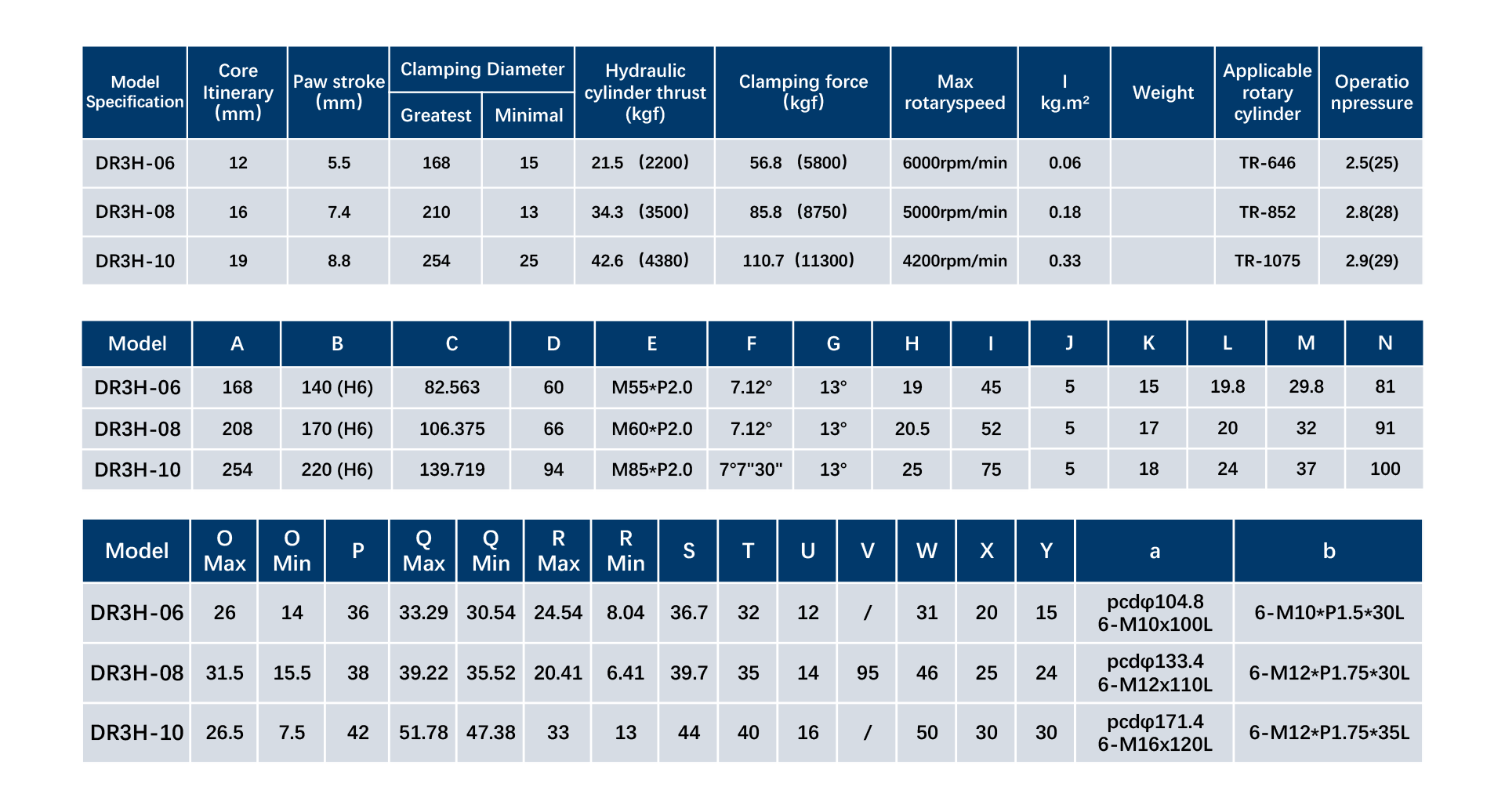

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

Please fill in your required chuck type

Please fill in your required chuck type

Please fill in your required chuck type

Please fill in your required chuck type

Please fill in your required chuck type

Submit
💬 📘
