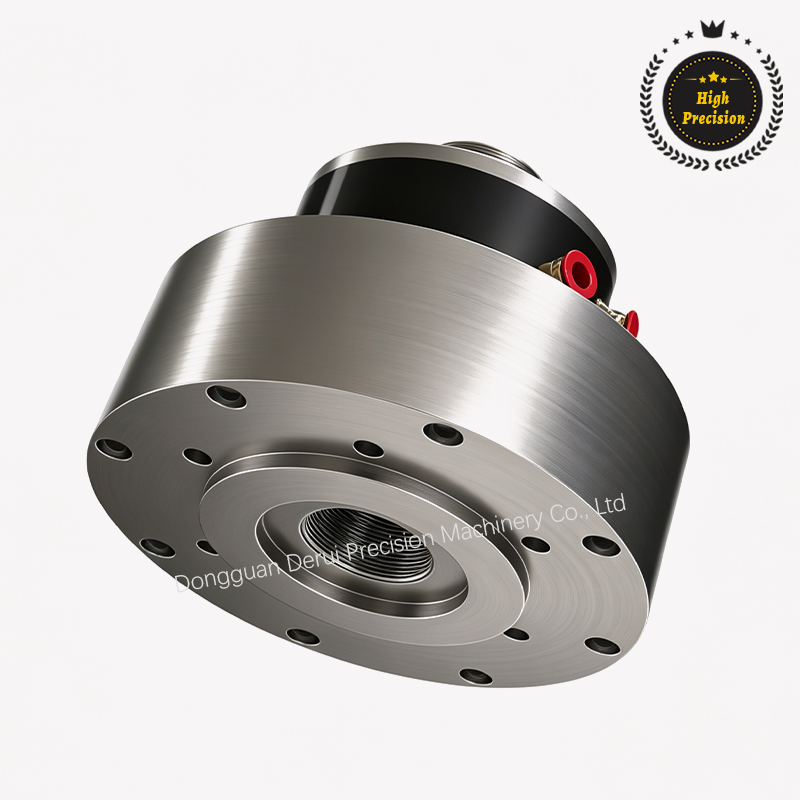

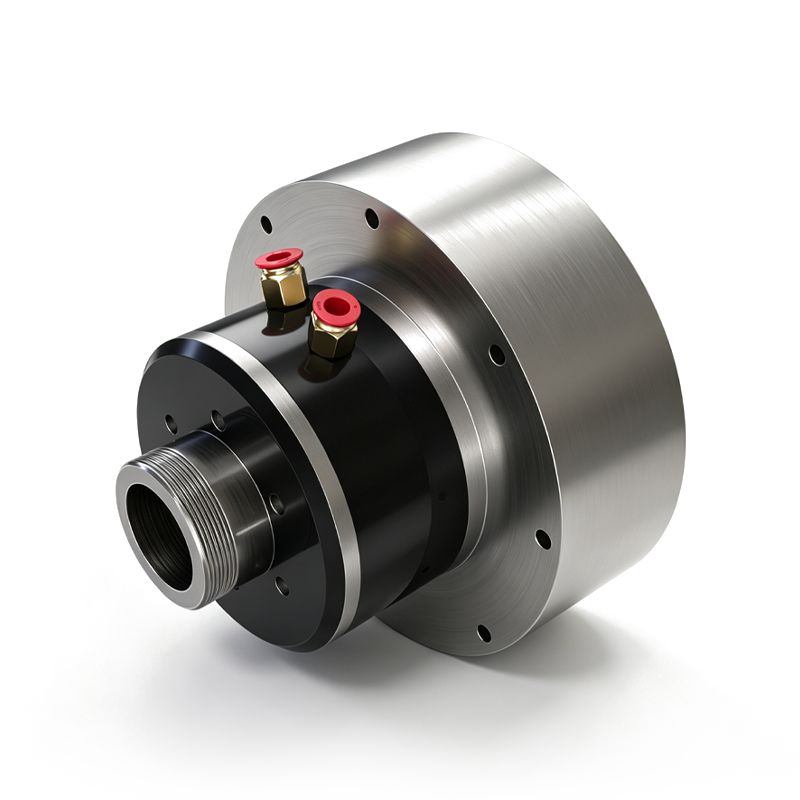

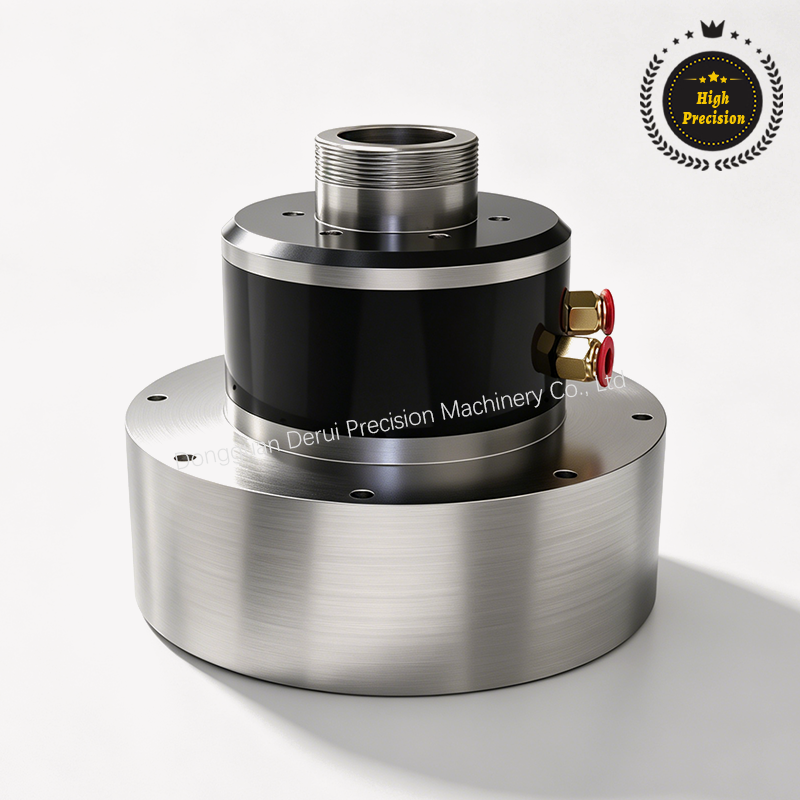

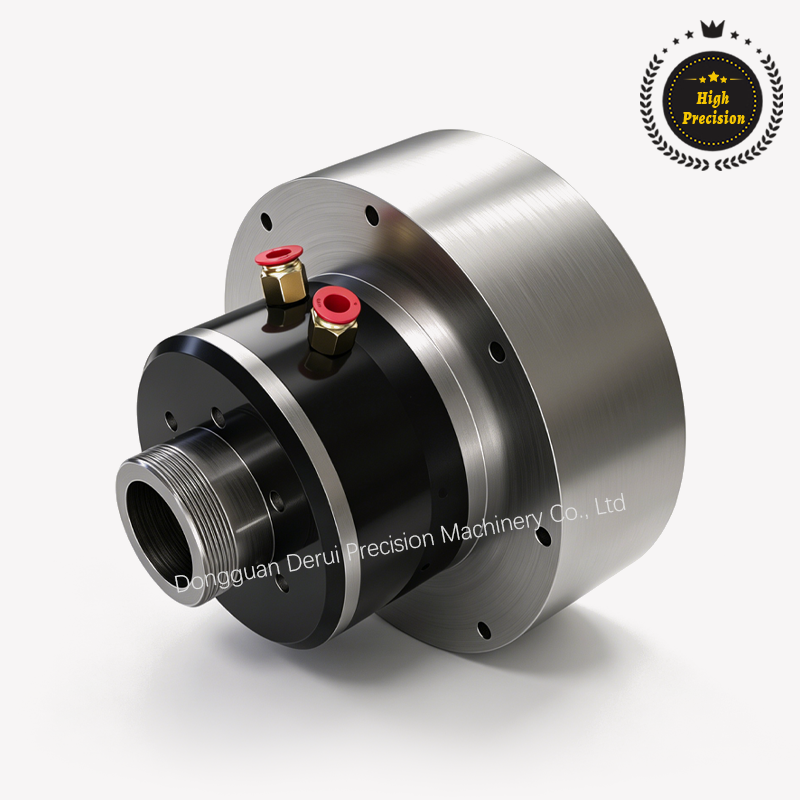

DR-636R
Central pneumatic rotary cylinder
High Precision
$ 776 USDMotor price not included

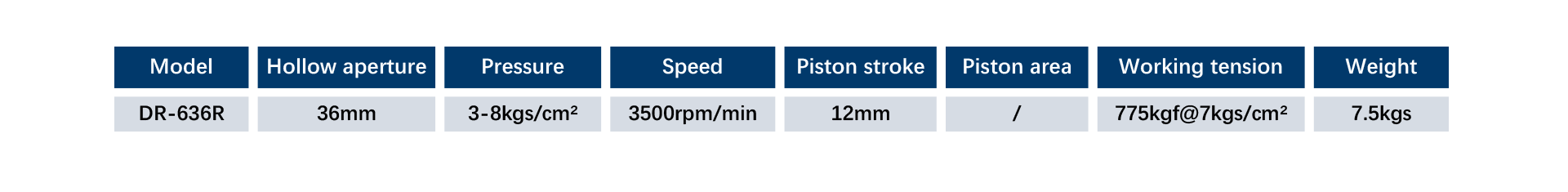

Model
DGDR DR-636R
36mm center bore for automatic loading and unloading; lightweight design for
low temperature rise; high speed, maximum 3500 rpm; advanced
airflow path design for extremely low air valve leakage; dual piston
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
