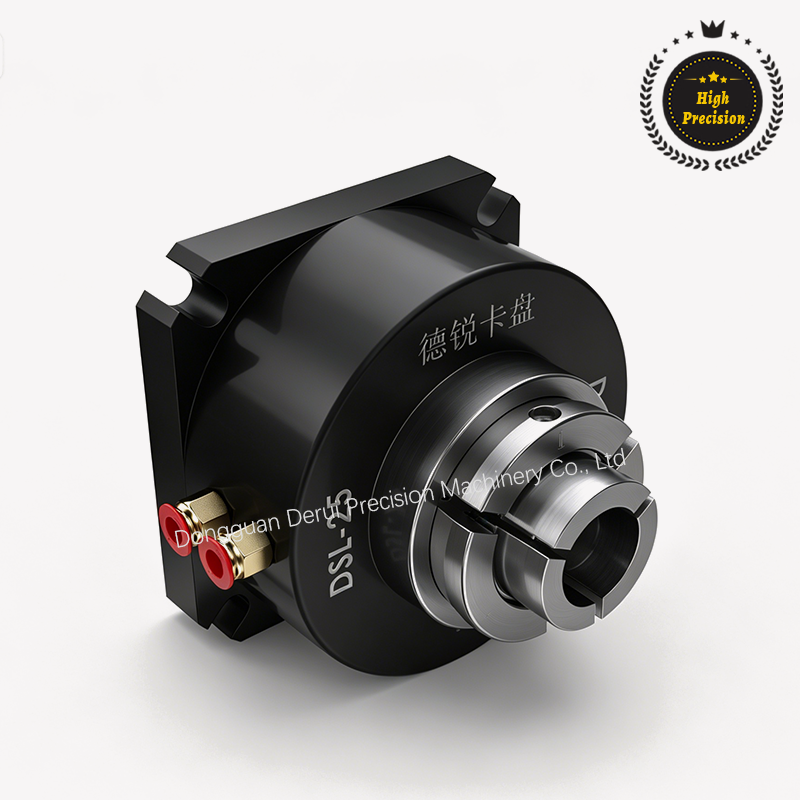

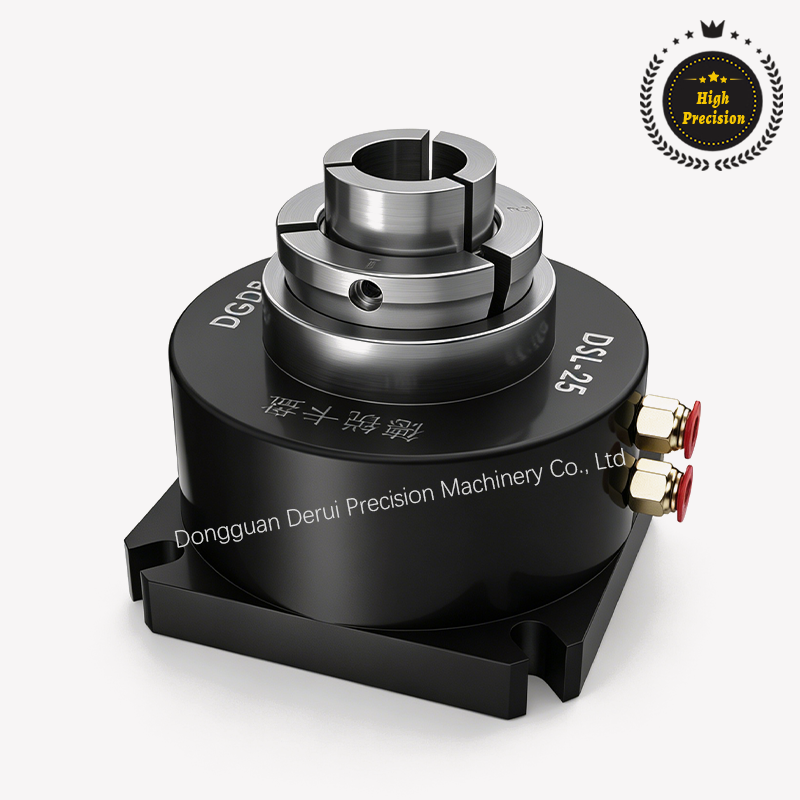

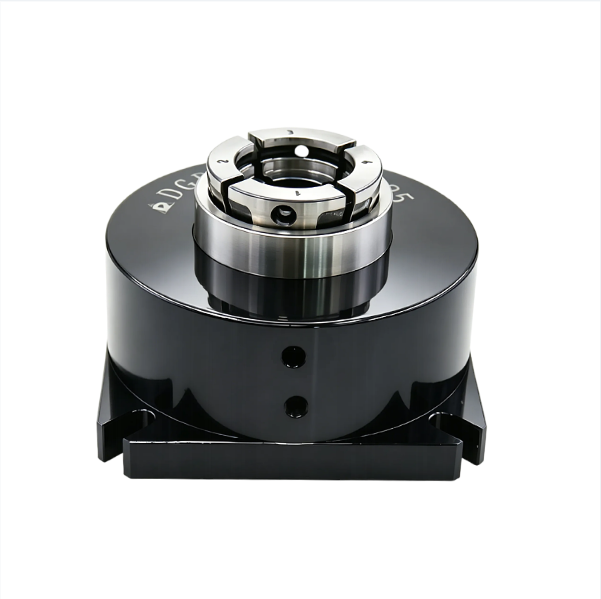

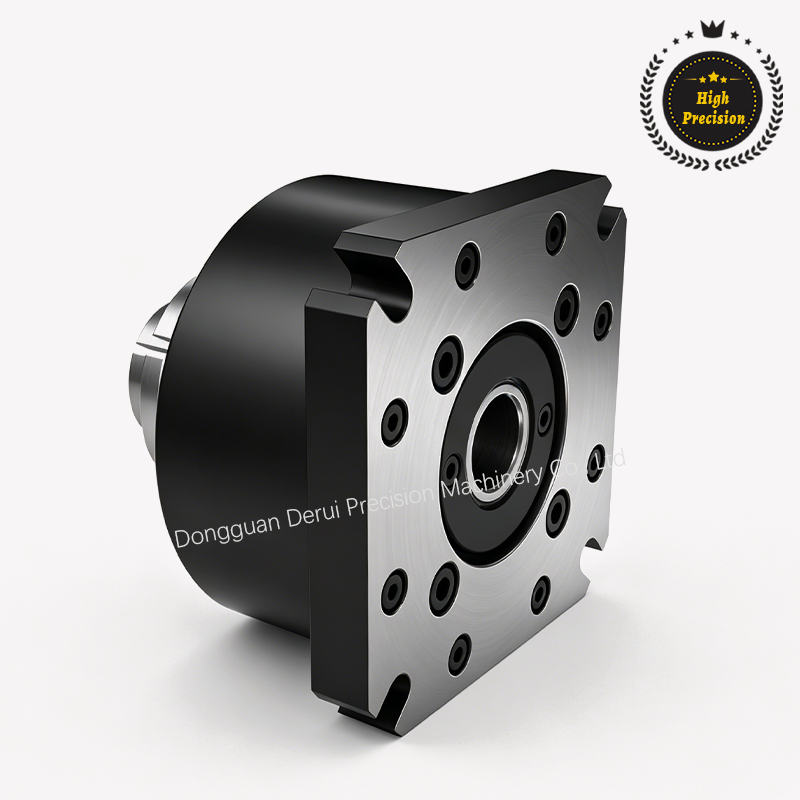

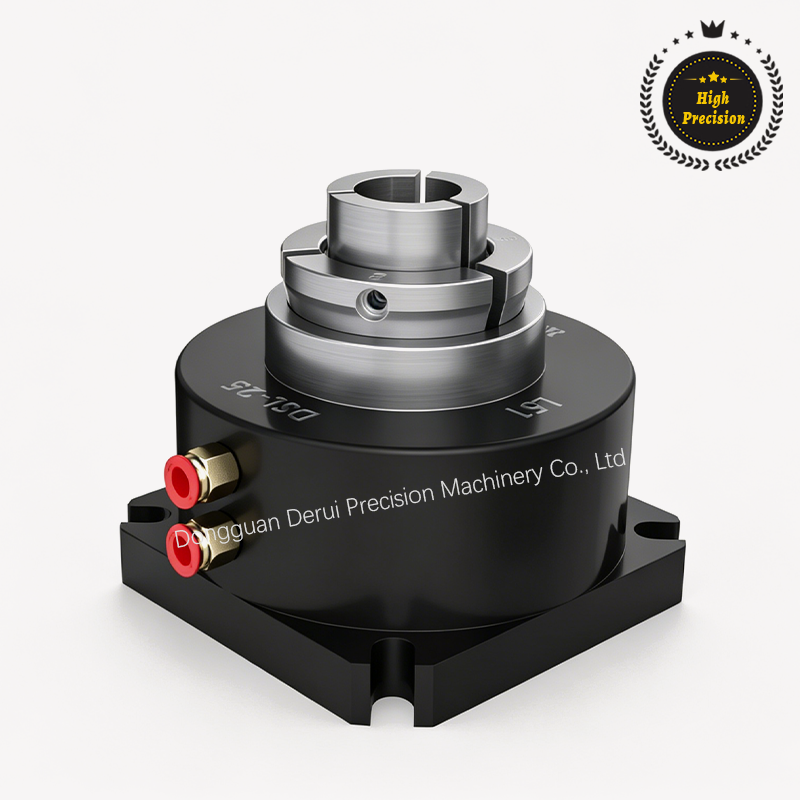

DSL-25
Large stroke hydraulic fixed chuck
High Precision
$ 688 USDMotor price not included

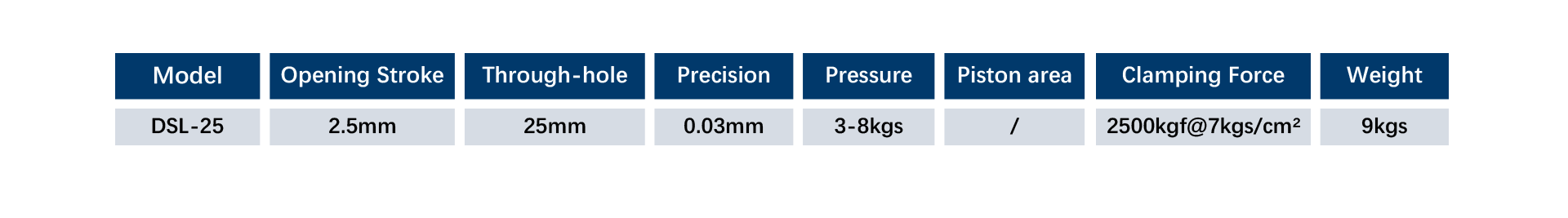

Model
DGDR DSL-25
Steel body, sliding sleeve for clamping workpieces, and release for releasing
Replaceable secondary jaws for different workpieces support machining of various
irregular holes. Four corners are fixed to the worktable; one worktable can accommodate
multiple fixed chucks. Forced unloading design for the chucks. Dustproof, waterproof, and
fluid-resistant. Suitable for various drilling and milling worktables (CNC machining centers)
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
