DTG Series

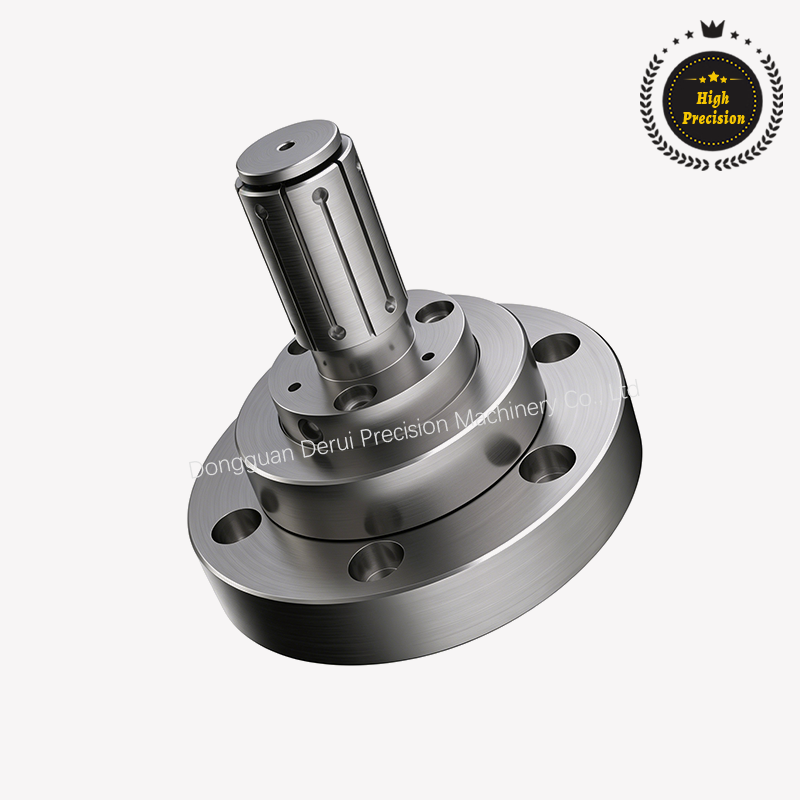

Double-Taper Internal Clamping Fixture

High Precision
$ 299 USD Customization Available

Model

    No data available

  • Single-side stroke of 0.8 mm; repeat clamping accuracy within 0.015 mm

    (or customizable to within 0.002 mm)

    Suitable for various special-purpose machines, CNC lathes, grinding machines, and other high-precision

    automated equipment—such as for expanding the inner bores of stators and rotors, or chamfering

    motor housings


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance


Get Your Solution

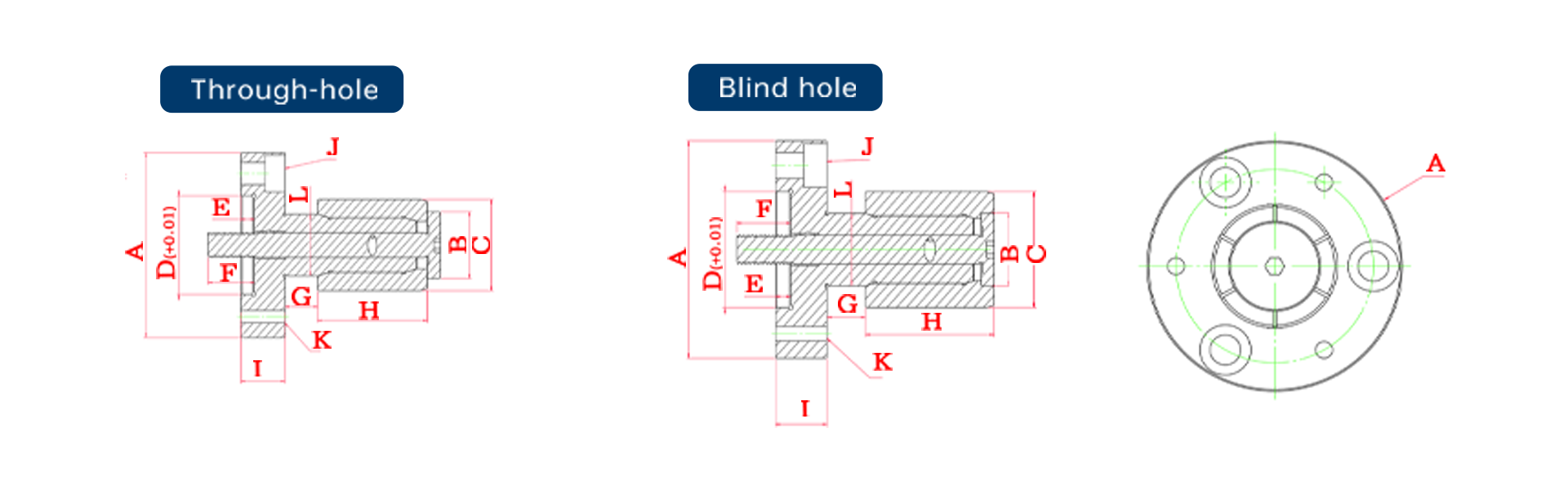

2D Drawing平面图.png

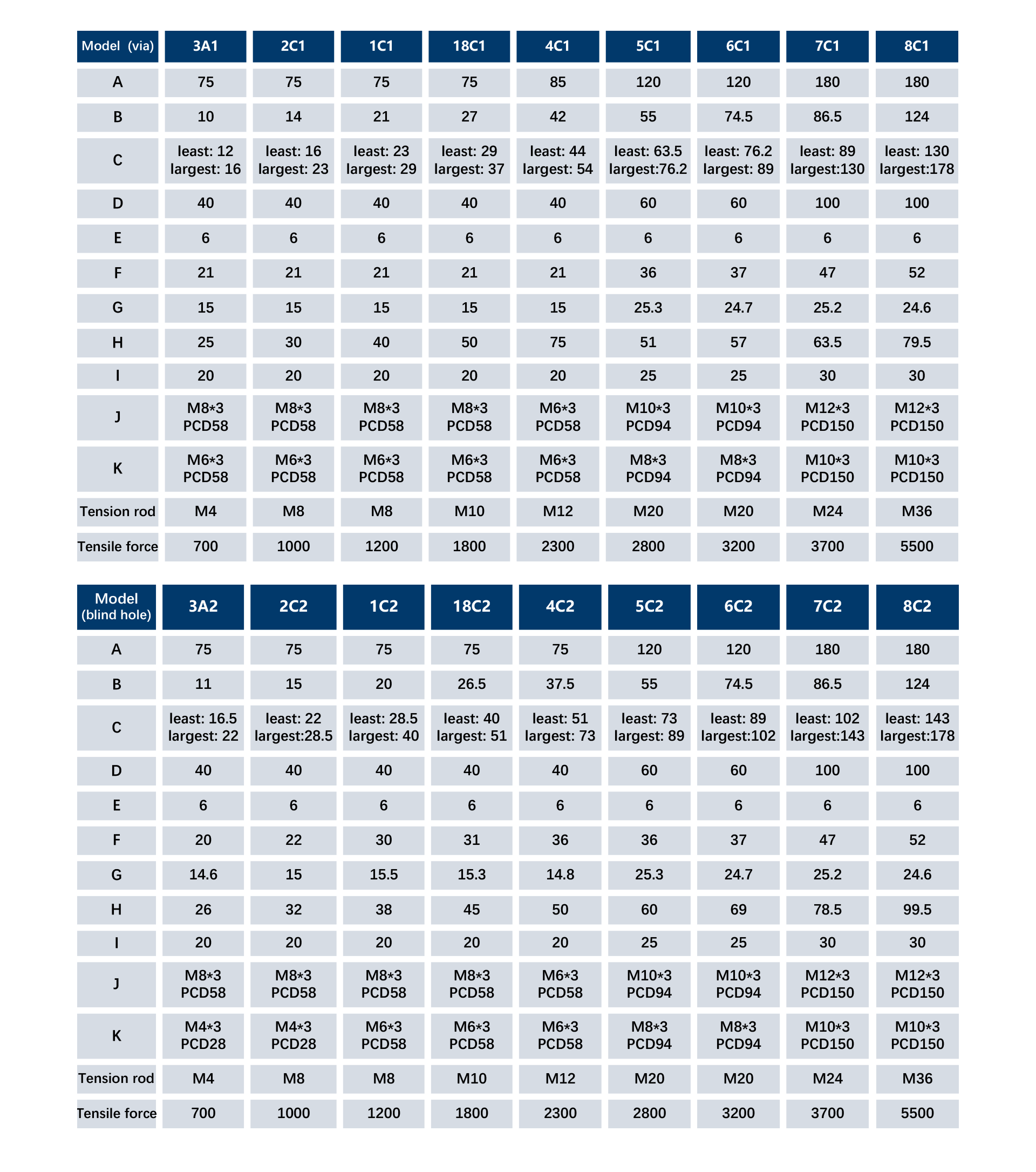

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

    No data available

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
