DXXL-40
Fixed travel chuck
High Precision
$ 741 USDMotor price not included
Model
DGDR DXXL-40

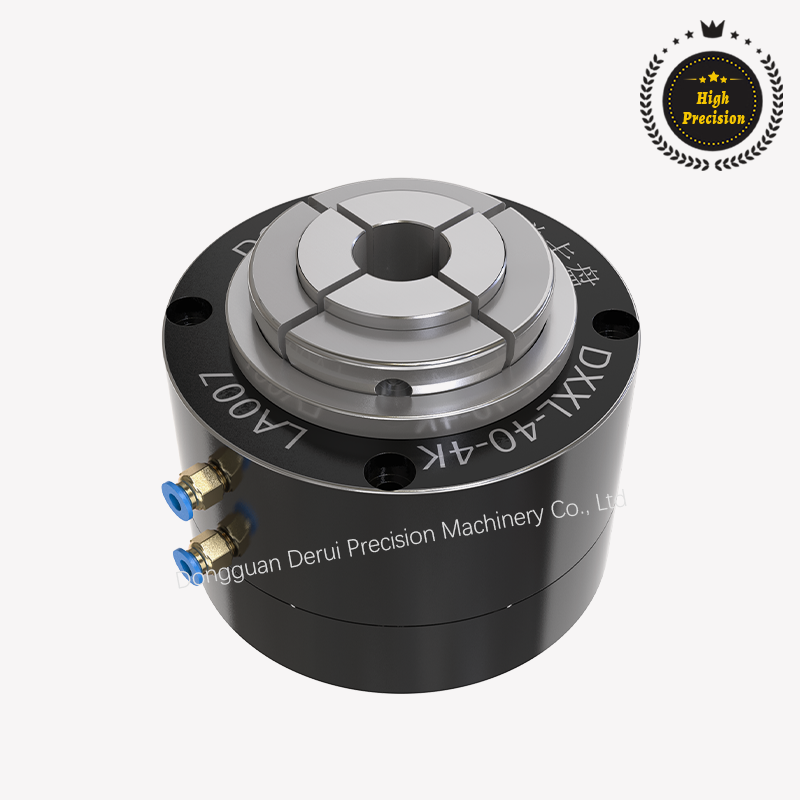

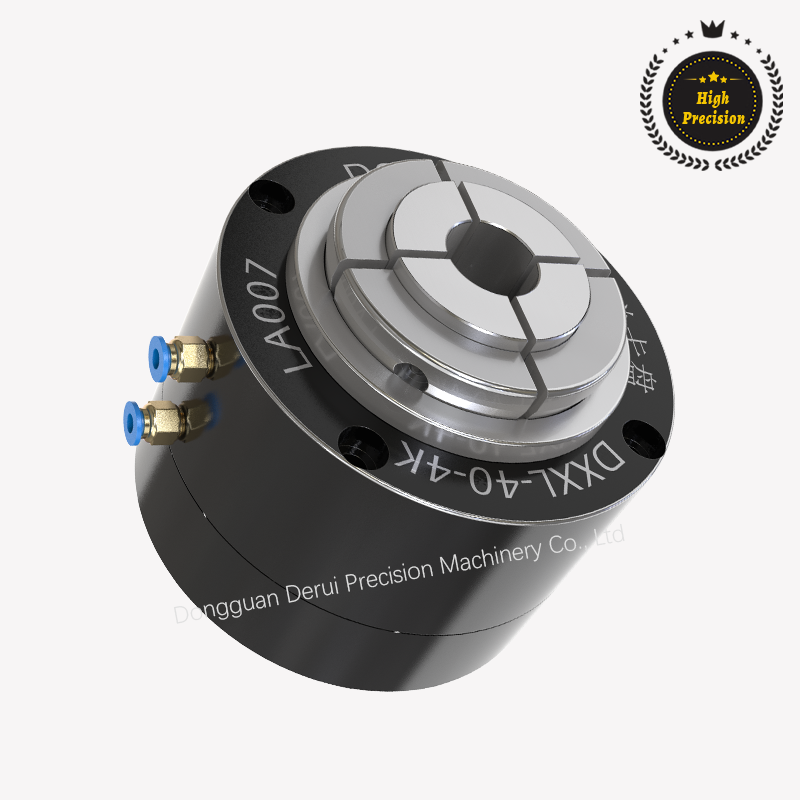

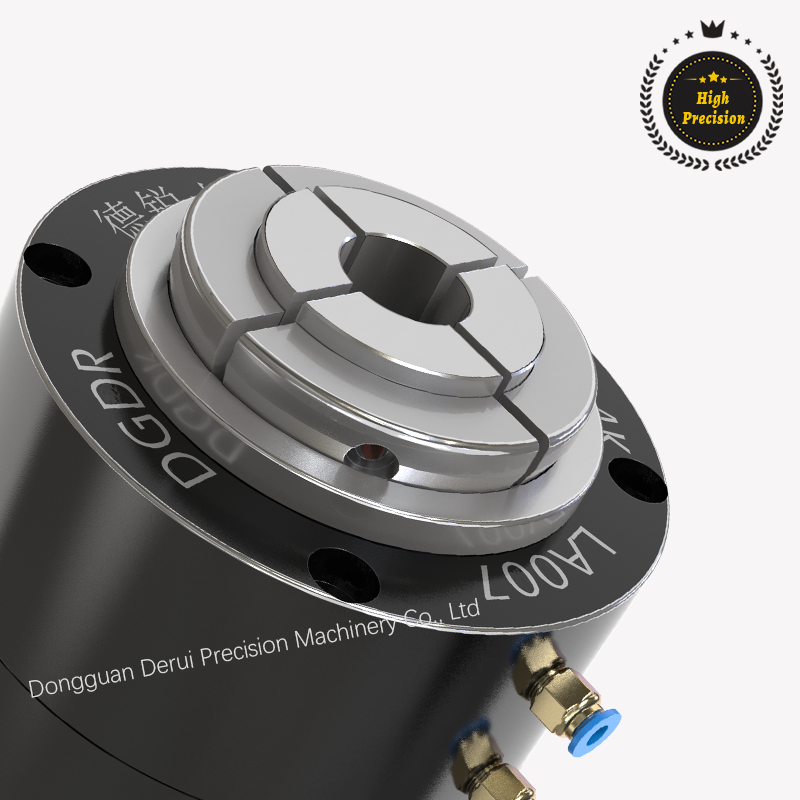

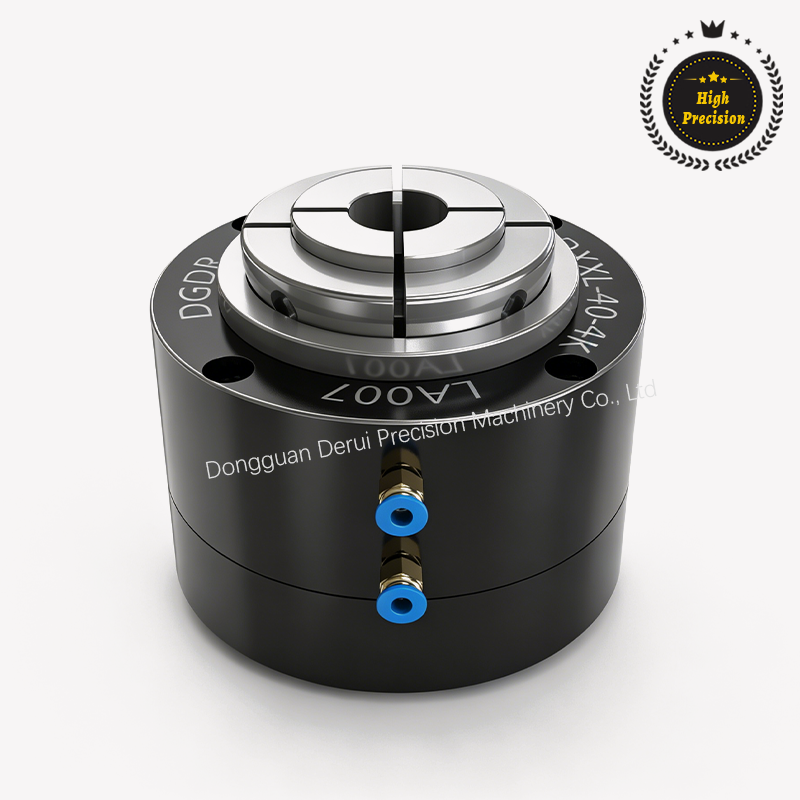

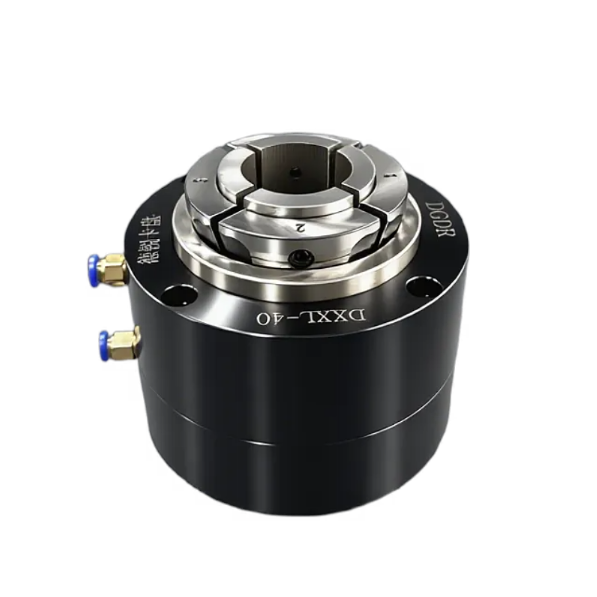

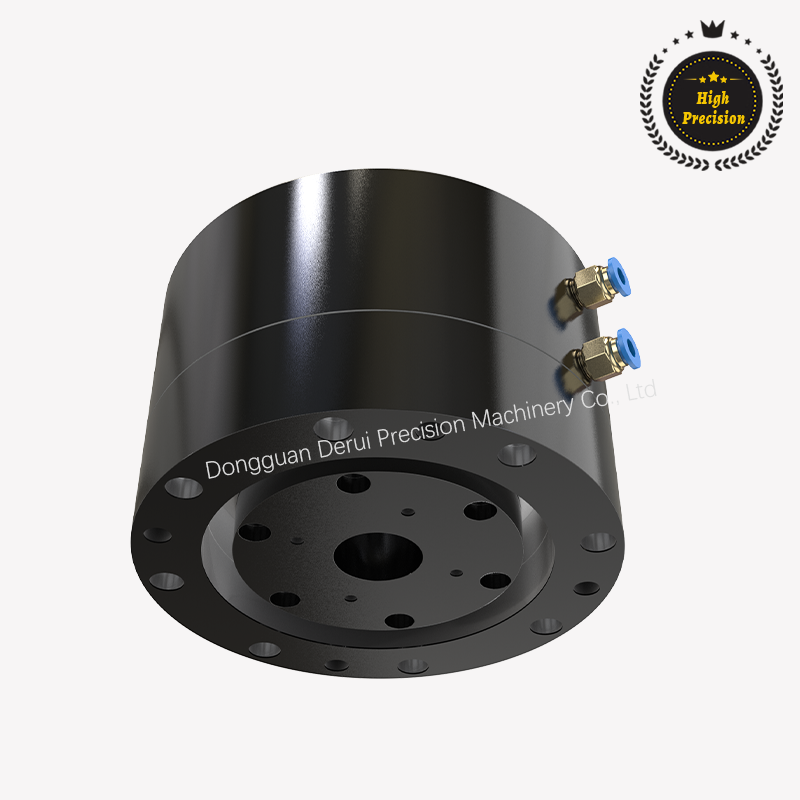

The Derui DXXL-40 fixed hydraulic chuck features a 2.5mm extension stroke, a working air pressure
of 3-8 kgs/cm², dust and water resistance, high rigidity, and interchangeable secondary jaws for
different workpieces. It has a center through hole with a maximum diameter of 38mm, suitable for
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
