DZ Series
Laser Cutting Rotary Chuck
High Precision
$ 671 USDMotor price not included
Model
DGDR DZ-70

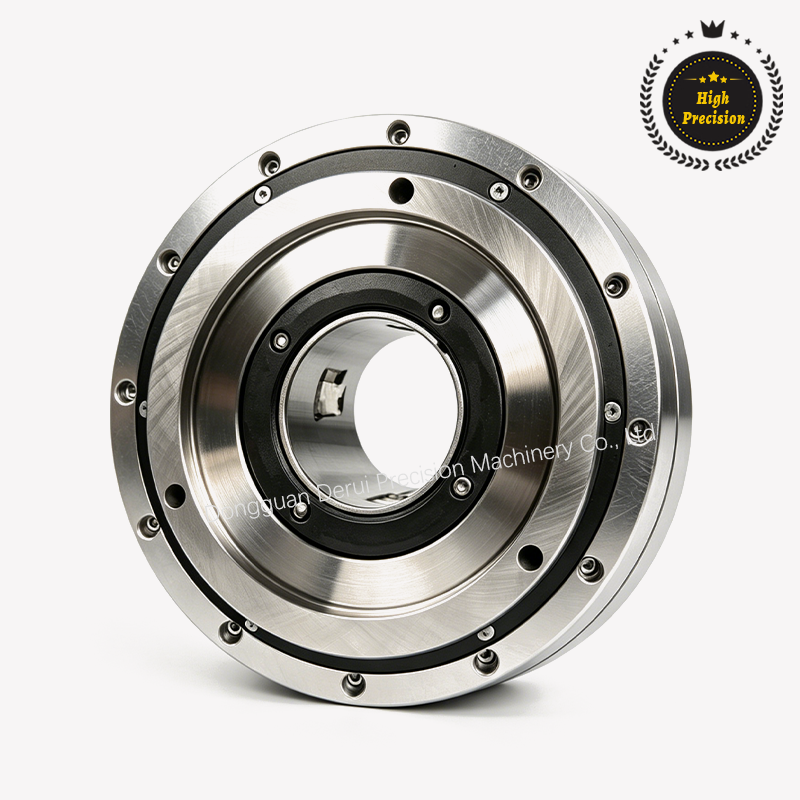

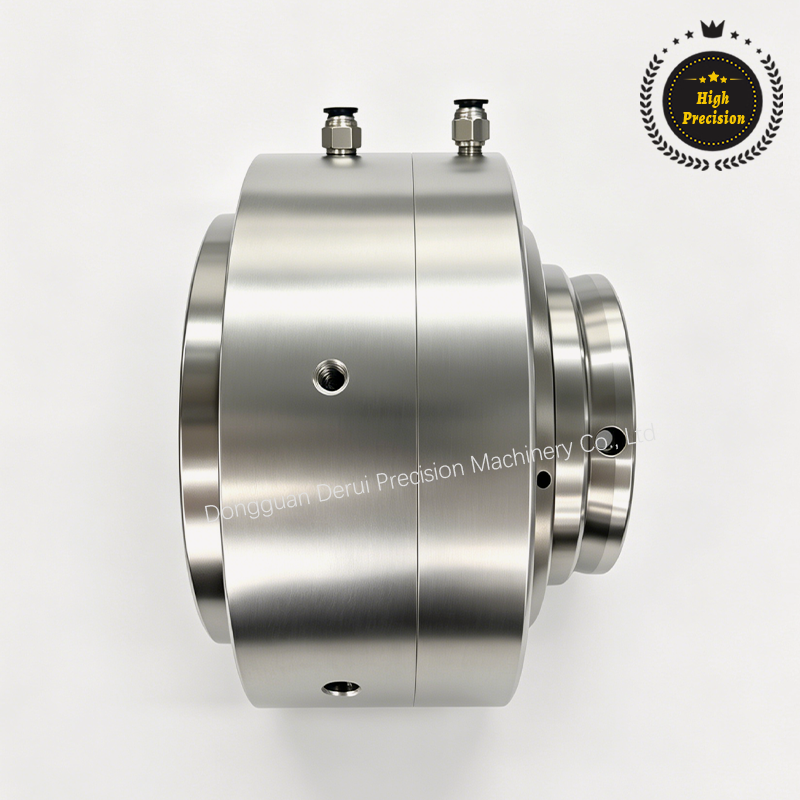

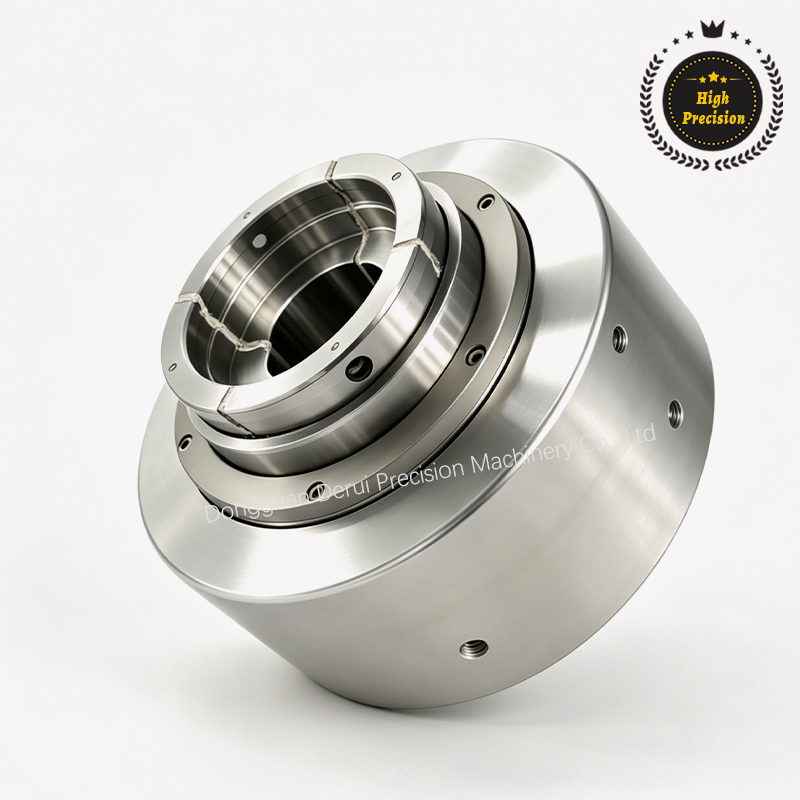

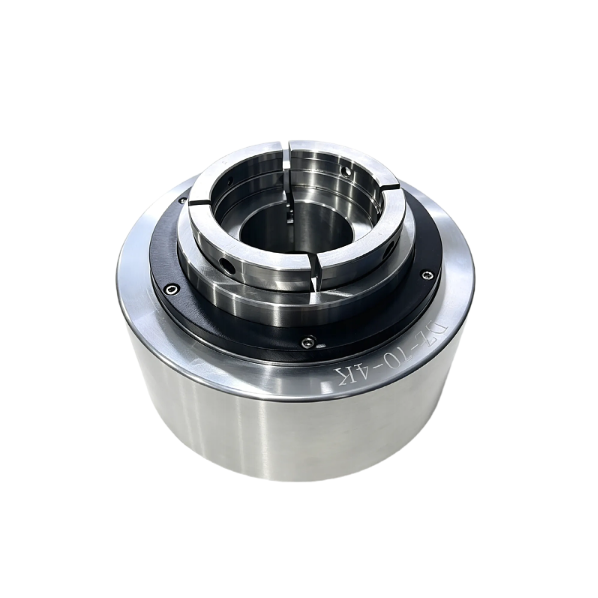

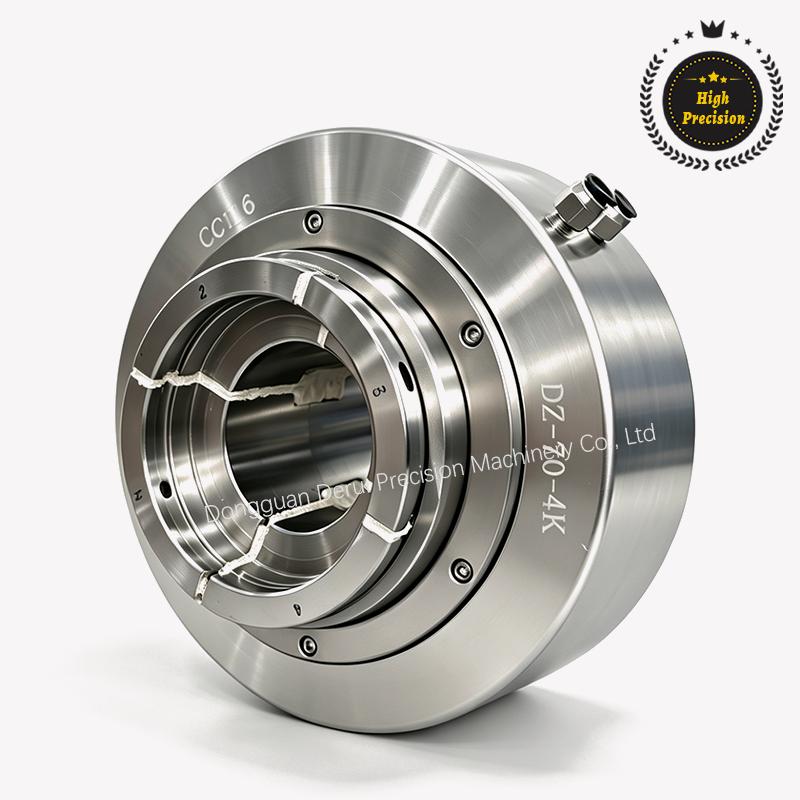

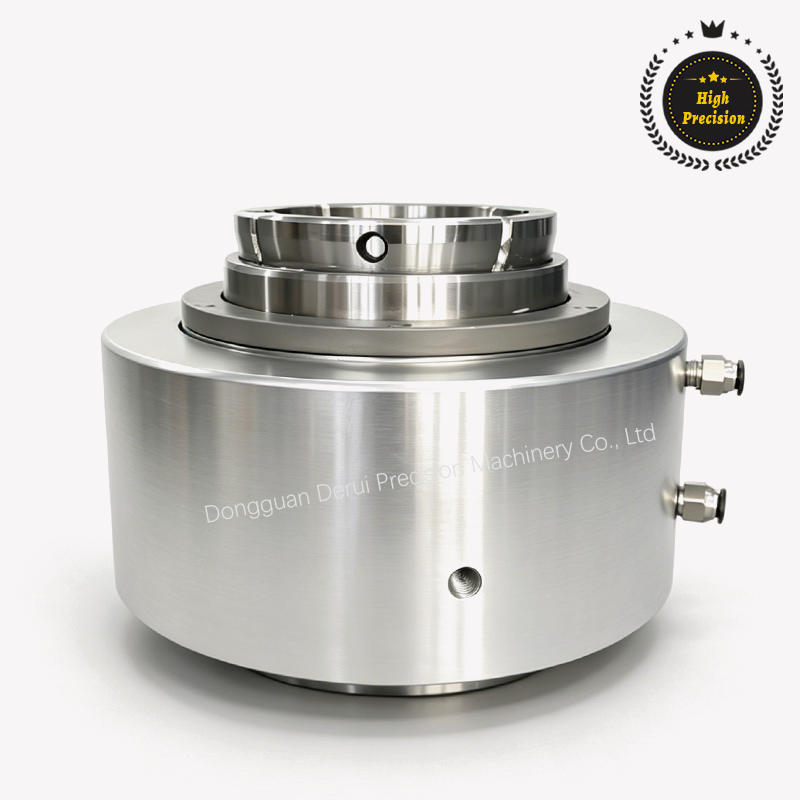

A rotary chuck specifically developed for laser tube cutting machines.The through-hole
diameter is customizable up to 800 mm, with an operating air pressure range of 3–15 kg/cm²
Auxiliary jaws can be interchanged to accommodate different workpieces,and the
jaw opening stroke is customizable from 2.5 mm to 100 mm.Suitable for processing
various tube profiles, including square round, oval, and other irregular shapes
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
