GCB Series

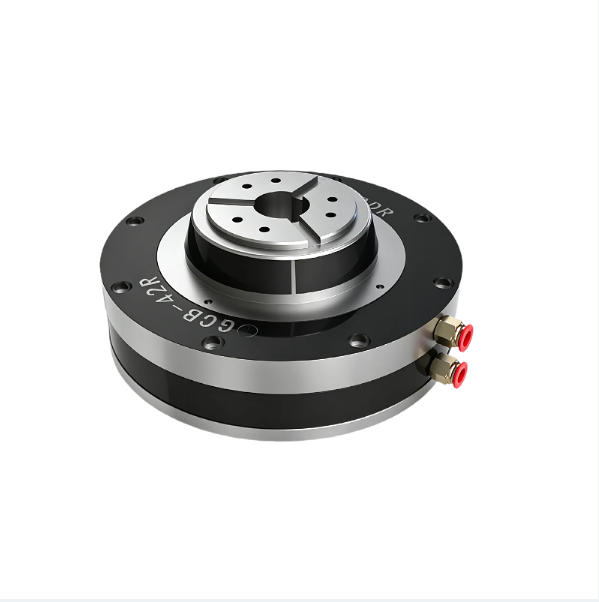

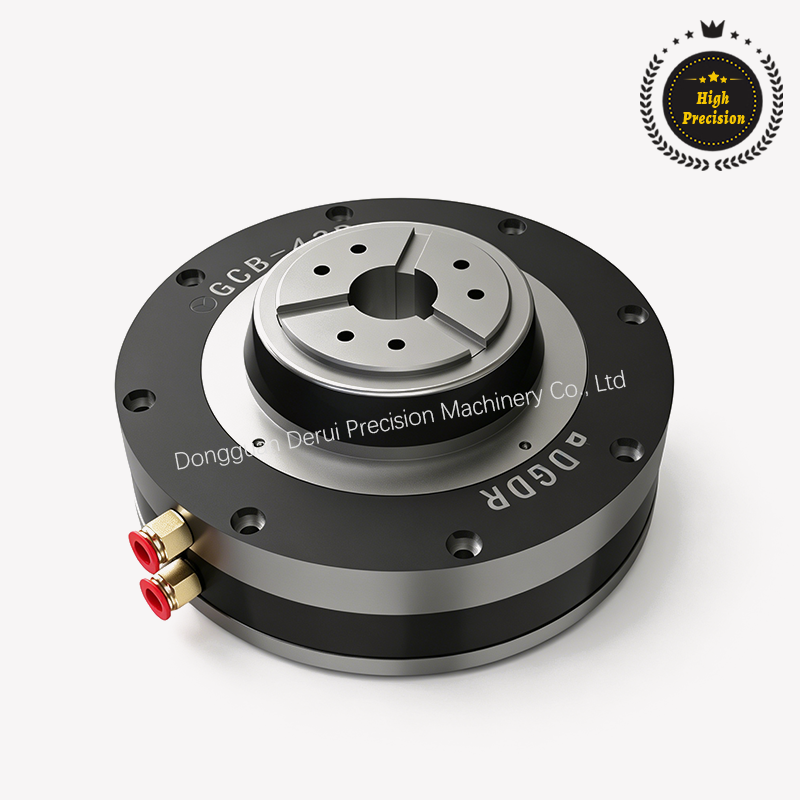

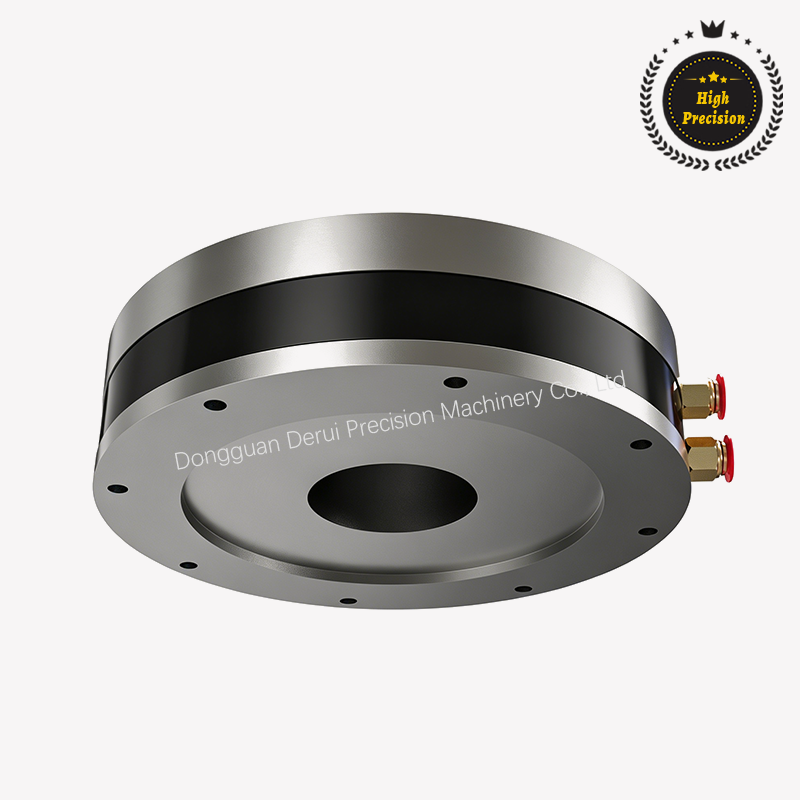

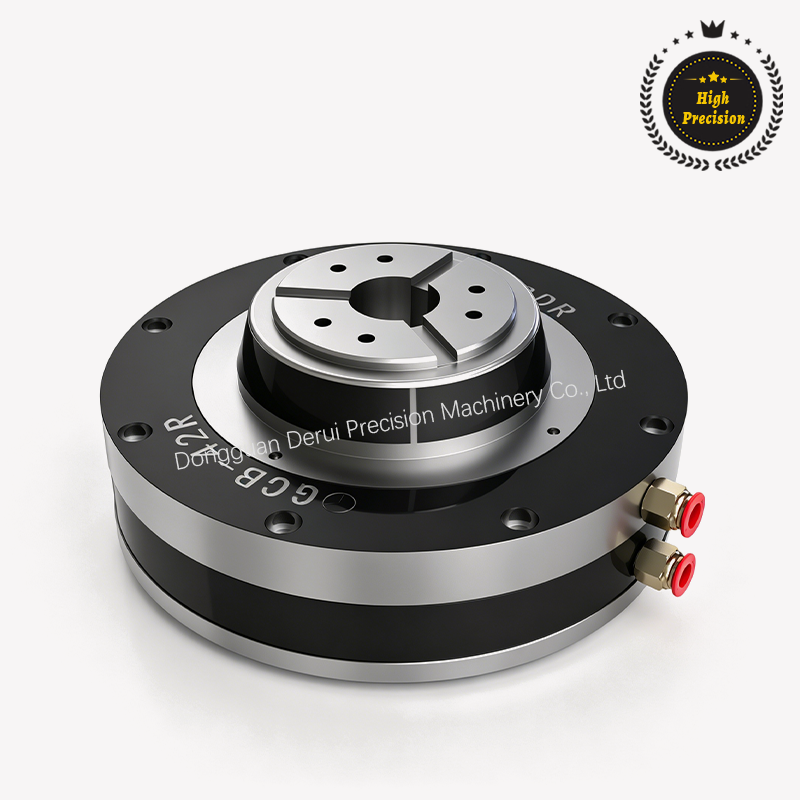

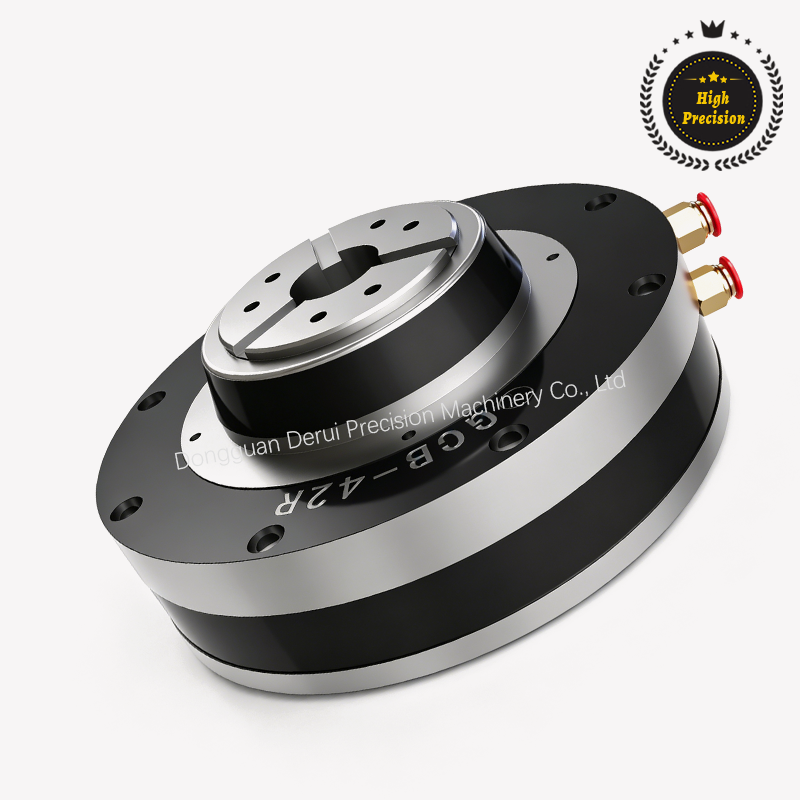

Fixed Pneumatic Chuck
High Precision
$ 1093 USDMotor price not included

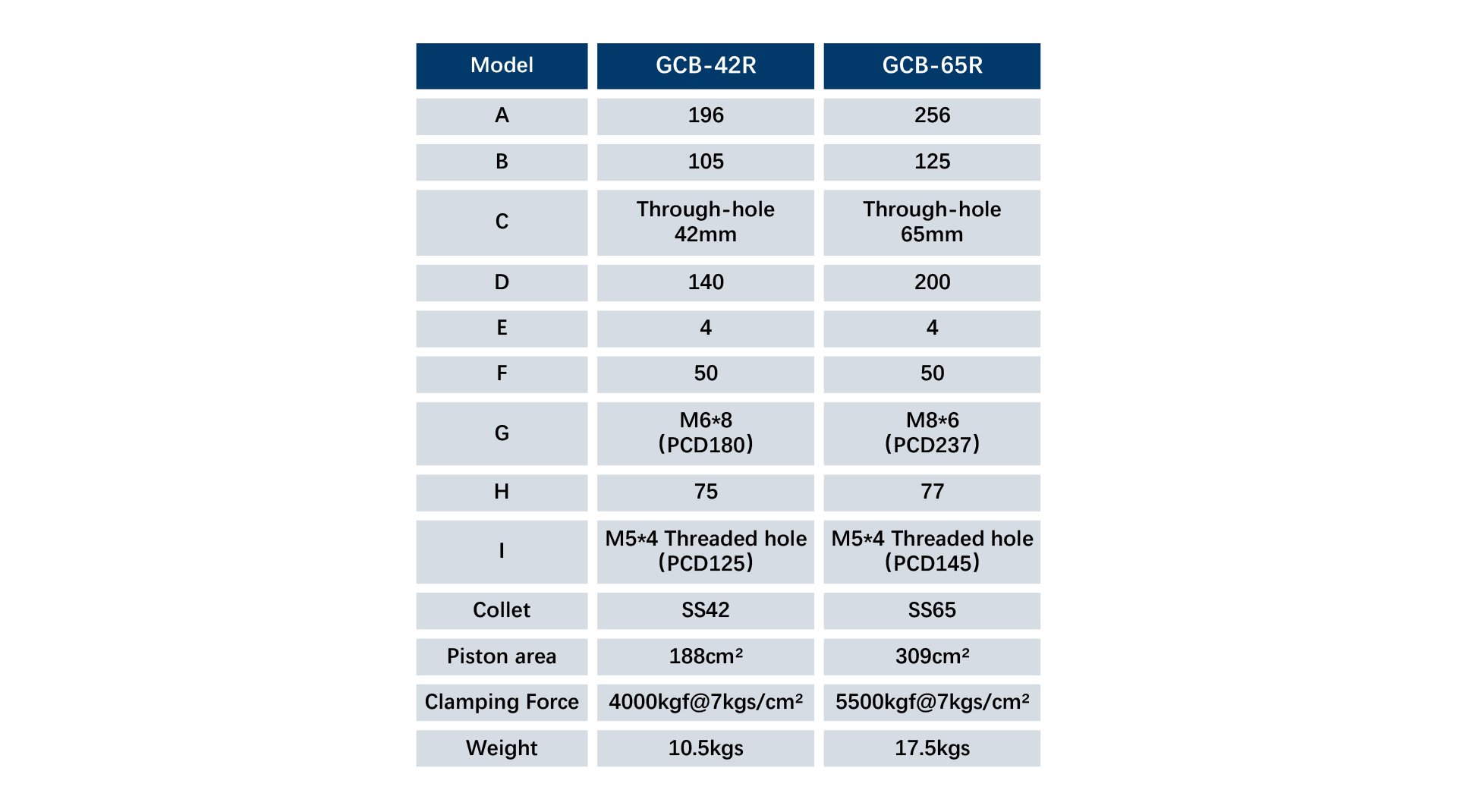

Model
DGDR GCB-42R

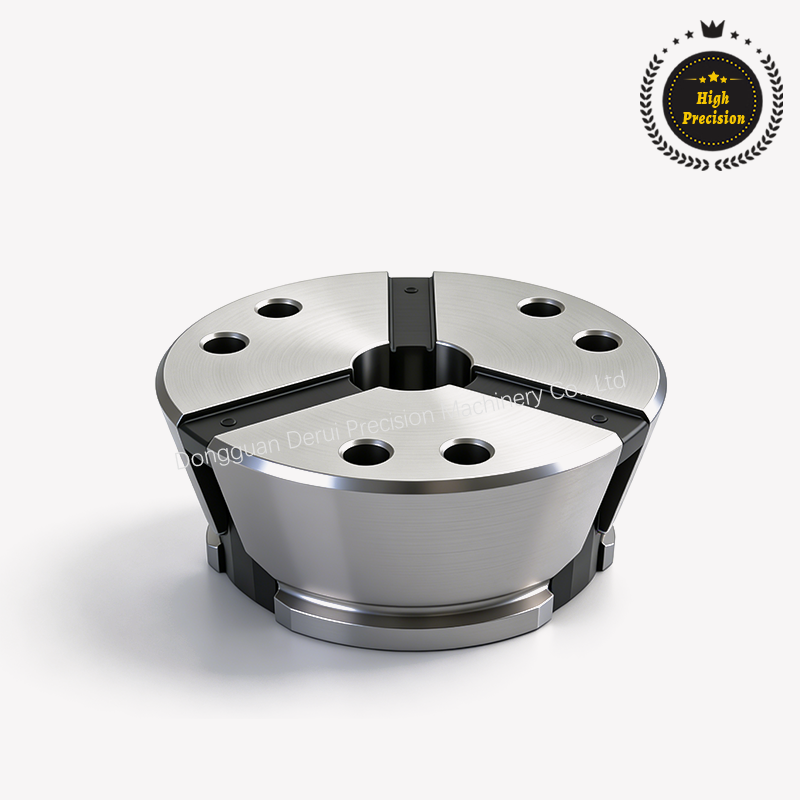

Original German-manufactured rubber collet ensure workpiece clamping without deformation
offering a clamping repeatability of 0.005 mm
Collets are interchangeable to accommodate different workpieces. Operating air pressure 3–7 kg/cm².
Dustproof and waterproof (when pressurized).Suitable for use with a wide range of high-precision
machining equipment including machining centers, 4-axis and 5-axis machines
drilling and tapping units, and other automated systems
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.

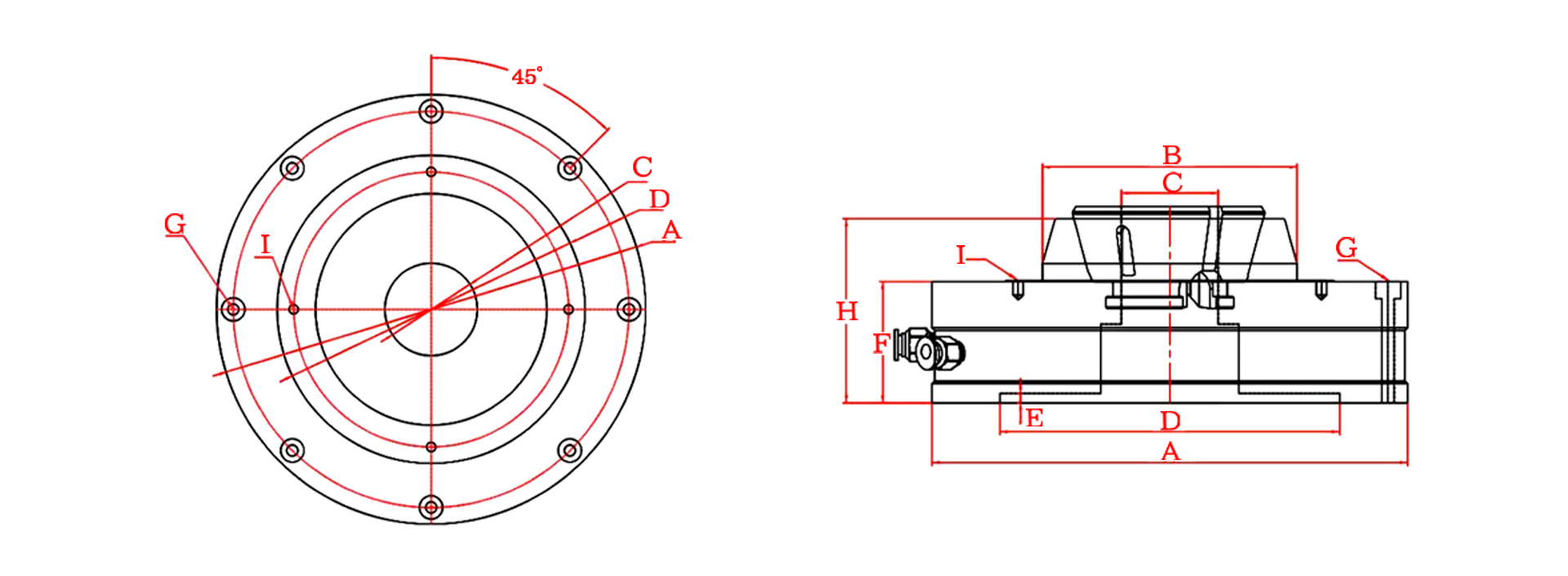

STEP Format
