GEP Series

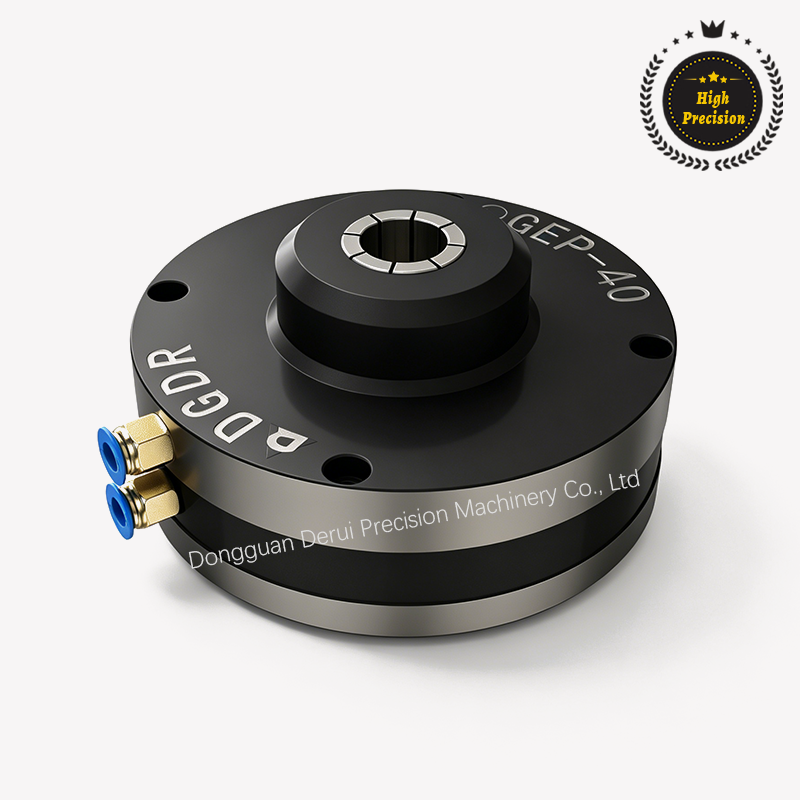

Fixed Collet Chuck (Front-Push Type)
High Precision
$ 445 USDMotor price not included
Model
DGDR GEP-40
Featuring a compact profile paired with an ER collet system, a single worktable can accommodate
multiple pneumatic chuck, thereby enhancing operational efficiency. It offers a clamping
repeatability of 0.015 mm, operates within an air pressure range of 3–8 kg/cm²
and is dust-proof and water-resistant，Suitable for use on various CNC machining centers
drilling and milling machines, and similar equipment
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
