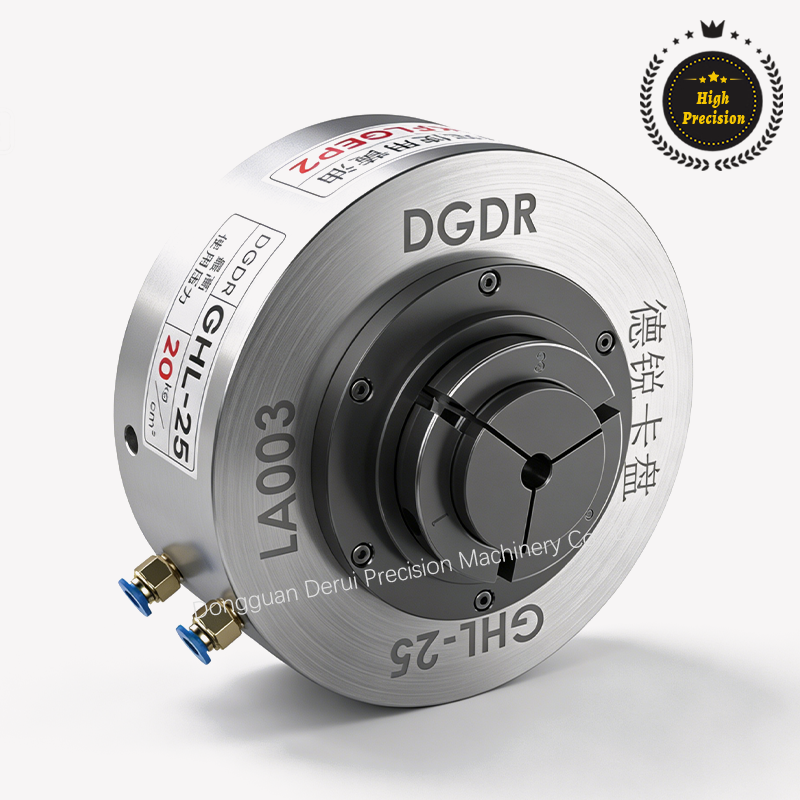

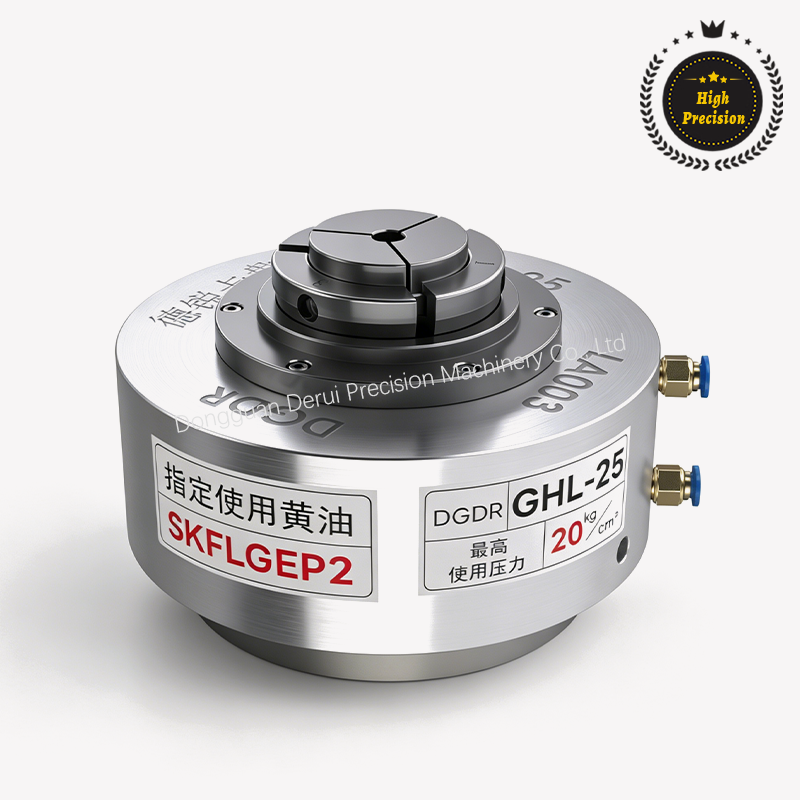

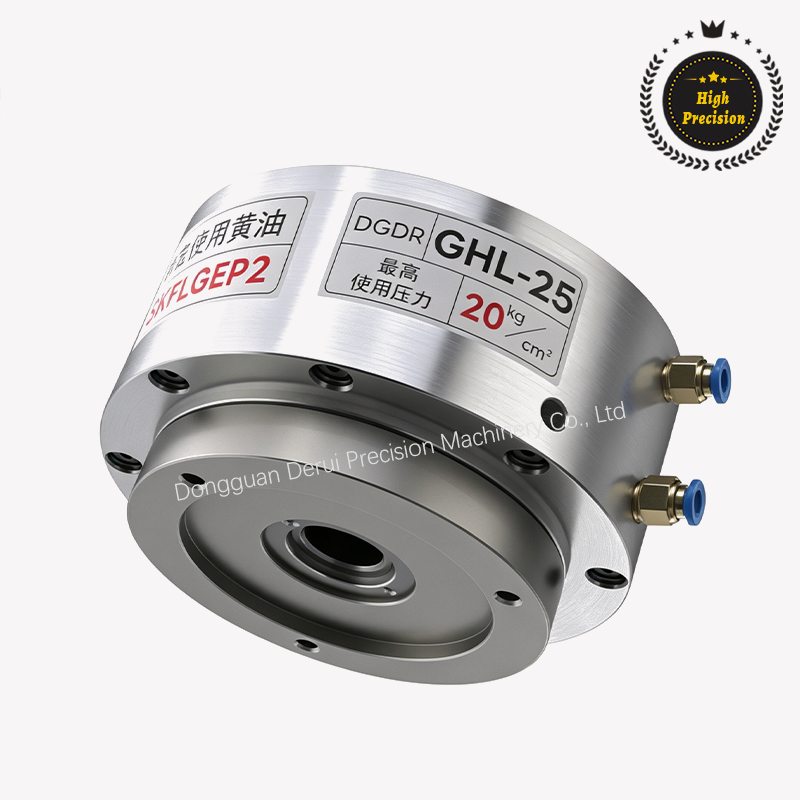

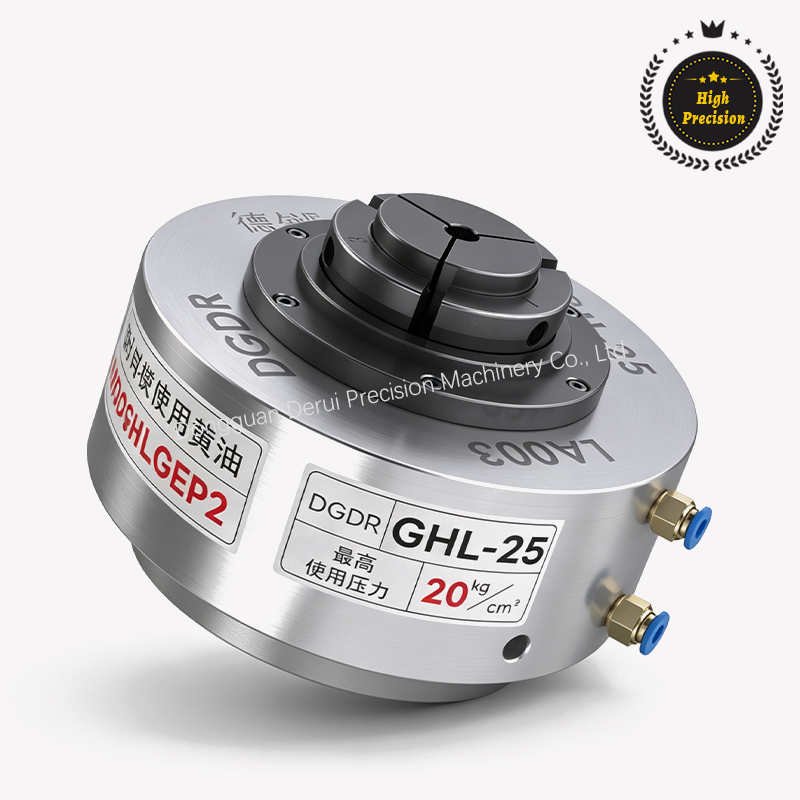

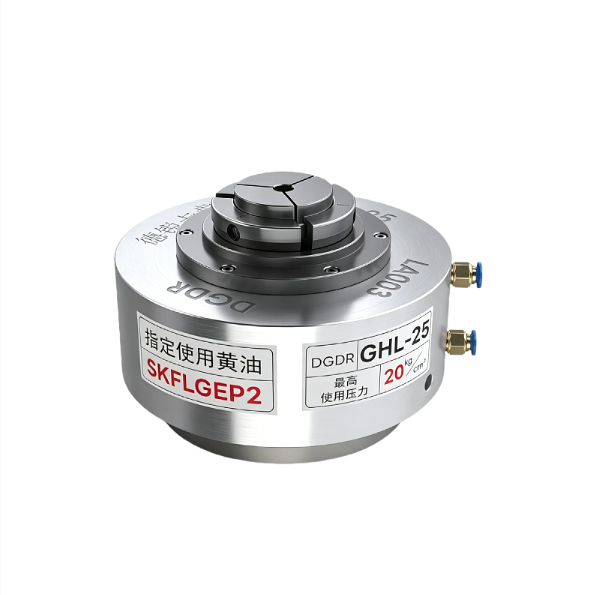

GHL-25
Large-Stroke Hydraulic Rotary Chuck
High Precision
$ 704 USDMotor price not included

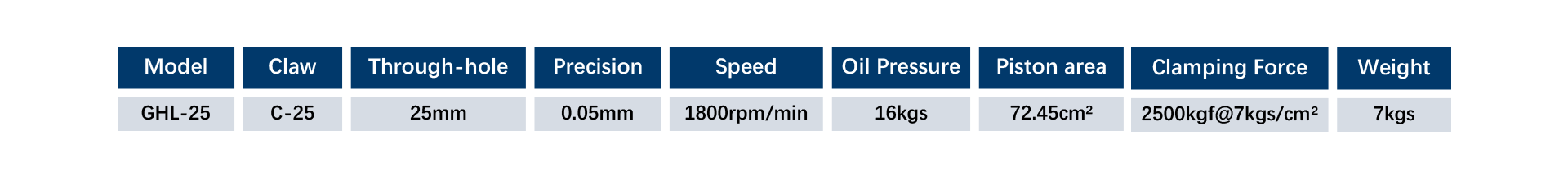

Model
DGDR GHL-25
Features a front-mounted cylinder design requiring no separate installation. Interchangeable soft
jaws allow for the handling of various workpieces with the internal bore size customized suit specific parts.
The jaw opening stroke is 2.5 mm.
This unit is suitable for a wide range of applications, including fully automated processing,
semi-automated processing, retrofitting traditional machine tools and integration into
dedicated machinery; however cutting fluid must not be directed directly at the chuck
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
