GPC Series

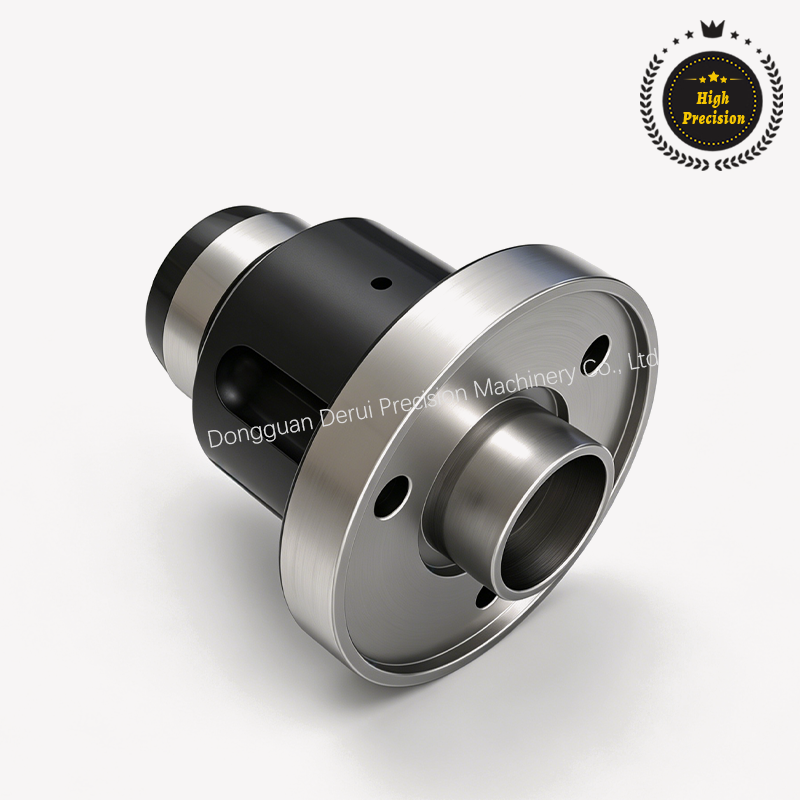

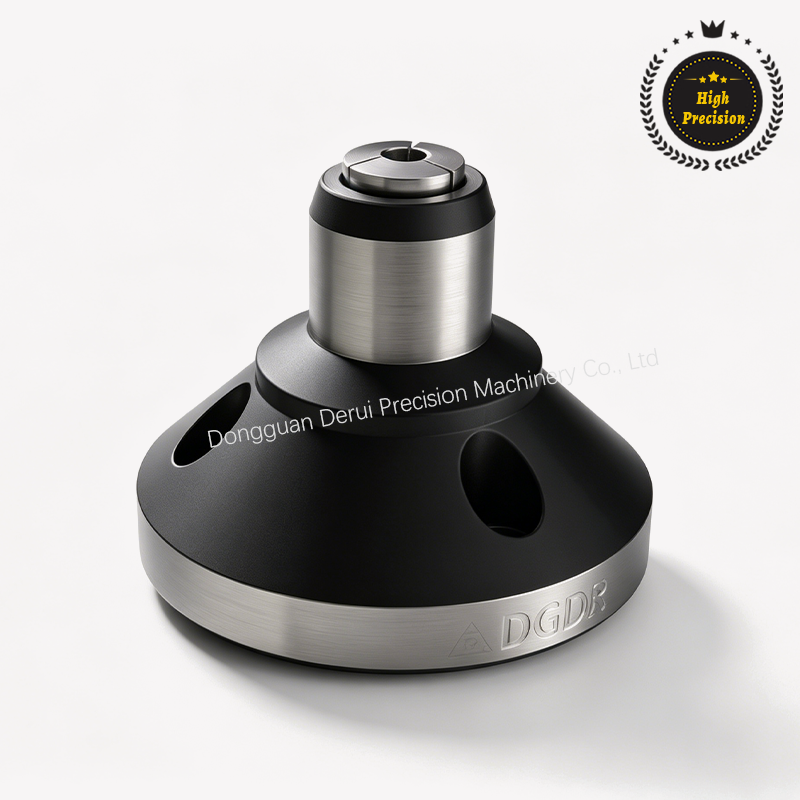

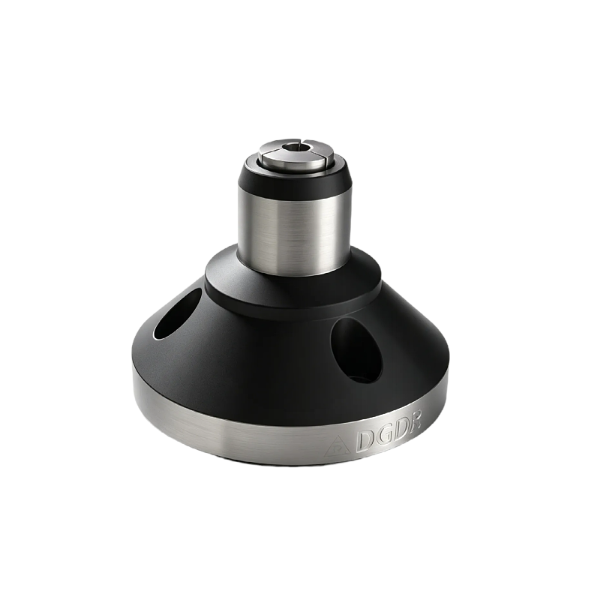

Passive high-precision chuck (pull-back type)
High Precision
$ 426 USDMotor price not included

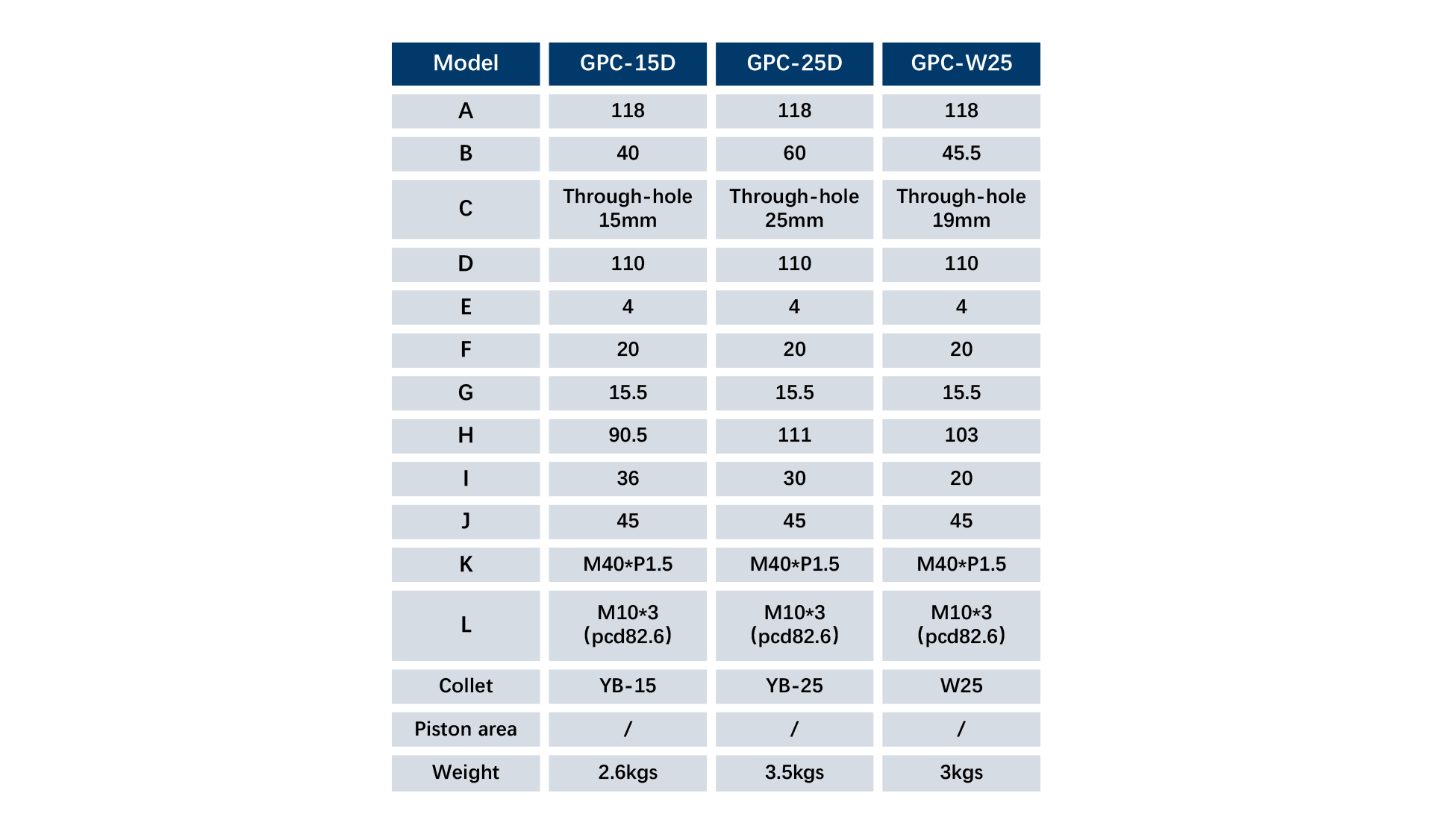

Model

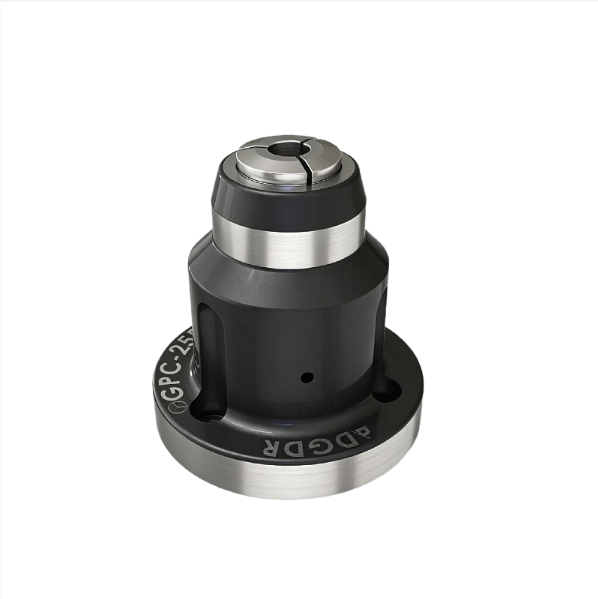

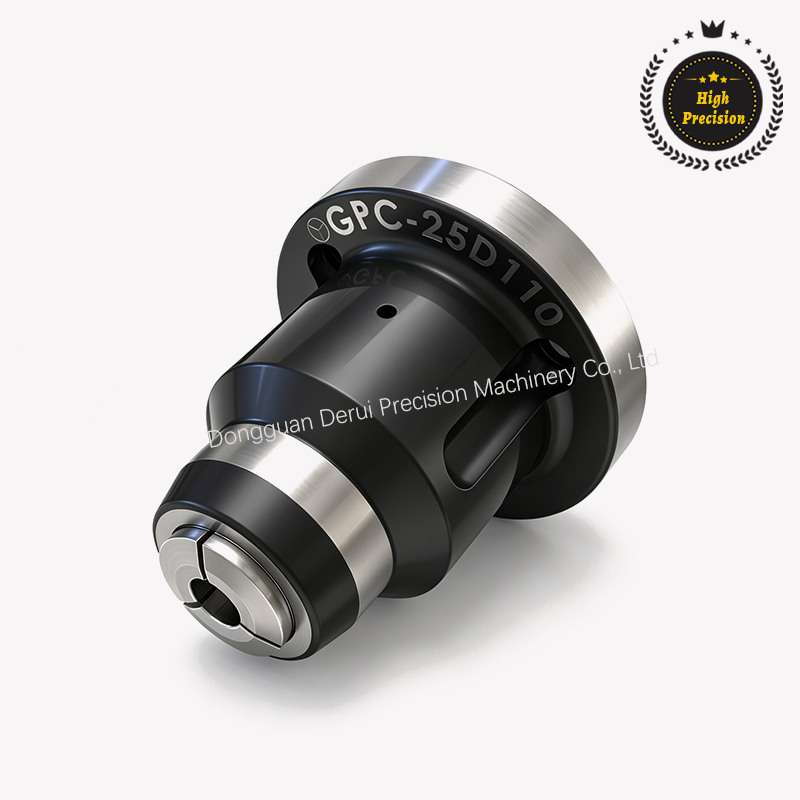

DGDR GPC-25D

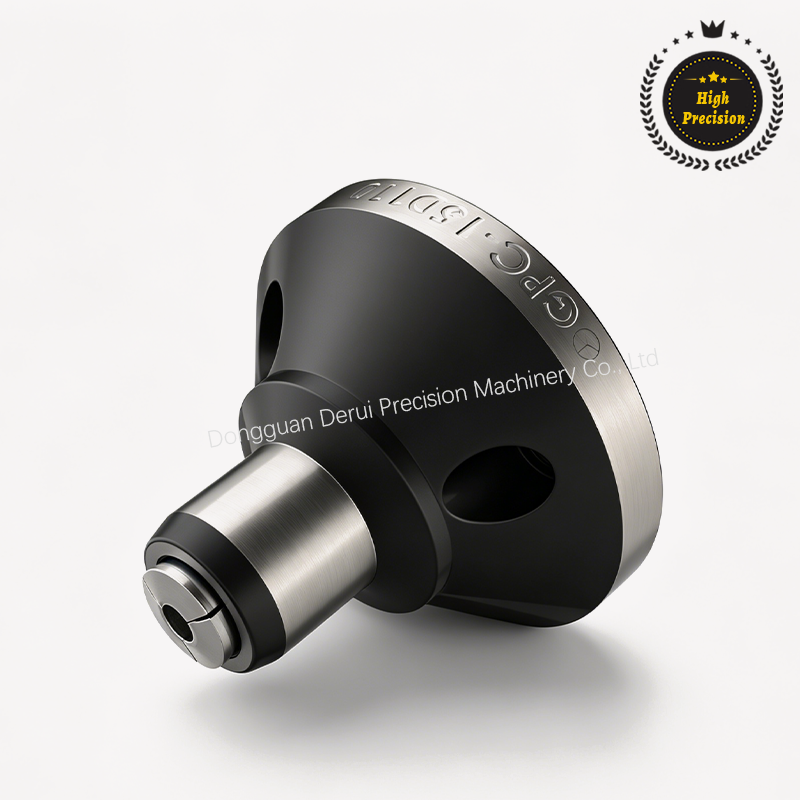

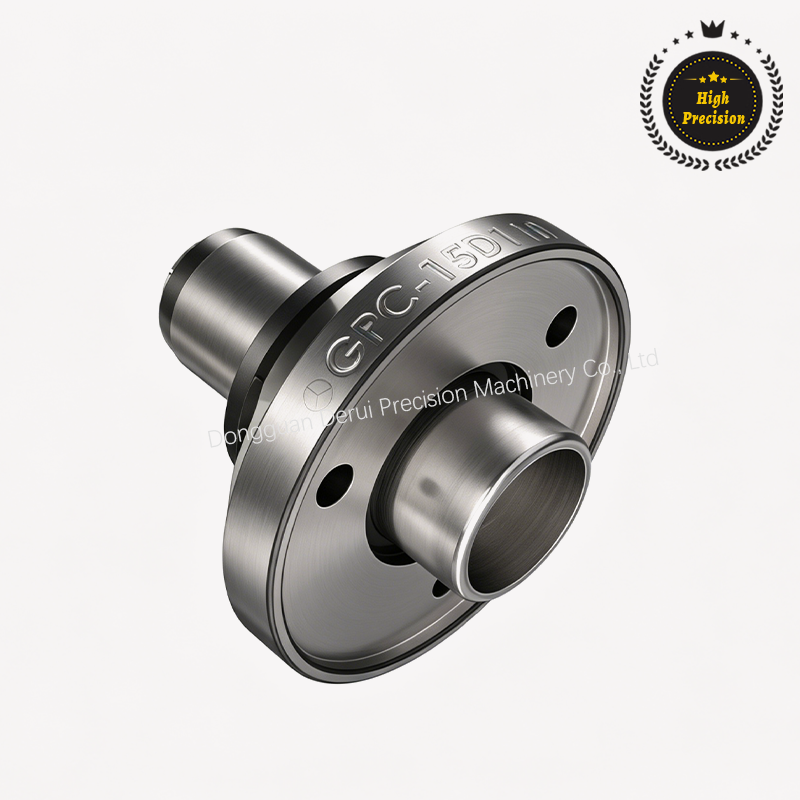

DGDR GPC-15D
Rotation speed 6000 rpm. The bottom is mounted to the front of the spindle via a flange
It can be used with both internal and external collet for different workpieces, with a clamping
repeatability of 0.015mm. The flange and adapter nut are custom-made according to the spindle nose size
The drive system can be hydraulic or pneumatic with pneumatic pressure ranging from 3-8 kgs
It is suitable for machining on various CNC lathes
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
