GXD Series

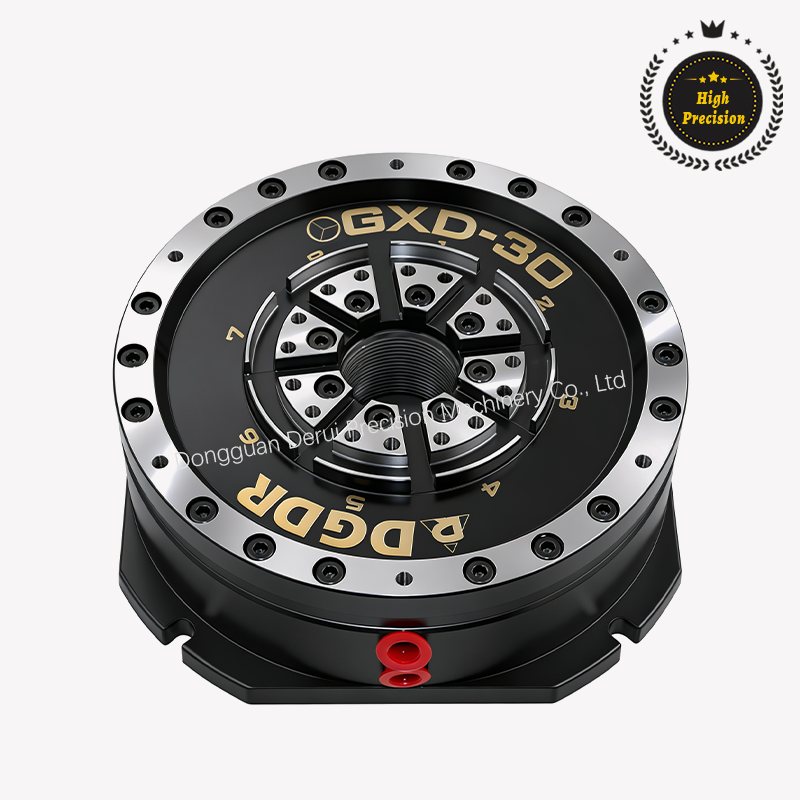

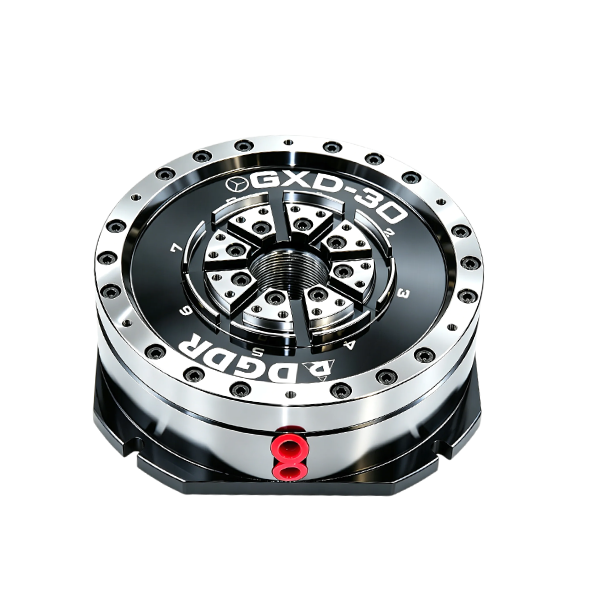

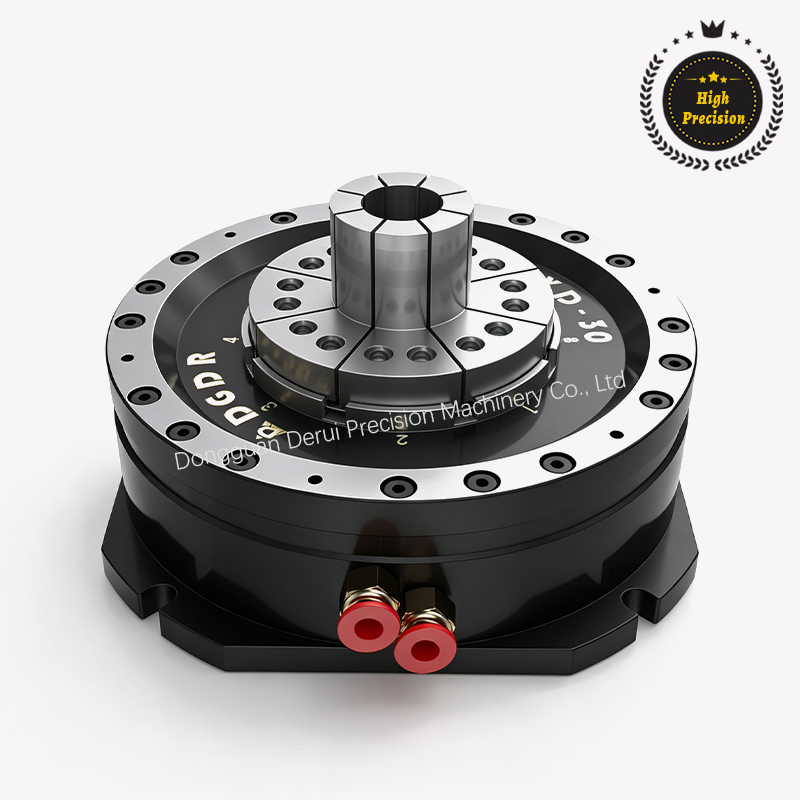

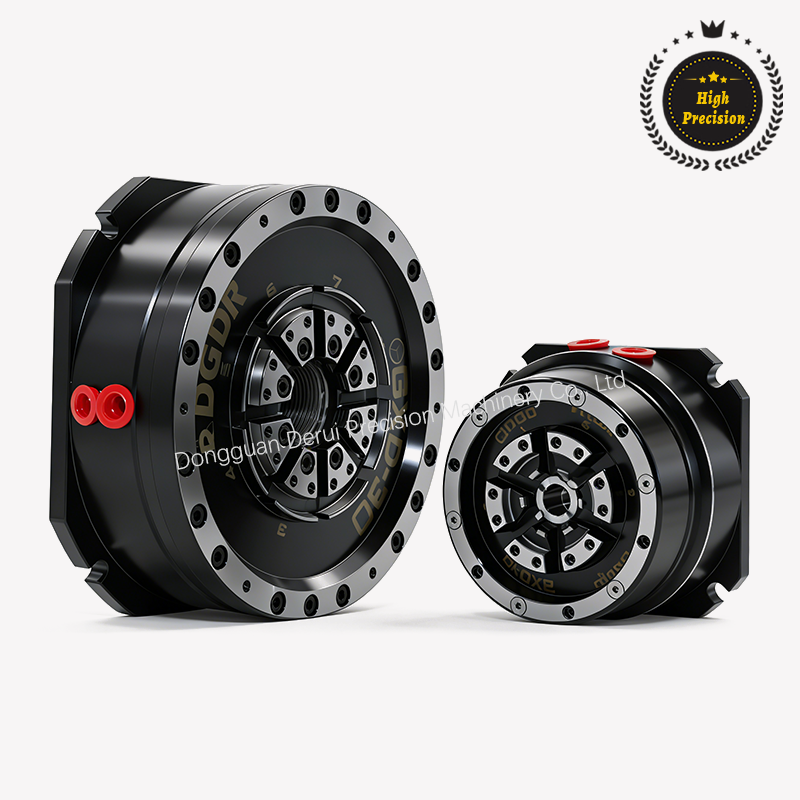

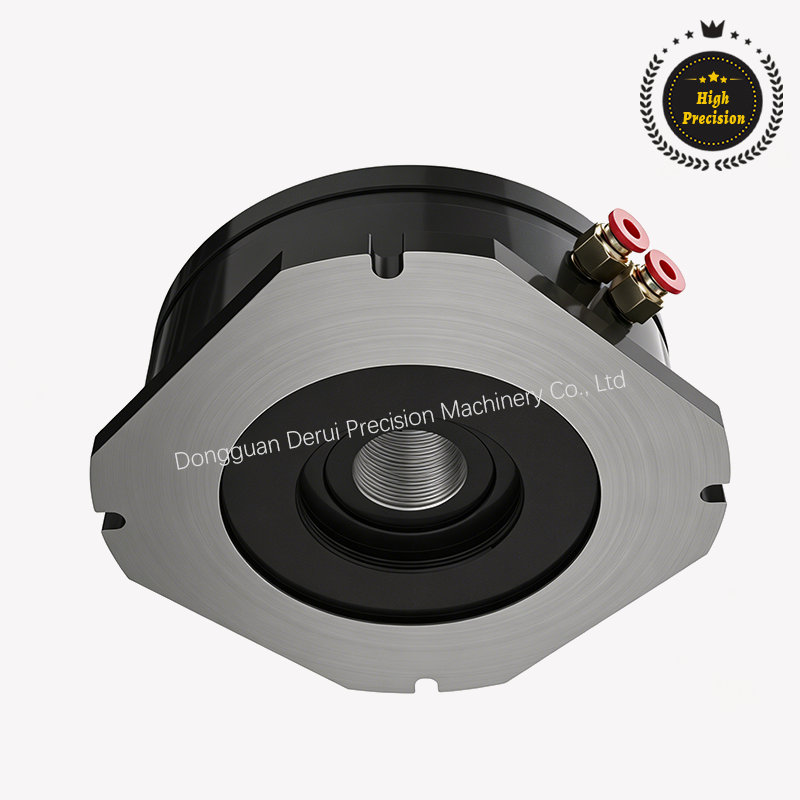

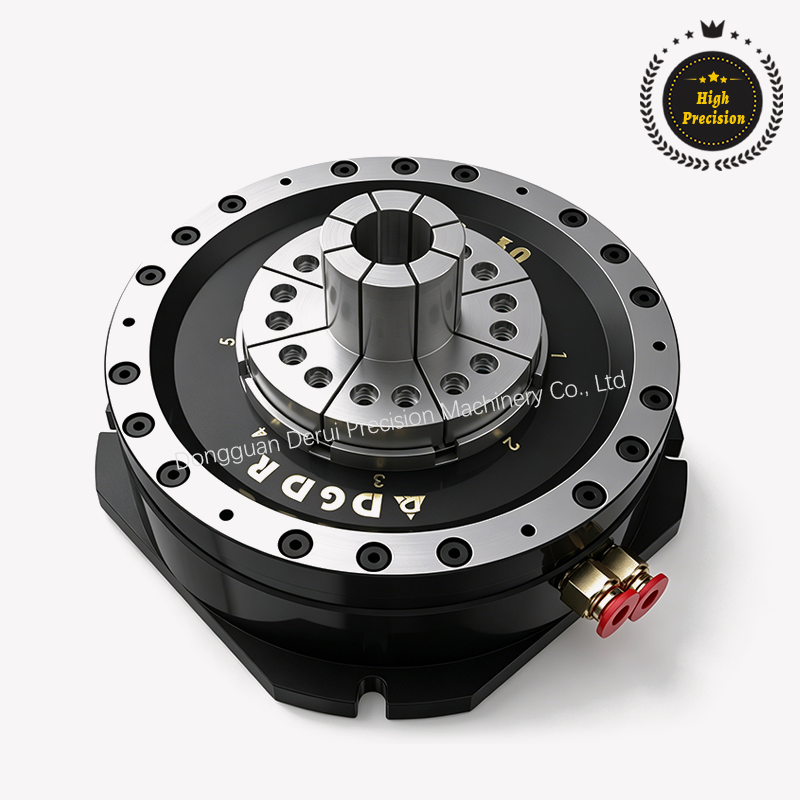

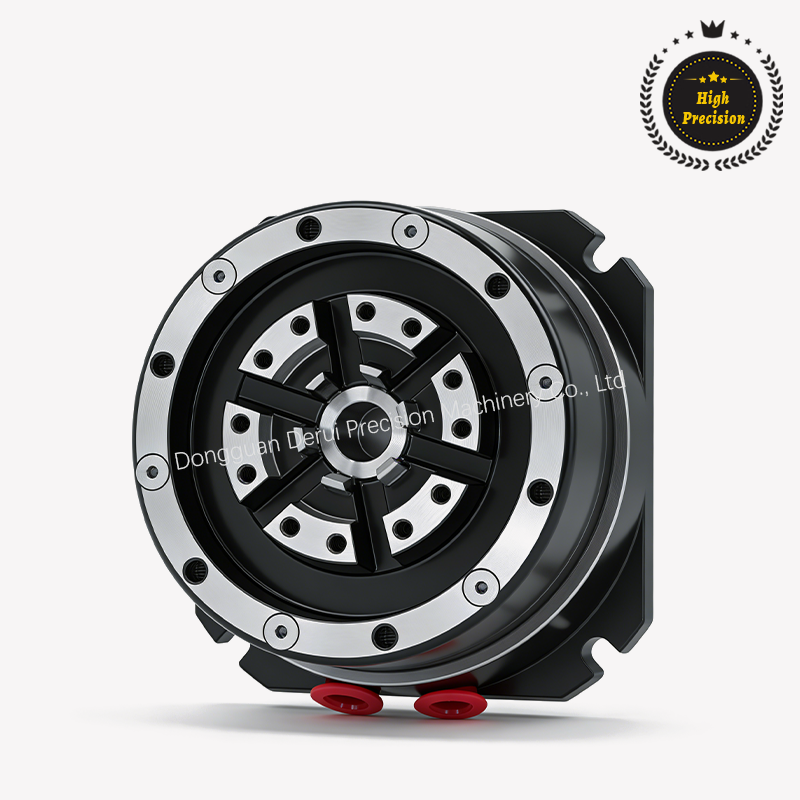

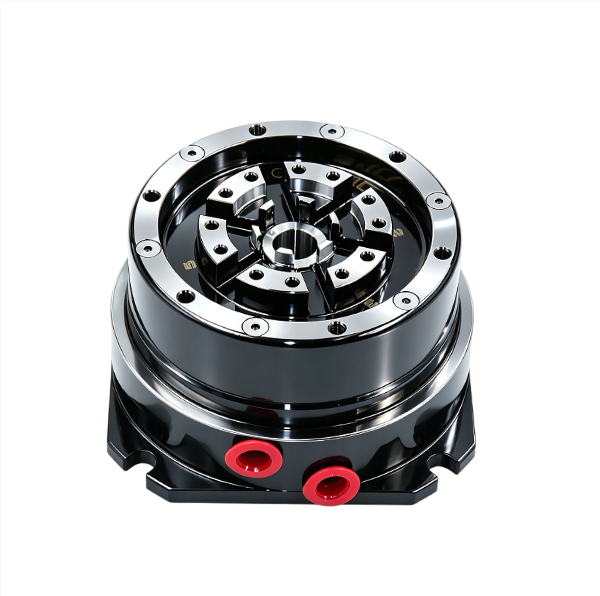

Diaphragm Pneumatic Chuck (Fixed Type)
High Precision
$ 723 USDMotor price not included

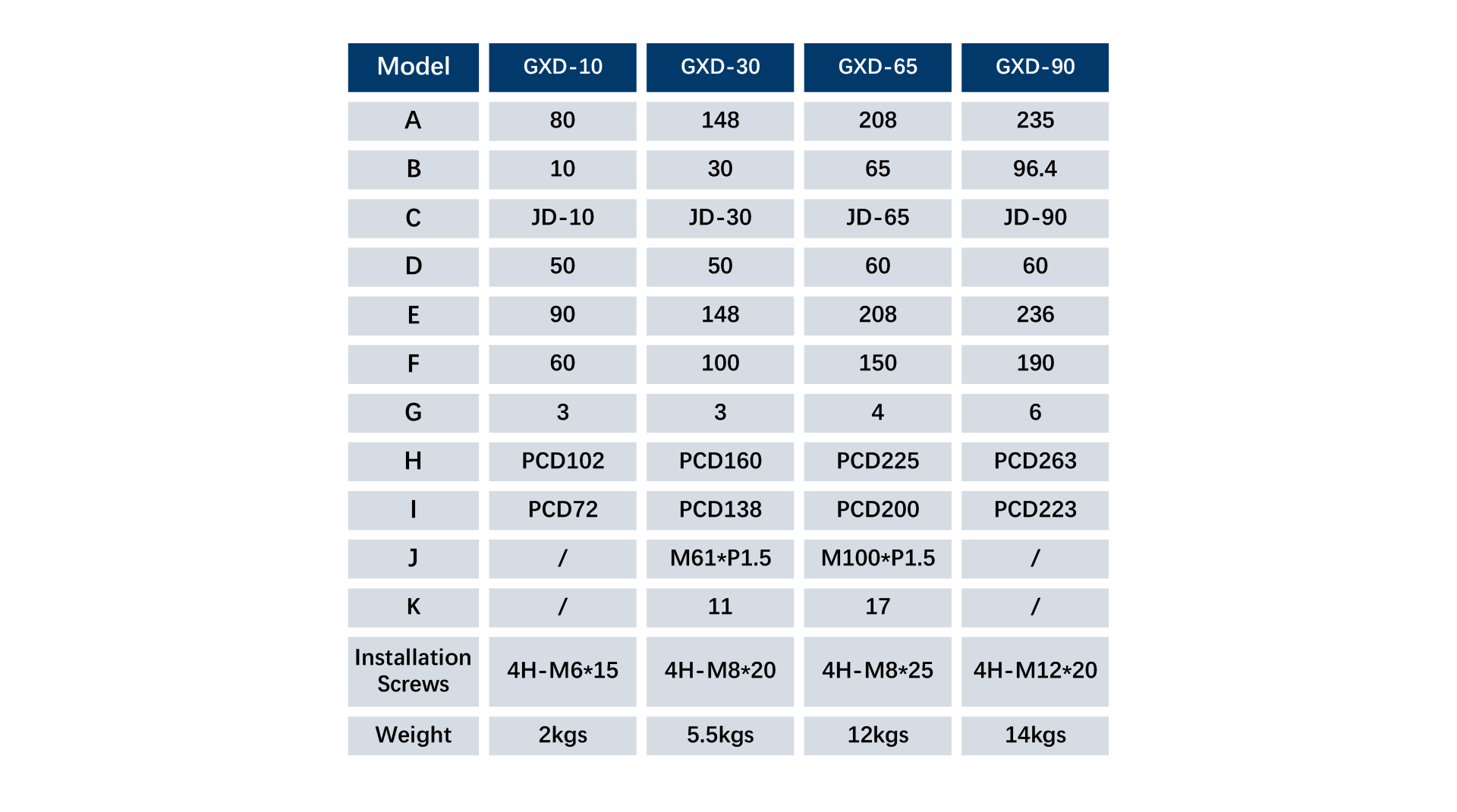

Model
DGDR GXD-30
DGDR GXD-10
This rotary cylinder requires no installation, offers a clamping repeatability of 0.005mm,
operates at an air pressure of 3-8 kgs/cm, and has an opening stroke of 0.2-0.3mm.
Custom-made grippers are available for irregularly shaped workpieces.
It features low clamping force prevents workpiece deformation, and allows for custom-made
grippers for use in CNC machining centers, assembly of fitted parts automated feeding in
scroll machining, and more It is suitable for precision machining of thin-walled workpieces
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
