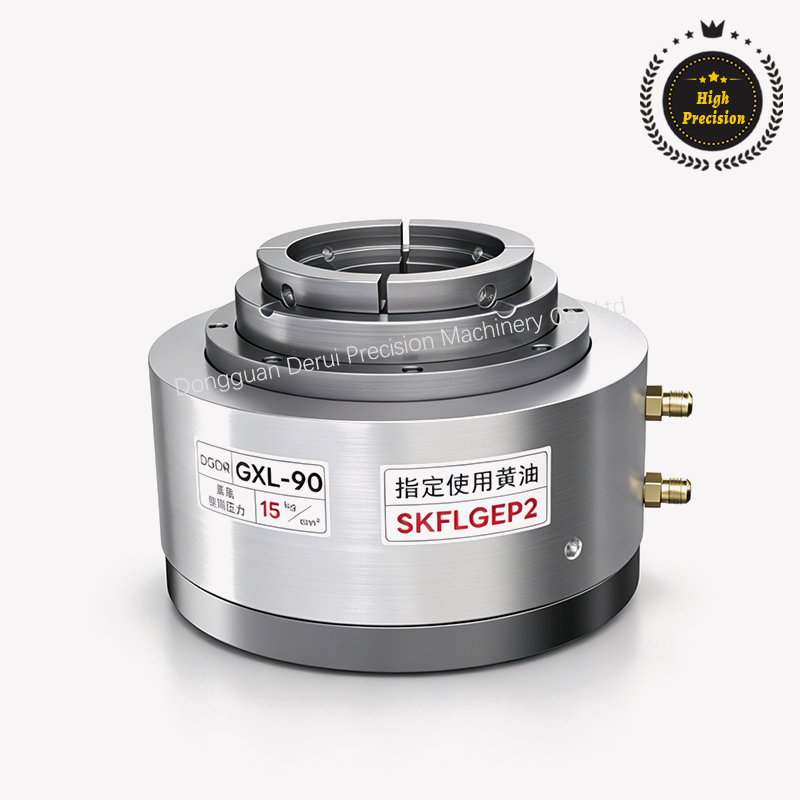

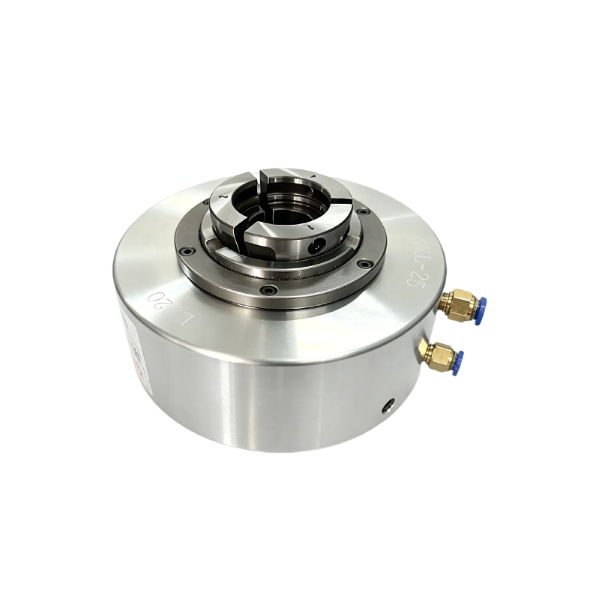

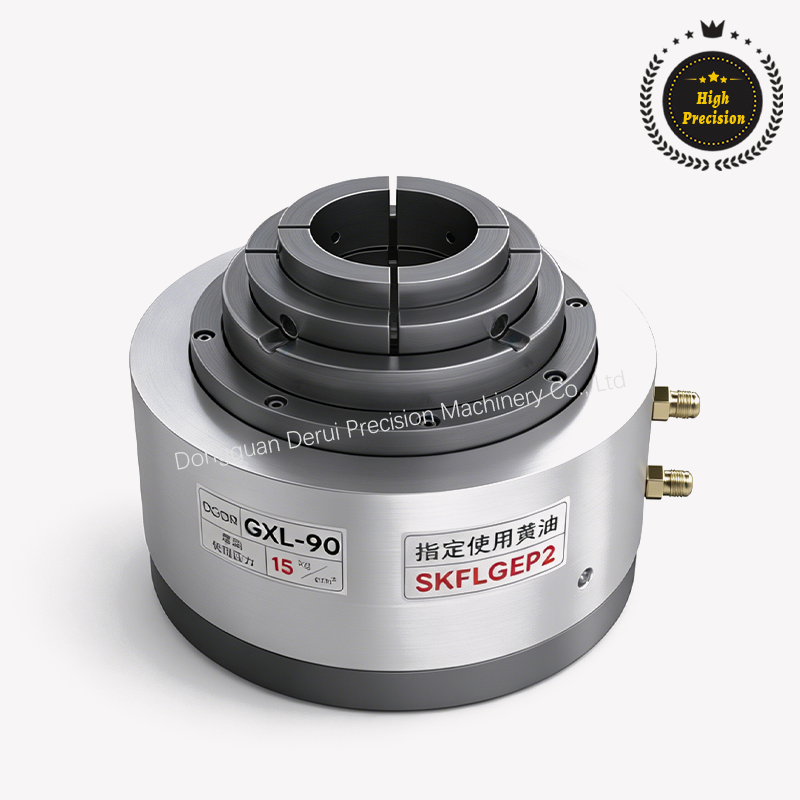

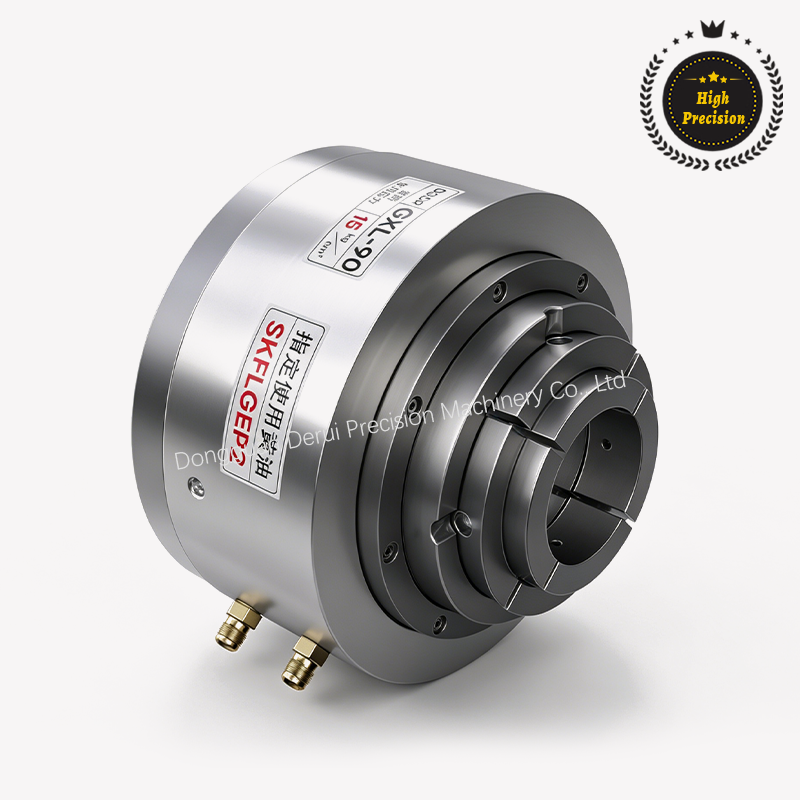

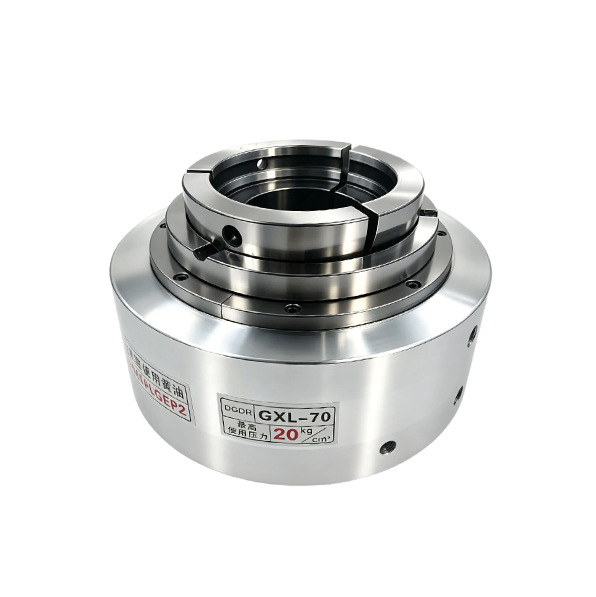

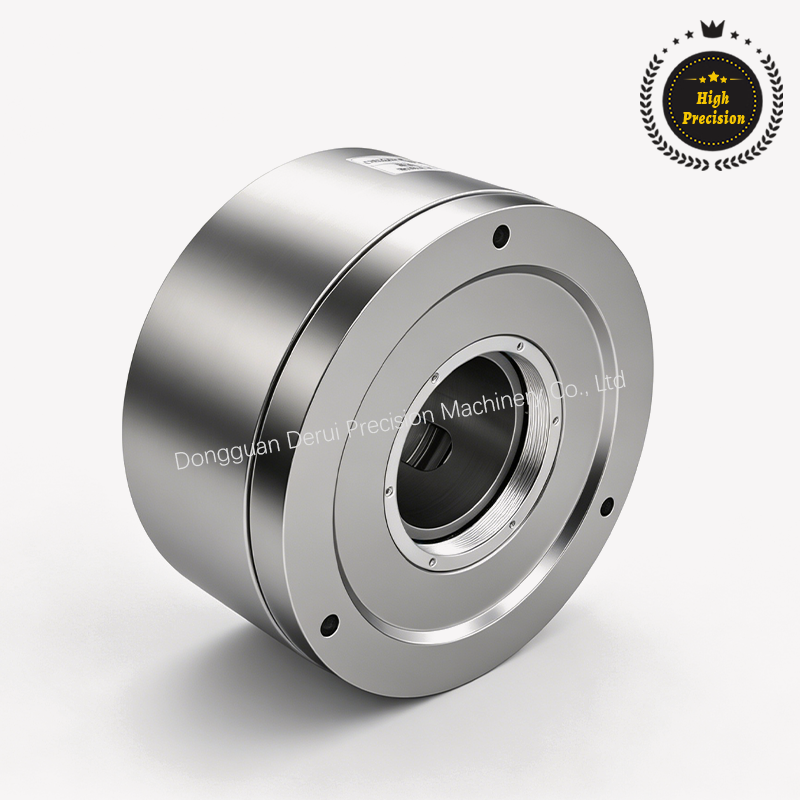

GXL Series
Large-Stroke Pneumatic Chuck
High Precision
$ 704 USDMotor price not included

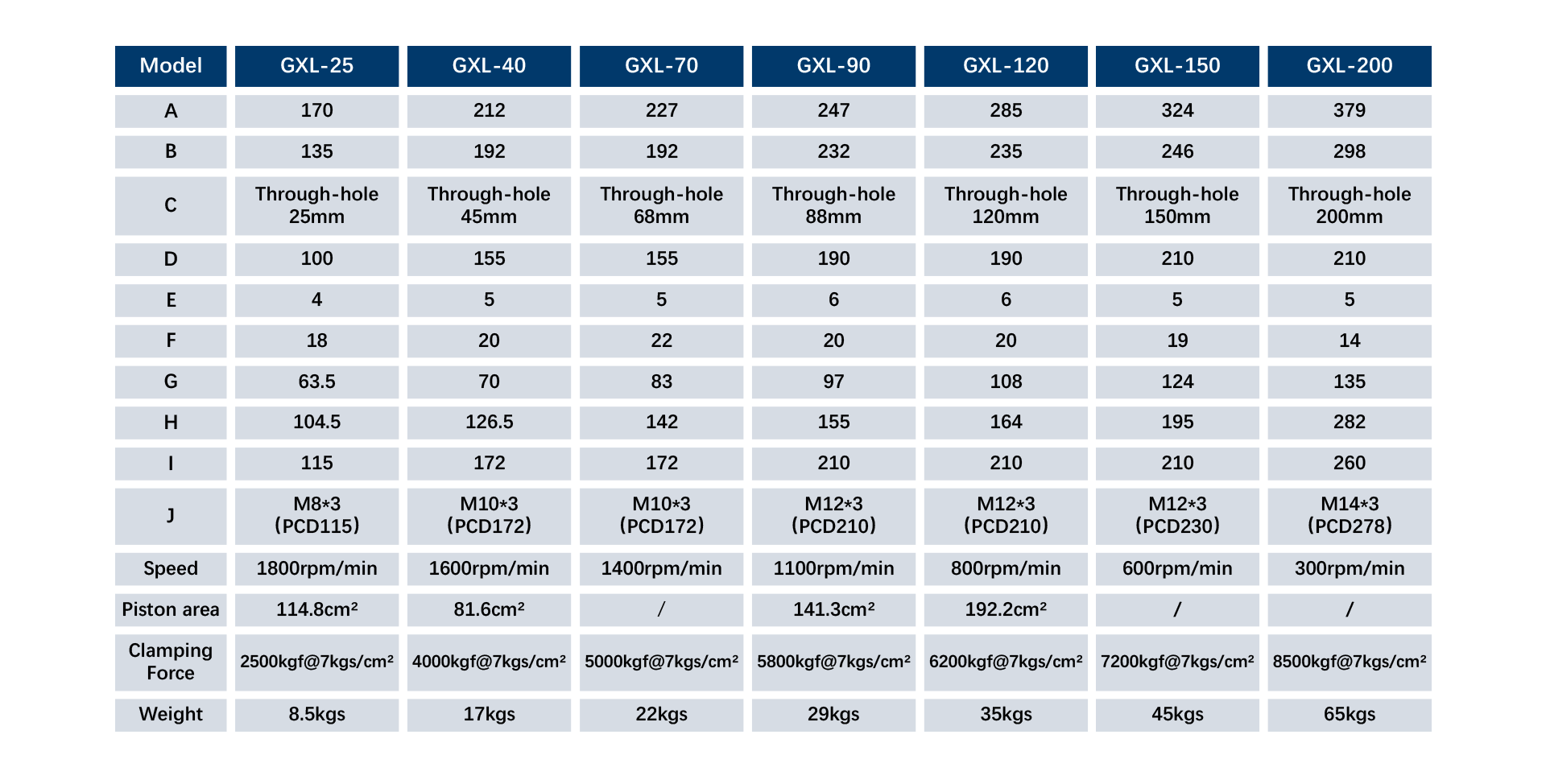

Model

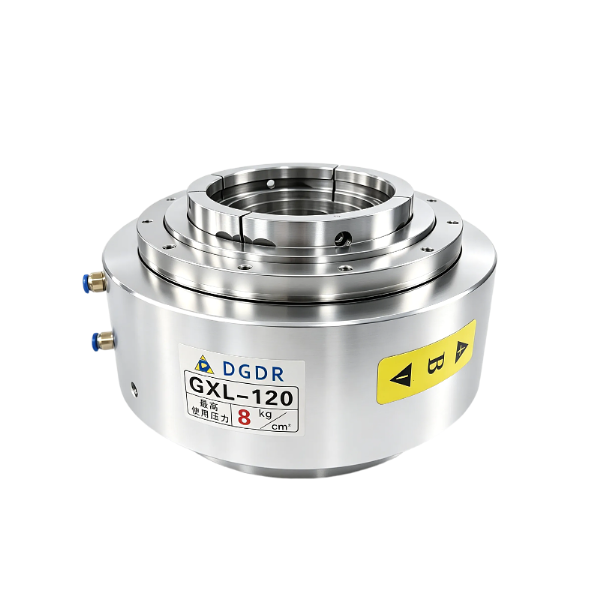

DGDR GXL-120
DGDR GXL-70

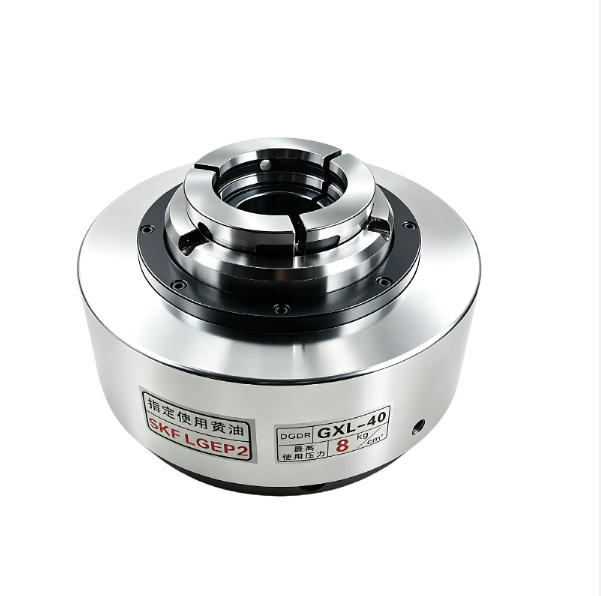

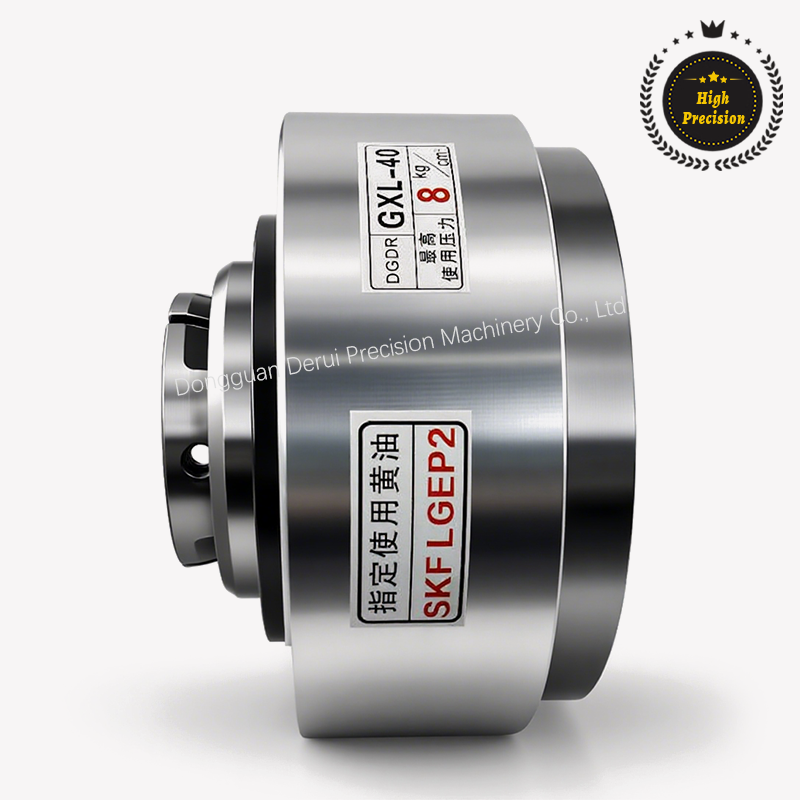

DGDR GXL-40
DGDR GXL-25
No additional cylinders required
Working air pressure 3-8 kgs
Quick Change of Auxiliary Jaws
Supports rear feeding without jamming
Clamping repeatability within 0.05 mm
lathes for automation or semi-automation
In-stock: 200mm through-hole; customization available
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
