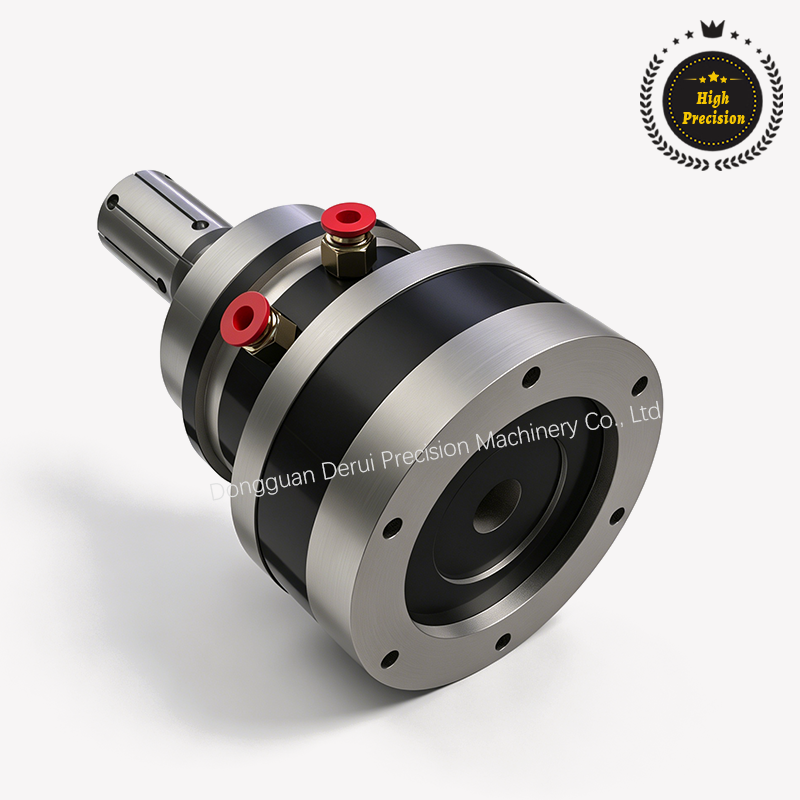

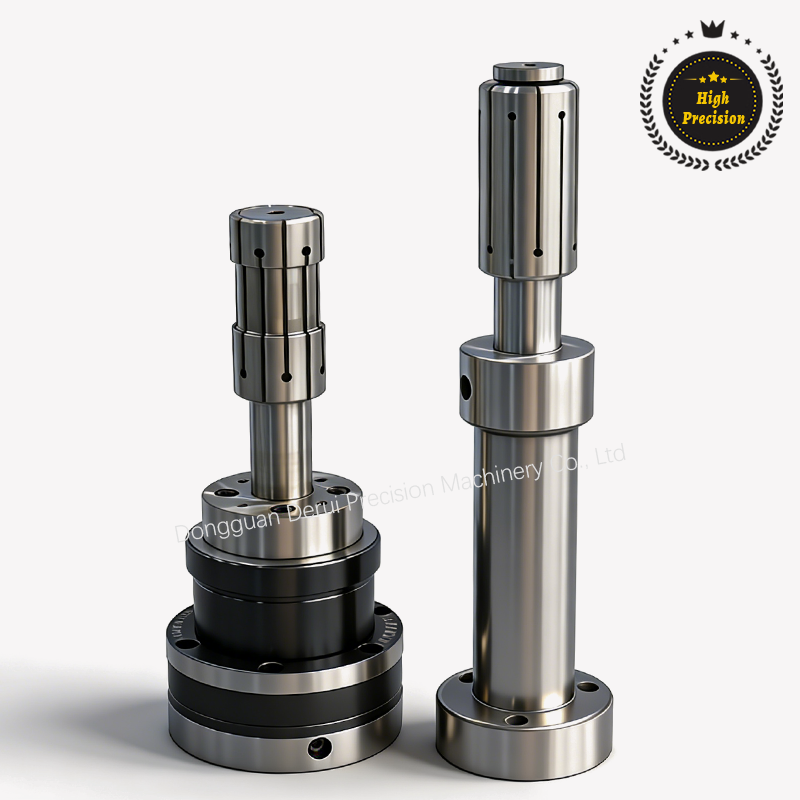

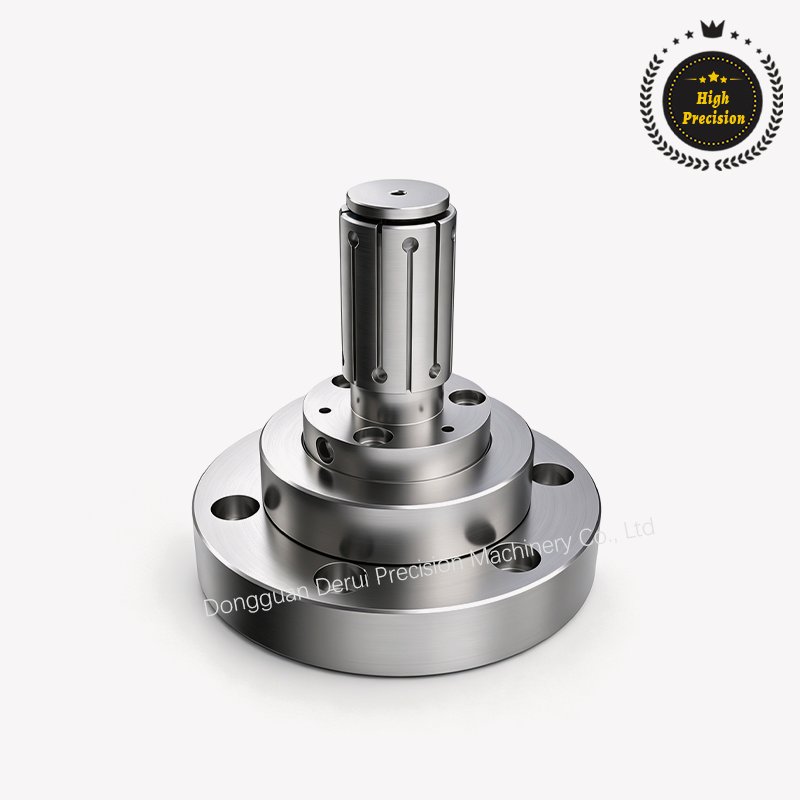

JAC-E Series

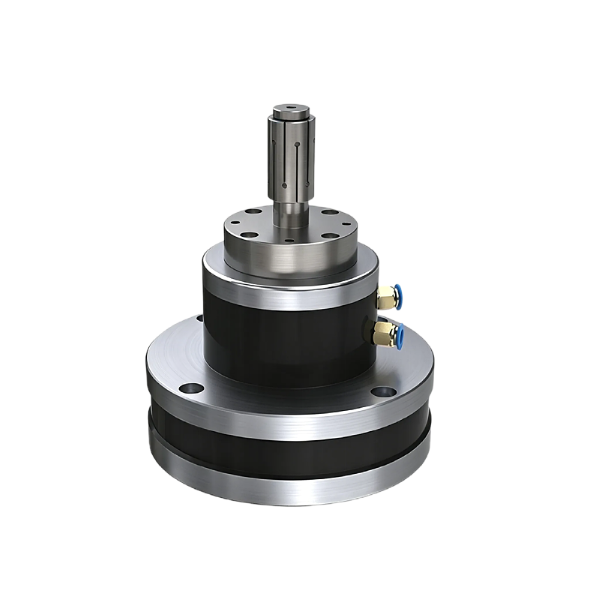

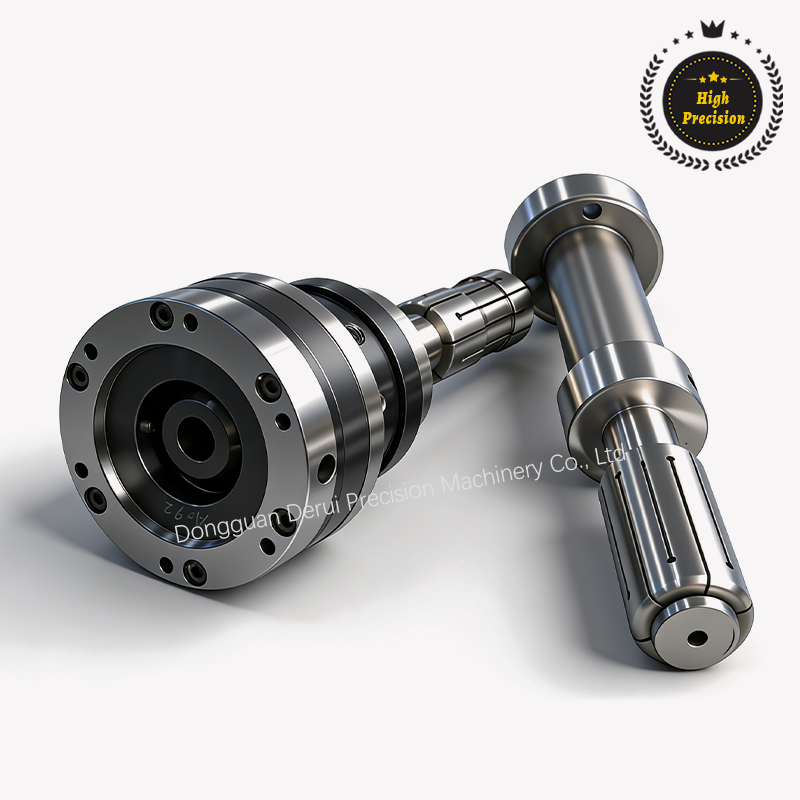

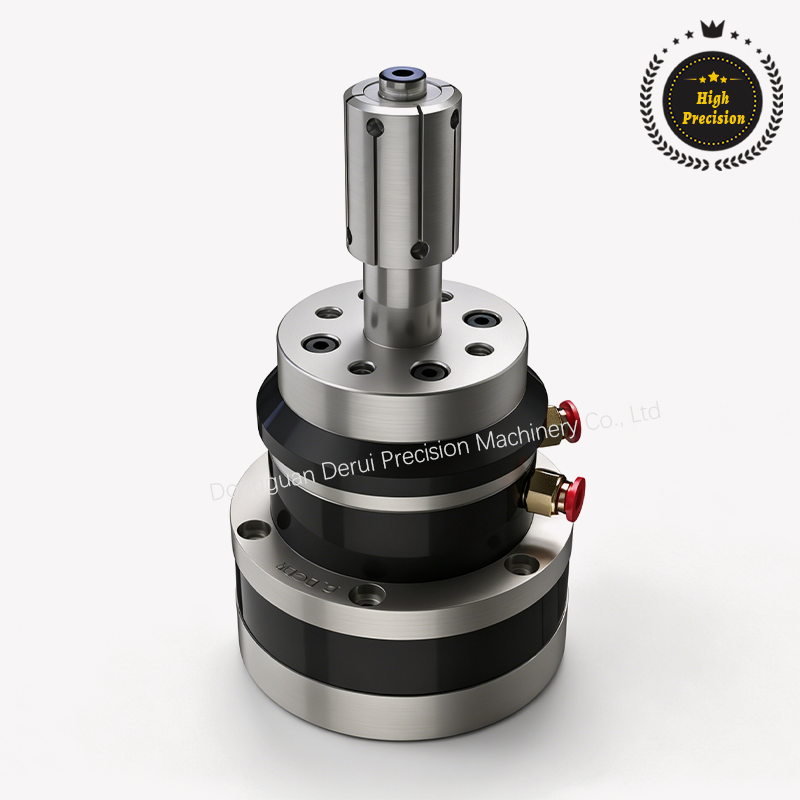

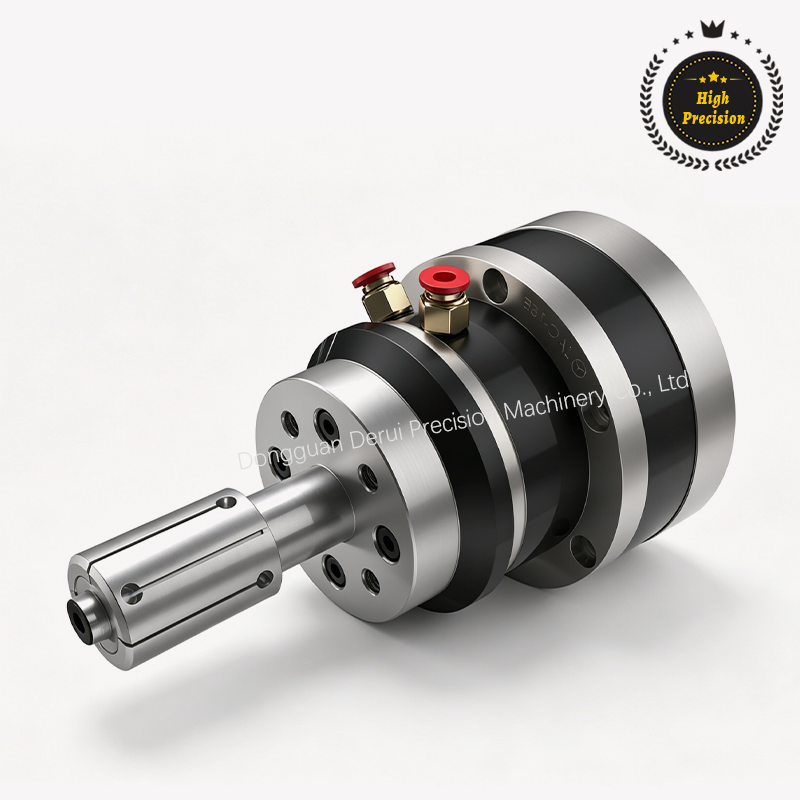

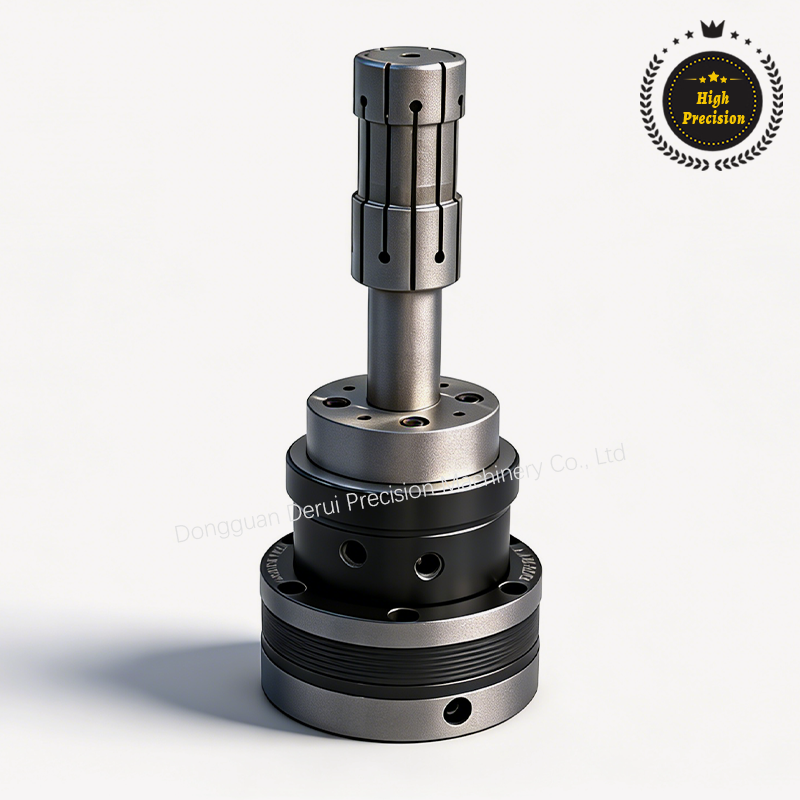

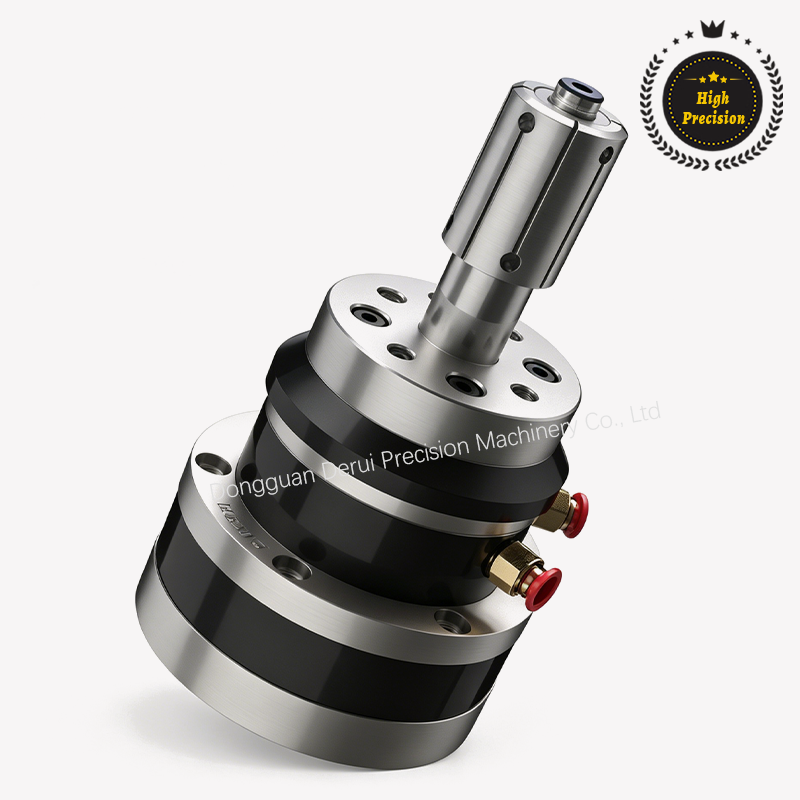

Pneumatic Internal Expansion Chuck
High Precision
$ 579 USDMotor price not included

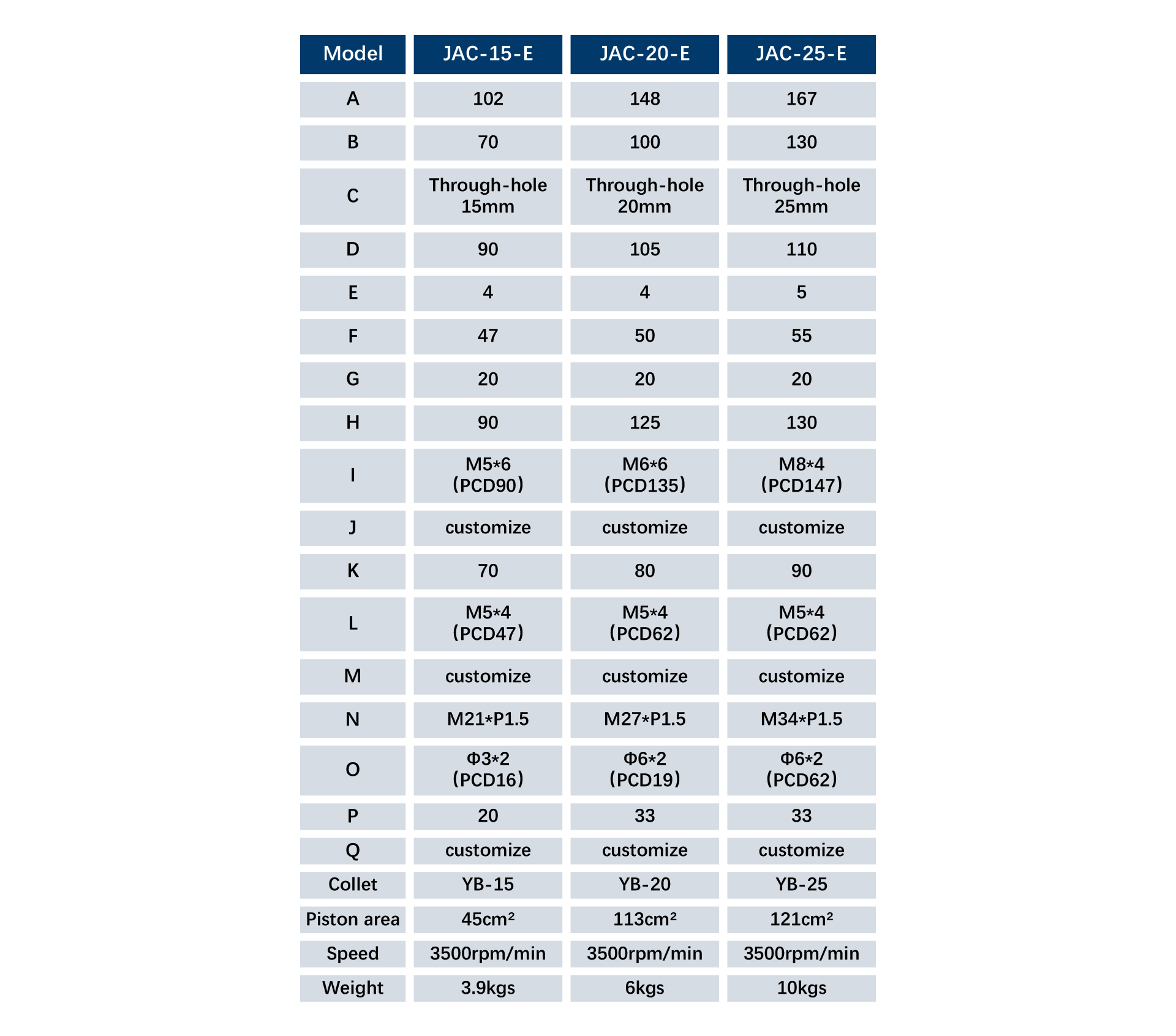

Model
DGDR JAC-25-E
DGDR JAC-15-E

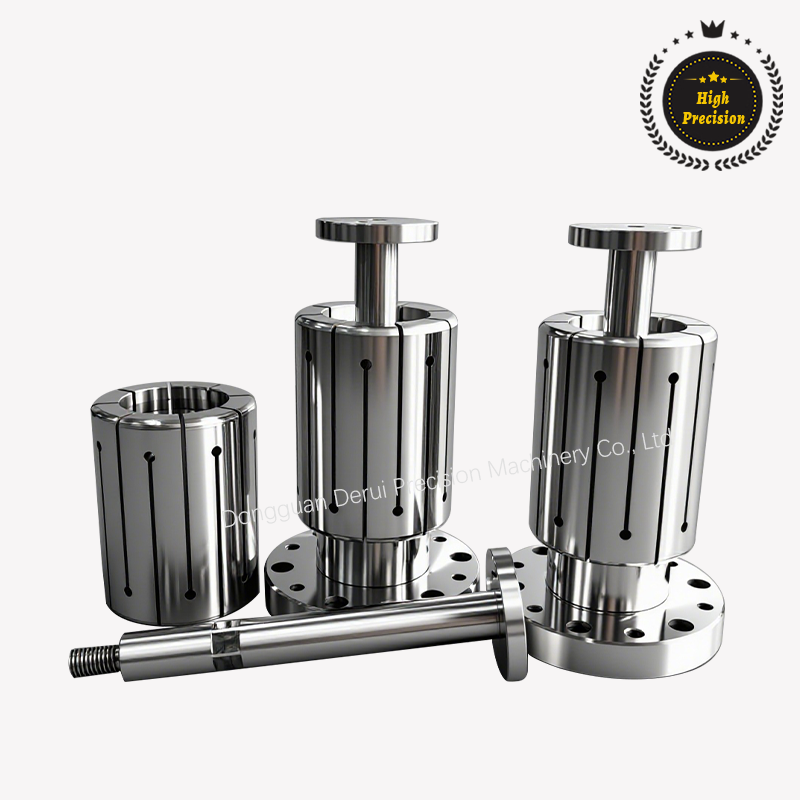

Installation-Free Rotary Cylinder: Interchangeable Internal Grippers/Collets for Various Workpieces,
Clamping Repeatability: 0.015 mm; Internal Expansion Range: 6–120 mm
(Custom sizes up to 500 mm available) Dustproof and Waterproof (when pressurized);
Air Pressure: 3–8 kg/cm², Customization available for round, square, irregular, and spline-profile bores.
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
