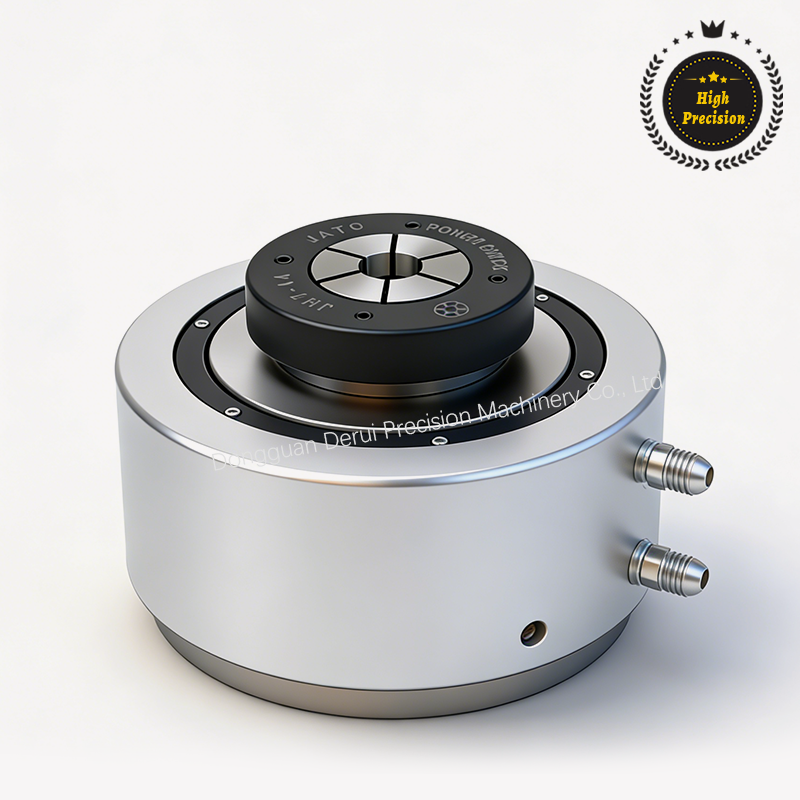

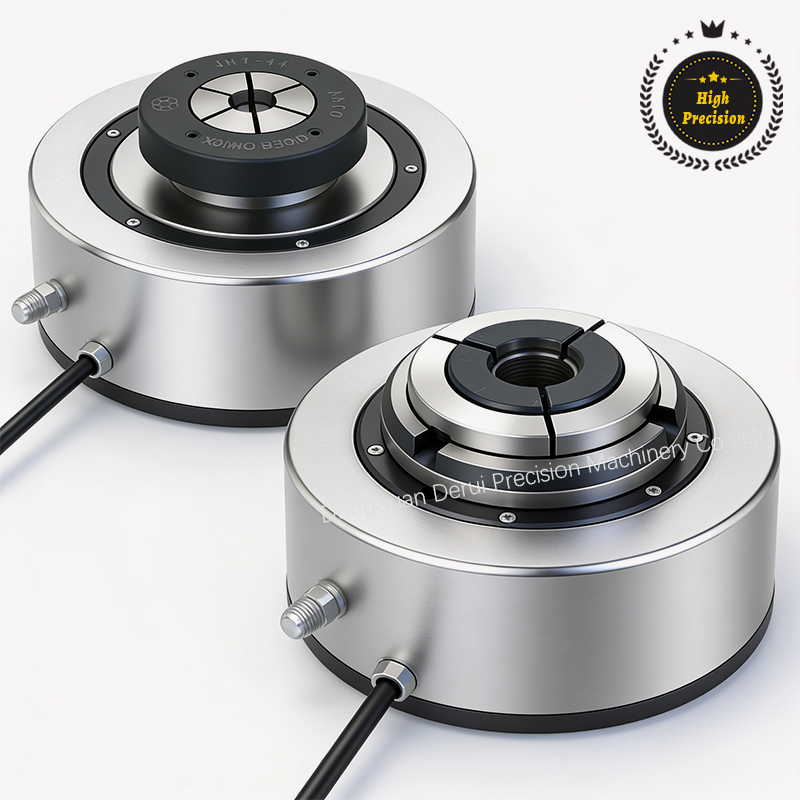

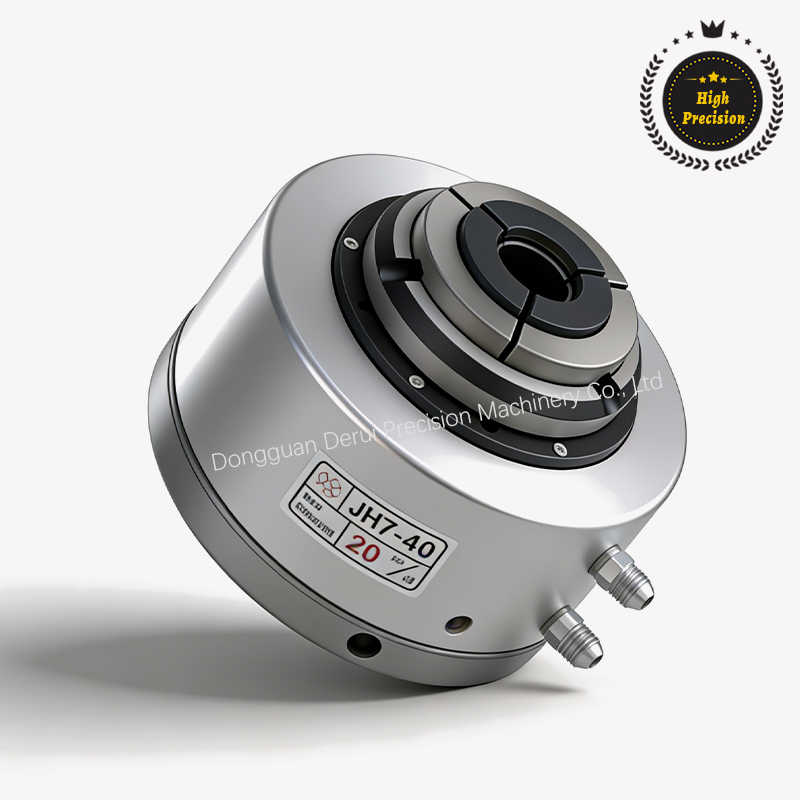

JA/JH Series

Rotary Power Chuck

High Precision
$ 529 USD Motor price not included

Model

    No data available

  • The chuck incorporates a hydraulic/pneumatic rotary cylinder, eliminating the need for cylinder

    installation. Its center through-hole design allows for operation with automatic feeding systems.

    Suitable for retrofitting traditional lathes into automated/semi-automated equipment, and for

    assembling various specialized machining tools.

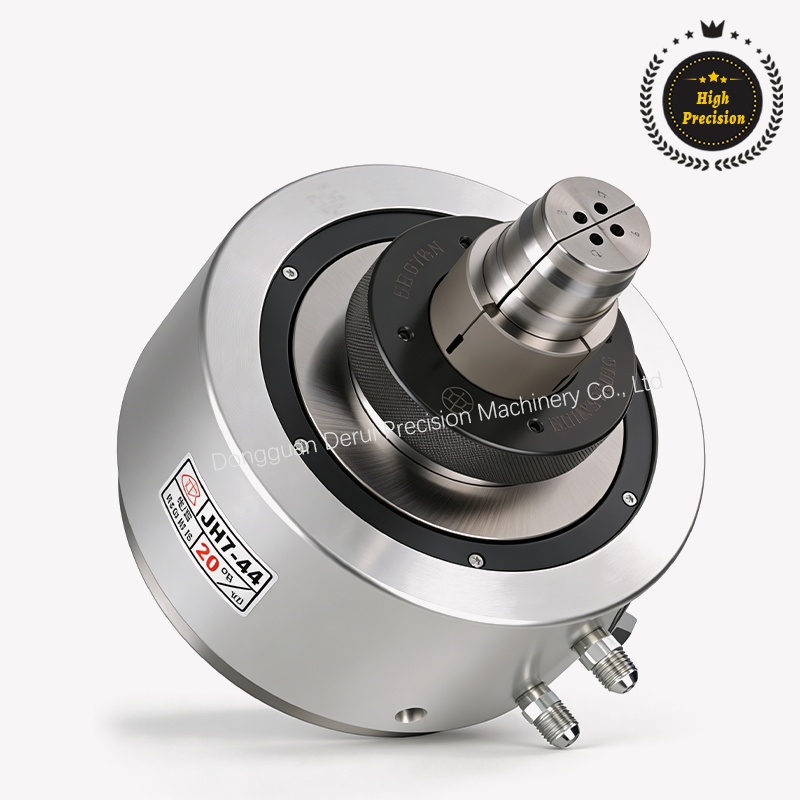

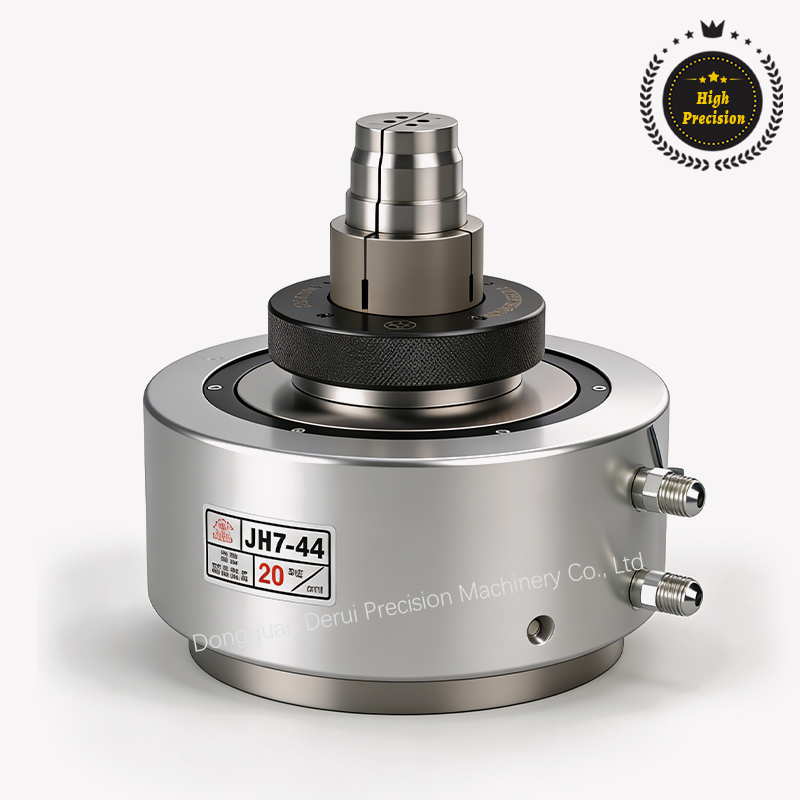

    JA7-44/JH7-44 features a 2.0 times force-enhancing design, providing increased clamping force.

    Cutting fluid should not be directly sprayed onto the chuck. An optional internal tensioning kit

    is available for the JA7-44/JH7-44 for internal tensioning clamping operations.


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance


Get Your Solution

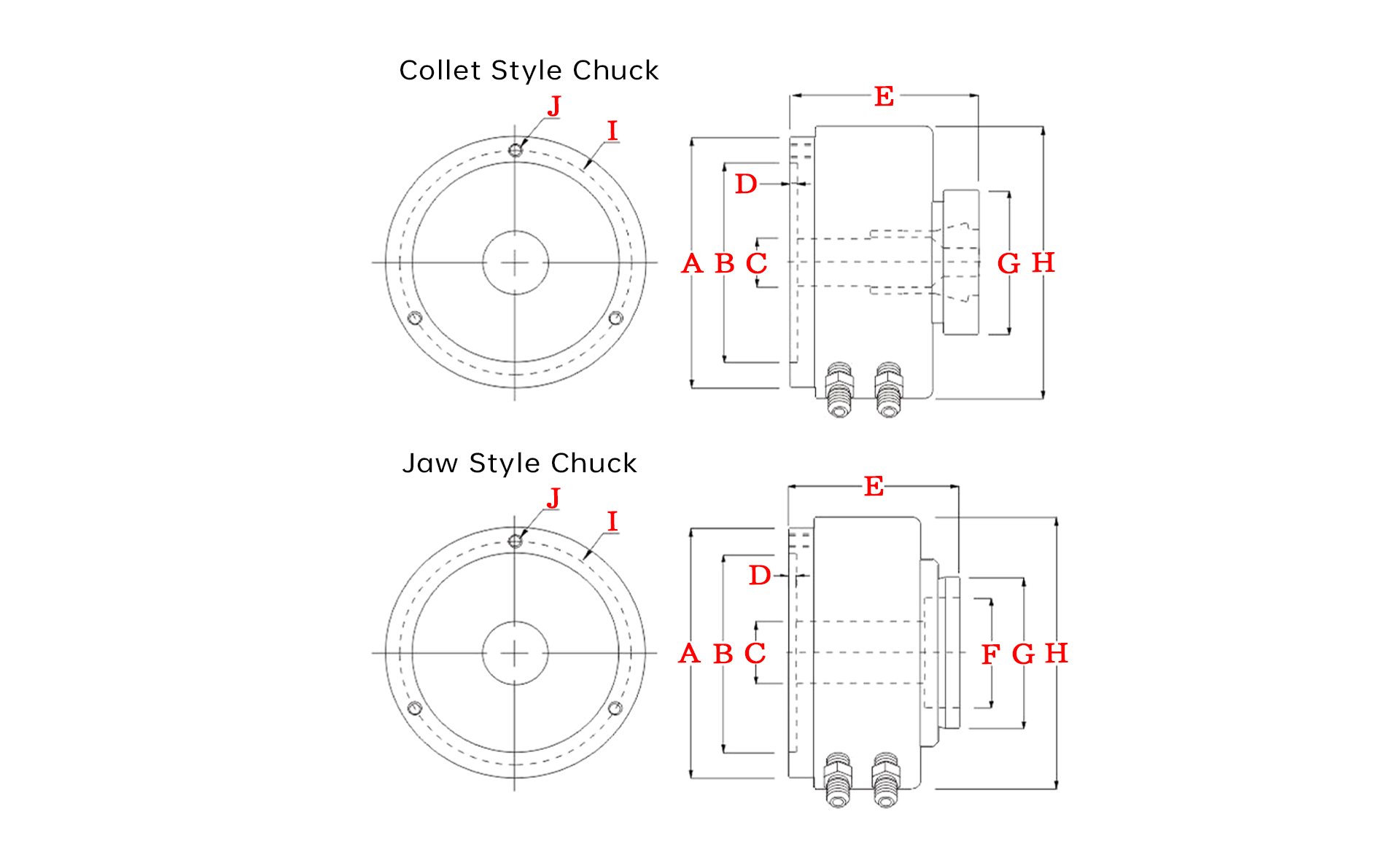

2D Drawing平面图.png

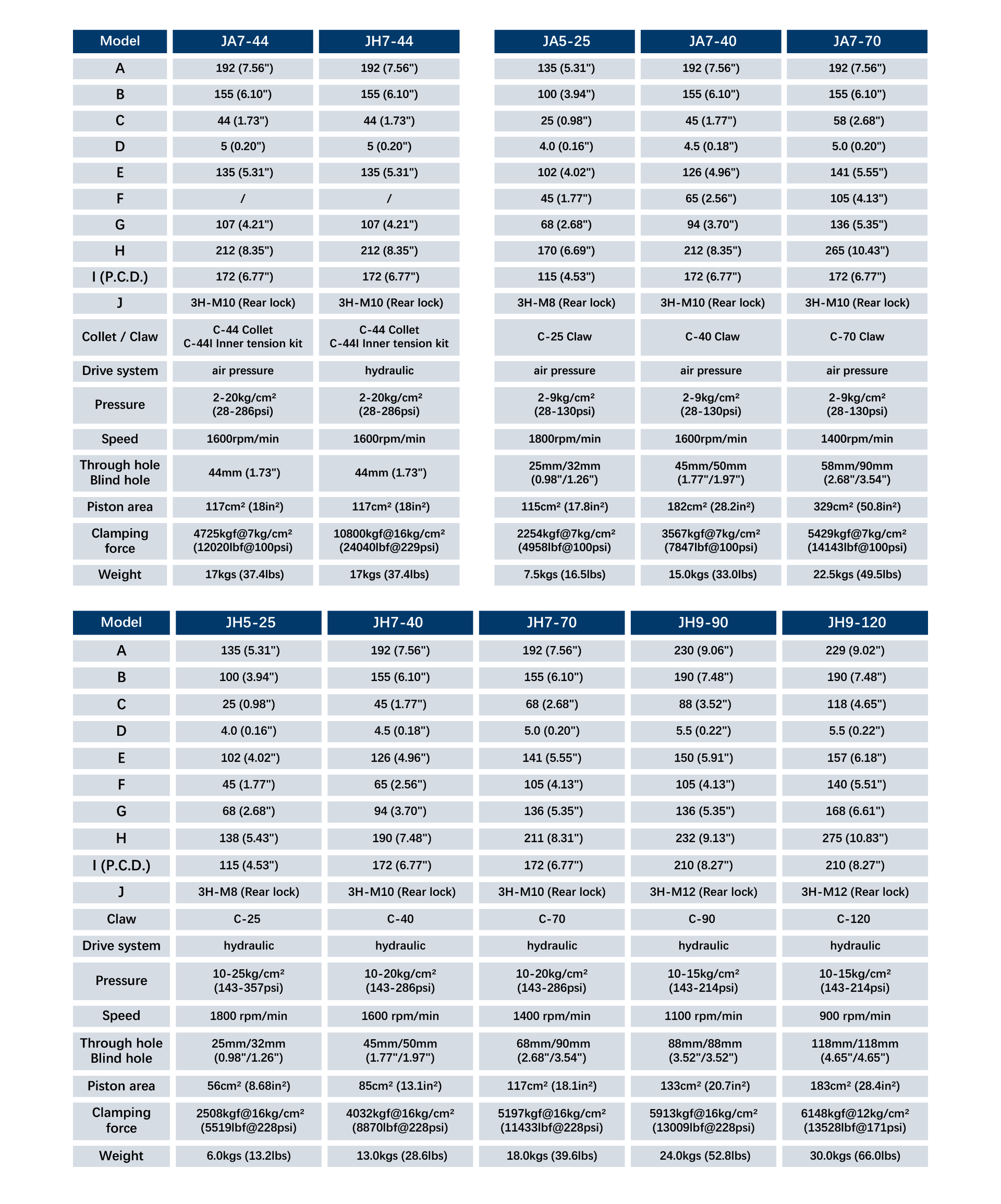

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
