JAP Series

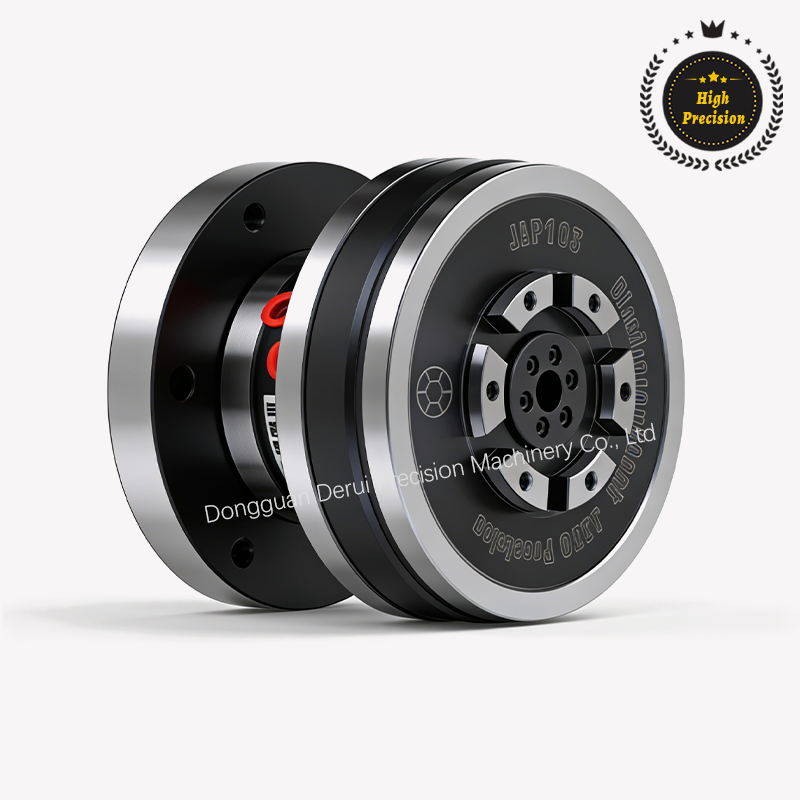

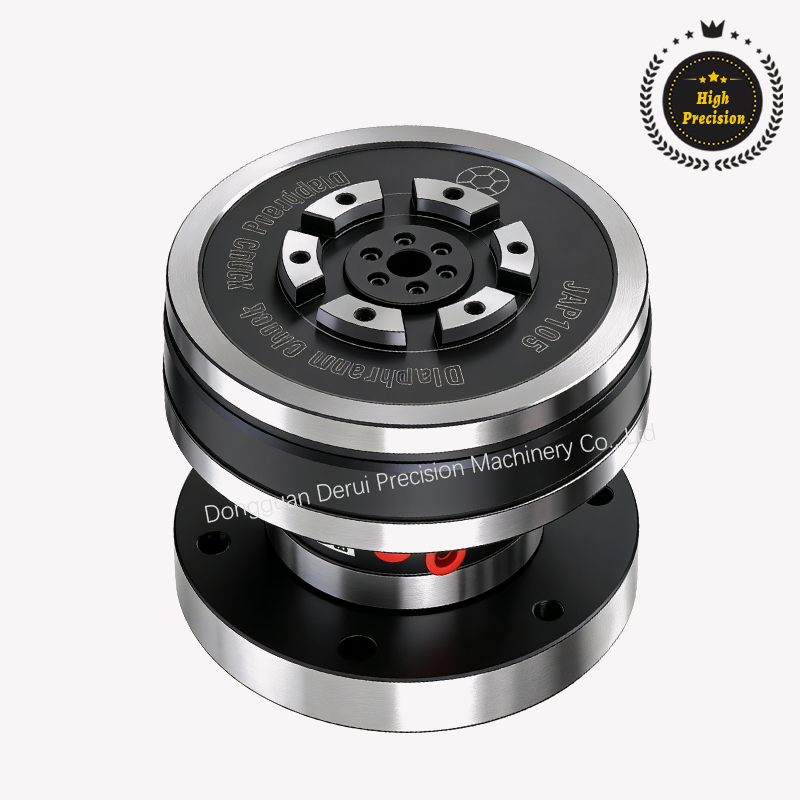

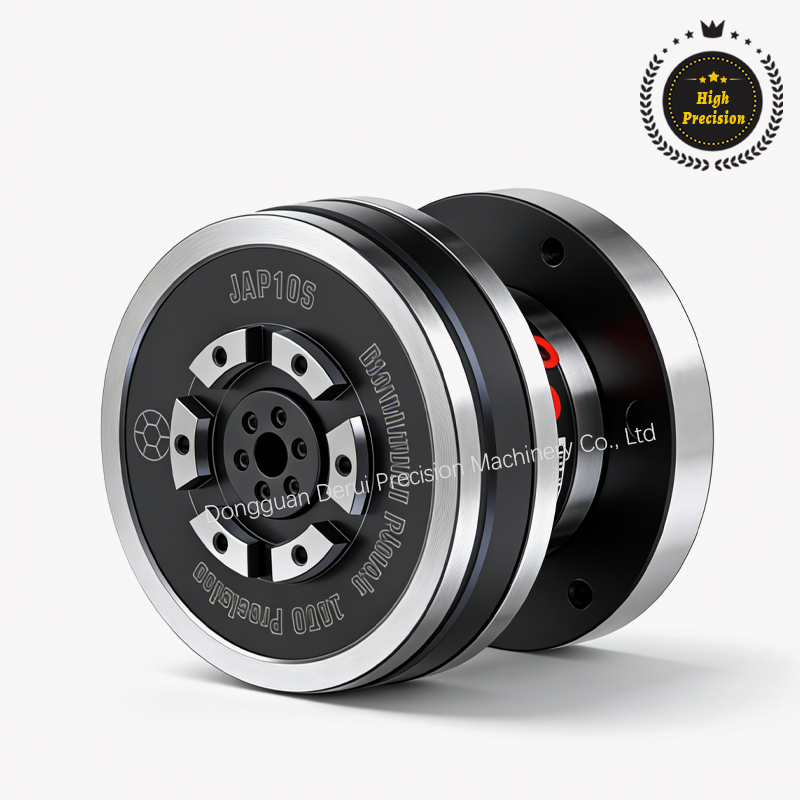

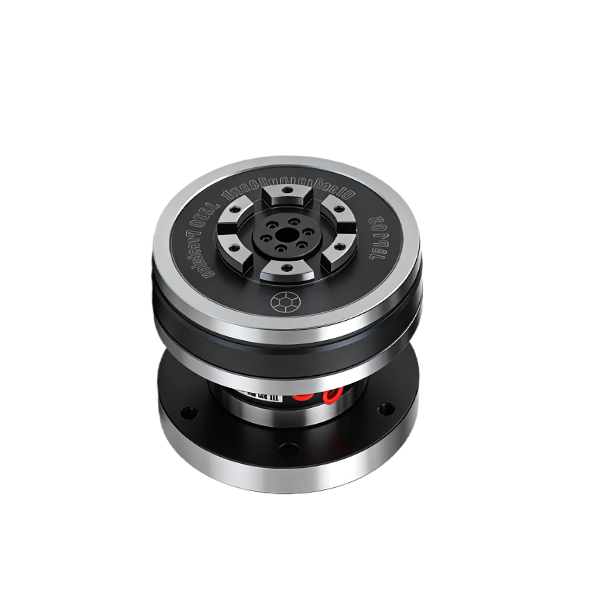

Rotary pneumatic diaphragm chuck
High Precision
$ 1605 USDMotor price not included
Model
DGDR JAP-105
Air cylinder intergrated, no rotary cylinderand draw bar required, Repeatability within 5um
Center through hole design, allow to setair blow or stopper in axis way, Highly-sealed chuck
body, helps protectcutting chips, dust or coolant fluid fromentering, Front-mount design make
installation easy, Please use 5um filter in F.R.L units
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
