JAP Series

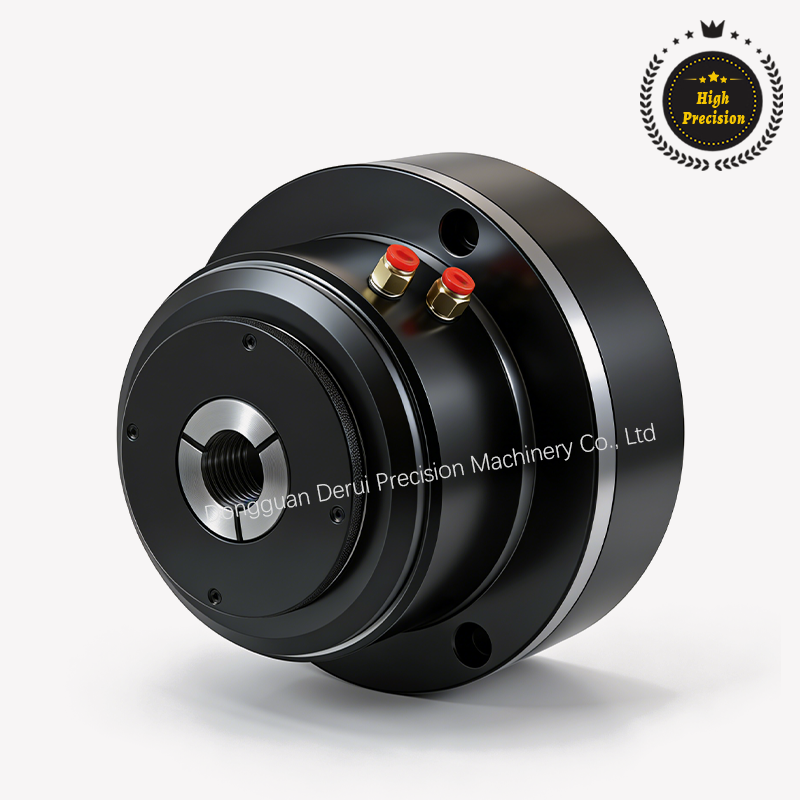

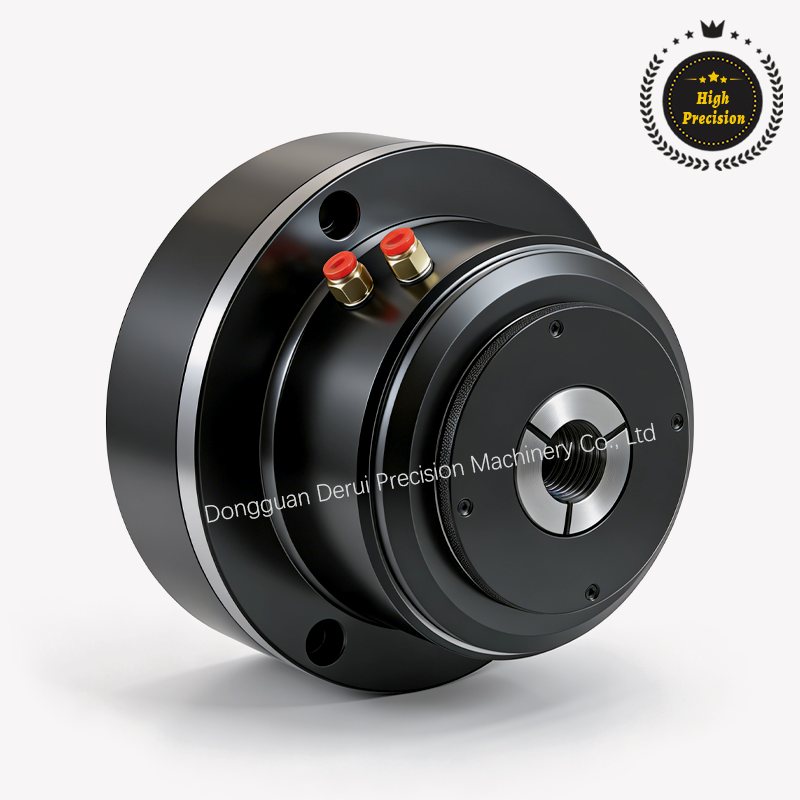

Rotary pneumatic collet chuck

High Precision
$ 1548 USD Motor price not included

Model

    No data available

  • Built in rotary cylinder, free from draw bar and rotary cylinderEasy installation,

    no specialist required，Work with most popular collet, easy to find replacement

    orrepair in local.Double piston, provide more clamping force in limited O.D,

    Import selected deep groove ball bearing, stable and tough，Self-lock design on

    the close side to offer higher safety，High resistance to coolant fluid and cutting chips


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance


Get Your Solution

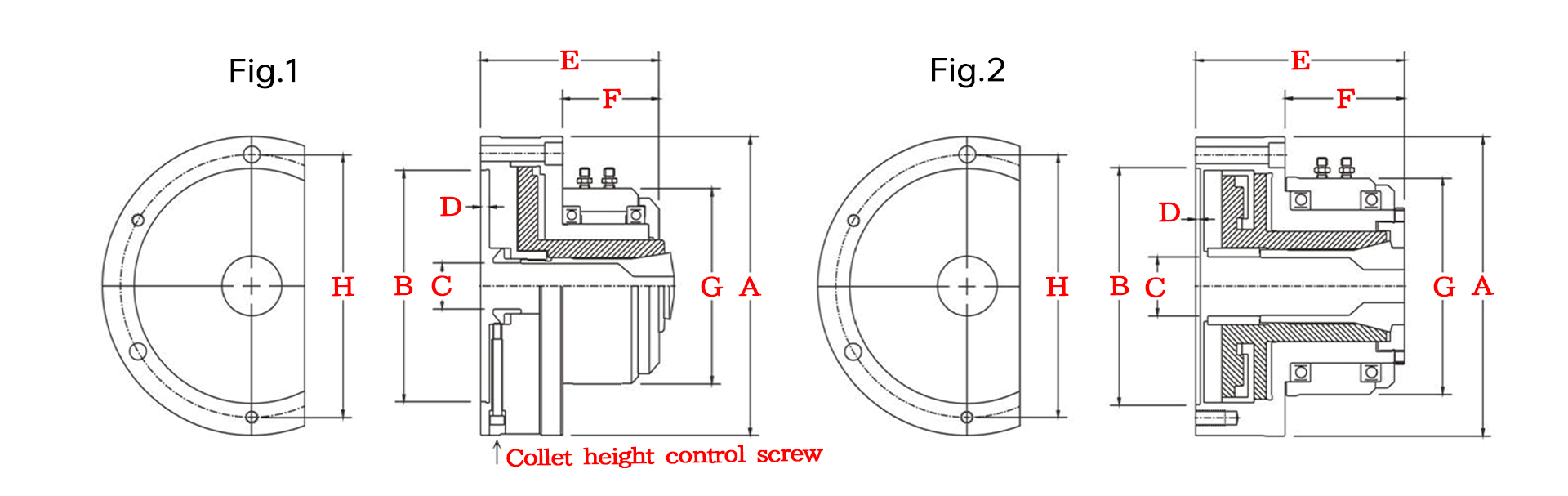

2D Drawing平面图.png

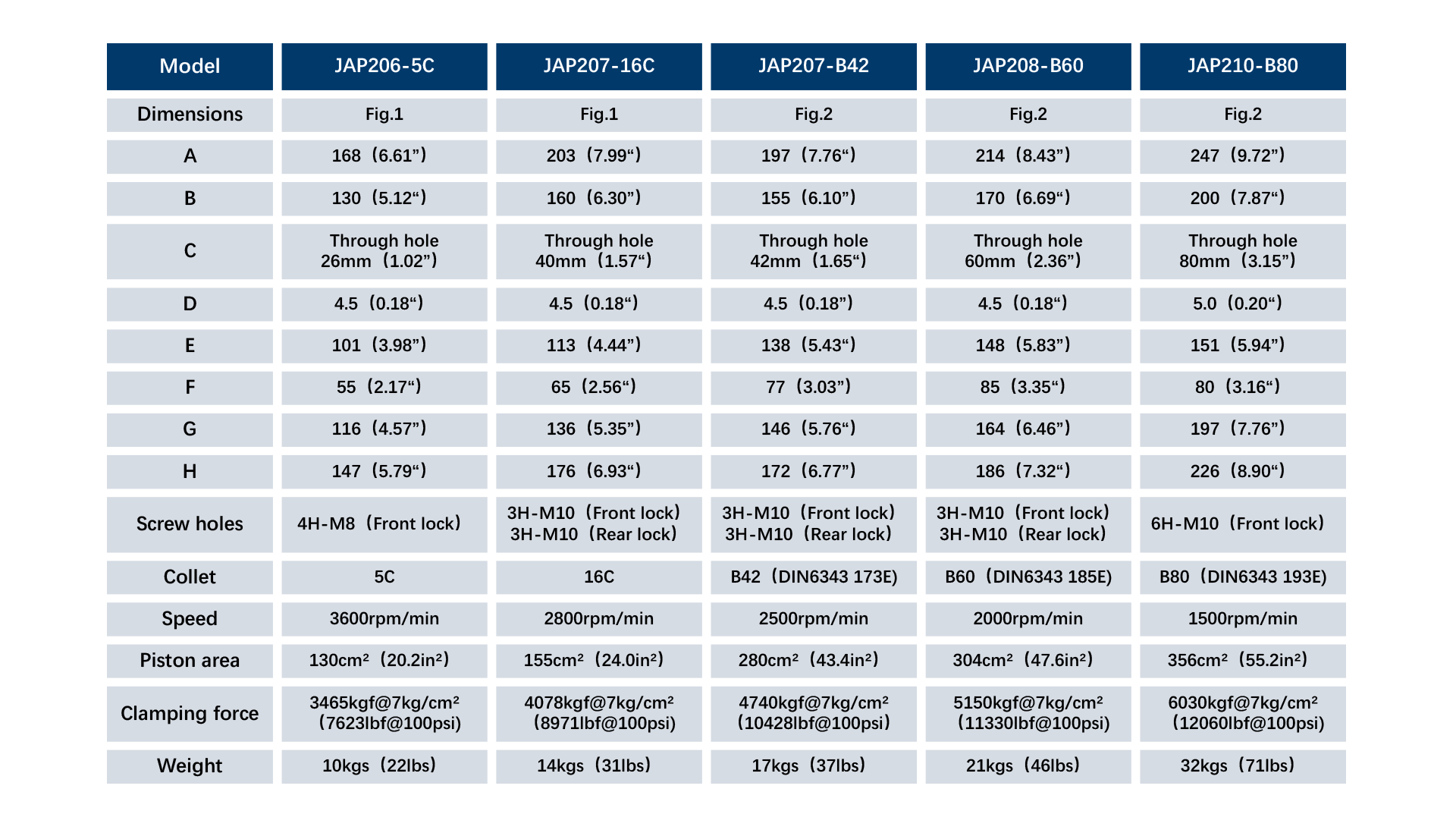

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
