JP/JPL Series

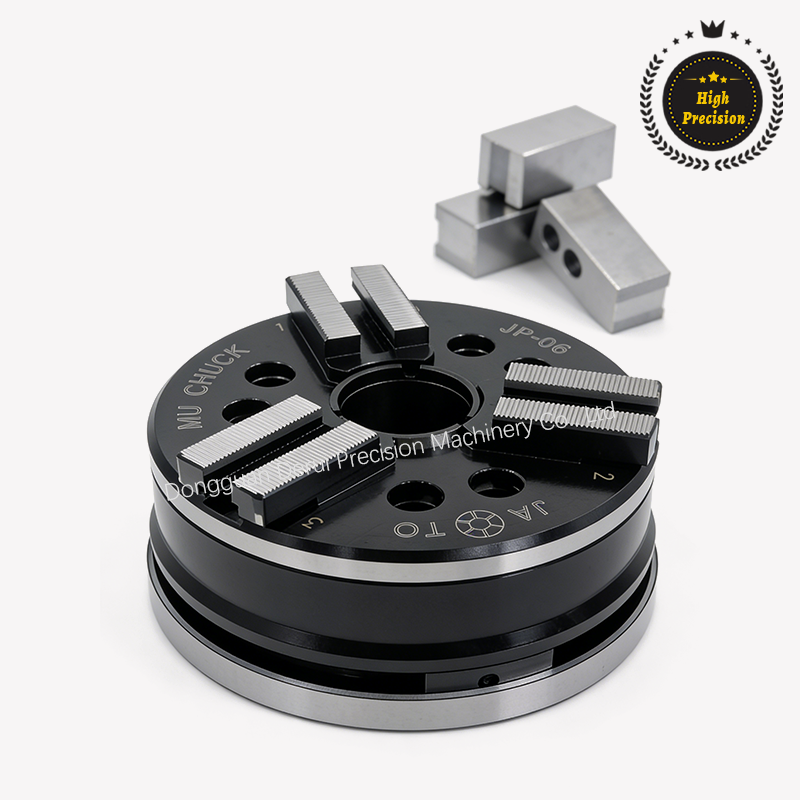

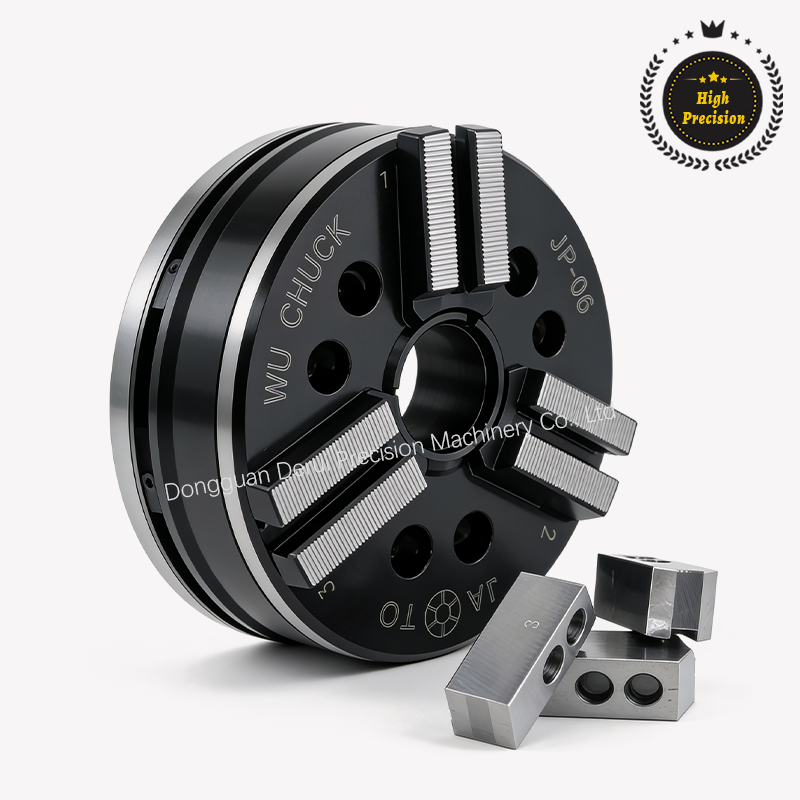

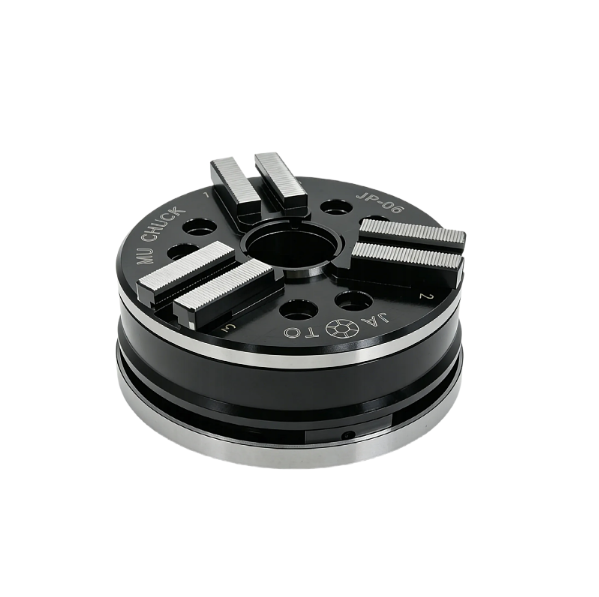

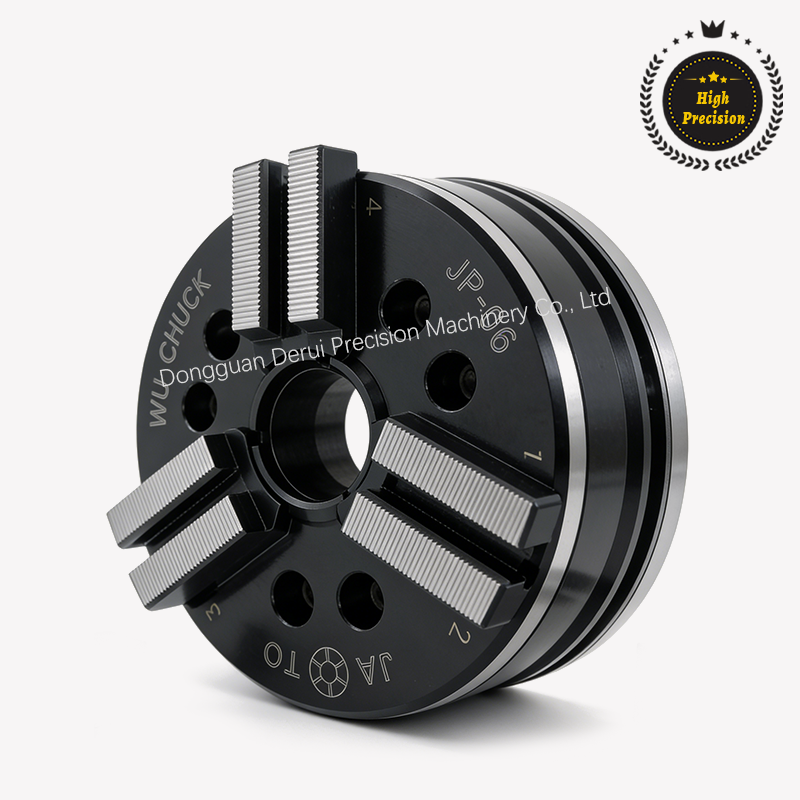

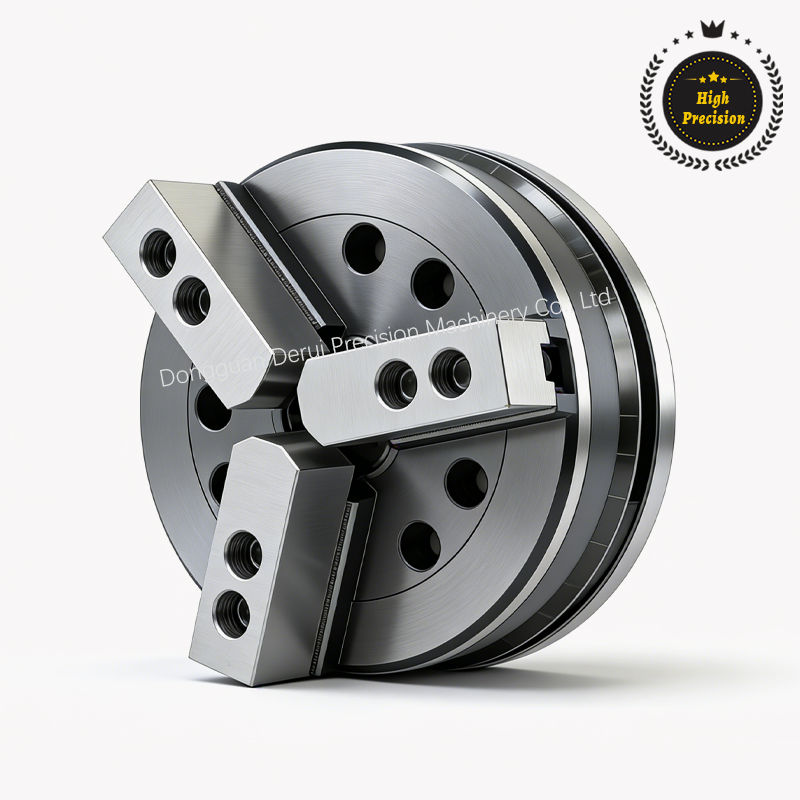

Precision diaphragm chuck
High Precision
$ 1676 USDMotor price not included

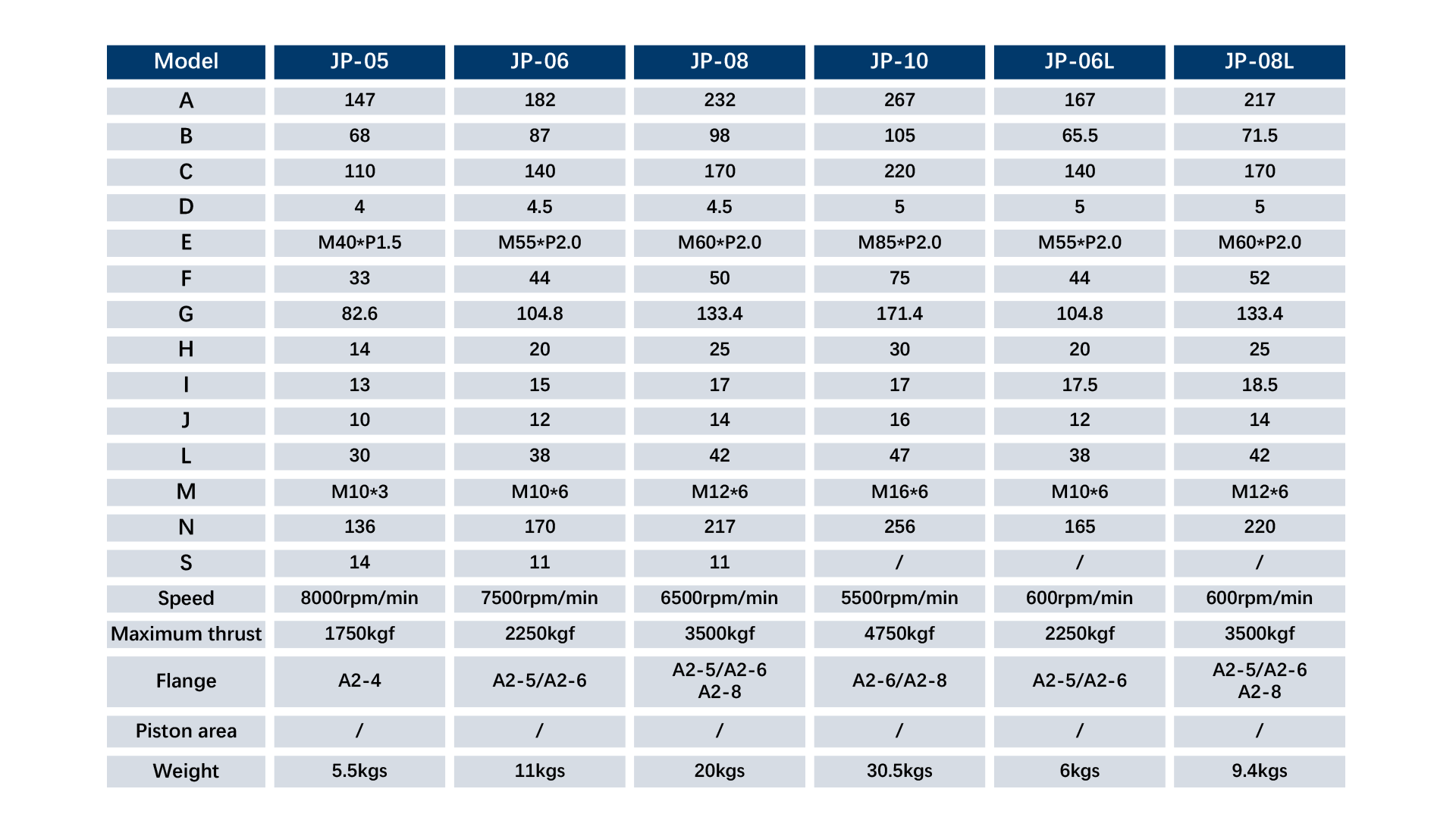

Model
DGDR JP-06
Built-in anti-centrifugal design, suitable for high-precision workpiece clamping and machining
Precision fine-tuning is possible via hydraulic cylinder. Suitable for clamping and machining thin
rings, thin tubes, and fragile parts. Compatible with CNC lathes/precision grinding work.
Uses the same specification hydraulic three-jaw chuck for clamping
force adjustment, with strong/weak clamping options
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
