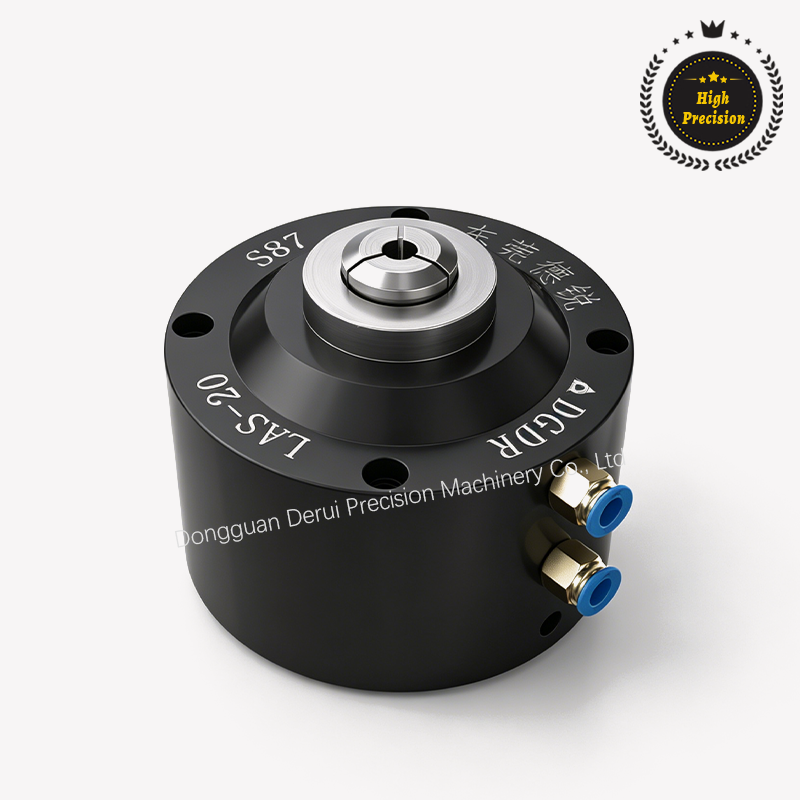

LAS-20
Fixed hydraulic chuck (push-forward type)
High Precision
$ 537 USDMotor price not included

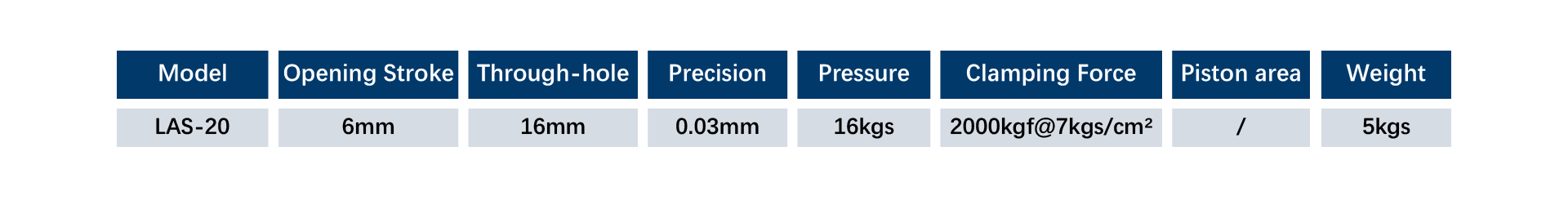

Model
DGDR LAS-20
The steel body features a sliding sleeve that pushes forward to clamp the workpiece, achieving a
clamping repeatability within 0.03mm and a 6mm opening stroke. Different collets can
be used for different workpieces, and irregularly shaped workpieces can be clamped.
One worktable can accommodate multiple fixed collet. The collet features a forced unloading
design, and is dustproof, waterproof, and fluid-resistant. It is used in CNC machining
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
