SA Series

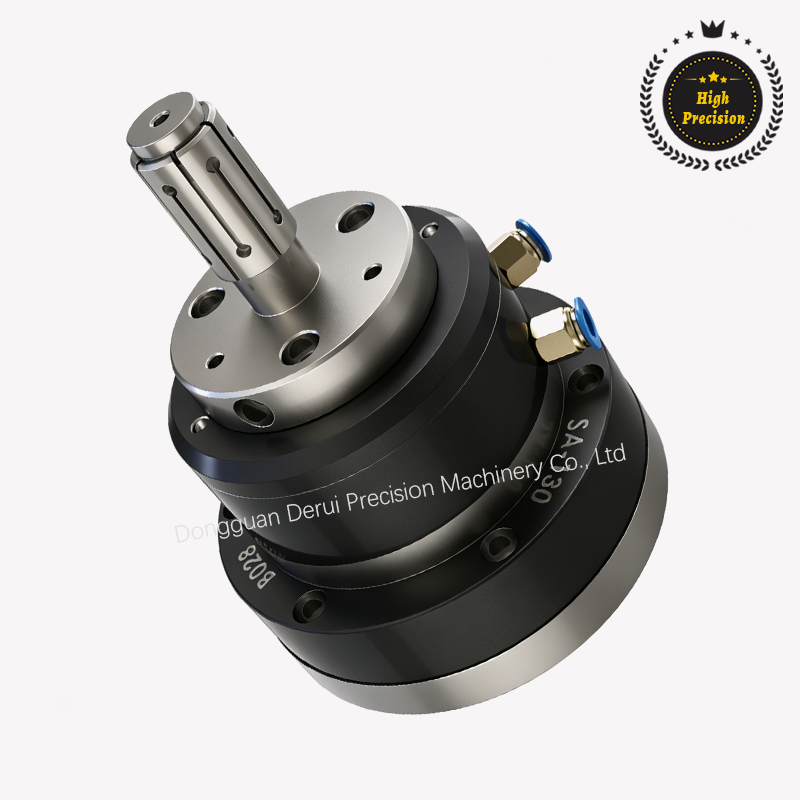

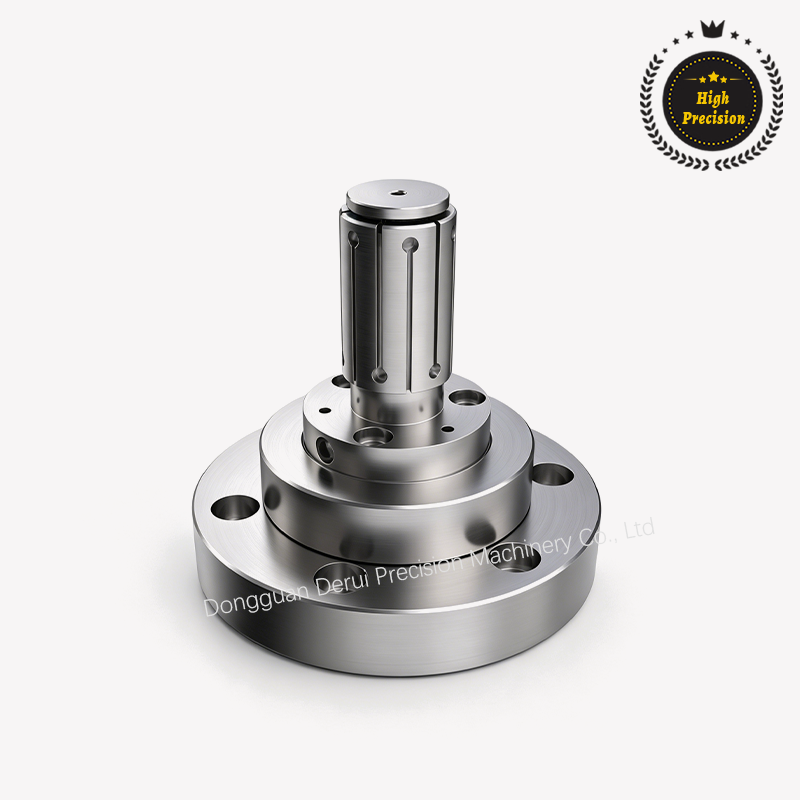

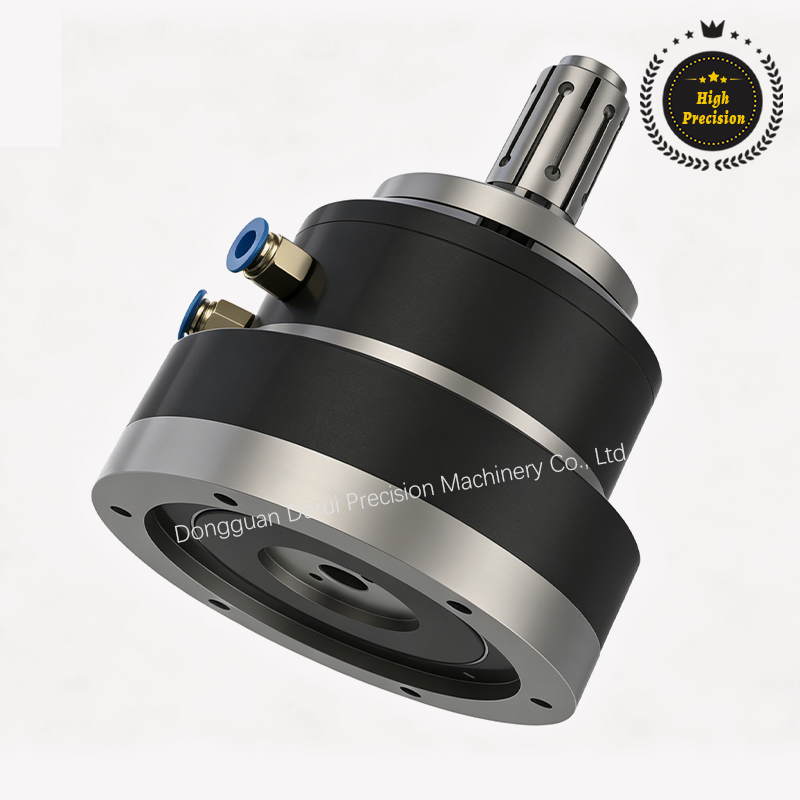

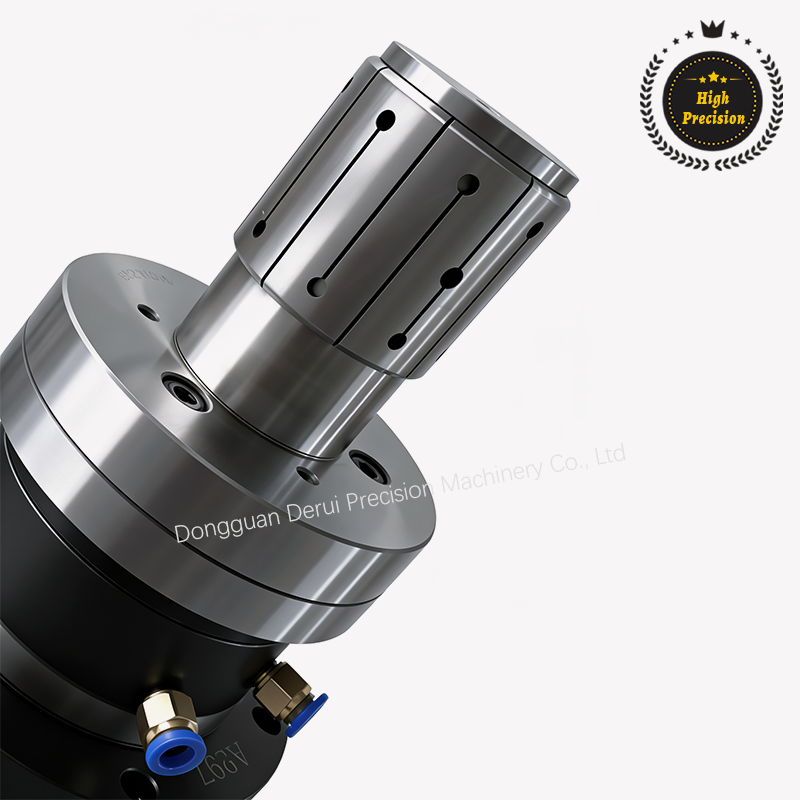

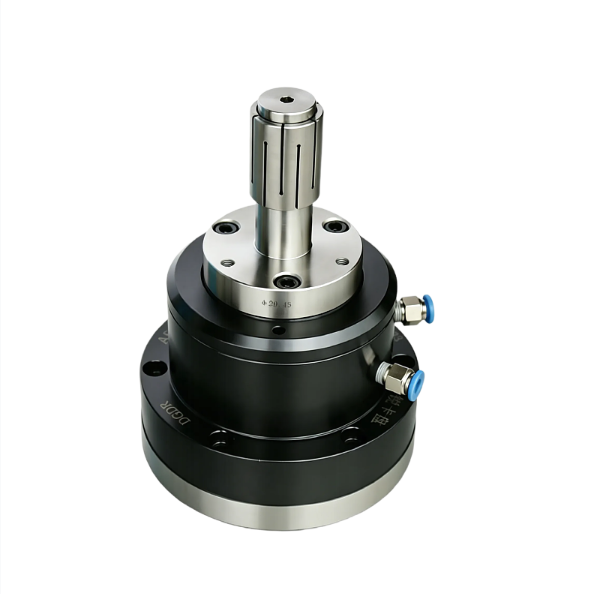

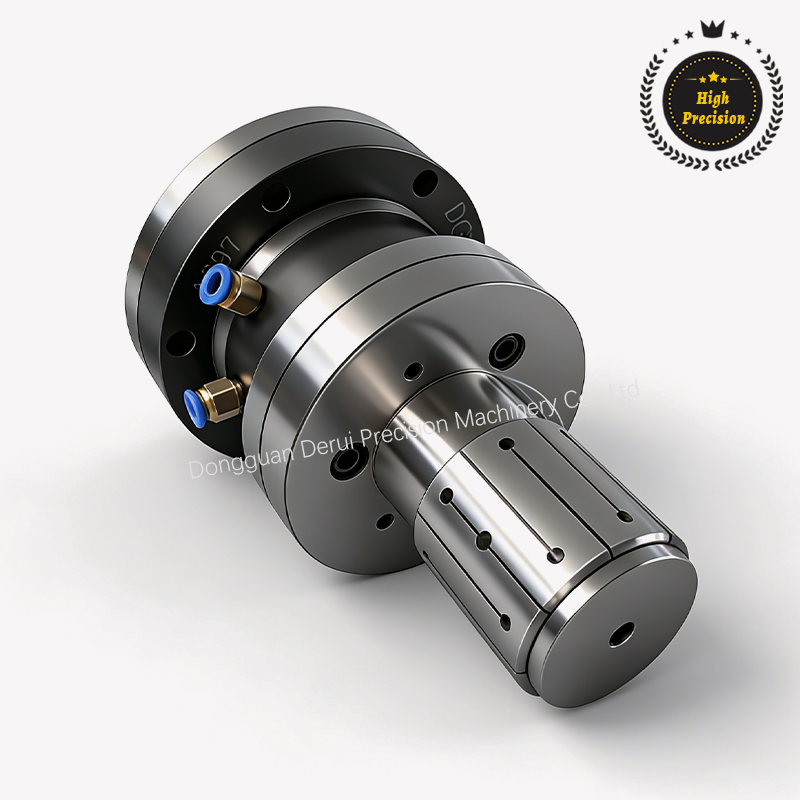

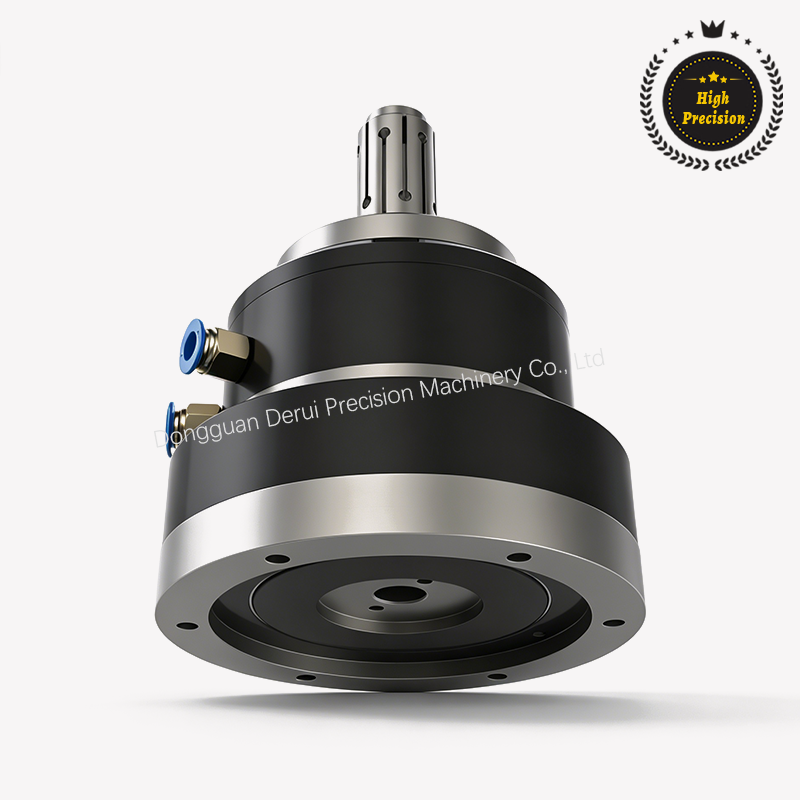

Pneumatic Internal Expansion Chuck
High Precision
$ 971 USDMotor price not included

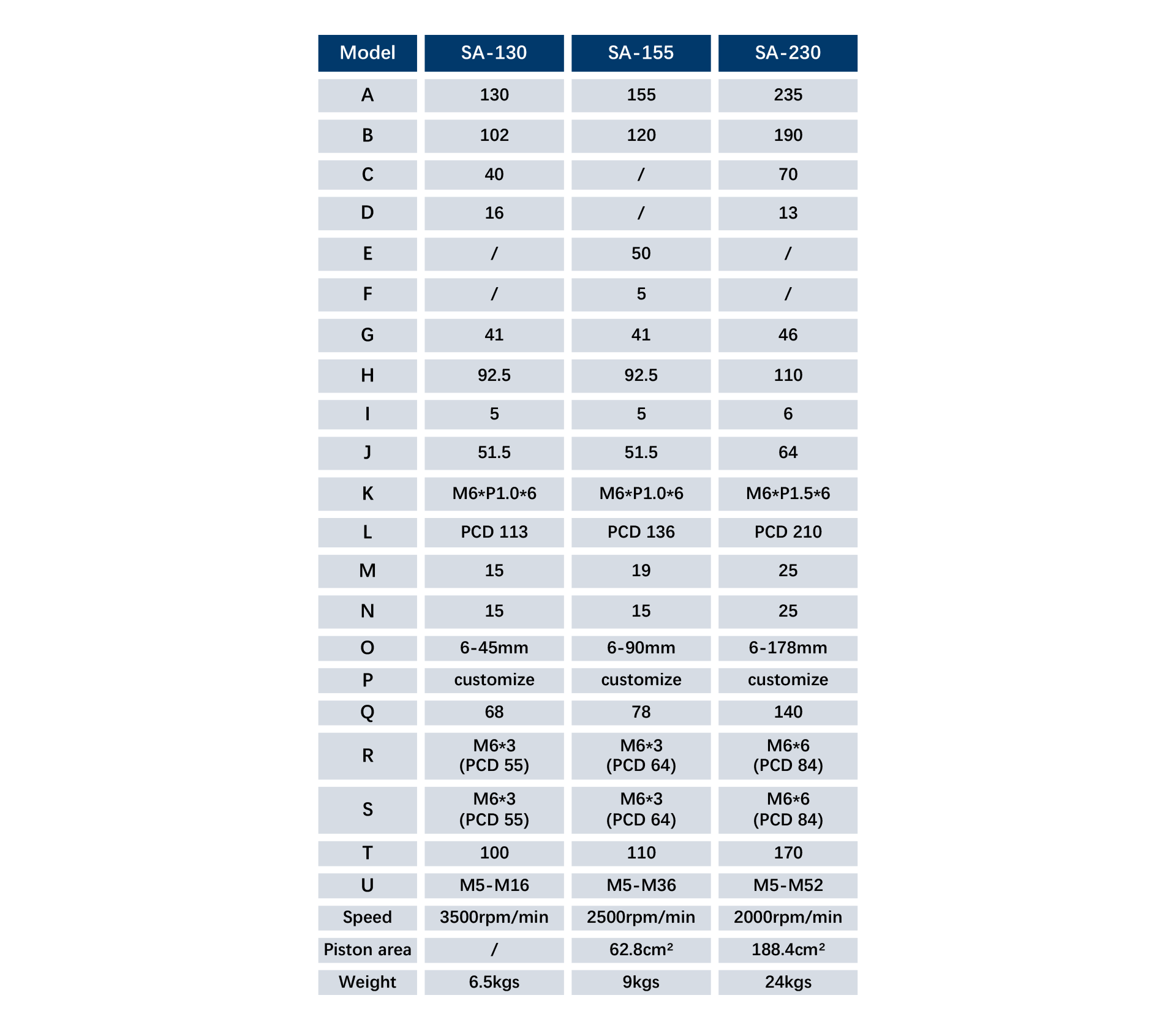

Model

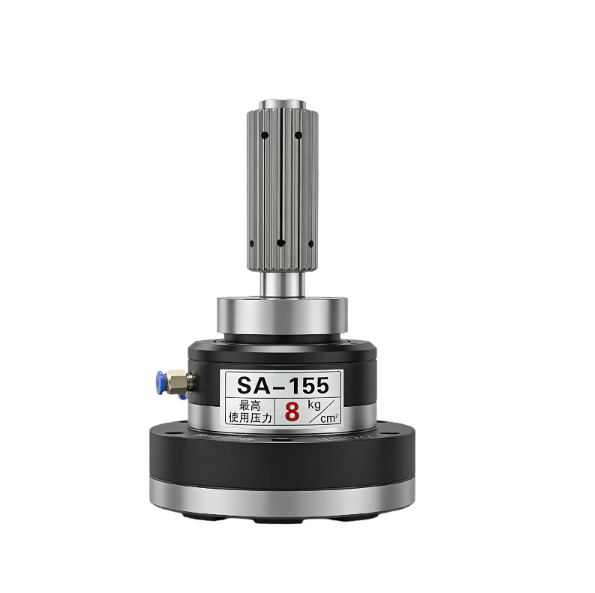

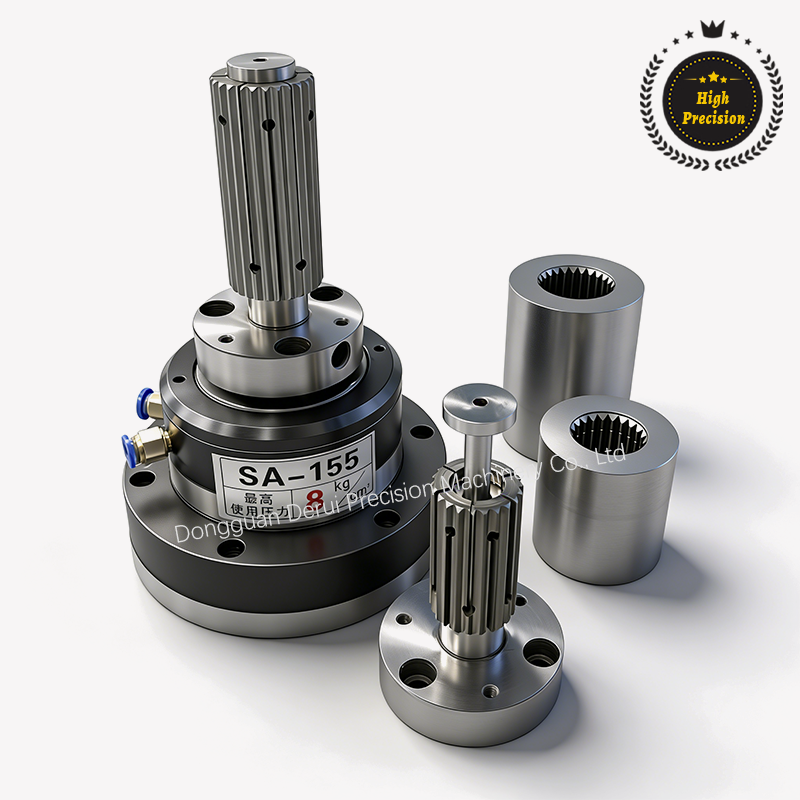

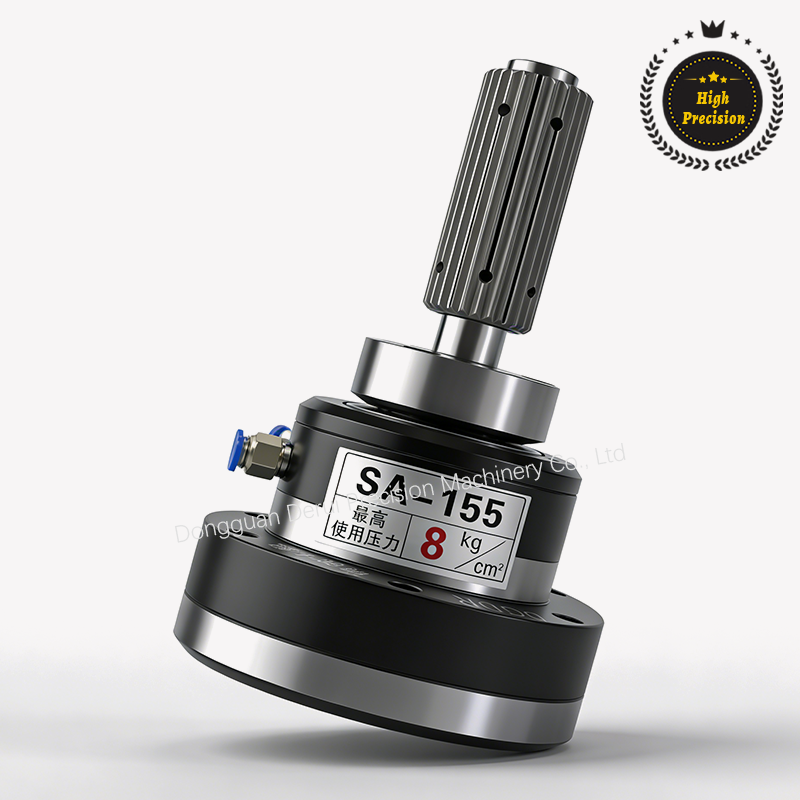

DGDR SA-155

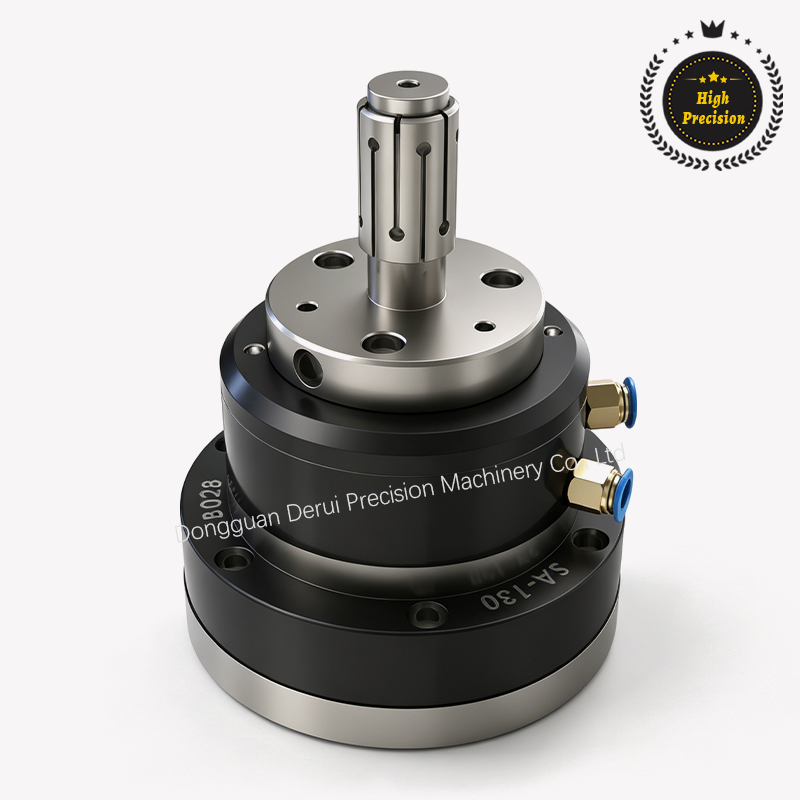

DGDR SA-130
Installation-Free Rotary Hydraulic / Pneumatic Cylinders Clamping Range: 6–178 mm
(Customizable with large through-holes up to 500 mm) Body Accuracy: 0.005 mm
(Customizable to 0.002 mm)Clamping Repeatability Selectable range of 0.015–0.002 mm
Operating Pressure: 3–8 kg/cm²; Dustproof and Waterproof Applications: CNC Machining
Centers (4-axis and 5-axis), Precision Grinders,Precision CNC
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
