Integrated Spindle Series

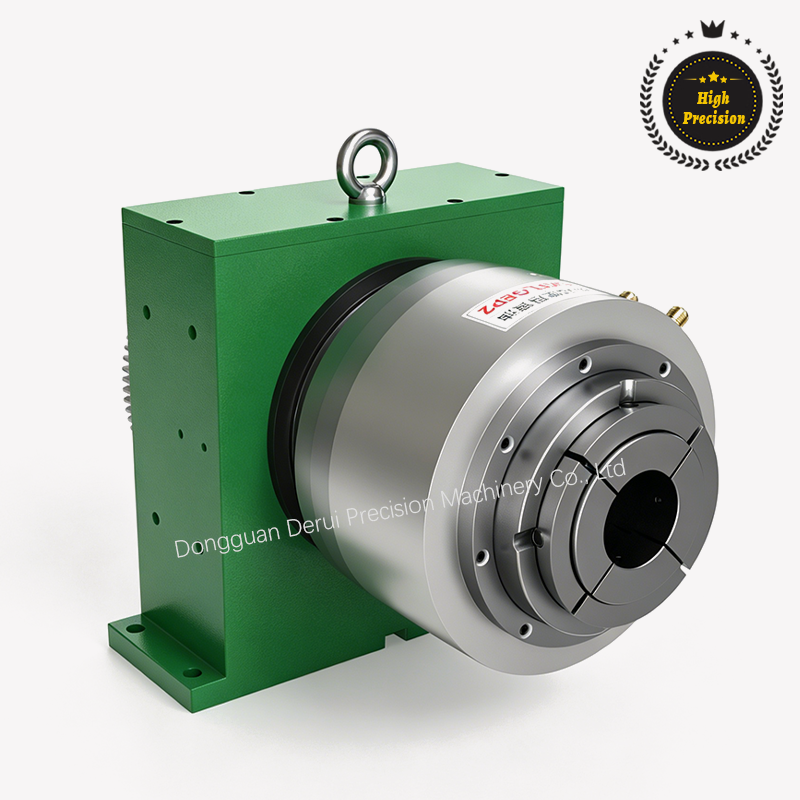

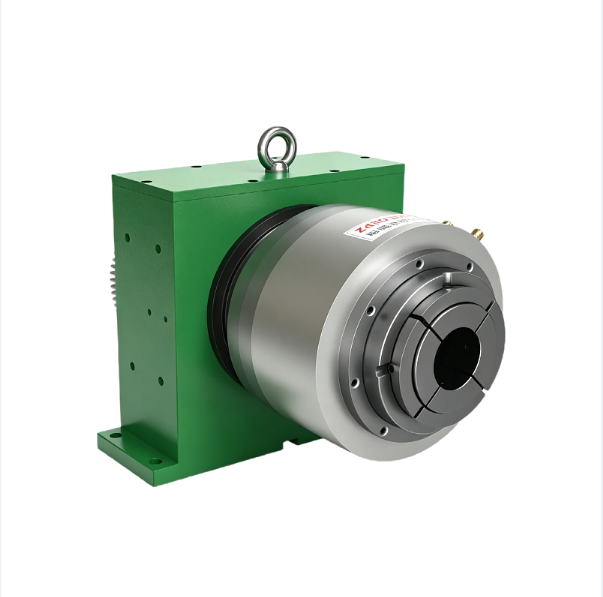

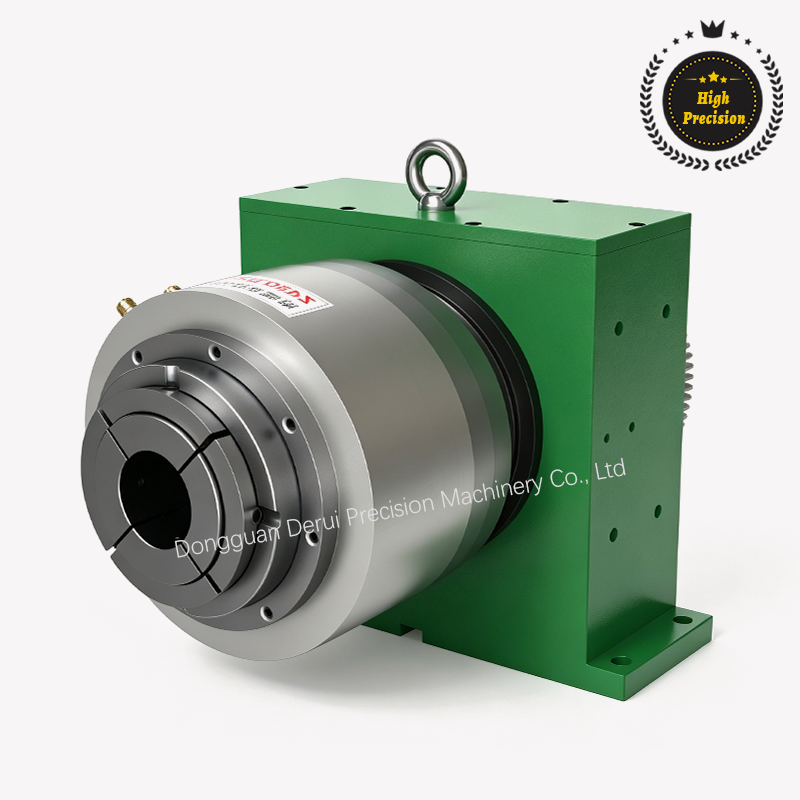

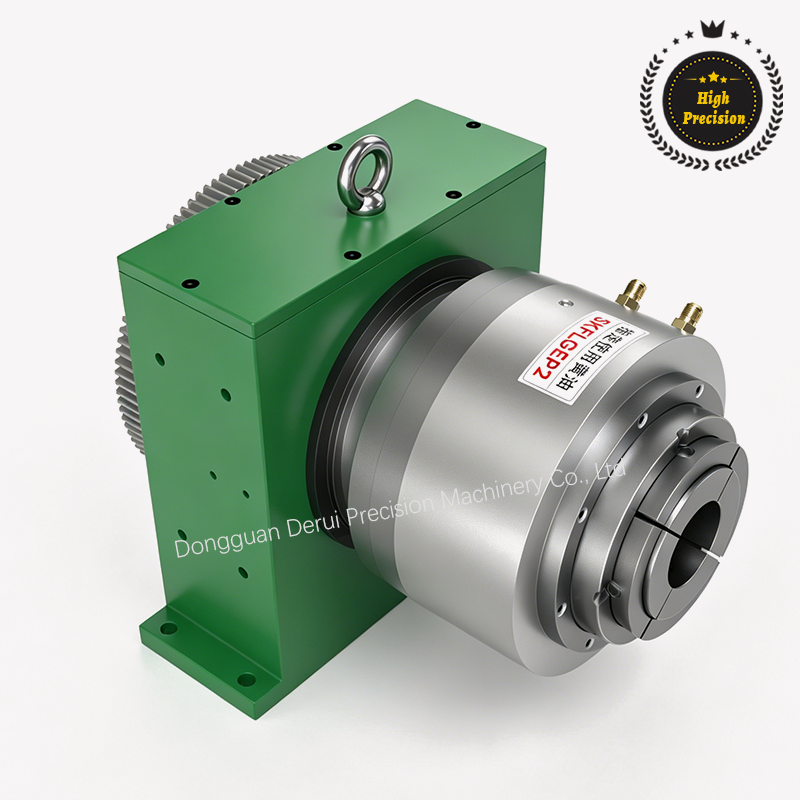

Hollow Rotary Spindle Chuck

High Precision
$ 1128 USD Motor price not included

Model

    No data available

  • Front-Mounted Hydraulic/Pneumatic Cylinder Design

  • Through-hole maximum clamping capacity: 500 mm

  • Clamping Repeatability: 0.05 mm

  • Irregularly shaped workpieces can all be clamped

  • Opening stroke: 1–2.5 mm (customizable 50 mm)

  • Air Pressure: 3–8 kg/cm² / Oil Pressure: 16 kg/cm²

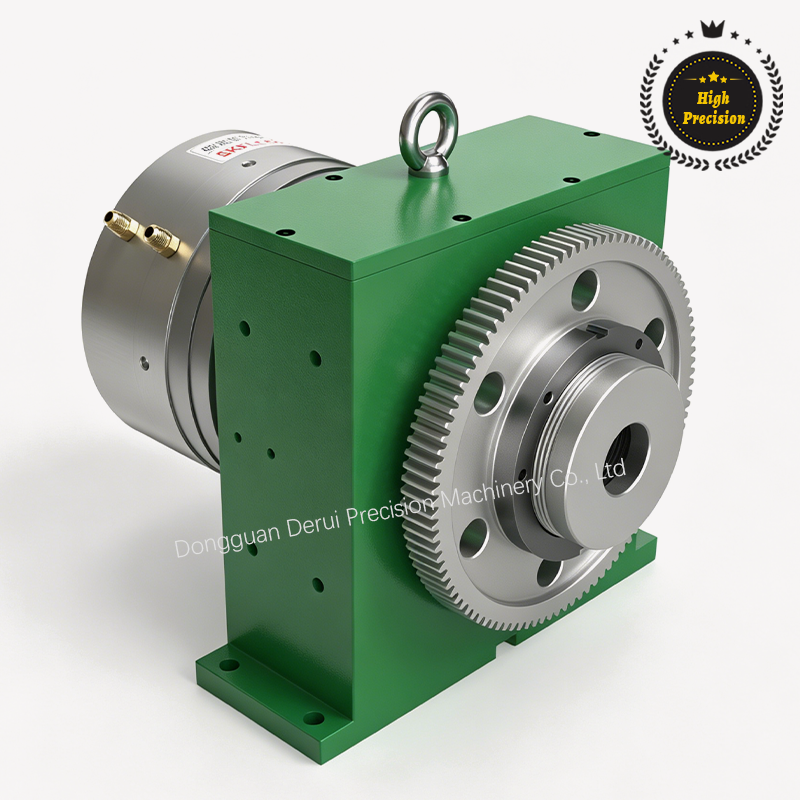

  • A timing pulley or gear may be fitted at the rear.

  • Cutting fluid must not be directed at the chuck.


  • Quality Assurance

  • ISO 9001 Quality Certification

  • 12-month warranty, lifetime maintenance


Get Your Solution

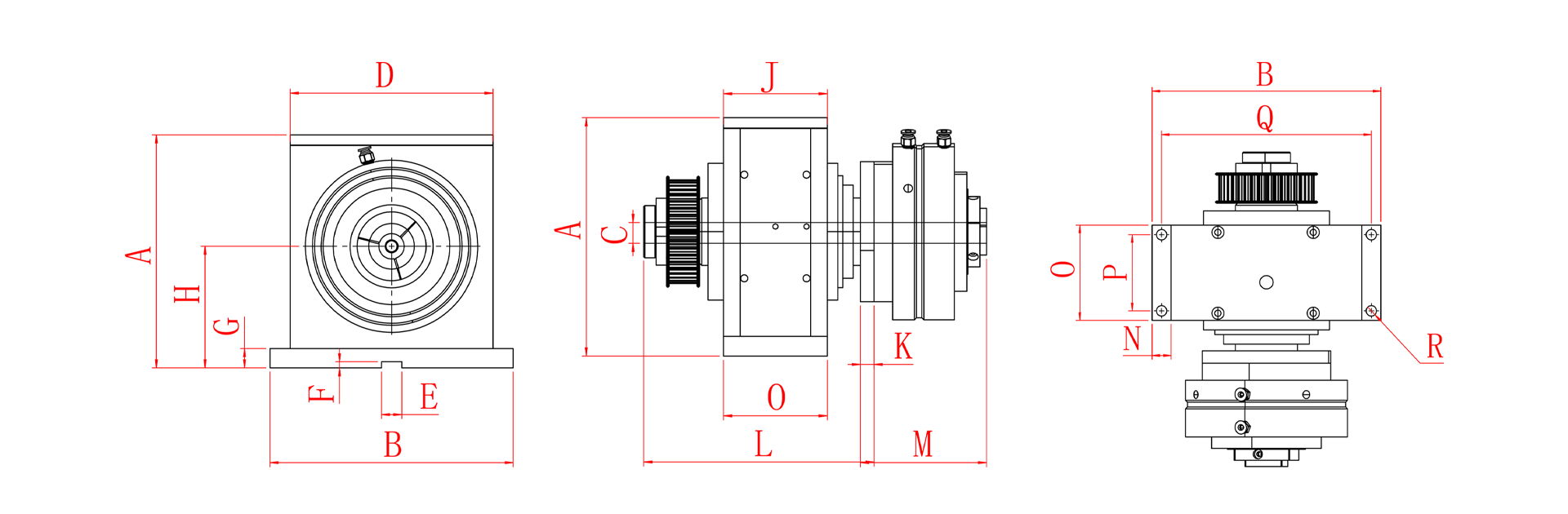

2D Drawing平面图.png

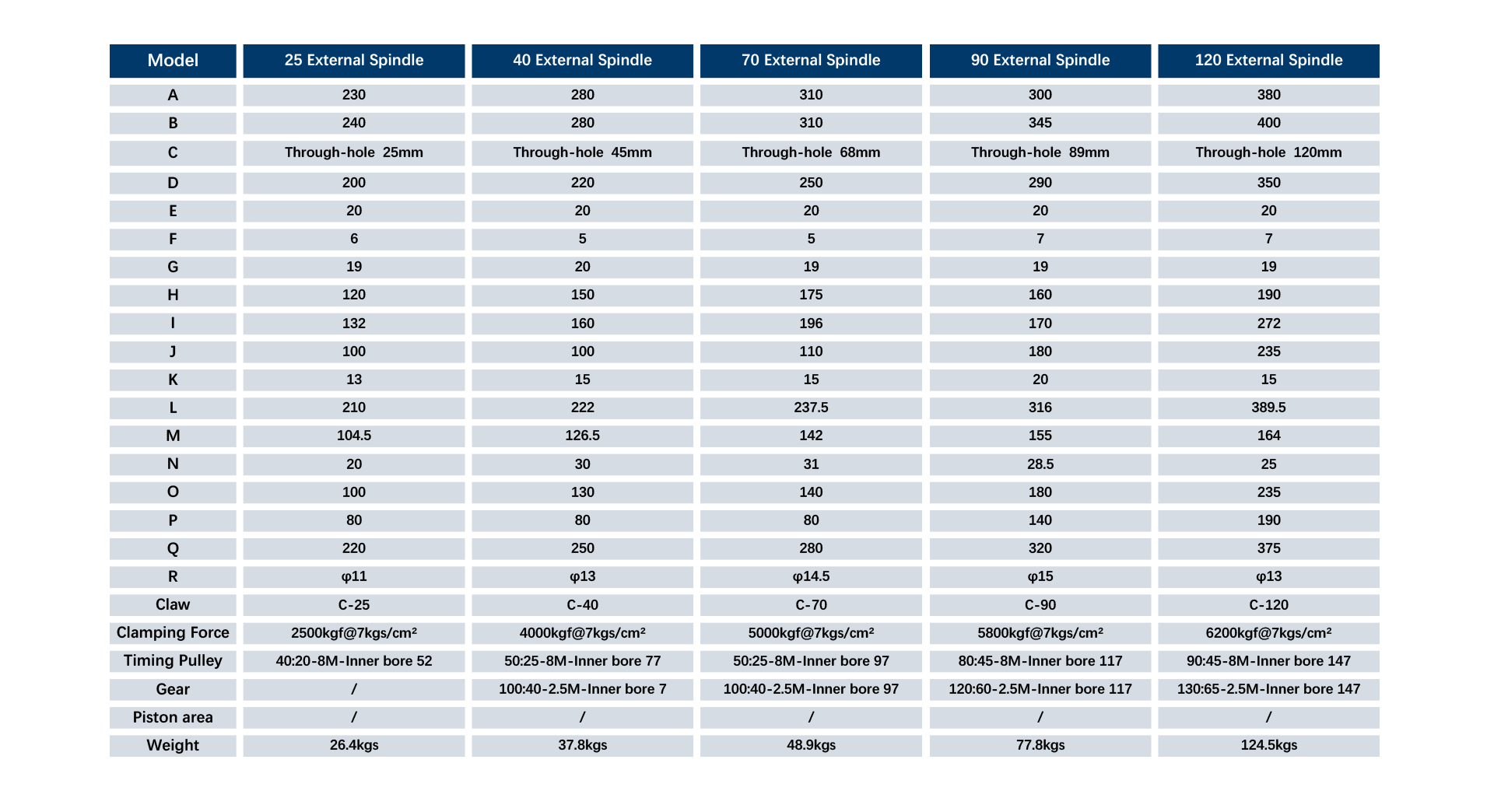

Technical Specifications (mm)参数.png

Document DownloadSTEP Format

Document DownloadPDF Format

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
