JAC-T8
Small Pneumatic Rotary Chuck
High Precision
$ 778 USDMotor price not included

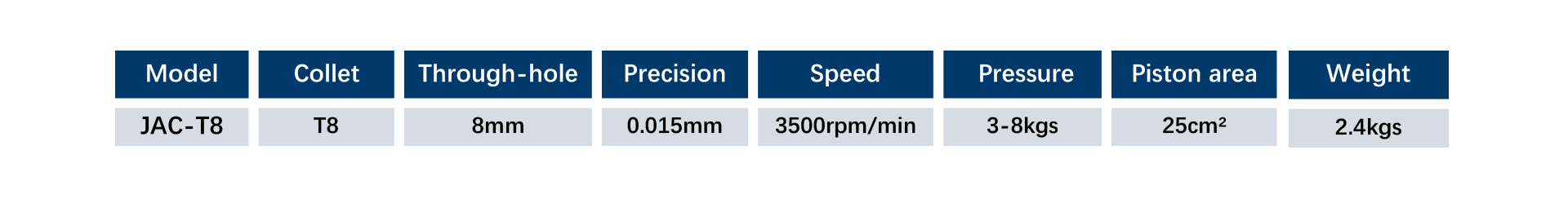

Model
DGDR JAC-T8

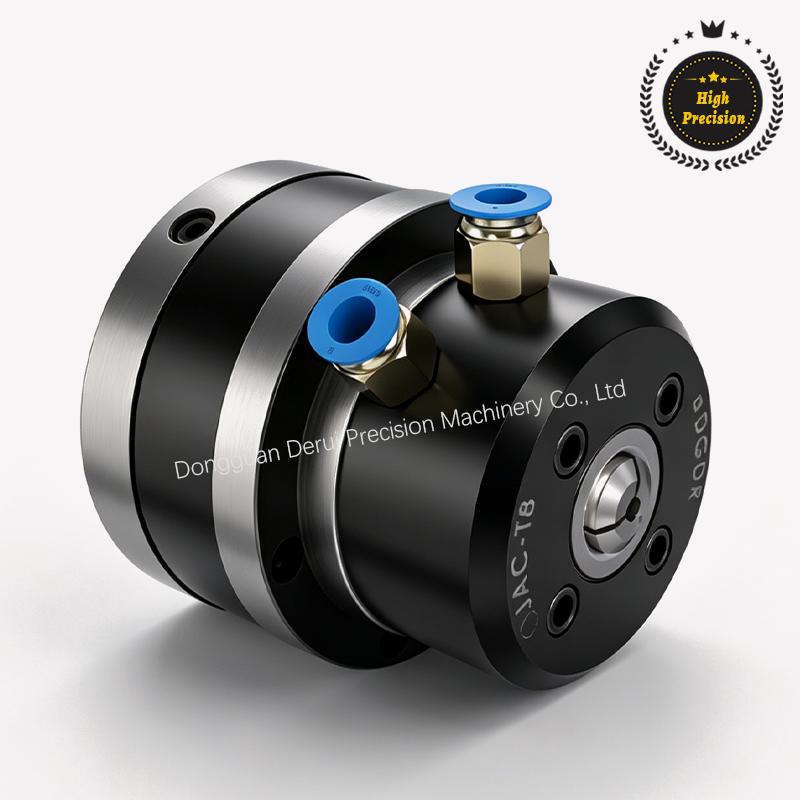

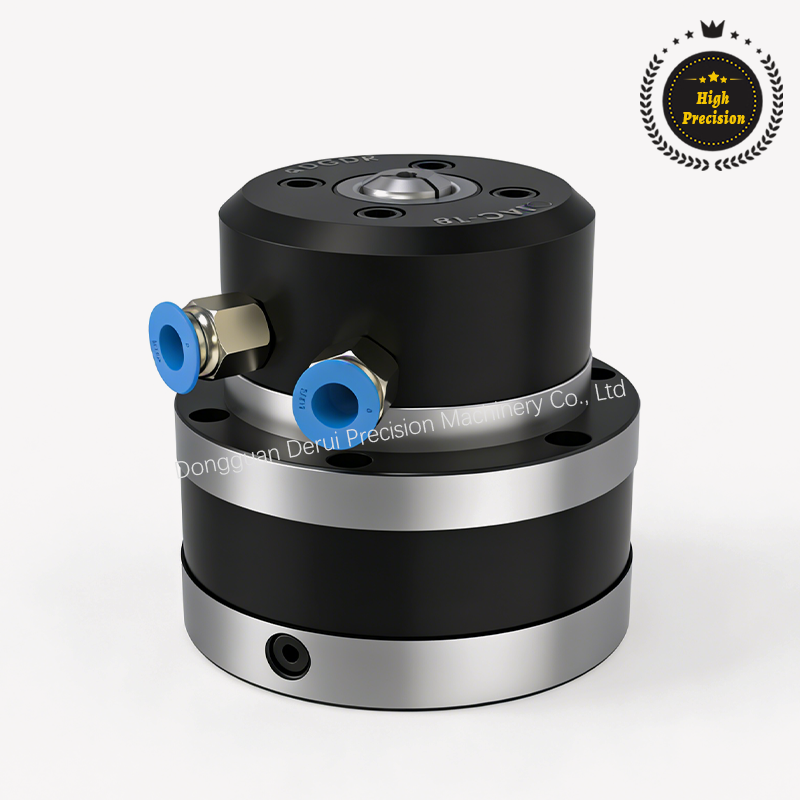

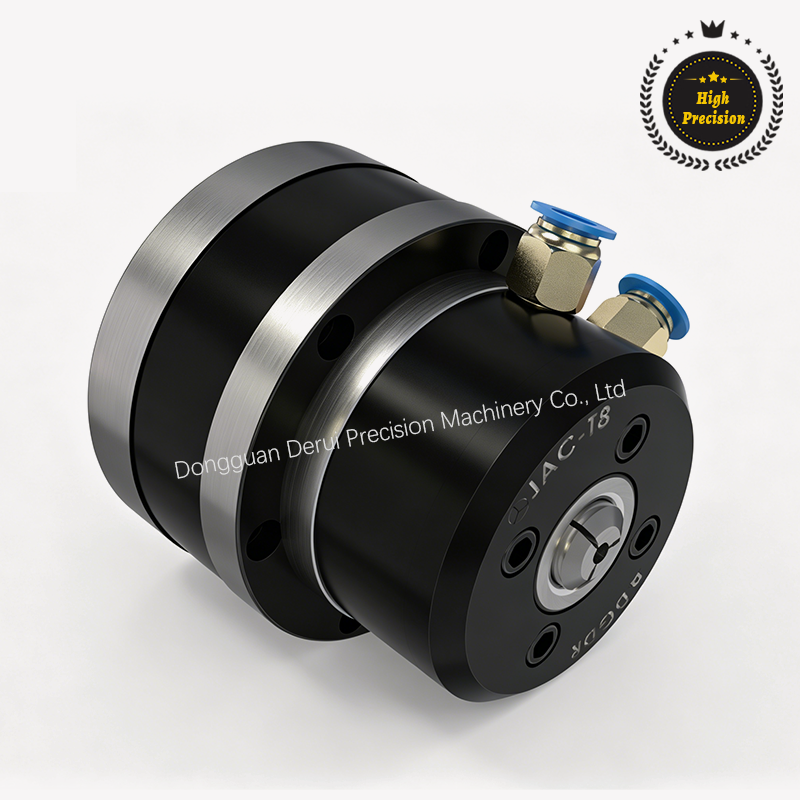

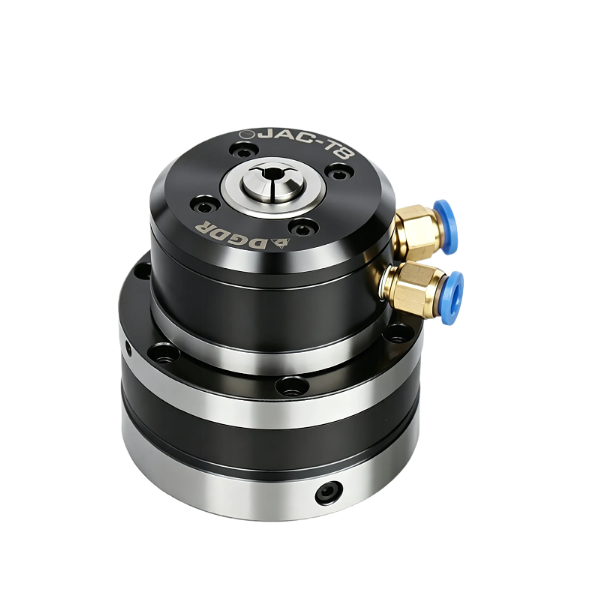

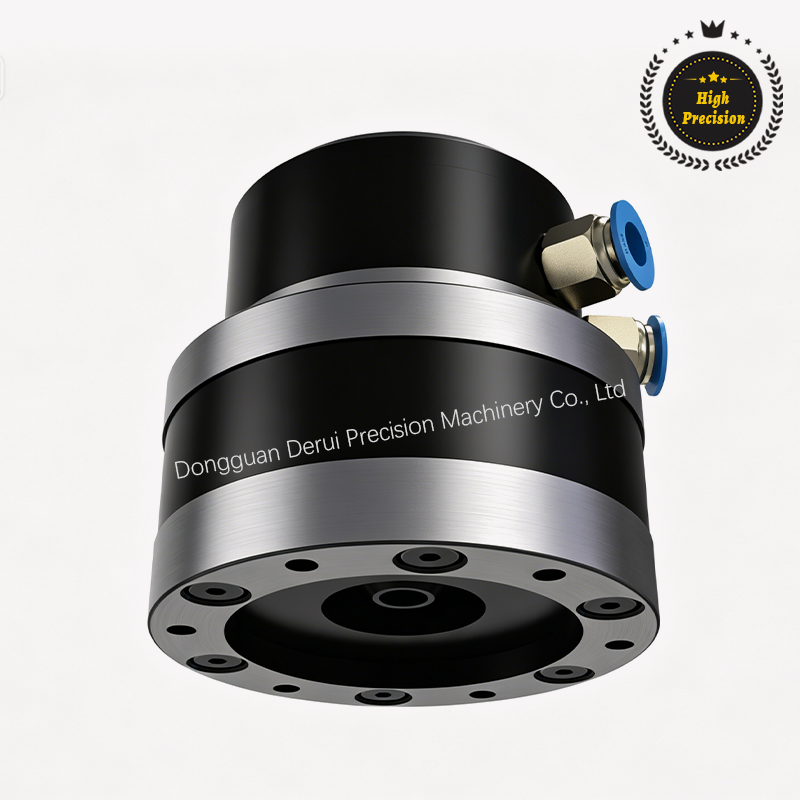

JAC-T8 is a front-mounted, hollow rotary pneumatic chuck It requires no external rotary cylinder,

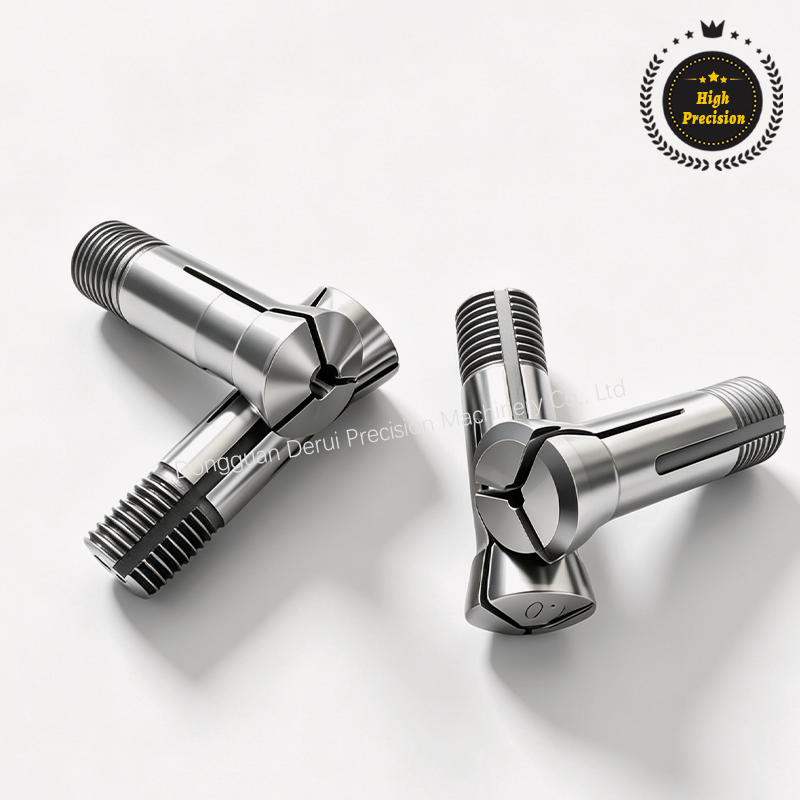

features a compact outer diameter, and allows for collet interchangeability to
accommodate various workpieces. It offers a clamping range of 0.35–8 mm,
with a body runout precision of less than 0.01 mm.
Featuring an airtight, dustproof, and waterproof design it is ideally suited for the
machining of various small parts—such as medical instruments and precision components
How to choose the right chuck model for your machine?
Please fill in the following.
Would you like a rotary type or a fixed type chuck?
Rotary (Rotary Type):
The chuck rotates together with the machine tool spindle,
making it suitable for workpieces that require continuous rotary machining.
Fixed (Fixed Type):
The chuck is mounted on the machine bed and does not rotate.
It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
STEP Format
PDF Format
