Collet Series

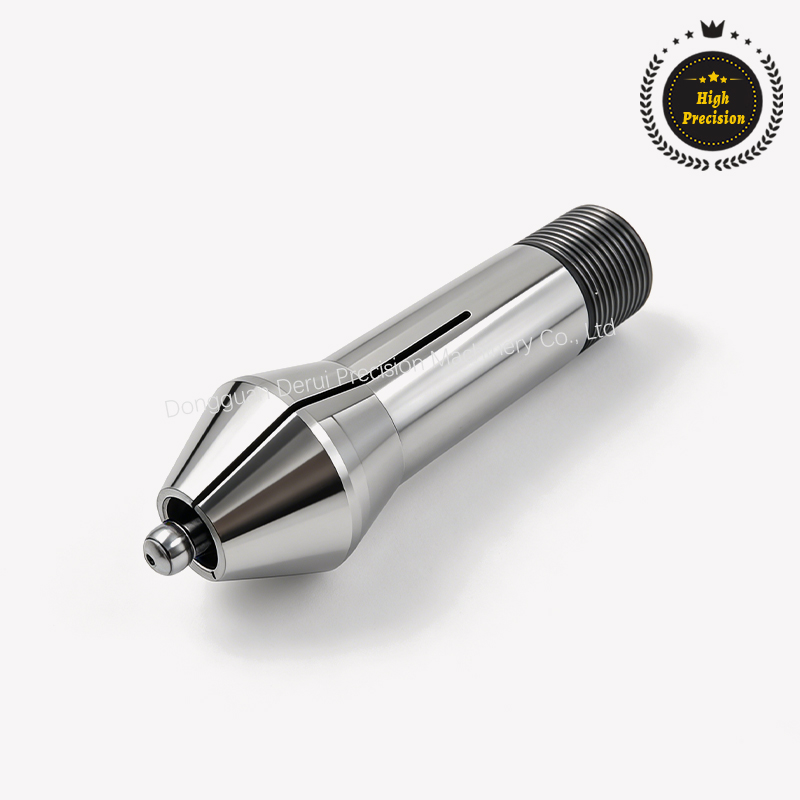

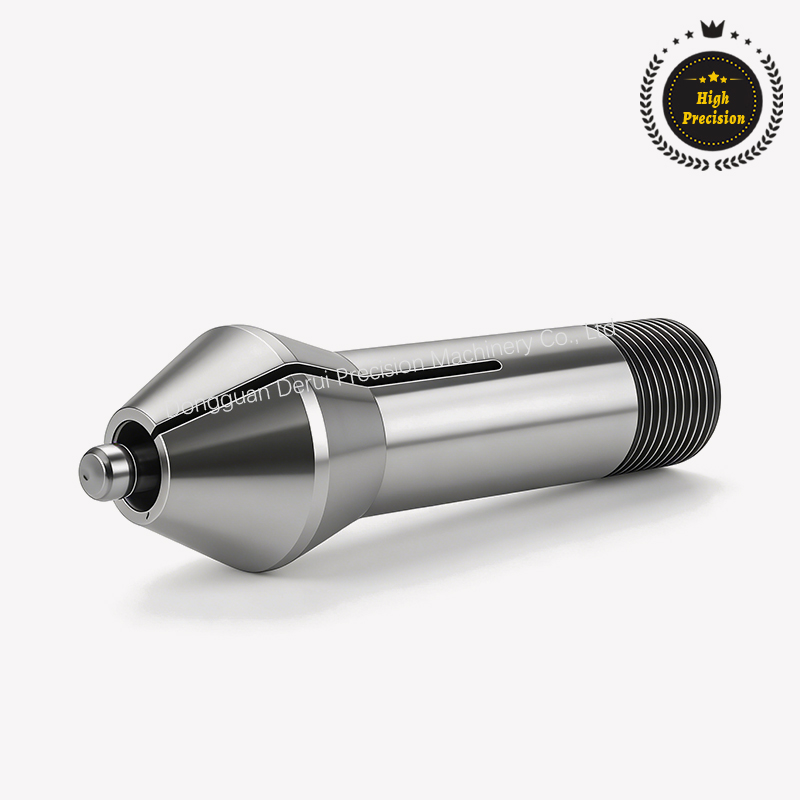

High-Precision Collet

High Precision
$ 52 USD Customization Available

Model

    No data available

  • High precision spring collet is supporting accessory matched with

    DGDR pneumatic/hydraulic spindle & chuck,

  • customized inner bore size for different workpiece clamping,

  • ISO9001 certified with stable concentricity for precision CNC machining.


  • Collets widely apply to precision CNC lathes, 4/5-axis machining centers,

    automatic grinders, laser cutting machines and industrial robot automation equipment,

    ideal for small shaft, pin, tubular precision workpiece clamping.

Get Your Solution

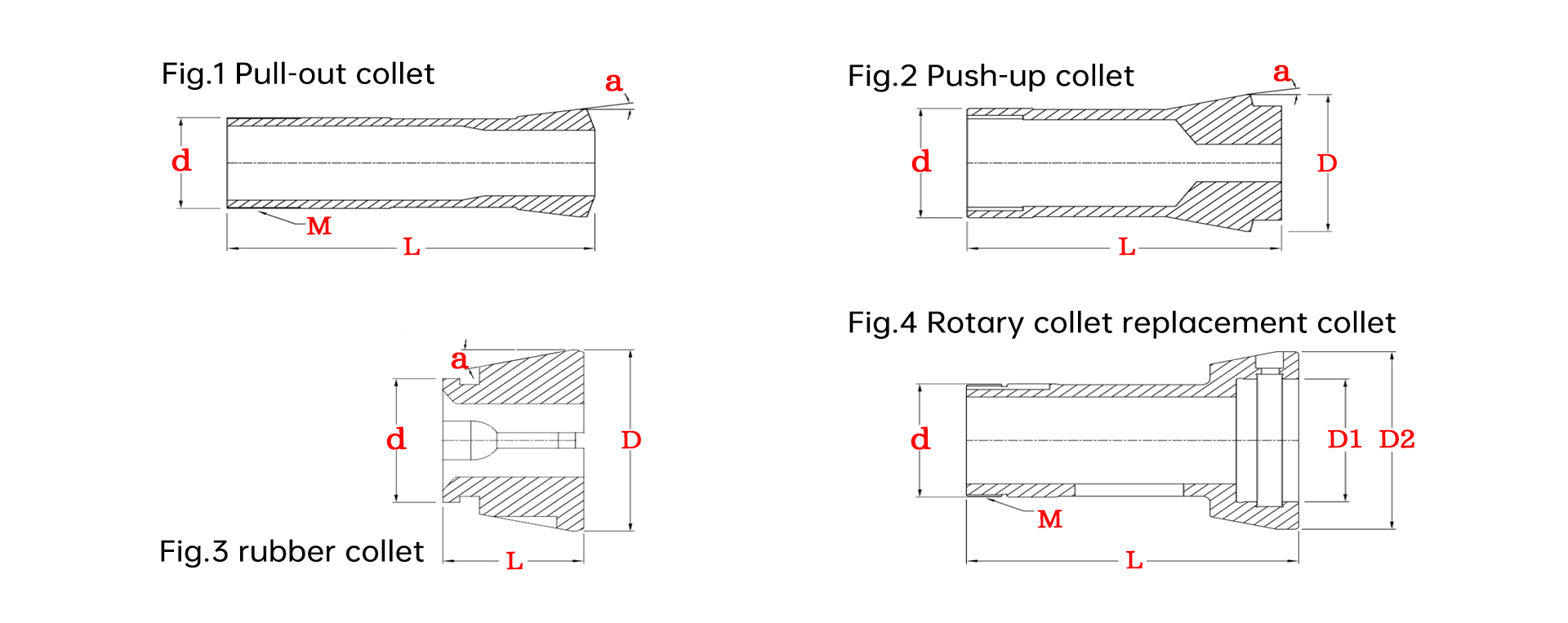

2D Drawing

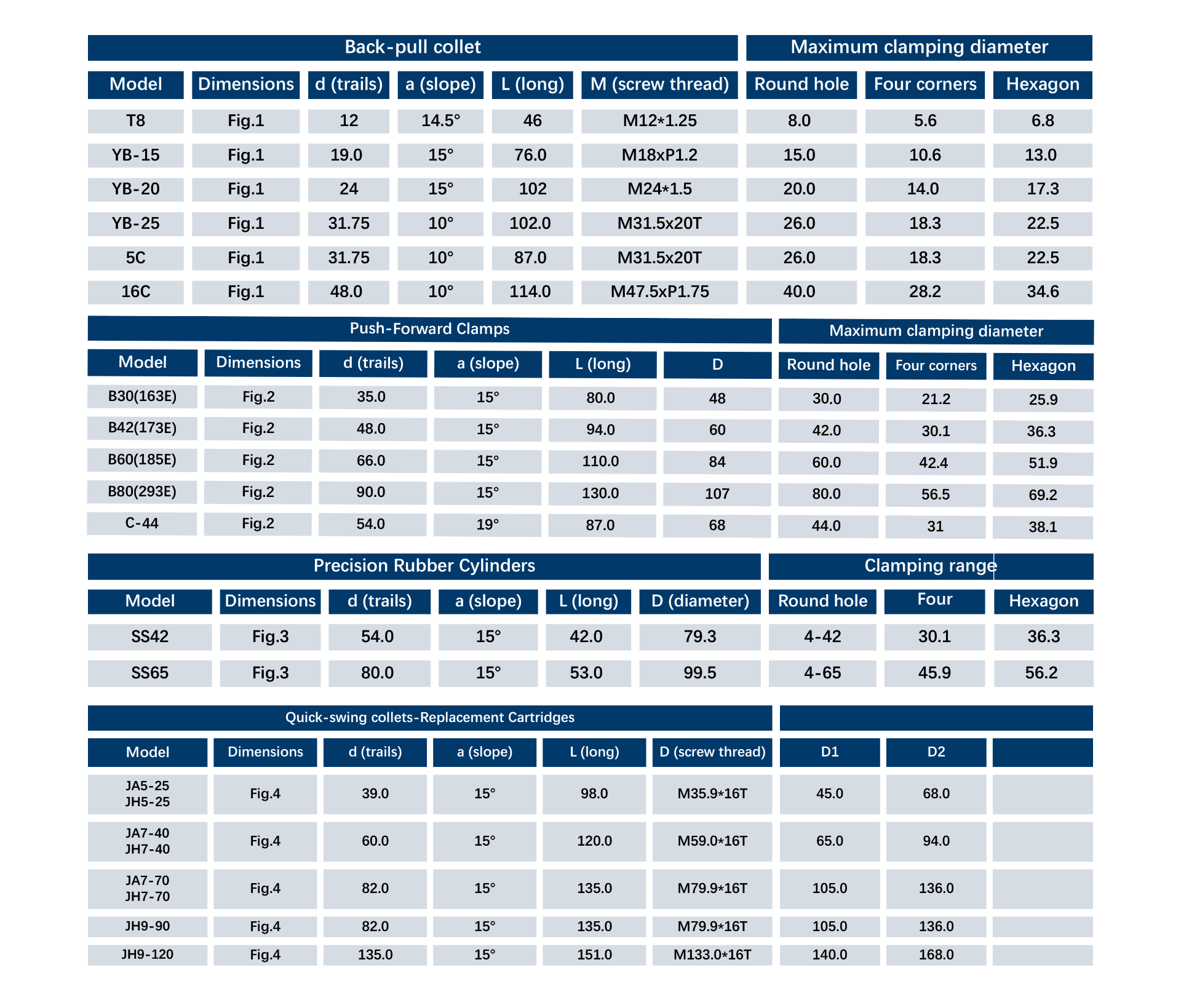

Technical Specifications (mm)


Document DownloadSTEP Format

    No data available

Document DownloadPDF Format

    No data available

1/5

How to choose the right chuck model for your machine?

Please fill in the following.

  • Rotary (Rotary Type):
    The chuck rotates together with the machine tool spindle,
    making it suitable for workpieces that require continuous rotary machining.
  • Fixed (Fixed Type):
    The chuck is mounted on the machine bed and does not rotate.
    It is mainly used for workpiece positioning and clamping, and works with other axes to perform feed machining.
